Questions And Answers

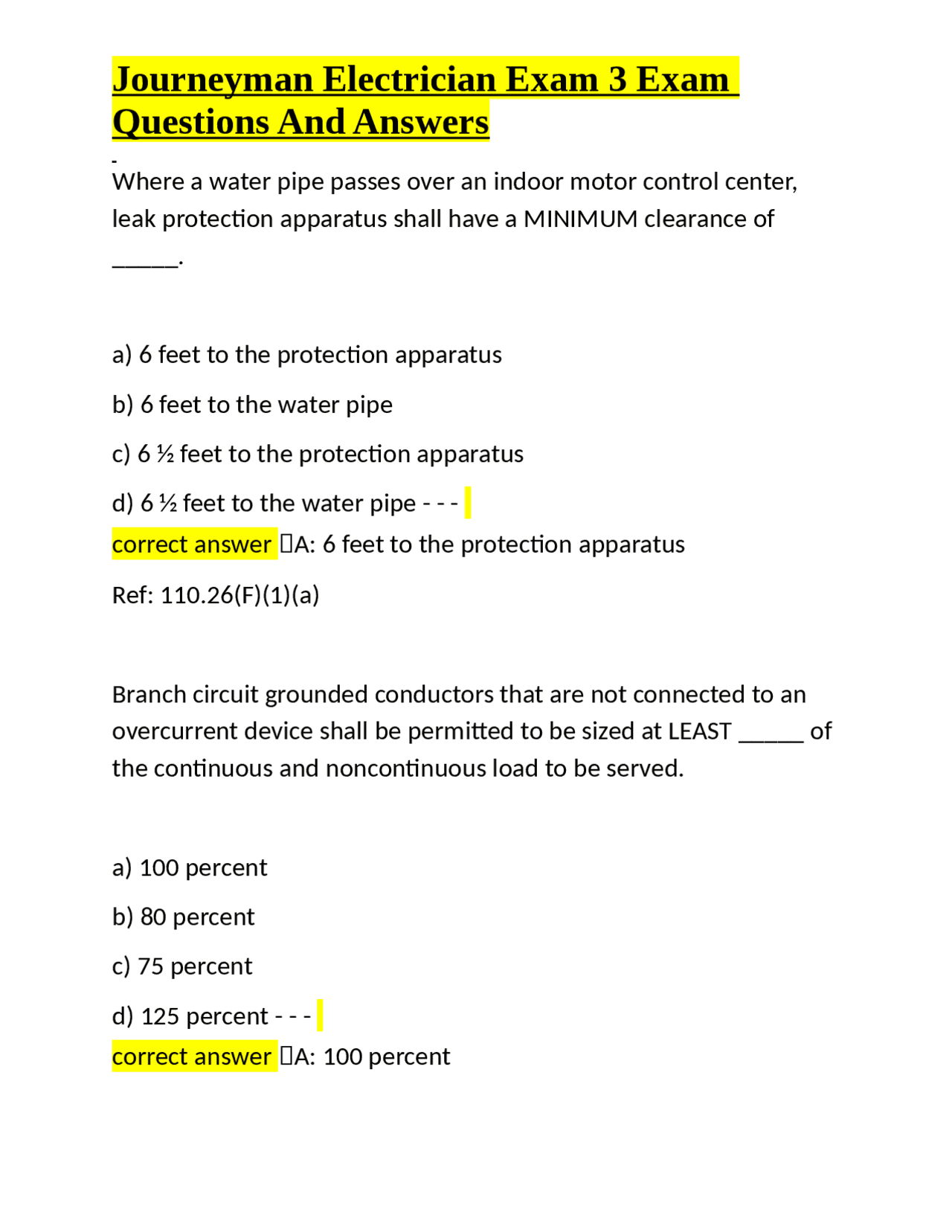

Where a water pipe passes over an indoor motor control center, leak protection apparatus shall have a MINIMUM clearance of _____. a) 6 feet to the protection apparatus b) 6 feet to the water pipe c) 6 1⁄2 feet to the protection apparatus d) 6 1⁄2 feet to the water pipe - - - correct answer ✅A: 6 feet to the protection apparatus Ref: 110.26(F)(1)(a) Branch circuit grounded conductors that are not connected to an overcurrent device shall be permitted to be sized at LEAST _____ of the continuous and noncontinuous load to be served. a) 100 percent b) 80 percent c) 75 percent d) 125 percent - - - correct answer ✅A: 100 percent
Questions And Answers
Ref: 210.19(A)(1), Ex. 2 The MAXIMUM standard rating of the initial non-time-delay fuse for the branch-circuit, short-circuit, and ground-fault protection of a 1 HP, three-phase, 208-volt, squirrel-cage AC motor shall be _____. a) 6 amperes b) 10 amperes c) 15 amperes d) 20 amperes - - - correct answer ✅C: 15 amperes Ref: 430.250; Tbl. 430.52; 430.52(C)(1), Ex. Sol: FLC of motor - 4.6 amperes x 300% = 13.8 amperes For Class III equipment that is not subject to overloading the MAXIMUM surface temperature under operating conditions shall NOT exceed _____. a) 120°C b) 165°C
Questions And Answers
a) four 90° bends b) six 90° bends c) four 120° bends d) two 90° bends - - - correct answer ✅A: four 90° bends Ref: 352. Grounding electrodes made of pipe or conduit shall not be smaller than _____ electrical trade size. a) 1⁄2 inch b) 3⁄4 inch c) 1 inch d) 11⁄2 inch - - - correct answer ✅B: 3/4 inch Ref: 250.52(A)(5)(a) Liquid-tight flexible metallic conduit (LFMC) shall NOT be used _____.
Questions And Answers
a) in lengths in excess of 6 feet b) in concealed work c) in hazardous locations d) where subject to physical damage - - - correct answer ✅D: where subject to physical damage Ref: 350.12(1) Determine the allowable ampacity of a size 3 AWG THHN copper conductor given the following: (1) Two current-carrying conductors are in the conduit. (2) The ambient temperature is 34°C. (3) The terminations are rated 60°C. a) 105.6 amperes b) 85.0 amperes c) 81.6 amperes d) 110 amperes - - - correct answer ✅B: 85.0 amperes Ref: 110.14(C); 310.15(A)(2); Tbl. 310.
Questions And Answers
When sizing time-delay Class CC fuses for motor branch-circuit, short-circuit, and ground-fault protection, they are to be sized at the same value as _____. a) inverse-time circuit breakers b) non-time-delay fuses c) instantaneous trip circuit breakers d) adjustable trip circuit breakers - - - correct answer ✅B: non-time-delay fuses Ref: Tbl. 430.52, Note 1 Where sizes 1/0 AWG through 4/0 AWG single conductor cables are installed in ladder type cable tray, the MAXIMUM allowable rung spacing for the ladder cable tray shall be _____. a) 6 inches b) 9 inches c) 12 inches d) 15 inches - - - correct answer ✅B: 9 inches
Questions And Answers
Ref: 392.3(B)(1)(a) The NEC requires the MAXIMUM length permitted for a flexible cord supplying a 208-volt, single-phase, room air-conditioner to be _____. a) 4 feet b) 6 feet c) 8 feet d) 10 feet - - - correct answer ✅B: 6 feet Ref: 440. In general, which of the following receptacle outlets in a commercial kitchen are required by the NEC to be GFCI protected? a) All 125-volt, single-phase, 15- and 20-ampere rated receptacles. b) All 125-volt, 15- or 20-ampere rated receptacles in wet locations only. c) All receptacle outlets.
Questions And Answers
b) 80 c) 100 d) 125 - - - correct answer ✅D: 125 Ref: 430. What is the MINIMUM size equipment grounding conductor required for a 5 HP, three-phase, 208-volt motor having 20- ampere rated overload protection and short-circuit overcurrent protection rated at 30 amperes? a) 10 AWG b) 14 AWG c) 12 AWG d) 8 AWG - - - correct answer ✅A: 10 AWG Ref: Tbl. 250. If a circuit breaker serves as the controller for a motor, and the motor is not in sight of the breaker, the NEC requires which of the following?
Questions And Answers
a) The motor to be less than 2 HP b) The breaker be able to be locked in the open position. c) The motor to be Code letter E d) The breaker to be rated 25,000 AIC. - - - correct answer ✅B: The breaker be able to be locked in the open position. Ref: 430.102(B)(2), Ex. In Class II, Division 1, hazardous locations, an approved method of connection of conduit to boxes is _____. a) compression fittings b) threaded bosses c) welding d) all of these - - - correct answer ✅B: threaded bosses Ref: 502.10(A)(4)
Questions And Answers
d) 4 AWG - - - correct answer ✅B: 8 AWG Ref: 630.11(A); Tbl. 310. Sol: .78 (duty cycle) x 50 amperes (primary current) = 39 amperes Tbl. 310.16 requires a size 8 AWG conductor. When installing wiring for sensitive electronic equipment, the MAXIMUM voltage to ground is required to be _____ volts. a) 30 b) 60 c) 120 d) 300 - - - correct answer ✅B: 60 Ref: 647. In a health care facility, a patient bed location in a critical care area is required to have which of the following? a) four single receptacles or two duplex receptacles
Questions And Answers
b) six single receptacles or three duplex receptacles c) two duplex receptacles or four single receptacles d) two single receptacles or one duplex receptacle - - - correct answer ✅B: six single receptacles or three duplex receptacles Ref: 517.19(B)(1) and (2) Which of the following circuits is prohibited for the grounded conductor to be dependent on receptacle devices for continuity? a) all circuits b) multi-outlet circuits c) GFCI protected circuits d) multi-wire circuits - - - correct answer ✅D: multi-wire circuits Ref: 300.13(B)
