Exam

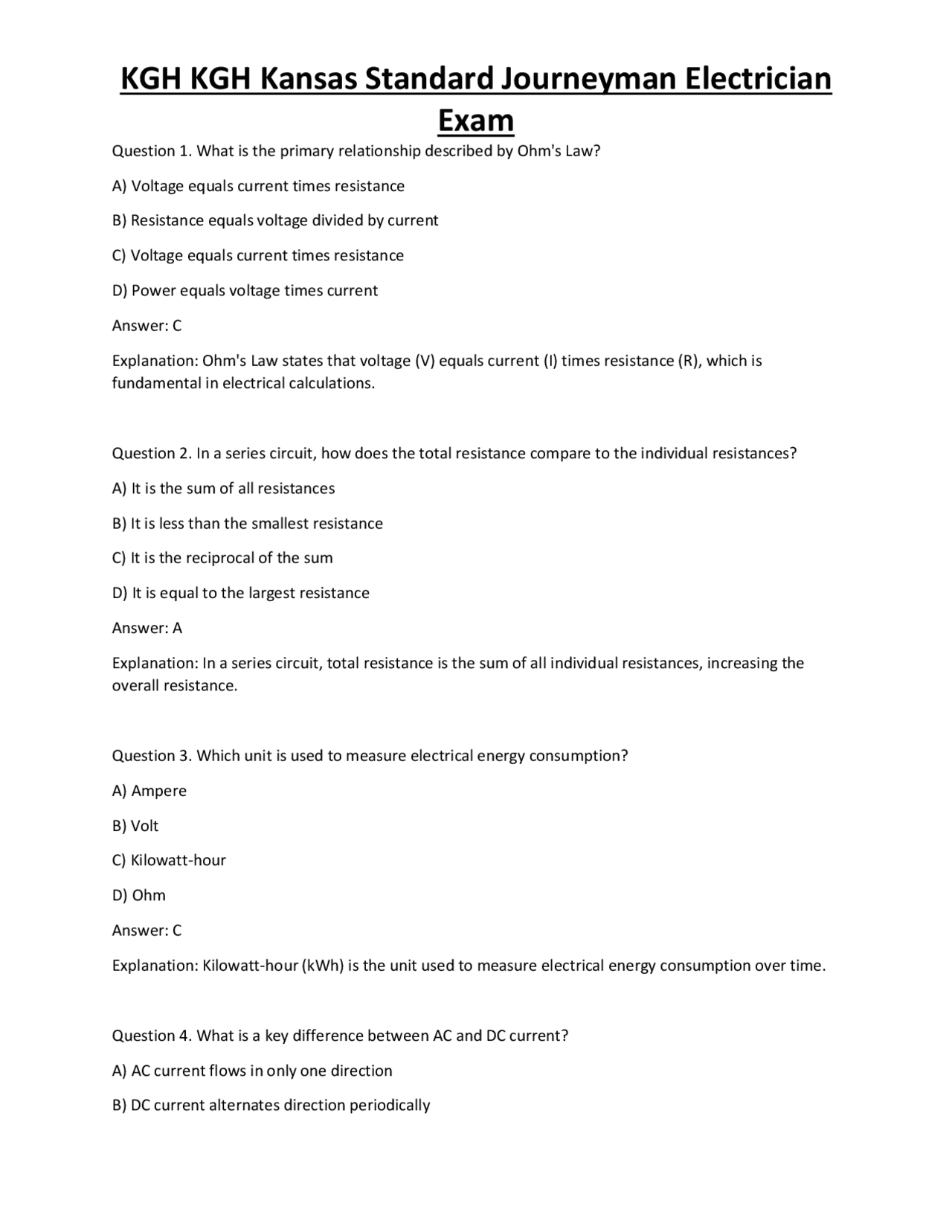

Question 1. What is the primary relationship described by Ohm's Law? A) Voltage equals current times resistance B) Resistance equals voltage divided by current C) Voltage equals current times resistance D) Power equals voltage times current Answer: C Explanation: Ohm's Law states that voltage (V) equals current (I) times resistance (R), which is fundamental in electrical calculations. Question 2. In a series circuit, how does the total resistance compare to the individual resistances? A) It is the sum of all resistances B) It is less than the smallest resistance C) It is the reciprocal of the sum D) It is equal to the largest resistance Answer: A Explanation: In a series circuit, total resistance is the sum of all individual resistances, increasing the overall resistance. Question 3. Which unit is used to measure electrical energy consumption? A) Ampere B) Volt C) Kilowatt-hour D) Ohm Answer: C Explanation: Kilowatt-hour (kWh) is the unit used to measure electrical energy consumption over time. Question 4. What is a key difference between AC and DC current? A) AC current flows in only one direction B) DC current alternates direction periodically
Exam
C) AC current changes direction periodically D) DC current has frequency Answer: C Explanation: Alternating Current (AC) periodically reverses direction, unlike Direct Current (DC), which flows in one direction. Question 5. When calculating voltage drop, which factor is NOT typically considered? A) Conductor length B) Conductor material C) Ambient temperature D) Color of the conductor Answer: D Explanation: The color of the conductor does not affect voltage drop calculations; length, material, and temperature do. Question 6. Which of the following is a fundamental electrical unit of capacitance? A) Henry B) Farad C) Ohm D) Volt Answer: B Explanation: The farad is the unit of capacitance, representing a capacitor's ability to store charge. Question 7. According to NEC Article 100, what term describes a conductor used to connect the system grounded conductor to the grounding electrode? A) Grounding conductor B) Bonding jumper C) Grounding electrode conductor D) Equipment grounding conductor
Exam
Explanation: For a 100-amp service, 2 AWG copper conductors are typically sufficient, considering ampacity and code requirements. Question 11. When selecting a disconnecting means for a service, what is the minimum rating required by NEC for a 200-amp service? A) 100 amps B) 200 amps C) 250 amps D) 125 amps Answer: B Explanation: The disconnect must be rated at least equal to the service rating, so 200 amps for a 200- amp service. Question 12. Which of the following best describes the purpose of a grounding rod? A) To carry current during normal operation B) To connect all metal parts of the building C) To provide a low-resistance path to earth in case of a fault D) To serve as a conduit for electrical wiring Answer: C Explanation: A grounding rod provides a path to earth to safely dissipate fault current. Question 13. What is the primary consideration when sizing a transformer? A) The length of the wiring B) The maximum load demand C) The color of the transformer D) The number of circuits connected Answer: B Explanation: The transformer must be sized based on the maximum expected load demand to prevent overload.
Exam
Question 14. Which type of wiring method is typically used for underground service conductors? A) Non-metallic sheathed cable (NM) B) EMT conduit C) Direct burial cable or underground raceways D) Flexible cords Answer: C Explanation: Direct burial cables or underground-rated raceways are required for underground service wiring. Question 15. In conduit fill calculations, what is the maximum percentage of conduit cross-sectional area that can be occupied by conductors? A) 40% B) 50% C) 60% D) 75% Answer: C Explanation: NEC limits conduit fill to 40% for one conductor and 60% for multiple conductors, depending on specifics; generally, 60% is a common maximum for fill calculations. Question 16. Which box type is suitable for a location where multiple conductors are spliced? A) Junction box B) Device box C) Pull box D) Weatherproof box Answer: A Answer: A Explanation: Junction boxes are designed for splicing conductors and providing accessible connections.
Exam
C) Overload relay D) Timer switch Answer: C Explanation: An overload relay protects motors by disconnecting power during overload conditions. Question 21. When sizing conductors for a motor, which factor must be considered? A) The motor’s horsepower rating B) The color of the motor housing C) The length of the conduit D) The type of paint used Answer: A Answer: A Explanation: The motor’s horsepower determines the required conductor size and protection according to NEC tables. Question 22. What is the purpose of a bonding jumper in an electrical system? A) To connect the equipment grounding conductor to the grounding electrode B) To connect two separate circuits C) To prevent overcurrent D) To provide a path for neutral current Answer: A Explanation: Bonding jumpers ensure all metal parts are connected to maintain a low-resistance path to ground. Question 23. For a 120/240V single-phase service, what is the typical configuration of the main service disconnect? A) A single-pole breaker B) A dual-pole breaker C) A three-pole breaker
Exam
D) A relay switch Answer: B Explanation: Dual-pole breakers are used for 240V services to disconnect both hot lines simultaneously. Question 24. Which of the following is a correct method for grounding a metal conduit system? A) Using an insulated wire B) Using a grounding clamp or connector to connect the conduit to a grounding conductor C) Painting the conduit with insulating paint D) Leaving the conduit unconnected Answer: B Answer: B Explanation: Proper grounding involves connecting conduit to the grounding system with approved clamps or connectors. Question 25. Which NEC article covers the requirements for grounding and bonding? A) Article 250 B) Article 300 C) Article 410 D) Article 725 Answer: A Explanation: Article 250 of the NEC provides detailed requirements for grounding and bonding. Question 26. What is the main function of a circuit breaker in an electrical system? A) To regulate voltage B) To protect against overload and short circuit C) To convert AC to DC D) To step down voltage Answer: B
Exam
Question 30. During a voltage drop calculation, if the length of the conductor doubles, what happens to the voltage drop? A) It halves B) It remains the same C) It doubles D) It increases quadratically Answer: C Explanation: Voltage drop is directly proportional to conductor length; doubling length doubles the voltage drop. Question 31. Which of the following is a common material used for electrical conductors? A) Copper B) Aluminum C) Both A and B D) Steel Answer: C Explanation: Copper and aluminum are common conductor materials, with copper offering higher conductivity. Question 32. What is the minimum clearance required for conductors crossing over a walkway? A) 8 feet B) 10 feet C) 12 feet D) 15 feet Answer: C Explanation: NEC requires a minimum clearance of 12 feet over walkways to prevent accidental contact. Question 33. Which of the following describes a Type MC cable? A) Metal-clad cable with armor for protection
Exam
B) Non-metallic sheathed cable C) Underground feeder cable D) Flexible extension cord Answer: A Explanation: Type MC cable has metal armor providing mechanical protection suitable for various installations. Question 34. In the context of electrical wiring, what does the term "conduit fill" refer to? A) The number of conductors in a conduit B) The process of filling conduit with lubricant C) The maximum number of conductors permitted in a conduit D) The volume of conduit used per installation Answer: C Explanation: Conduit fill refers to the maximum number of conductors allowed in a conduit based on cross-sectional area. Question 35. Which NEC article covers requirements for receptacles? A) Article 210 B) Article 250 C) Article 300 D) Article 410 Answer: A Explanation: Article 210 provides rules for branch circuits and receptacle outlets. Question 36. When installing a luminaire, what is the minimum clearance from the bottom of the fixture to the floor in a residential living space? A) 6 inches B) 7 feet C) 8 feet
Exam
Question 40. When performing a load calculation for a commercial occupancy, which factor is considered in the NEC? A) The number of parking spaces B) The total connected load C) The building’s architectural style D) The number of windows Answer: B Explanation: Load calculations consider the total connected load to determine required service capacity. Question 41. Which type of switch is designed specifically for controlling lighting from multiple locations and includes one or more intermediate switches? A) Single-pole switch B) Three-way switch C) Four-way switch D) Dimmer switch Answer: C Explanation: Four-way switches are used between two three-way switches to control lighting from multiple locations. Question 42. What is the primary purpose of a disconnect switch in a motor control circuit? A) To change motor direction B) To disconnect power for maintenance or emergency C) To regulate motor speed D) To start the motor Answer: B Explanation: Disconnect switches provide a means to safely disconnect power for servicing or emergency shutoff.
Exam
Question 43. In a residential wiring system, what is the typical color coding for the neutral conductor? A) Black B) Red C) White or Gray D) Green Answer: C Explanation: Neutral conductors are typically white or gray per NEC standards. Question 44. The NEC requires that GFCI protection be provided for outdoor receptacles within how many feet of a pool? A) 10 feet B) 15 feet C) 20 feet D) 25 feet Answer: B Explanation: GFCI protection is required for outdoor receptacles within 15 feet of a pool to prevent electrical shock hazards. Question 45. Which of the following is a common insulation material used for residential wiring conductors? A) Rubber B) Polyvinyl chloride (PVC) C) Glass D) Ceramic Answer: B Explanation: PVC is a common insulation material for residential wiring due to its durability and insulating properties. Question 46. Which device is used to provide overcurrent protection for a branch circuit?
Exam
D) 20 inches Answer: B Explanation: NEC recommends a minimum height of 12 inches for receptacles on countertops for safety and convenience. Question 50. What is the purpose of a thermal overload relay in a motor circuit? A) To protect against phase imbalance B) To disconnect the motor during overload conditions C) To start the motor D) To regulate voltage Answer: B Explanation: Thermal overload relays disconnect the motor during overloads to prevent damage. Question 51. Which conductor material has the highest electrical conductivity? A) Aluminum B) Copper C) Steel D) Brass Answer: B Explanation: Copper has higher electrical conductivity than aluminum and other metals commonly used in wiring. Question 52. What is the main purpose of an AFCI device? A) To prevent ground faults B) To protect against arc faults that can cause fires C) To regulate voltage D) To disconnect power during overloads Answer: B Explanation: AFCIs detect arc faults that could ignite fires and disconnect power to prevent hazards.
Exam
Question 53. In a lighting circuit, what is the typical color of the hot (live) conductor? A) Green B) White C) Black or Red D) Bare copper Answer: C Explanation: Black or Red conductors are used as hot (live) conductors in residential wiring. Question 54. When wiring a three-phase motor in a delta configuration, how many connection points are involved? A) 2 B) 3 C) 4 D) 6 Answer: B Explanation: A delta connection involves three points, each connecting two phases in a triangle shape. Question 55. Which is an acceptable method for grounding a metal conduit system? A) Using insulated connectors B) Using grounding clamps or couplings C) Painting the conduit with insulating paint D) Leaving the conduit unconnected Answer: B Explanation: Grounding clamps or couplings are used to establish continuity and grounding in conduit systems. Question 56. What is the typical voltage rating for residential service in most areas of the U.S.? A) 120V only
Exam
Explanation: The main bonding jumper connects neutral and grounding systems at the main service to establish a common reference. Question 60. What is the maximum length of flexible cords used for temporary lighting according to NEC? A) 6 feet B) 10 feet C) 15 feet D) 25 feet Answer: D Explanation: NEC generally limits flexible cords for temporary lighting to 25 feet for safety and code compliance. Question 61. When installing a receptacle in a bathroom, what special requirement must be met? A) It must be GFCI protected B) It must be on a separate circuit C) It must be on a 20-amp circuit only D) It must be a weatherproof outlet Answer: A Answer: A Explanation: Receptacles in bathrooms must be GFCI protected to prevent electrical shock hazards. Question 62. Which of the following is a typical insulation material for underground feeders? A) Rubber B) Non-metallic sheathed cable (UF) C) PVC conduit D) Rigid metal conduit Answer: B Explanation: UF (Underground Feeder) cable has insulation suitable for direct burial in soil.
Exam
Question 63. In a residential system, which device is used to protect against both overload and short circuit? A) GFCI B) Circuit breaker C) Residual current device D) Time delay fuse Answer: B Explanation: Circuit breakers provide protection against overload and short circuit conditions. Question 64. What NEC article covers the requirements for wiring methods? A) Article 300 B) Article 210 C) Article 250 D) Article 410 Answer: A Explanation: Article 300 addresses general wiring methods and installation requirements. Question 65. Which type of switch can control a light from three or more locations? A) Single-pole switch B) 3-way switch C) 4-way switch D) Multi-location switch Answer: D Explanation: Multi-location switches, including three or more, are used to control a fixture from multiple points, often with 3- or 4-way switches. Question 66. How should conductors be identified in a multi-conductor cable? A) By their insulation color
