Exam

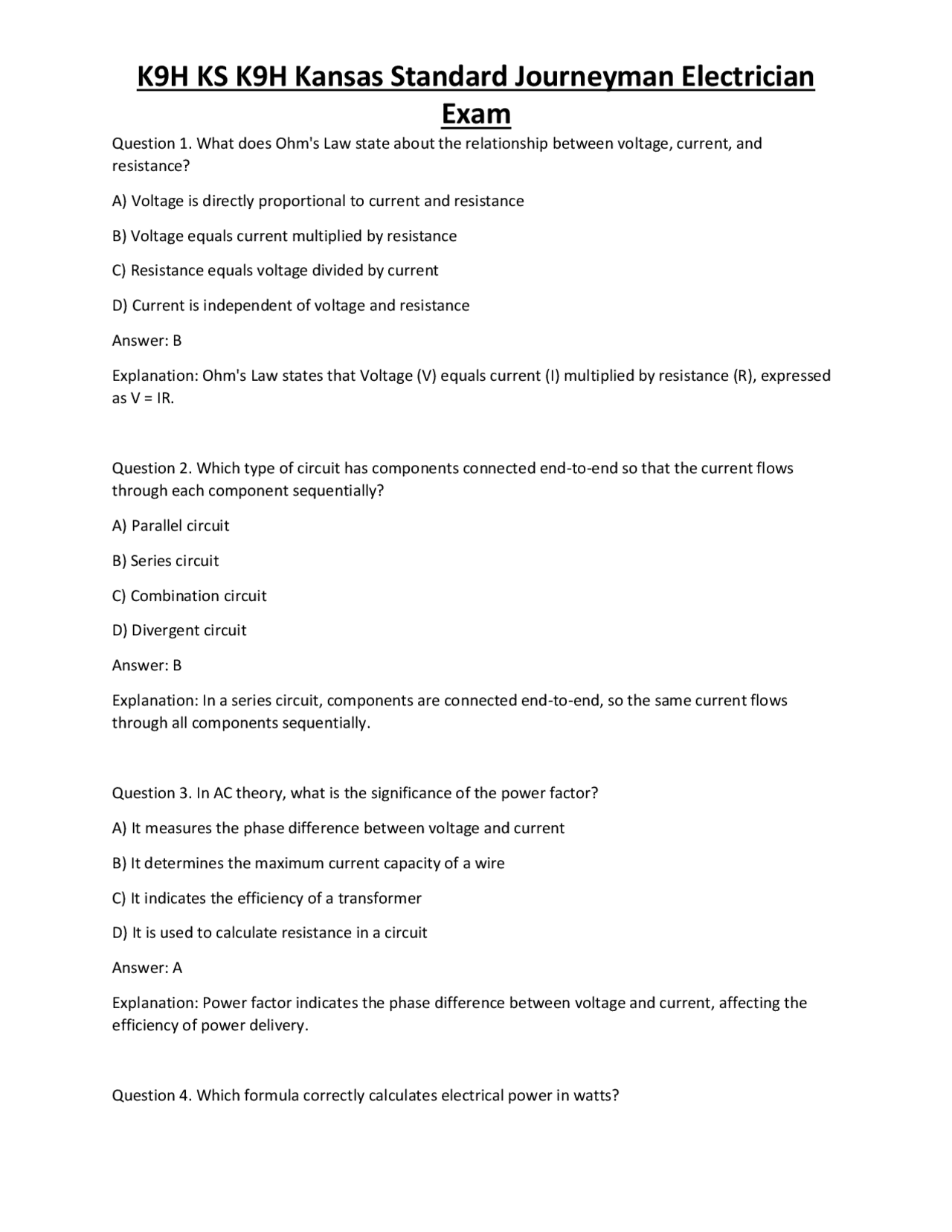

Question 1. What does Ohm's Law state about the relationship between voltage, current, and resistance? A) Voltage is directly proportional to current and resistance B) Voltage equals current multiplied by resistance C) Resistance equals voltage divided by current D) Current is independent of voltage and resistance Answer: B Explanation: Ohm's Law states that Voltage (V) equals current (I) multiplied by resistance (R), expressed as V = IR. Question 2. Which type of circuit has components connected end-to-end so that the current flows through each component sequentially? A) Parallel circuit B) Series circuit C) Combination circuit D) Divergent circuit Answer: B Explanation: In a series circuit, components are connected end-to-end, so the same current flows through all components sequentially. Question 3. In AC theory, what is the significance of the power factor? A) It measures the phase difference between voltage and current B) It determines the maximum current capacity of a wire C) It indicates the efficiency of a transformer D) It is used to calculate resistance in a circuit Answer: A Explanation: Power factor indicates the phase difference between voltage and current, affecting the efficiency of power delivery. Question 4. Which formula correctly calculates electrical power in watts?
Exam
A) P = V / I
B) P = V x I C) P = I^2 x R D) P = V^2 / R Answer: B Explanation: Power (P) in watts equals voltage (V) multiplied by current (I), expressed as P = V x I. Question 5. What is the primary purpose of the National Electrical Code (NEC)? A) To set safety standards and minimum requirements for electrical installations B) To regulate the manufacturing of electrical equipment only C) To establish wiring color codes exclusively D) To provide guidelines for plumbing systems Answer: A Explanation: The NEC provides safety standards and minimum requirements for electrical installations to protect people and property. Question 6. When reading electrical blueprints, what does a symbol of a circle with a cross inside typically represent? A) Light fixture or lamp outlet B) Switch C) Receptacle outlet D) Junction box Answer: A Explanation: A circle with a cross inside generally indicates a light fixture or lamp outlet on electrical blueprints. Question 7. What size service conductor is typically required for a residence with a main load of 200 amps? A) 1000 kcmil B) 2/0 AWG
Exam
Answer: A Explanation: Fault current is calculated by dividing the supply voltage by the total impedance of the circuit path. Question 11. When sizing feeders to a subpanel, which factor must be considered? A) The total connected load of the subpanel B) The length of the branch circuits only C) The number of outlets in the building D) The color of the conductors Answer: A Explanation: Feeder conductors are sized based on the total connected load to ensure proper capacity and safety. Question 12. What is the purpose of grounding equipment supplied by a feeder? A) To prevent electrical shock and facilitate fault clearing B) To increase circuit impedance C) To reduce voltage fluctuations D) To prevent electromagnetic interference only Answer: A Explanation: Proper grounding provides a safe path for fault currents and helps prevent electric shock hazards. Question 13. Which calculation is correct for determining the size of a branch circuit conductor for a load of 30A? A) Use 30A as the conductor's ampacity directly B) Select a conductor rated at least 125% of the load current, so 37.5A minimum C) Use a 15A circuit breaker only D) Use a conductor rated for 15A only Answer: B
Exam
Explanation: Branch circuit conductors must be sized at 125% of the continuous load to ensure safety and code compliance. Question 14. Which type of overcurrent protection device is most commonly used in residential branch circuits? A) Fuses B) Circuit breakers C) Ground-fault relays D) Surge suppressors Answer: B Explanation: Circuit breakers are standard overcurrent protection devices in residential systems due to their reusability and reliability. Question 15. What is the minimum conductor size for a general lighting circuit in a residence? A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: B Explanation: The NEC generally requires a minimum of 12 AWG copper conductors for general lighting circuits to handle typical loads safely. Question 16. Which protection device is required for GFCI outlets in bathrooms? A) Standard circuit breaker B) GFCI device or breaker C) AFCI breaker only D) No protection needed Answer: B Explanation: GFCI protection is required for outlets in bathrooms to prevent electrical shocks.
Exam
B) Required for all receptacles within 6 feet of a sink C) Not required if the circuit is 20A D) Only for kitchen outlets Answer: B Explanation: Receptacles within 6 feet of a sink or water source in bathrooms must be GFCI protected to prevent shocks. Question 21. What is the typical voltage range of a standard residential service in the United States? A) 120/240 V AC B) 208/120 V AC C) 480 V AC D) 600 V DC Answer: A Explanation: Residential services in the US are typically 120/240 V AC, split-phase supply. Question 22. Which device is used to protect against overloads and short circuits in motor circuits? A) Ground-fault interrupter B) Overload relay or circuit breaker C) Surge protector D) Lighting dimmer Answer: B Explanation: Overload relays or circuit breakers protect motors from overloads and short circuits. Question 23. When installing a transformer, what is the primary consideration? A) Correct voltage and wattage ratings for load requirements B) Length of conductors only C) Color coding of wires D) Only the size of the enclosure Answer: A
Exam
Explanation: Proper transformer installation depends on matching the primary and secondary voltage ratings and ensuring adequate capacity for the load. Question 24. Which type of wiring method is suitable for underground service conductors? A) Rigid metal conduit (RMC) B) Surface raceways C) Underground feeder cable (UF) or conduit with individual conductors D) Flexible cords Answer: C Explanation: UF cables or conduit with individual conductors are suitable for underground wiring. Question 25. What is the maximum number of conductors allowed in a 2-inch conduit according to NEC fill rules? A) 10 conductors B) 15 conductors C) 20 conductors D) It depends on the conductor size and fill percentage Answer: D Explanation: The maximum number depends on conductor size and conduit fill percentage as per NEC tables. Question 26. Which type of switch is designed to control lighting from multiple locations? A) Single-pole switch B) Three-way switch C) Dimmer switch D) GFCI switch Answer: B Explanation: A three-way switch allows control of lighting from two different locations.
Exam
C) Flexible metallic conduit (FMC) D) PVC conduit Answer: D Explanation: PVC conduit is suitable for outdoor exposed wiring due to its corrosion resistance. Question 31. How is the size of a branch circuit conductor determined for a continuous load? A) By using the actual load current only B) By multiplying the load current by 125% and selecting the next standard size C) By always using 14 AWG wire D) By using the same size as the service entrance conductors Answer: B Explanation: For continuous loads, conductors must be rated at 125% of the load current to ensure safety. Question 32. In grounding systems, what is a grounding electrode? A) A conductive object that is connected to earth to provide a low resistance path B) A conductor that carries current during normal operation C) A switch that connects the system to the ground D) An insulator used to isolate the system from earth Answer: A Explanation: A grounding electrode is a conductive object like a ground rod, water pipe, or concrete- encased electrode that connects the system to earth. Question 33. What is the typical color coding for grounding conductors in the NEC? A) Green or bare copper B) Black or red C) White or gray D) Blue or yellow Answer: A
Exam
Explanation: Grounding conductors are typically green or bare copper to distinguish them from other conductors. Question 34. When installing a switch for a lighting circuit, what is the minimum recommended wire gauge? A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: A Explanation: Switch wiring for lighting circuits generally uses 14 AWG or 12 AWG, depending on the circuit load, but 14 AWG is common for 15A circuits. Question 35. Which device is used to protect against voltage surges? A) GFCI B) Surge arrester or suppressor C) AFCI D) Circuit breaker Answer: B Explanation: Surge arresters or suppressors protect electrical equipment from voltage surges. Question 36. What is the minimum depth for underground service conductors buried in the ground, according to the NEC? A) 12 inches B) 18 inches C) 24 inches D) 36 inches Answer: C Explanation: The NEC typically requires underground service conductors to be buried at least 24 inches deep, depending on the type of wiring.
Exam
B) It only needs to disconnect the motor during installation C) It must be located outside the building only D) It does not need to be lockable Answer: A Explanation: The disconnecting means must be capable of safely disconnecting the motor under full load for maintenance or emergency. Question 41. Which type of wiring method is most suitable for flexible connection to appliances? A) Rigid metal conduit B) Flexible cords and cables C) Non-metallic conduit D) Underground feeders Answer: B Explanation: Flexible cords and cables are designed for appliance connections requiring flexibility. Question 42. What is the primary requirement when installing a lighting fixture in a wet location? A) Use fixtures rated for wet or damp locations B) Use only incandescent bulbs C) Install without any cover or enclosure D) Use only underground wiring methods Answer: A Explanation: Fixtures installed in wet locations must be rated for such conditions to prevent water ingress and electrical hazards. Question 43. Which device is used to interrupt a circuit in case of a short circuit or overload? A) GFCI B) Circuit breaker or fuse C) Surge protector D) Light switch
Exam
Answer: B Explanation: Circuit breakers or fuses are overcurrent devices that disconnect the circuit during faults like short circuits or overloads. Question 44. How is a service entrance conductor typically supported? A) By approved clamps or straps directly attached to the building structure B) By hanging from the roof only C) By being left unsupported D) By wrapping around the building’s framing members without attachment Answer: A Explanation: Service conductors must be securely supported by approved clamps or straps attached to the building structure. Question 45. What is the purpose of a lockable disconnect switch for a motor? A) To prevent unauthorized operation and allow safe maintenance B) To increase circuit capacity C) To improve energy efficiency D) To serve as a GFCI device Answer: A Explanation: A lockable disconnect switch prevents unauthorized or accidental operation and ensures safety during maintenance. Question 46. Which of the following is a requirement for emergency systems in healthcare facilities? A) They must have a dedicated, automatically engaged power source B) They can be powered from the main service with no backup C) They require no special wiring or installation standards D) They only operate during power outages for lighting Answer: A Explanation: Emergency systems must have a dedicated, automatically engaged power source to ensure critical functions during outages.
Exam
Question 50. Which type of conduit is most suitable for exposed outdoor applications where mechanical protection is needed? A) EMT B) Rigid metal conduit (RMC) C) Flexible metallic conduit (FMC) D) Non-metallic conduit (PVC) Answer: B Explanation: Rigid metal conduit (RMC) provides excellent mechanical protection and is suitable for exposed outdoor environments. Question 51. How often should receptacles in a dwelling be provided along a countertop according to the NEC? A) Every 24 inches B) Every 48 inches C) Every 12 inches D) Every 36 inches Answer: B Explanation: The NEC requires receptacles to be installed so that no point along the countertop is more than 24 inches from a receptacle, effectively placing them approximately every 4 feet, or every 48 inches. Question 52. What is the minimum size of grounding conductors for a 100A service? A) 8 AWG B) 6 AWG C) 10 AWG D) 4 AWG Answer: B Explanation: For a 100A service, the minimum grounding conductor size is 6 AWG copper, as per NEC tables.
Exam
Question 53. Which type of grounding system uses a grounding rod or pipe? A) Grounding electrode system B) System bonding jumper C) Equipment grounding conductor D) Neutral grounding Answer: A Explanation: A grounding electrode system uses a grounding rod, pipe, or other electrode to establish a low-resistance path to earth. Question 54. When installing a switch in a luminaire circuit, what is the typical wire gauge used? A) 14 AWG or 12 AWG, depending on the circuit load B) 8 AWG C) 10 AWG only D) 16 AWG only Answer: A Explanation: Switch wiring for lighting circuits generally uses 14 or 12 AWG conductors, depending on the circuit's amperage. Question 55. Which code requirement applies to the installation of flexible cords in permanent installations? A) They are not permitted for permanent wiring B) They can be used only for temporary or movable equipment C) They are required in all fixed wiring applications D) They must be insulated with rubber only Answer: B Explanation: Flexible cords are intended for temporary or movable equipment and are not suitable for permanent wiring. Question 56. In a wiring system, what is the function of a bonding jumper? A) To connect metal parts to the grounding system and ensure continuous grounding
Exam
Answer: A Explanation: Conduit must be supported at intervals specified by the NEC, using approved hangers or straps to prevent sagging. Question 60. What is the primary function of a disconnect switch in an electrical system? A) To disconnect power for maintenance and emergencies B) To step down voltage levels C) To measure current flow D) To provide surge protection Answer: A Explanation: A disconnect switch safely isolates electrical equipment or circuits during maintenance or emergencies. Question 61. Which of the following is a requirement for installing a receptacle near a sink? A) It must be GFCI protected and installed at least 4 inches above the countertop B) It can be installed directly in the water C) It must be on a dedicated circuit only D) It does not require GFCI protection if outdoors Answer: A Explanation: Receptacles near sinks must be GFCI protected and installed at a minimum height of 4 inches above the countertop. Question 62. Which component is essential for a fire alarm system? A) Smoke detectors and control panels B) GFCI outlets C) Surge protectors D) Lighting dimmers Answer: A Explanation: Smoke detectors and control panels are essential components of fire alarm systems for early detection and alert.
Exam
Question 63. Which type of conduit provides the highest mechanical protection for outdoor use? A) Rigid metal conduit (RMC) B) EMT C) PVC conduit D) Flexible metallic conduit (FMC) Answer: A Explanation: RMC offers the highest mechanical protection among conduit types and is suitable for outdoor use. Question 64. What is the typical minimum clearance in front of an electrical panel? A) 36 inches B) 24 inches C) 18 inches D) 12 inches Answer: A Explanation: The NEC requires a minimum of 36 inches of clearance in front of electrical panels for safe access. Question 65. How are AFCI and GFCI devices different? A) AFCIs protect against arc faults; GFCIs protect against ground faults B) Both protect against overcurrent C) GFCIs protect against arc faults; AFCIs protect against ground faults D) They are the same device with different names Answer: A Explanation: AFCIs detect arc faults that could cause fires, while GFCIs protect against ground faults that could cause shocks. Question 66. Which of the following is an acceptable method for underground wiring installation?
