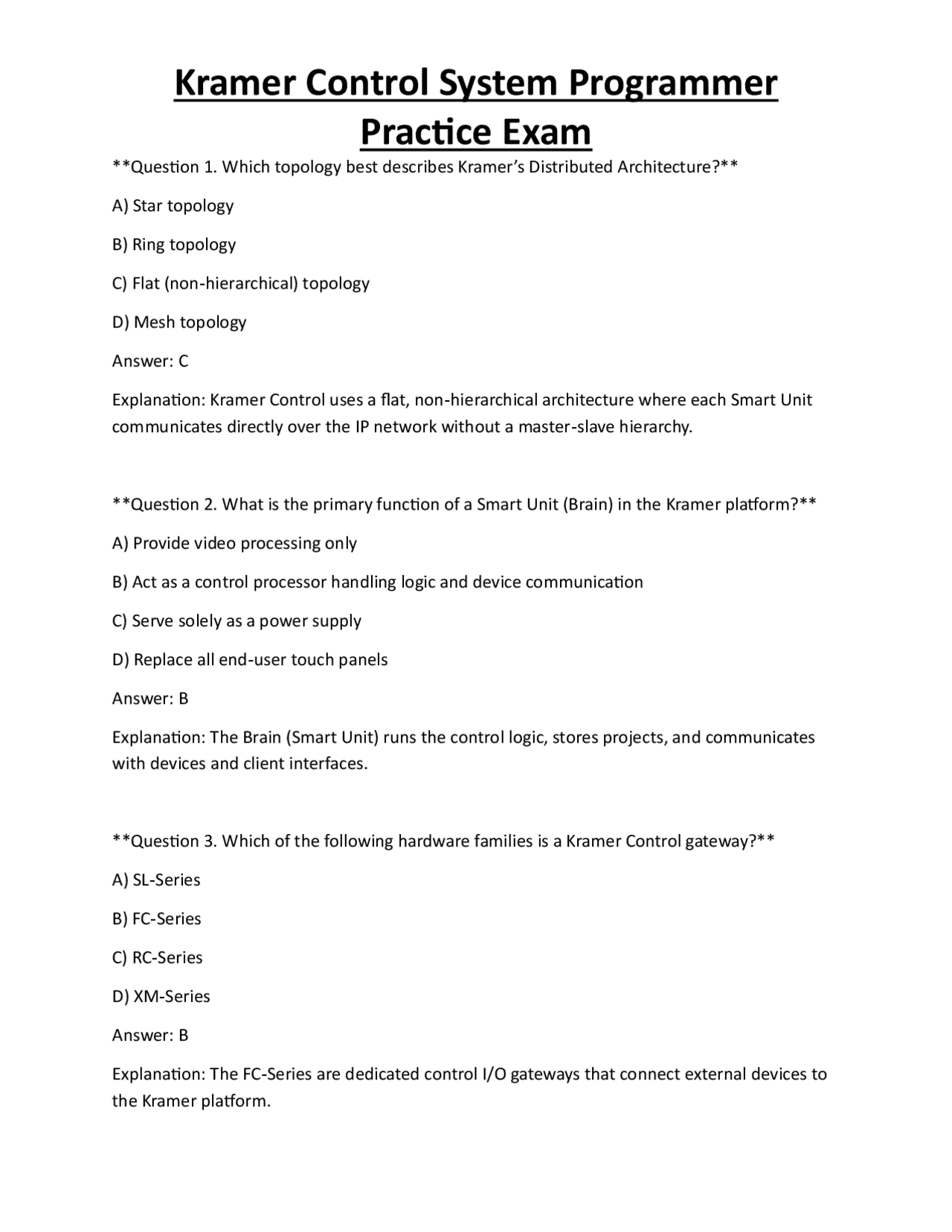

Practice Exam
Question 1. Which topology best describes Kramer’s Distributed Architecture? A) Star topology B) Ring topology C) Flat (non‑hierarchical) topology D) Mesh topology Answer: C Explanation: Kramer Control uses a flat, non‑hierarchical architecture where each Smart Unit communicates directly over the IP network without a master‑slave hierarchy. Question 2. What is the primary function of a Smart Unit (Brain) in the Kramer platform? A) Provide video processing only B) Act as a control processor handling logic and device communication C) Serve solely as a power supply D) Replace all end‑user touch panels Answer: B Explanation: The Brain (Smart Unit) runs the control logic, stores projects, and communicates with devices and client interfaces. Question 3. Which of the following hardware families is a Kramer Control gateway? A) SL‑Series B) FC‑Series C) RC‑Series D) XM‑Series Answer: B Explanation: The FC‑Series are dedicated control I/O gateways that connect external devices to the Kramer platform.
Practice Exam
Question 4. How does Kramer’s Smart IP Infrastructure leverage existing networks? A) By requiring a separate VLAN for control traffic B) By using the same Ethernet cabling and switches already deployed for IT C) By needing fiber‑optic links for every device D) By requiring proprietary PoE injectors Answer: B Explanation: Kramer’s Smart IP runs over standard Ethernet, allowing control devices to share the existing IT infrastructure. Question 5. What role does the cloud play in a Kramer Control system? A) It replaces the local Brain entirely B) Provides remote access, updates, and storage for projects C) Only hosts video streams D) Acts as a backup power source Answer: B Explanation: The cloud handles automatic firmware updates, stores project backups, and enables remote configuration. Question 6. Which feature allows a Kramer system to be set up without physical access to the hardware? A) Manual firmware flashing B) Borderless Control (remote setup) C) Local console only D) Serial console access only Answer: B
Practice Exam
Answer: B Explanation: The Builder is used to design user interfaces, adding and configuring visual elements. Question 10. What does the Control interface represent for end‑users? A) The backend database schema B) The client application or touch panel they interact with C) The cloud management console D) The device driver library editor Answer: B Explanation: The Control interface is the UI displayed on touch panels, mobile devices, or web clients used by occupants. Question 11. When creating a new Project in Kramer Manager, which information is required? A) IP address of every device B) Project name, description, and owner C) Detailed wiring diagram D) Firmware version of each Brain Answer: B Explanation: Basic project metadata includes name, description, and ownership; device details are added later. Question 12. How can a Kramer installer duplicate an existing Project? A) By re‑creating every UI manually B) Using the “Clone Project” function in Manager
Practice Exam
C) Exporting to CSV and re‑importing D) Copy‑pasting the project folder on the server Answer: B Explanation: The platform provides a Clone Project feature that copies all settings and UI elements. Question 13. What is a “Space Override” used for? A) To prevent any changes to a space B) To apply specific settings that differ from a referenced space C) To delete a space permanently D) To change the IP address of a space’s Brain Answer: B Explanation: Overrides allow a space to deviate from the referenced template for unique requirements. Question 14. Which UI element is best suited for selecting one option from many? A) Slider B) Button C) Dropdown list D) Text label Answer: C Explanation: A dropdown list provides a compact way to choose a single item from a larger set. Question 15. In Kramer Builder, where are custom images stored for use in UI backgrounds? A) In the device driver library
Practice Exam
A) In the Cloud Dashboard only B) In the Master Library within Builder C) On a physical CD supplied with hardware D) In the Operating System’s driver store Answer: B Explanation: The Master Library contains all standard drivers that come with the platform. Question 19. When creating a custom driver using the Device Driver Builder, which attribute defines the device’s power state? A) “Voltage” attribute B) “PowerMode” property C) “State” attribute (On/Off) D) “Current” attribute Answer: C Explanation: The “State” attribute typically represents whether the device is powered on or off. Question 20. Which communication method would you select for a legacy projector that only has RS‑232 control? A) IP (TCP/UDP) B) IR C) RS‑232 (Serial) D) KNET™ Answer: C Explanation: RS‑232 is the appropriate protocol for serial‑only devices.
Practice Exam
Question 21. In the Device Driver Builder, what does the “Macro” function allow you to do? A) Update firmware automatically B) Execute a predefined sequence of commands with a single call C) Change the device’s IP address D) Export the driver to a CSV file Answer: B Explanation: Macros group multiple commands into one logical action for easier UI mapping. Question 22. How can you view the raw command string that is sent to a device? A) By opening the device’s PDF manual B) Using the “Command Viewer” in the Driver Builder C) Through the OS command line only D) It is not possible to view raw commands Answer: B Explanation: The Command Viewer displays the exact bytes/strings transmitted to the device. Question 23. Which action type would you assign to a UI button that needs to toggle a light on/off? A) “Set Property” with a static value B) “Toggle Property” C) “Launch Macro” only D) “Open URL” Answer: B Explanation: “Toggle Property” flips the current state, ideal for on/off functionality.
Practice Exam
Answer: C Explanation: The FC‑Series gateway can host a KNX interface to translate KNX commands into the Kramer ecosystem. Question 27. What does the Kramer VIA control module primarily enable? A) Direct HDMI switching only B) Integration of third‑party AV devices via IR, RS‑232, and IP C) Cloud storage of video recordings D) Wireless power delivery Answer: B Explanation: VIA provides a versatile bridge for IR, Serial, and IP control of external equipment. Question 28. Which feature lets you create a virtual device that represents a group of physical devices? A) System Menus B) Virtual State Devices C) Hardware Overlays D) Cloud Sync Answer: B Explanation: Virtual State Devices act as logical aggregates, allowing a single UI element to control multiple physical devices. Question 29. During provisioning, what is the key difference between Online and Offline modes? A) Online requires internet connectivity for the Brain; Offline does not B) Offline mode updates firmware only, Online updates UI only
Practice Exam
C) Online mode provisions multiple brains simultaneously, Offline provisions one at a time D) There is no difference; both are identical processes Answer: A Explanation: Online provisioning communicates with the cloud, while Offline provisioning uses local files without internet access. Question 30. How do you assign a specific Brain to a particular Space in Kramer Manager? A) By editing the Brain’s firmware manually B) Using the “Assign Brain” option under Space Settings C) Through the device’s physical DIP switches D) It is automatically assigned based on IP address only Answer: B Explanation: The Assign Brain function links a Brain hardware ID to the logical Space. Question 31. Which page provides real‑time status of a Brain, including CPU load and connected devices? A) Project Overview page B) Brain Info Page C) Cloud Dashboard D) Device Driver Builder Answer: B Explanation: The Brain Info Page displays diagnostics, health metrics, and active connections for a Brain. Question 32. What type of event would you create to automatically mute all audio at 10 PM each night?
Practice Exam
Question 35. Which function would you use to increment a numeric counter each time a button is pressed? A) Set Property to a static value B) Toggle Property C) Increment Property (Counter Function) D) Launch Macro only Answer: C Explanation: The Counter Function increments a stored numeric property on each trigger. Question 36. If a device does not respond, which diagnostic tool helps you view the raw WebSocket traffic? A) Dark Web Socket debugger in Builder B) LED status indicator on the Brain C) Cloud Update Log D) IP Scan utility only Answer: A Explanation: The Dark Web Socket tool shows low‑level WebSocket communication, useful for troubleshooting. Question 37. What does a solid green CONTROL LED on an SL‑280 indicate? A) Firmware update in progress B) Normal operation and communication with the cloud C) Device error detected D) Power supply failure Answer: B
Practice Exam
Explanation: A solid green CONTROL LED signals that the controller is online and functioning correctly. Question 38. Where can you find warnings and errors generated during UI building? A) In the Cloud Dashboard only B) Errors/Warning Analysis Bar at the bottom of Builder C) On the hardware’s LCD screen D) In the device driver PDF manual Answer: B Explanation: Builder displays real‑time validation messages in its Errors/Warning Analysis Bar. Question 39. Which process updates a Brain’s firmware remotely without technician on site? A) Manual USB update B) Remote Brain Update via cloud C) Local SD card flashing only D) Replacing the hardware entirely Answer: B Explanation: The cloud can push firmware images to a Brain over the network, enabling remote updates. Question 40. What is the effect of “Saving” a project versus “Publishing” it? A) Saving writes changes to the cloud; Publishing applies them to the live system B) Saving updates firmware; Publishing restarts the Brain C) Saving creates a backup; Publishing deletes the backup D) There is no difference; both actions are identical
Practice Exam
B) Image widget set to read‑only C) Text label only D) Slider locked to a fixed value Answer: B Explanation: An Image widget can show an icon that updates based on a property but does not accept user input. Question 44. What is the purpose of a “Frame” element in Kramer Builder? A) To group other UI elements for layout and navigation purposes B) To stream video content only C) To store device drivers D) To execute macros automatically Answer: A Explanation: Frames act as containers, allowing designers to organize elements and create separate screens. Question 45. When configuring a device that uses KNET™, which parameter must be defined? A) Baud rate only B) KNET™ ID and IP address of the Brain C) HDMI port number D) USB vendor ID Answer: B Explanation: KNET™ devices require a unique KNET ID and the IP address of the controlling Brain for proper routing.
Practice Exam
Question 46. Which of the following is a valid use case for a “Conditional Logic” block? A) To always turn on a projector regardless of state B) To mute audio only if the room is occupied C) To change the UI theme automatically every hour D) To reboot the Brain on every button press Answer: B Explanation: Conditional Logic allows actions to be executed only when specified conditions (e.g., occupancy) are met. Question 47. What does the “Toggle Property” function do when the current property value is unknown? A) It defaults to “On” B) It does nothing and logs an error C) It queries the device first, then toggles D) It sets the property to a predefined fallback state Answer: C Explanation: The system attempts to read the current state before toggling to ensure accurate behavior. Question 48. Which hardware component would you select to add a physical numeric keypad to a control system? A) SL‑Series Brain B) RC‑Keypad C) FC‑Series gateway D) VIA™ module Answer: B
Practice Exam
Answer: B Explanation: The Builder validates drivers and blocks publishing until required attributes are defined. Question 52. Which of the following best describes a “Macro” in Kramer terminology? A) A single command sent to a device B) A sequence of commands executed in order C) A hardware component for video processing D) A cloud‑based analytics tool Answer: B Explanation: A macro groups multiple device commands into one callable action. Question 53. What is the primary advantage of using “Space Referencing” in a multi‑room installation? A) Reduces network traffic B) Allows a single UI design to be reused across many rooms, simplifying maintenance C) Increases security by isolating each room’s traffic D) Enables automatic firmware updates for all devices Answer: B Explanation: Referencing enables shared configurations, so changes propagate to all referenced spaces. Question 54. Which setting determines how a UI element reacts to a “Long Press” event? A) Property binding B) Action Menu – Long Press action assignment C) Device driver’s baud rate
Practice Exam
D) Cloud sync interval Answer: B Explanation: The Action Menu lets designers assign a distinct action for long‑press interactions. Question 55. In Kramer Builder, what does the “Properties” pane allow you to modify? A) Only the hardware firmware version B) Visual attributes, bound device properties, and behavior of the selected UI element C) Cloud billing information D) IP routing tables for the Brain Answer: B Explanation: The Properties pane controls appearance, data binding, and interactive behavior of UI components. Question 56. Which protocol is used by Kramer’s cloud service to push updates to remote Brains? A) FTP B) HTTPS (REST API) C) Telnet D) SNMP Answer: B Explanation: Secure HTTPS connections with RESTful APIs deliver firmware and project updates. Question 57. How can you test a newly created device driver without deploying it to a physical device? A) By using the “Simulator” mode in Builder to emulate command responses B) By flashing the Brain firmware first
