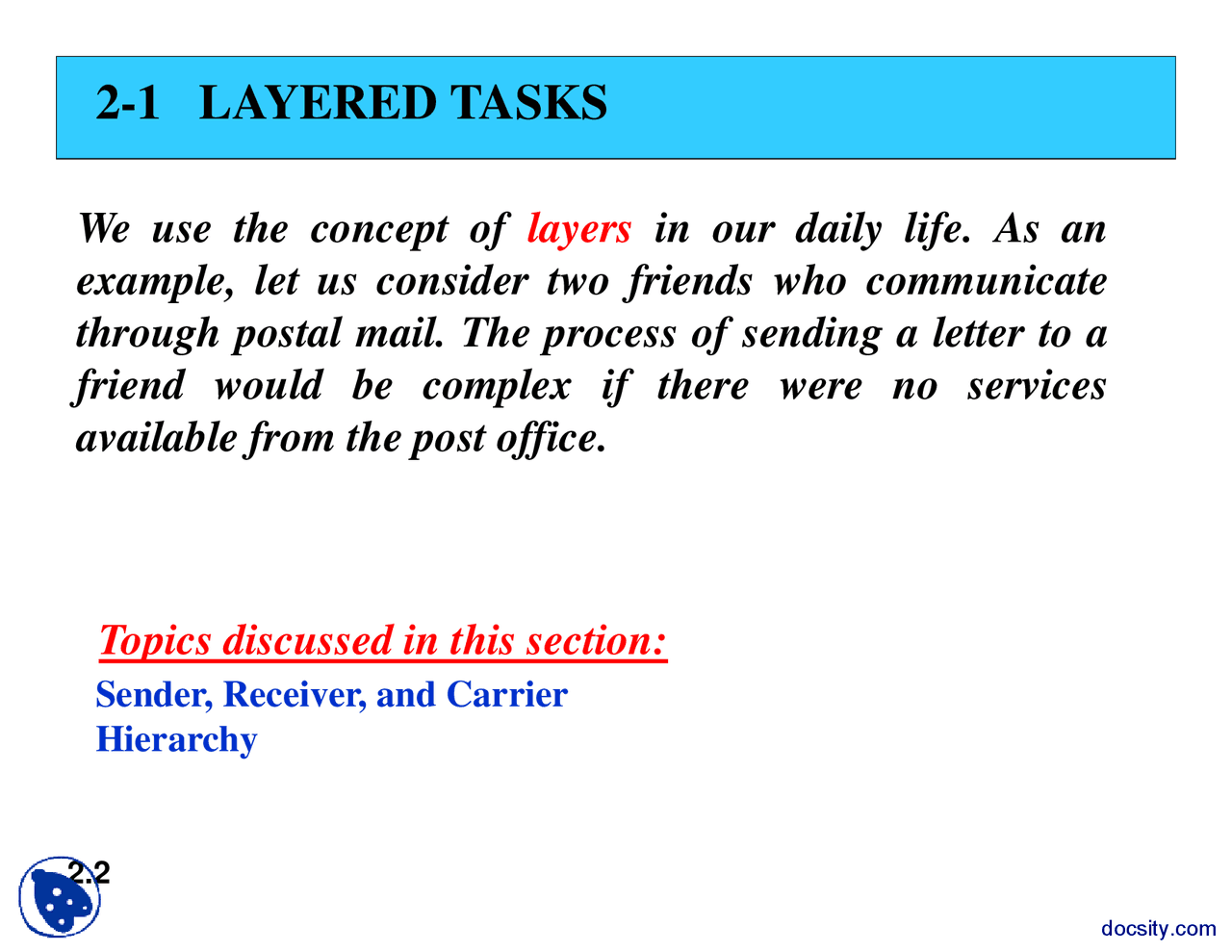

2-1 LAYERED TASKS

We use the concept of layers in our daily life. As an

example, let us consider two friends who communicate

through postal mail. The process of sending a letter to a

friend would be complex if there were no services

available from the post office.

Sender, Receiver, and Carrier

Hierarchy

Topics discussed in this section:
