Layout - Human Resource - Lecture Slides, Slides of Human Resource Management

Bharat Ratna Dr. B. R. Ambedkar UniversityHuman Resource Management

Human Resource is an integral part of Management Science. In these Lecture Slides of HRM, following key concepts are discussed : Layout, Standardised Layout, Alphanumeric Keys, Symbols, Different Scripts, Keyboards, Typing, Optimal, Arrangement, Prevent Typewriters

Typology: Slides

2012/2013

Uploaded on 07/26/2013

ramana
ramana 🇮🇳

4.5

(8)

106 documents

1 / 10

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

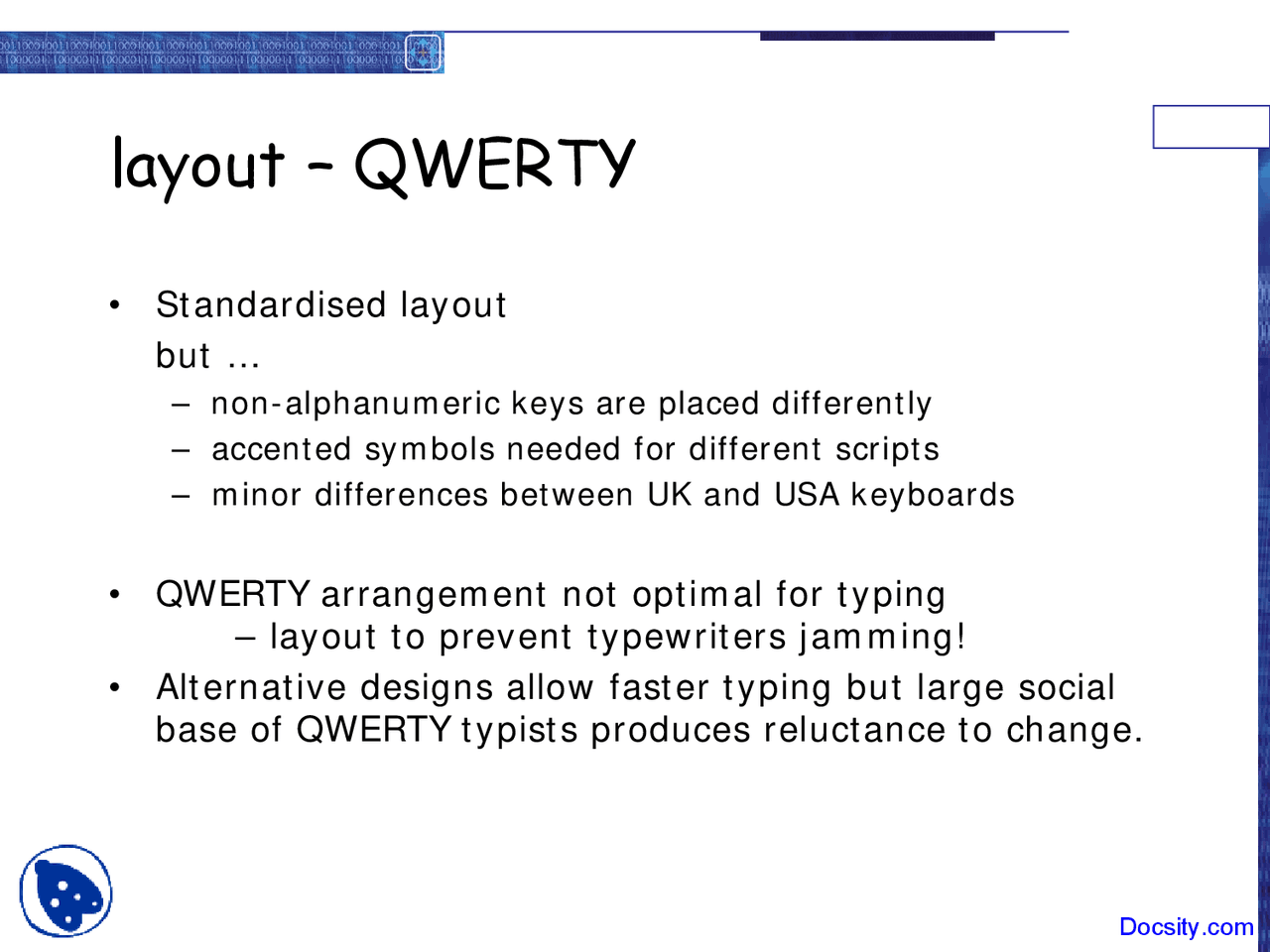

layout – QWERTY
•Standardised layout
but …
– non-alphanumeric keys are placed differently
–accented symbols needed for different scripts
–minor differences between UK and USA keyboards
•QWERTY arrangement not optimal for typing
– layout to prevent typewriters jamming!
•Alternative designs allow faster typing but large social
base of QWERTY typists produces reluctance to change.
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Layout - Human Resource - Lecture Slides and more Slides Human Resource Management in PDF only on Docsity!

layout – QWERTY

  • Standardised layout

but …

  • non-alphanumeric keys are placed differently
  • accented symbols needed for different scripts
  • minor differences between UK and USA keyboards
  • QWERTY arrangement not optimal for typing
  • layout to prevent typewriters jamming!
  • Alternative designs allow faster typing but large social

base of QWERTY typists produces reluctance to change.

QWERTY (ctd)

(^2 3 4 5 6 7 8 9 )

Q W E R T Y U I

1

O P

A S^ D^ F^ G^ H^ J^ K L

Z X^ C^ V^ B^ N^ M^ ,^. SPACE

special keyboards

• designs to reduce fatigue for RSI

• for one handed use

e.g. the Maltron left-handed keyboard

Chord keyboards

only a few keys - four or 5

letters typed as combination of keypresses

compact size

  • ideal for portable applications

short learning time

  • keypresses reflect letter shape

fast

  • once you have trained

BUT - social resistance, plus fatigue after extended use

NEW – niche market for some wearables

Handwriting recognition

• Text can be input into the computer, using a

pen and a digesting tablet

  • natural interaction

• Technical problems:

  • capturing all useful information - stroke path,

pressure, etc. in a natural manner

  • segmenting joined up writing into individual letters
  • interpreting individual letters
  • coping with different styles of handwriting

• Used in PDAs, and tablet computers …

… leave the keyboard on the desk!

Speech recognition

• Improving rapidly

• Most successful when:

  • single user – initial training and learns peculiarities
  • limited vocabulary systems

• Problems with

  • external noise interfering
  • imprecision of pronunciation
  • large vocabularies
  • different speakers

positioning, pointing and drawing

mouse, touchpad

trackballs, joysticks etc.

touch screens, tablets

eyegaze, cursors
