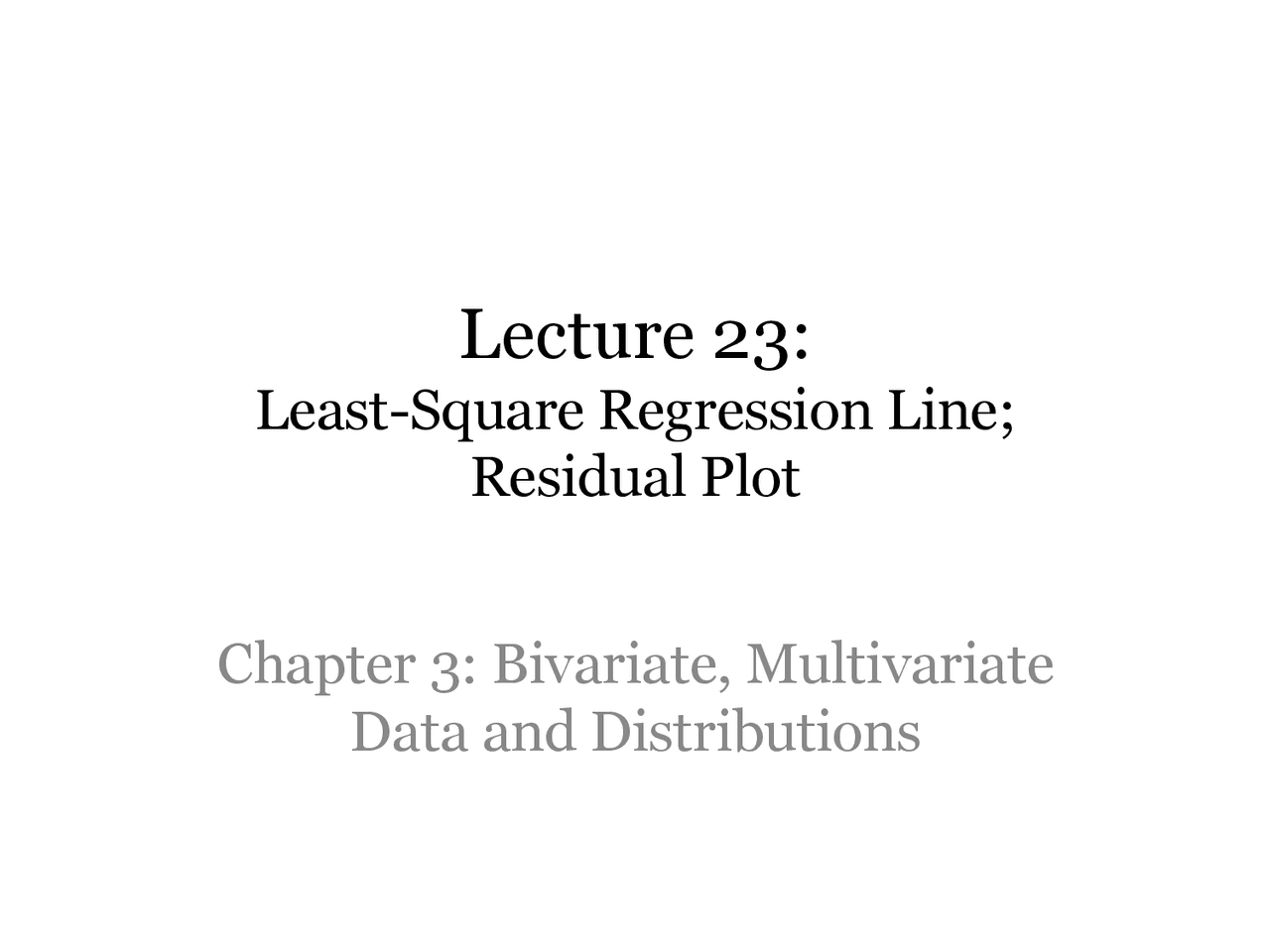

Lecture 23:

Least-Square Regression Line;

Residual Plot

Chapter 3: Bivariate, Multivariate

Data and Distributions

Review

1. Scatter plots –Used to plot sample data points for bivariate data (x, y) –Plot the ( x,y) pairs directly on a rectangular coordinate –Qualitative visual representation of the relationships between the two variables
   • no precise statement can be made
2. Pearson’s (linear) Correlation Coefficient, r,
   • measures the direction (+ or -) and strength of linear relationship between x and y observations.
     • Properties -- Concerns and Cautions about r.
3. Association does not imply Causation…

Example

40 45 50 55 60 65 70 155 160 165 170 175 180

Least Squares Regression Line

• Regression line is:
  • How do we know this is the right line?
  • What makes it best?
• The line above is the Least Squares Regression Line - It is the line which makes the vertical distances from the data points to the line as small as possible - Uses the concept of sums of squares - Small sums of squares is good à Least Squares! - See previous slide.

y ˆ^ = − 61. 53 + 0. 696 x

Alternate calculations

• Understanding the regression line:
• Meaning of slope
  • If I change X by 1 unit, how much does Y change?
  • “Rise over run” concept
  • Directly related to the correlation
• Meaning of intercept
  • Mostly of the time we don’t care
    • It’s simply a feature of the line
  • Sometimes has meaning
    • What should Y be if X=
    • Want to use line for prediction ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ = x y s s b r a = y − bx

Assessing the fit

• How effectively does the least squares line

summarize the relationship between X and

Y? OR how well does the line fit the data?

• We assess the fit of the line by looking at

how much variation in Y is explained by

the regression line on X

• Again this is the concept of sums of squares

Coefficient of Determination

• r 2 is given by:
• Notice when SSR is large (or SSE small), we have explained a large amount of the variation in Y
• Multiplying r 2 by 100 gives the percent of variation attributed to the linear regression between Y and X - Percent of variation explained!
• Also, just the square of the correlation!

SST

SSE

SST

SSR

r = = 1 − 2

Standard Deviation LS line

• Mean Squared Error about the LS line (with sample size = n):
• Standard Deviation about the LS line: n – 2 comes from the degrees of freedom.
• It is the typical amount by which an observation varies about the regression line
• Also called “root MSE” or the square root of the Mean Square Error

Example—Height and Weight

Example—Height and Weight

Another way to assess

appropriateness: Residual Plots

• The residuals can be used to assess the appropriateness of a linear regression model. A residual of is given as
• Specifically, a residual plot , plotting the residuals against x , gives a good indication of whether the model is working - The residual plot should not have any pattern but should show a random scattering of points - If a pattern is observed, the linear regression model is probably not appropriate. ˆ i i i e = y − y i y

Examples—good

Examples—

constant variance violation

If Bad residual plots… try

transformations!

• Can think of transformations as simple mathematical manipulations. - Suppose x doesn’t predict y well but x is a very good predictor of log y. - Before we ever start, let new_y = log y! Then just fit a linear regression between x and new_y!!! - Is it still linear? - Yes! x and new_y should have a nice linear relationship - No! If I want to describe the “real” relationship between x and y I need to “undo” the transformation. Meaning explain it as a logarithm.
• Also see power transformations in Section 3. (self-reading, not covered in exams)
