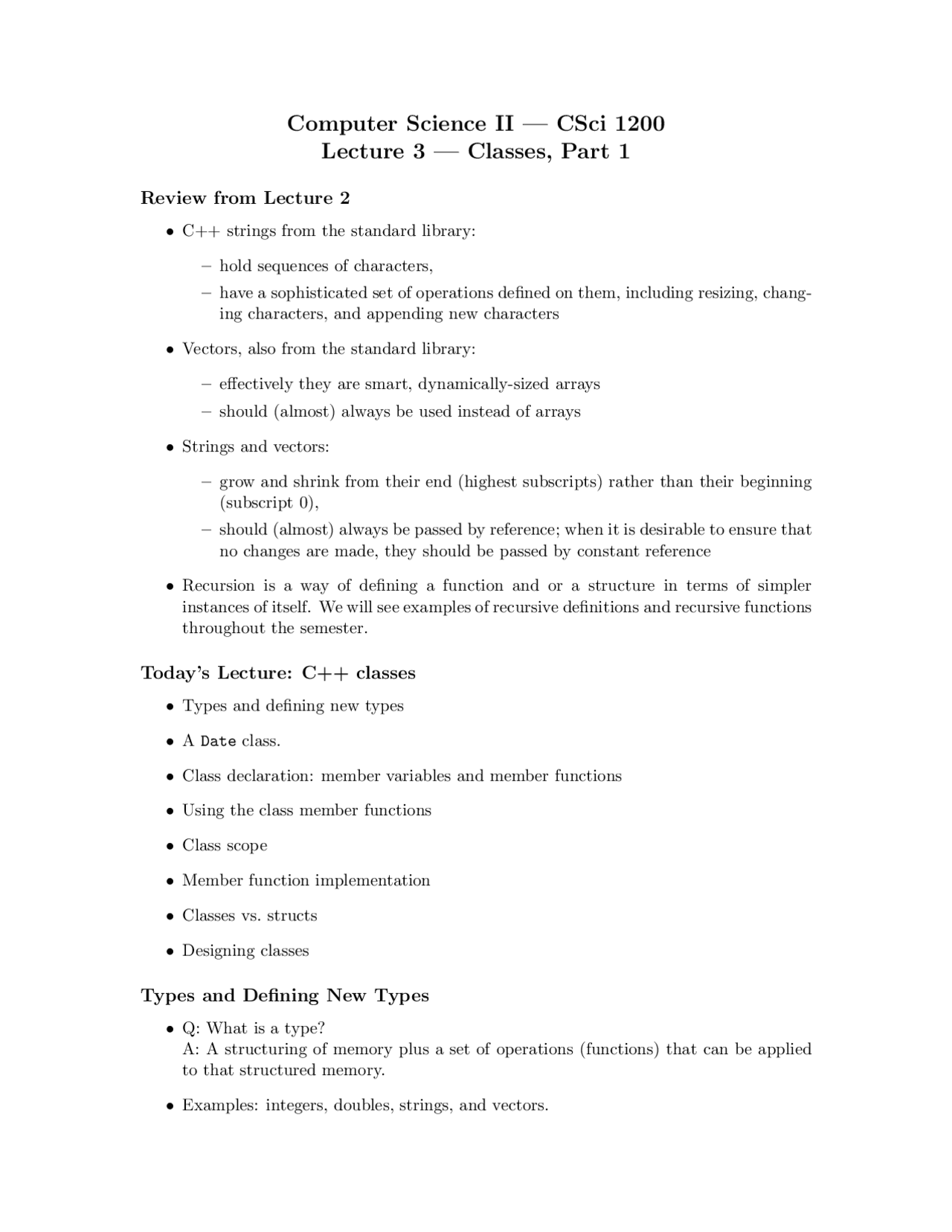

Computer Science II ā€” CSci 1200
Lecture 3 ā€” Classes, Part 1
Review from Lecture 2
ā€¢C++ strings from the standard library:
ā€“hold sequences of characters,
ā€“have a sophisticated set of operations defined on them, including resizing, chang-
ing characters, and appending new characters
ā€¢Vectors, also from the standard library:
ā€“effectively they are smart, dynamically-sized arrays
ā€“should (almost) always be used instead of arrays
ā€¢Strings and vectors:
ā€“grow and shrink from their end (highest subscripts) rather than their beginning
(subscript 0),
ā€“should (almost) always be passed by reference; when it is desirable to ensure that
no changes are made, they should be passed by constant reference
ā€¢Recursion is a way of defining a function and or a structure in terms of simpler
instances of itself. We will see examples of recursive definitions and recursive functions
throughout the semester.
Todayā€™s Lecture: C++ classes
ā€¢Types and defining new types
ā€¢ADate class.
ā€¢Class declaration: member variables and member functions
ā€¢Using the class member functions
ā€¢Class scope
ā€¢Member function implementation
ā€¢Classes vs. structs
ā€¢Designing classes
Types and Defining New Types
ā€¢Q: What is a type?
A: A structuring of memory plus a set of operations (functions) that can be applied
to that structured memory.
ā€¢Examples: integers, doubles, strings, and vectors.
pf3
pf4
pf5

Partial preview of the text

Download C++ Classes: Understanding Types, Defining a Date Class, and Member Functions and more Study notes Data Structures and Algorithms in PDF only on Docsity!

Computer Science II ā€” CSci 1200

Lecture 3 ā€” Classes, Part 1

Review from Lecture 2

  • C++ strings from the standard library:
    • hold sequences of characters,
    • have a sophisticated set of operations defined on them, including resizing, chang- ing characters, and appending new characters
  • Vectors, also from the standard library:
    • effectively they are smart, dynamically-sized arrays
    • should (almost) always be used instead of arrays
  • Strings and vectors:
    • grow and shrink from their end (highest subscripts) rather than their beginning (subscript 0),
    • should (almost) always be passed by reference; when it is desirable to ensure that no changes are made, they should be passed by constant reference
  • Recursion is a way of defining a function and or a structure in terms of simpler instances of itself. We will see examples of recursive definitions and recursive functions throughout the semester.

Todayā€™s Lecture: C++ classes

  • Types and defining new types
  • A Date class.
  • Class declaration: member variables and member functions
  • Using the class member functions
  • Class scope
  • Member function implementation
  • Classes vs. structs
  • Designing classes

Types and Defining New Types

  • Q: What is a type? A: A structuring of memory plus a set of operations (functions) that can be applied to that structured memory.
  • Examples: integers, doubles, strings, and vectors.
  • In many cases, when we are using a class we do not know how that memory is struc- tured. Instead, what we really think about is the set of operations (functions) that can be applied.
  • To clarify, letā€™s focus on strings and vectors. These are classes. Weā€™ll outline what we know about: - The structure of memory within each class object - The set of operations defined
  • We are now ready to start defining our own new types using classes.

Example: A Date Class

  • Many programs require information about dates.
  • Information stored about the date includes the month, the day and the year.
  • Operations on the date include recording it, printing it, asking if two dates are equal, flipping over to the next day (incrementing), etc.

C++ Classes

  • A C++ class consists of
    • a collection of member variables, usually private, and
    • a collection of member functions, usually public, which operate on these vari- ables.
  • public member functions can be accessed directly from outside the class,
  • private member functions and member variables can only be accessed indirectly, through public member functions.
  • We will look at the example of the Date class declaration.

Using C++ classes

We have been using C++ classes (from the standard library) already this semester, so by studying how the Date example we are just repeating what we have already done, but this time with a class we have defined. We will illustrate with the file date_main.cpp:

  • Defining class objects.
    • Important note: each object we create of type Date has its own distinct mem- ber variables.
  • Calling class member functions for class objects using the ā€œdotā€ notation. For exam- ple,

tomorrow.increment();

  • Note: after looking at the example, we still will not have examined how the class member functions are implemented! This is an important feature of class design.

Important member functions to study

  • set and get functions access and change a day, month or year.
  • increment uses another member function, isLastDayInMonth.
  • isEqual accepts a second Date object and then accesses its values directly using the dot notation. - Since we are inside class Date scope, this is allowed. - The name of the second object, date2, is required to indicate that we are inter- ested in its member variables.
  • lastDayInMonth uses the const array defined at the start of the .cpp file.

Accessing and changing member variables

  • When the member variables are private, the only means of accessing them and chang- ing them from outside the class is through member functions.
  • If member variables are made public, they can be accessed directly. This is usually considered bad style and will not be allowed in this course.

Non-member functions

  • Functions that are not members must interact with Date objects through the class public members (the ā€œpublic interfaceā€ declared for the class).
  • These may perform operations that are closely associated with the class and therefore ā€œfeelā€ like member functions.
  • One example is the function sameDay which accepts two Date objects and compares them by accessing their day and month values through their public member functions.

Header files (.h) and Implementation files (.cpp)

The code for the Date example is in three files:

  • Date.h contains the class declaration.
  • Date.cpp contains the member function definitions. Date.h is included.
  • main date.cpp contains the code outside the class. Date.h again is included.
  • The files Date.cpp and main date.cpp are compiled separately and linked to form the executable program.
  • Different organizations of the code are possible, but not preferrable.
    • For example, we could have combined Date.h and Date.cpp into a single file and included them in the main program.
    • In this case, we would not have to compile two separate files.
  • In many large projects, programmers establish the convention that requires exactly two files per class, one header file and one implementation file.

Constant member functions

Member functions that do not change the member variables should be declared const

  • For example,

bool Date::isEqual(const Date &date2) const

  • This must appear consistently in both the member function declaration in the class declaration and the member function definition.
  • const objects, usually passed as parameters, can ONLY use const member functions
    • Remember, you should only pass objects by value under special circumstances. In general, pass them by const reference if you do not want them to change.
  • While you are learning, you will tend to make errors in determining which member functions should or should not be const. Watch for them when you compile files containing your class headers and member function definitions.

Exercise

Add a member function to the Date class to add a given number of days to the Date object. The number should be the only argument and it should be an unsigned int. Should this function be const?

Classes vs. structs

  • Technically, a struct is a class where the default protection is public, not private.
    • As mentioned above, when a member variable is public it can be accessed and changed directly using the dot notation.
    • For example, tomorrow.day = 52; We can see immediately that this is dangerous because a day of 52 is invalid!
  • The usual practice of using struct is all public members and no member functions. This practice is contrary to the usual conventions of C++ programming.

Rule for the duration of CS II: We will not allow the use of struct, and no member variable can be made public. This will be enforced with various levels of grading penalties.

C++ vs. Java Classes

  • In C++, classes have sections labeled public and private, but there can be multiple public and private sections. In Java, each individual item is tagged public or private.
  • Class declarations and class definitions are separated in C++, whereas they are to- gether in Java.
  • In C++ here is a semi-colon at the end of the class declaration (after the }).
