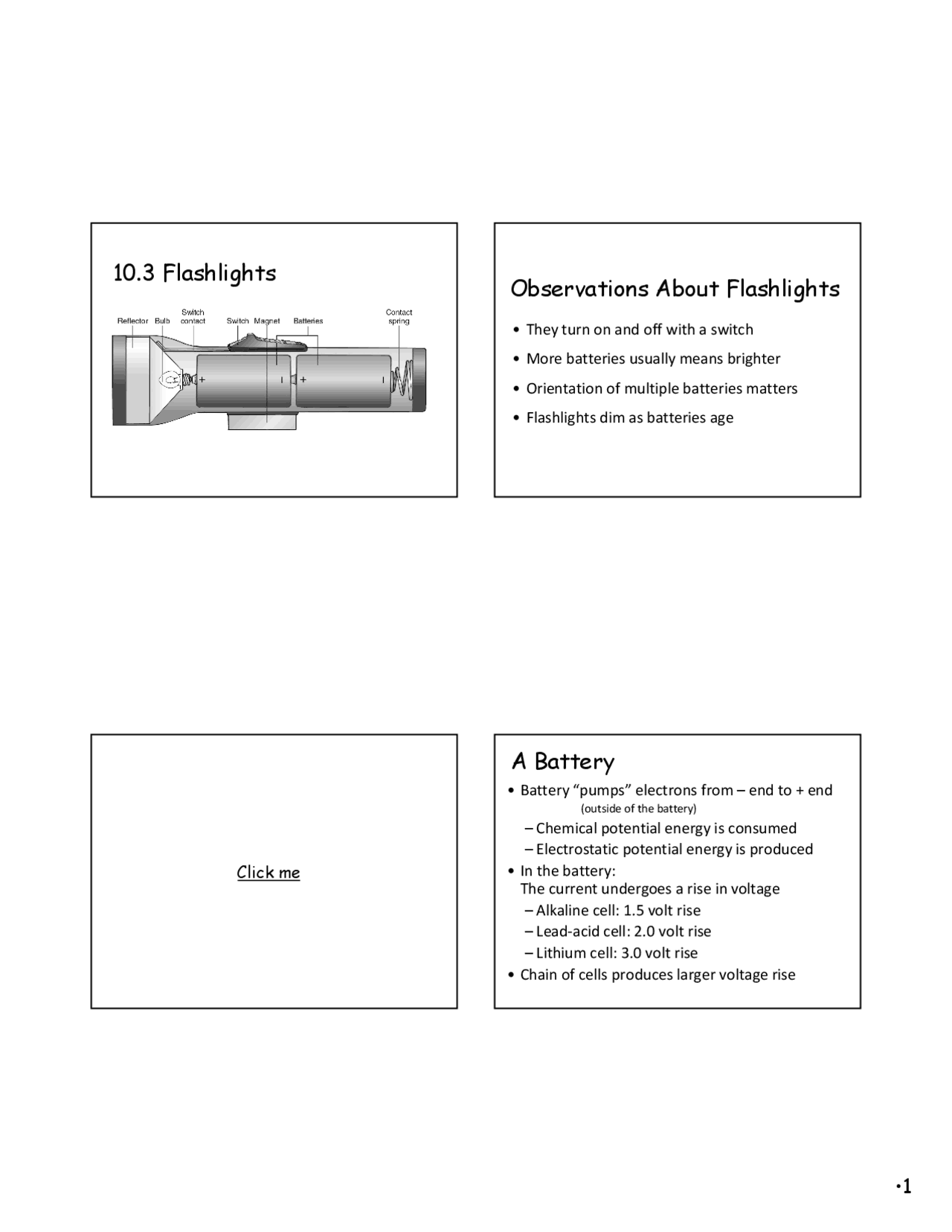

10.3 Flashlights 10.3 Flashlights

Observations About FlashlightsObservations About Flashlights

  • They turn on and off with a switch
  • More batteries usually means brighter
  • Orientation of multiple batteries matters
  • Flashlights dim as batteries age

Click me

A Battery A Battery

  • Battery “pumps” electrons from – end to + end (outside of the battery)
  • Chemical potential energy is consumed
  • Electrostatic potential energy is produced
  • In the battery: The current undergoes a rise in voltage - Alkaline cell: 1.5 volt rise - Lead-acid cell: 2.0 volt rise - Lithium cell: 3.0 volt rise
  • Chain of cells produces larger voltage rise

A Light BulbA Light Bulb

  • Filament barely lets charge flow through it
    • Electrostatic potential energy is consumed
    • Thermal energy is produced
    • It’s a resistor!
  • Current undergoes a drop in voltage
    • Two-cell alkaline flashlight: 3.0 volt drop

A Simple CircuitA Simple Circuit

  • A battery – the energy source
  • A wire – the outgoing current path
  • A light bulb – the energy destination (the load)
  • A wire – the return current path

Clicker Question:Clicker Question:

If you remove the 2 batteries from a working flashlight and reinstall them backward so that they make good contact inside, will the flashlight still work? A. Yes B. No

Circuits 1Circuits 1

  • Steady current requires a circuit path (loop)
    • Charge mustn’t accumulate anywhere
    • Closed conducting loop avoids accumulation
  • Steady current flow requires energy
    • Currents lose energy (and voltage) in conductors
    • Missing energy becomes thermal energy
    • Lost energy must be replaced

Circuits 2 Circuits 2

  • A circuit can transport energy
    • Current obtains energy from a battery
    • Current delivers energy to a light bulb
    • Current starts the trip over again

Voltages Add:Voltages Add:

Short Circuits Short Circuits

  • If a conducting path bridges the load - Current bypasses the load - Circuit is abbreviated or “short”
  • No appropriate energy destination (load)
  • Energy loss and heating occurs in the wires
  • A recipe for fires!
    • The currents passing through most wires and other devices experience voltage drops
    • In an “ohmic device,” the voltage drop is proportional the current: voltage drop = resistance · current

V = I × R

where resistance is a constant for the device

OhmOhm’’s Law (V=I x R)s Law (V=I x R)

Clicker Question:Clicker Question:

Why can a bird safely stand on a power line? A. The bird does not make a complete circuit with the power line – it would have to have each leg on different lines. B. Power lines are insulated. C. The resistance of the bird is much higher than the power line.
