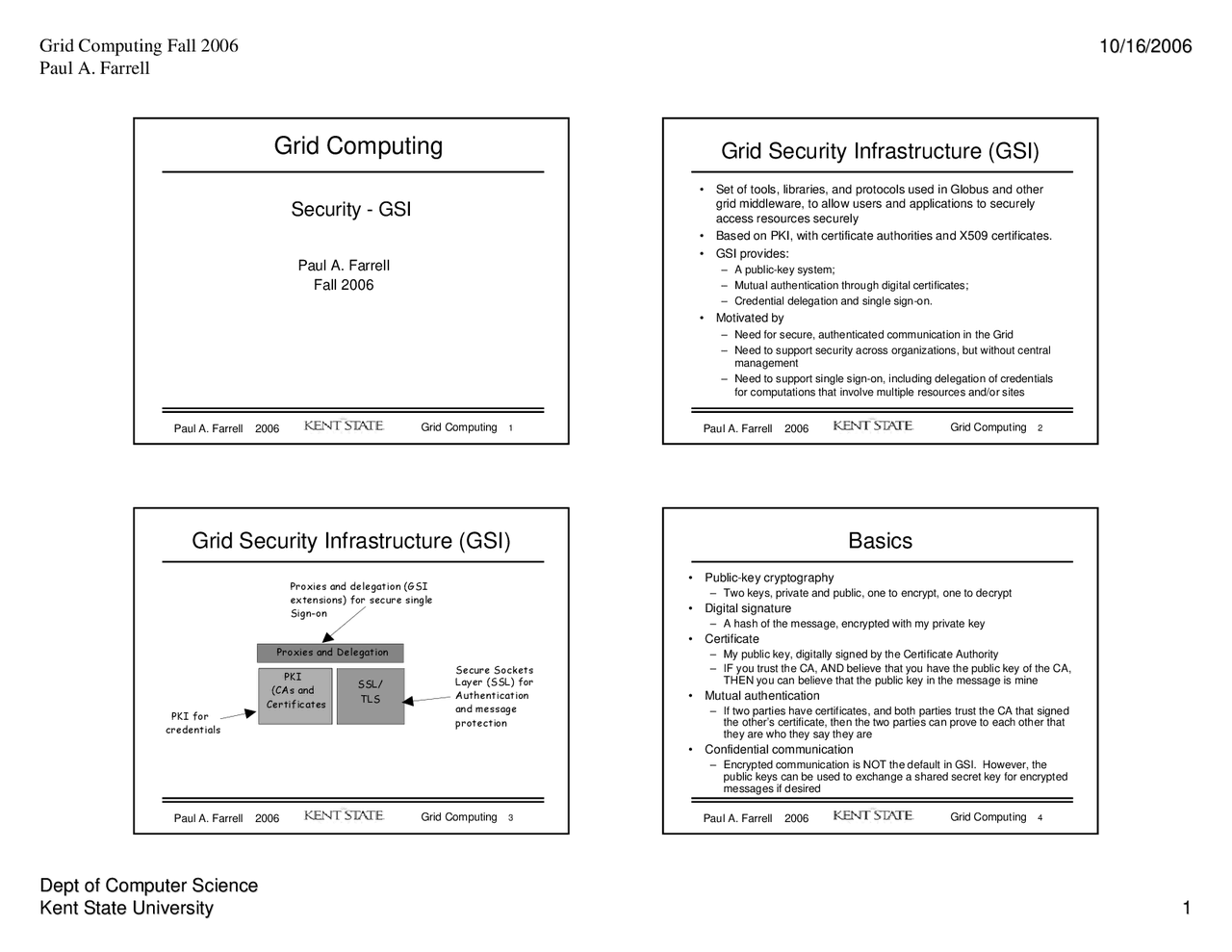

Grid Computing
1
Paul A. Farrell
Security - GSI
Paul A. Farrell
Fall 2006
Grid Computing
Grid Computing
2
Paul A. Farrell
Grid Security Infrastructure (GSI)
-^
Set of tools, libraries, and protocols used in Globus and othergrid middleware, to allow users and applications to securelyaccess resources securely
-^
Based on PKI, with certificate authorities and X509 certificates.
-^
GSI provides:
–^
A public-key system;
-^
Mutual authentication through digital certificates;
-^
Credential delegation and single sign-on.
-^
Motivated by
–^
Need for secure, authenticated communication in the Grid
-^
Need to support security across organizations, but without centralmanagement
-^
Need to support single sign-on, including delegation of credentialsfor computations that involve multiple resources and/or sites
Grid Computing
3
Paul A. Farrell
Grid Security Infrastructure (GSI)
PKI (CAs andCertificates
SSL/TLS
Proxies and Delegation
PKI forcredentials
Secure SocketsLayer (SSL) forAuthenticationand messageprotection
Proxies and delegation (GSIextensions) for secure singleSign-on
Grid Computing
4
Paul A. Farrell
Basics
-^
Public-key cryptography–
Two keys, private and public, one to encrypt, one to decrypt
-^
Digital signature–
A hash of the message, encrypted with my private key
-^
Certificate–
My public key, digitally signed by the Certificate Authority
IF you trust the CA, AND believe that you have the public key of the CA,THEN you can believe that the public key in the message is mine
-^
Mutual authentication–
If two parties have certificates, and both parties trust the CA that signedthe other’s certificate, then the two parties can prove to each other thatthey are who they say they are
-^
Confidential communication–
Encrypted communication is NOT the default in GSI. However, thepublic keys can be used to exchange a shared secret key for encryptedmessages if desired
10/16/200610/16/
Grid Computing
5
Paul A. Farrell
Grid security technologies & requirements•^
Technologies– Security is NOT based on interorganizational trust
relationships
- It is based on the use of a virtual organization (VO) as a
bridge among entities in a particular community or function
Requirements–
Must support scalable, dynamic, distributed VO’s
Key attributes of VO’s is that
•^
Participants and resources are governed by classicalorganizations of which they are members
-^
Some VO’s are long-lived, other short lived, so the overhead ofsecurity must be small
VO access must be established and coordinated
•^
Between the local user and the organization
-^
Between the VO and the user
CANNOT assume trust relationships between the classicalorganization and the VO or its external members
Grid Computing
6
Paul A. Farrell
Acquiring certificates^2006
All users and services
need to have a certificate issued from a trusted
certificate authority (CA).
-^
It is highly recommended that the builders of production grids eitherestablish their own trusted CA or use an established commercialCA.
-^
The SimpleCA package can be used to run your own CA.
Grid Computing
7
Paul A. Farrell
Acquiring user and host certificates
To request a user certificate, the user simply runs"grid-cert-request“ on a system that has GT4installed.
grid-cert-request will ask for a password to protectyour key, and give you a set of instructions for how tomail your request to the CA.
To request a host certificate, the administrator (root)runs “grid-cert-request“
Grid Computing
8
Paul A. Farrell
grid-cert-request
-^
When you run the grid-cert-request command, it will generatethree files.
–^
usercert_request.pem: the request that you need to send to the CA
-^
userkey.pem: contains the private key
-^
usercert.pem, which will be a 0 byte file.
This is not your certificate!
It is merely a placeholder that helps to remind you where to putyour certificate when the CA responds to your request.
10/16/200610/16/
Grid Computing
13
Paul A. Farrell
Mutual Authentication
C e rt if ic a te
A C e rt if ic a te
A
Certificate
B Certificate
B
User A
User B
Cert
A^
Cert
B
- Connection Established2) A sends B its certificate3) B sends A a plaintext file4) A encrypts B's plaintext file withCert
A^ and sends it to B
a) Check the validity of CertAuthority based on Digital signatureofCert Authorityb) Extract the public key of A
- B decrypts the encryptedmessage if this matches withthe original message, B can trustA now.
B send its certificate and A then authenticates it similarly
Grid Computing
14
Paul A. Farrell
Delegation and single sign-on
-^
If a Grid computation requires that several Gridresources be used (each requiring mutualauthentication), or if there is a need to have agents(local or remote) requesting services on behalf of auser, the need to re-enter the user's passphrase canbe avoided by creating a
proxy
Grid Computing
15
Paul A. Farrell
Proxy certificate
A proxy consists of•^
A new certificate (with a new public key in it) and a new privatekey.
-^
The new certificate contains the owner's identity, modifiedslightly to indicate that it is a proxy.
-^
The new certificate is signed by the owner, rather than a CA.
-^
The certificate also includes a time notation after which theproxy should no longer be accepted by others.
-^
The proxy certificate is stored in /tmp on linux usually as/tmp/x509up_u
userID
or /tmp/x509up_u_
username
Grid Computing
16
Paul A. Farrell
Use of proxy certificate
10/16/200610/16/
Grid Computing
17
Paul A. Farrell
Use of proxy certificate
-^
The proxy's private key must be kept secure, but not for verylong
-^
Usually the proxy's private key is kept in a local storage systemwithout being encrypted–
File permissions prevent anyone else from looking at them easily.
-^
Once a proxy is created and stored, the user can use the proxycertificate and private key for mutual authentication withoutentering a password.
Grid Computing
18
Paul A. Farrell
Proxy certificate chain of trust
-^
The remote party receives the proxy's certificate (signed by theowner), and also the owner's certificate.
-^
During mutual authentication, the owner's public key (obtainedfrom the certificate) is used to validate the signature on theproxy certificate.
-^
The CA's public key is then used to validate the signature on theowner's certificate.
-^
This establishes a chain of trust from the CA to the proxythrough the owner.
Grid Computing
19
Paul A. Farrell
Creating a proxy certificate
-^
To create a proxy with the default expiration (12 hours), run thegrid-proxy-init program. For example:
% grid-proxy-init
-^
The subject of a proxy certificate is the same as the subject ofthe certificate that signed it, with
/CN=proxy
added to the
name.
-^
A host gatekeeper will accept job requests submitted by theuser, as well as any proxies he has created.
Grid Computing
20
Paul A. Farrell
GSI system configuration
-^
GSI Directories
- Trusted CA directory: contains the CA certificates and
associated files trusted by the globus installation
- If they are generated using SimpleCA by user globus they
are in ~globus/.globus/SimpleCA
- Grid Security directory: contains symbolic links to the
certificate request configuration files
