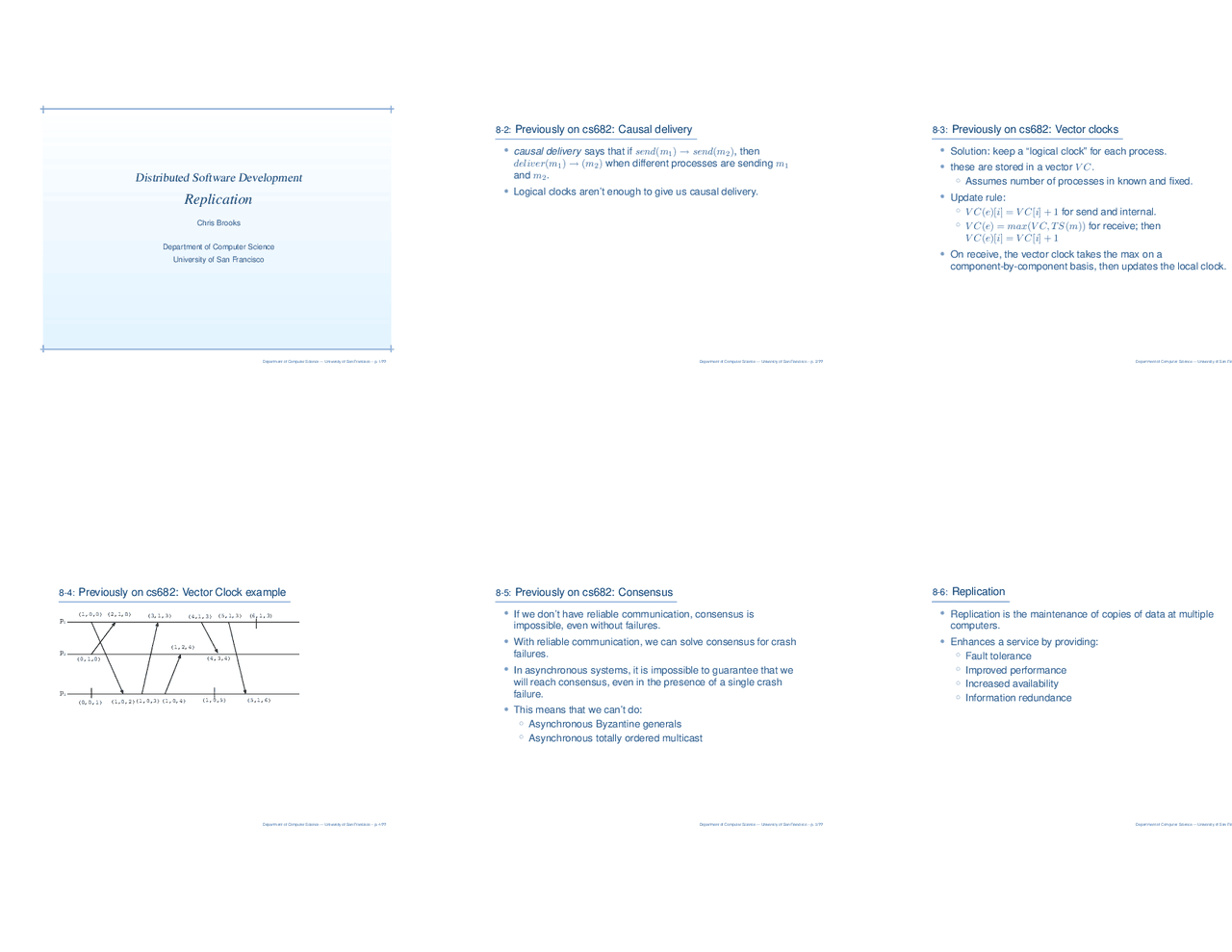

Distributed Software Development
Replication
Chris Brooks
Department of Computer Science
University of San Francisco
Department of Computer Science — University of San Francisco – p. 1/
??
Previously on cs682: Causal delivery
•^
causal delivery
says that if
send
(m
send
(m
, then
deliver
(m
(m
when different processes are sending
m
1
and
m
•^
Logical clocks aren’t enough to give us causal delivery.
Department of Computer Science — University of San Francisco – p. 2/
??
Previously on cs682: Vector clocks
•^
Solution: keep a “logical clock” for each process.
-^
these are stored in a vector
V C
◦^
Assumes number of processes in known and fixed.
-^
Update rule:^ ◦
V C
(e
)[
i] =
V C
[i] + 1
for send and internal.
◦^
V C
(e
max
(V C, T S
(m
for receive; then
V C
(e
)[
i] =
V C
[i] + 1
•^
On receive, the vector clock takes the max on acomponent-by-component basis, then updates the local clock.
Department of Computer Science — University of San Fra
Previously on cs682: Vector Clock example
p^1 p^2 p^3
(1,0,0) (0,1,0) (0,0,1)
(2,1,0) (1,0,2)(1,0,3) (1,0,4)
(3,1,3)
(1,2,4)
(4,1,3)
(4,3,4) (1,0,5)
(5,1,6)
(5,1,3)
(6,1,3)
Department of Computer Science — University of San Francisco – p. 4/
??
Previously on cs682: Consensus
•^
If we don’t have reliable communication, consensus isimpossible, even without failures.
-^
With reliable communication, we can solve consensus for crashfailures.
-^
In asynchronous systems, it is impossible to guarantee that wewill reach consensus, even in the presence of a single crashfailure.
-^
This means that we can’t do:^ ◦
Asynchronous Byzantine generals ◦ Asynchronous totally ordered multicast
Department of Computer Science — University of San Francisco – p. 5/
??
Replication
•^
Replication is the maintenance of copies of data at multiplecomputers.
-^
Enhances a service by providing:^ ◦
Fault tolerance ◦ Improved performance ◦ Increased availability ◦ Information redundance
Department of Computer Science — University of San Fra
Why is replication useful?
•^
Increased performance.^ ◦
By moving data closer to a client, latency is reduced. ◦ Web caching, proxy servers are an example of this.
-^
Performance is improved most effectively with immutable data.^ ◦
If the client is going to change the data and send it back,performance gains are reduced.
Department of Computer Science — University of San Francisco – p. 7/
??
Why is replication useful?
•^
Increased availability.
-^
Many services need to be highly available
-^
Replication provides a way of overcoming server failures.
-^
If a server will fail with probability
p
, then we can determine how
many servers are needed to provide a given level of service:^ ◦
Avail
p
n
•^
For example, if a server has a 5% chance of failure (i.i.d) over agiven time period, and we want 99.9% availability, we need atleast 4 replicas.
Department of Computer Science — University of San Francisco – p. 8/
??
Client-side replication
•^
Note that replication is not limited to servers.
-^
Multiple clients may need to replicate data.^ ◦
Shared code or documents being edited. ◦ Meeting scheduling ◦ Conferencing or whiteboard software.
Department of Computer Science — University of San Fra
Fault tolerance
•^
Highly available data may not be correct data.^ ◦
For example, in the presence of network outages.
-^
Fault tolerance guarantees correct behavior in the presence ofa given number of faults.
-^
Similar to availability, but a coordination element is alsorequired.
-^
We may also want to ensure against corruption of data.
Department of Computer Science — University of San Francisco – p. 10/
??
Outline
•^
Passive Replication^ ◦
What problems must be solved for this?
-^
Active Replication^ ◦
What problems must be solved for this?
-^
Lazy Replication^ ◦
What problems must be solved for this?
Department of Computer Science — University of San Francisco – p. 11/
??
Client Requirements
•^
Single logical copy.
-^
Multiple physical copies.
-^
Consistency^ ◦
The details of this will depend on the application.
Department of Computer Science — University of San Fran
Group Communication
•^
Updating replicas is a
group communication
problem.
•^
If groups can change dynamically, then a group membershipservice is needed.
-^
This keeps track of the processes that are currently in a group.
Department of Computer Science — University of San Francisco – p. 19/
??
Group membership
•^
A group membership process needs to:^ ◦
Provide an interface for membership changes, creation, anddestruction. ◦ Provide a failure detector ◦ Notify members of membership changes. ◦ Perform group address expansion. When a message is sentvia multicast, it is sent to the group address. Themembership process must then deliver that message to allprocesses.
Department of Computer Science — University of San Francisco – p. 20/
??
View-synchronous communication
•^
View-synchronous communication is an extension of reliablemulticast.
-^
It uses a
view
, which is a list of all processes currently in the
group.
-^
When membership changes, a new view is sent to all members.
-^
All messages that originate before a new view must bedelivered before that new view is delivered.^ ◦
Provides a cut in the message timeline. ◦ Can also be thought of as providing a state transition.
View-synchronous communication
•^
View-synchronous communication guarantees that if oneprocess delivers a message within the context of a view, allprocesses deliver that message with that view’s context.
-^
Change of view is treated as another timestamped message.
-^
Allows us to break the timeline into states, or sequences ofviews.
-^
All processes agree on what has happened in that view.
Department of Computer Science — University of San Francisco – p. 22/
??
Comments on passive replication
•^
n^
replicas are needed to tolerate
n
crash failures.
•^
Very easy from the front end’s point of view; all that is needed isto communicate with a single server, and possible changeservers if the primary fails.
-^
Problem: view-synchronous communication requires significantoverhead.^ ◦
This can lead to latency in transmitting data back to theclient.
Department of Computer Science — University of San Francisco – p. 23/
??
Failures
•^
Passive replication deals nicely with crash failures.
-^
If a backup crashes, there’s no problem.
-^
if the primary crashes, it is replaced by a new primary.View-synchronous group communication allows the replicas toagree as to what operations have been performed.
-^
The new primary picks up at that point.
Active Replication
Client
Client
RM RM RM
FrontEnd
FrontEnd
•^
In active replication, allreplica managers are equal
-^
Front ends multicastrequests to all replicamanagers.
-^
All managers processrequest independently
-^
If a replica crashes, otherscontinue as normal.
Department of Computer Science — University of San Francisco – p. 25/
??
Active Replication
•^
Sequence of events:1. Front end attaches a unique identifier to request and
multicasts it to all RMs using totally ordered reliablemulticast.
- Group communication system delivers messages to all RMs
in the same order.
- Each replica manager evaluates the request.4. Since totally ordered multicast is used for communication,
no agreement phase is needed.
- Each replica returns its response to the front end.
Department of Computer Science — University of San Francisco – p. 26/
??
Active Replication
•^
When can the front end return a response to the client?
-^
Depends on what sorts of failures you want to tolerate.^ ◦
Crash failures: can return the first response. ◦ Byzantine failures: Must collect
2 3
Active replication
•^
Notice that active replication assumes totally ordered reliablemulticast.
-^
Recall that this is equivalent to the consensus problem.
-^
We need either:^ ◦
A synchronous system ◦ Failure detectors
-^
As with passive replication, totally ordered multicast may causelatencies.
Department of Computer Science — University of San Francisco – p. 28/
??
Failures
•^
Failure is totally transparent here.
-^
Nothing new is needed if a replica manager crashes.
-^
Too many Byzantine failures can cause the usual problems.
Department of Computer Science — University of San Francisco – p. 29/
??
Lazy Replication
•^
Active and passive replication provide fault tolerance andsequential consistency.
-^
They do this by immediately synchronizing before returningdata to the client.
-^
This is great for fault tolerance, but not for availability.^ ◦
Some applications may not tolerate latency.
-^
We can trade latency for sequential consistency to get a highlyavailable service.
Updating with lazy replication
•^
If the query’s timestamp precedes the replica manager’s, theupdate can proceed immediately.
-^
Otherwise, the update is queued until the causally-previousmessages arrive.
-^
Once this happens, the replica manager logs the update andupdates its timestamp.
Department of Computer Science — University of San Francisco – p. 37/
??
Gossiping
•^
Replicas synchronize with each other through
gossip
messages
•^
A gossip message contains a log of past updates and atimestamp.
-^
When a gossip message is received, the receiver must:^ ◦
Merge the log with its own. (the log may reflect otherupdates it hasn’t seen) ◦ Apply stable updates ◦ Remove entries from the log that are known to have beenapplied everywhere.
Department of Computer Science — University of San Francisco – p. 38/
??
Gossiping
•^
Update frequency (how often gossip messages are sent) isapplication-dependent.^ ◦
Bulletin board: minutes, or less. ◦ Inventorying systems: possibly less frequently. ◦ May also depend on network availability. (for example,meeting schedulers on PDAs)
-^
Who updates are sent to can also be tuned to fit the application.^ ◦
Can choose randomly ◦ Can choose the replica who is ’farthest behind’ ◦ Can use a fixed topology.
-^
Trade off amount of communication against latency and effectsof failure.
Comments on lazy replication
•^
Provides high availability; clients usually receive an immediateresponse.
-^
Works even when the network is partitioned.
-^
Not appropriate for applications where replicas must be tightlysynchronized, such as video conferencing.
-^
Scalability is an issue, due to number of messages and size oftimestamp.
Department of Computer Science — University of San Francisco – p. 40/
??
Failures
•^
The gossip architecture can also deal nicely with failure.
-^
Front ends can connect to more than one RM.
-^
It’s possible for a transaction to be lost if it is submitted to an RMwho immediately crashes before sending it on to any other RM.
Department of Computer Science — University of San Francisco – p. 41/
??
Summary
•^
Replication is the maintenance of copies of data at multiplecomputers.^ ◦
Provides fault tolerance, increased performance, highavailability.
-^
Passive replication: a single RM interacts with clients, andsynchronizes with slaves.
-^
Active replication: All RMs communicate with clients andsynchronize with totally ordered multicast.
-^
Lazy replication: RMs immediately return responses to clientsand synchronize later.
