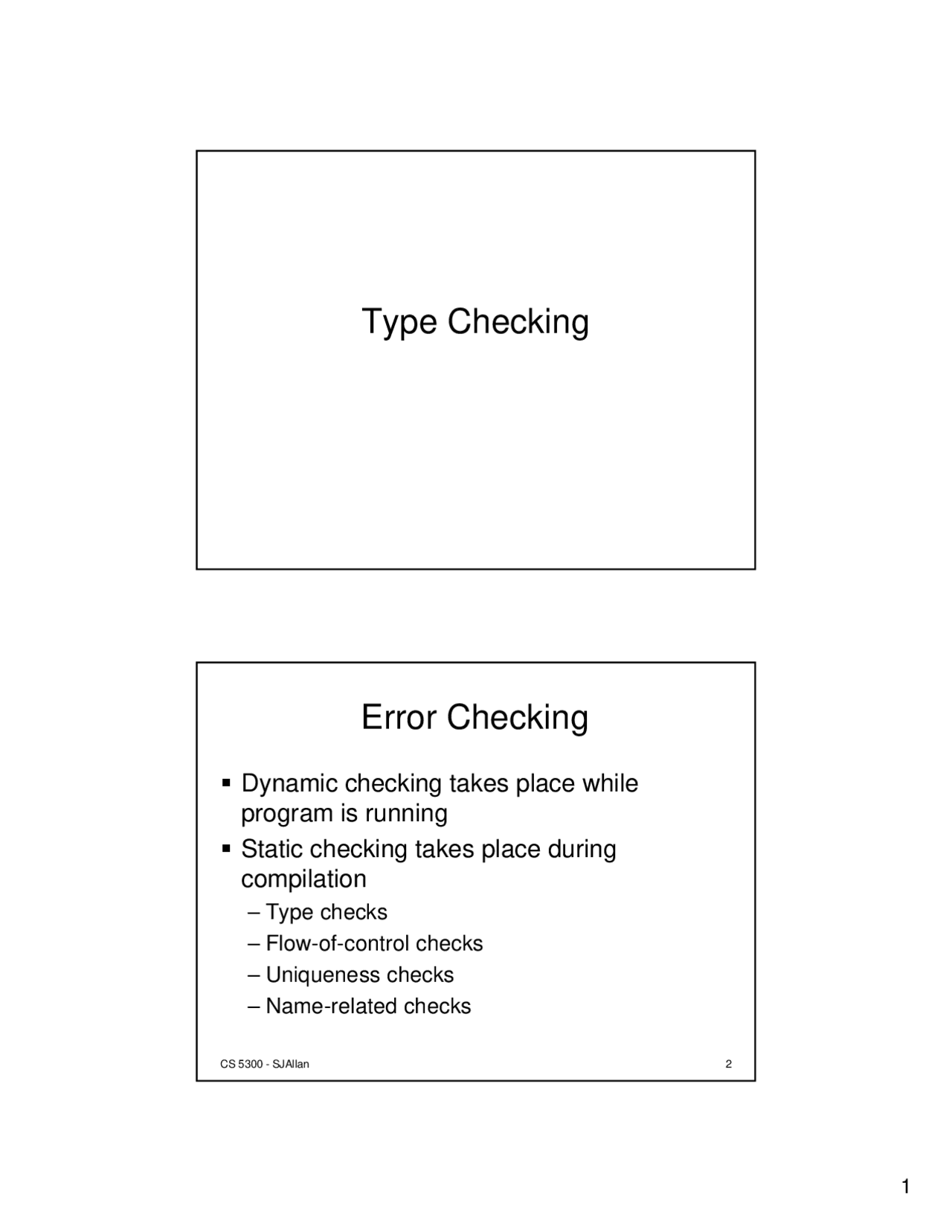

Type Checking
CS 5300 - SJAllan 2
Error Checking
๎Dynamic checking takes place while
program is running
๎Static checking takes place during
compilation
โ Type checks
โ Flow-of-control checks
โ Uniqueness checks
โ Name-related checks
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Lecture Slides on Type Checking - Compiler Design | CS 5300, Study notes of Computer Science
Material Type: Notes; Professor: Allan; Class: COMPILER DESIGN; Subject: Computer Science; University: Utah State University; Term: Unknown 1989;
Typology: Study notes
Pre 2010
1 / 13
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Lecture Slides on Type Checking - Compiler Design | CS 5300 and more Study notes Computer Science in PDF only on Docsity!
Type Checking
CS 5300 - SJAllan 2
Error Checking
ย Dynamic checking takes place while
program is running
ย Static checking takes place during
compilation
- Type checks
- Flow-of-control checks
- Uniqueness checks
- Name-related checks
CS 5300 - SJAllan 3
Types
ย Every expression has an associated type
ย Rules exist to assign a type to an
expression, e.g.:
- If you add, subtract, or multiply two integer operands, the result is an integer
- If you take the address of an operand of type T , the type of the result is pointer to T
ย In Pascal and C, types are either basic or
constructed
CS 5300 - SJAllan 4
Type Checking
ย Verifying that the type of a construct
matches that expect by its context
ย Type information may be needed when code
is generated. Why?
ย A symbol that can represent different
operations in different contexts is said to be
overloaded
ย Overloading may be accompanied by
coercion of types
CS 5300 - SJAllan 7
Type Expressions
ย Applying "type constructors" to type expressions forms new type expressions
- Arrays
- Records
- Pointers
ย A function maps elements from one set (domain) to another set (range)
- mod has type " int x int ร int "
- function f(a, b: char) : โ integer; ( f has type " char x char ร pointer(integer)" )
CS 5300 - SJAllan 8
Type Systems
ย A type system is a collection of rules for
assigning type expressions
ย A type checker implements a type system
ย Different type systems may be used by
different compilers of the same language
ย A type checker should adequately handle
error recovery
CS 5300 - SJAllan 9
Static vs. Dynamic Checks
ย In principle, any check can be done dynamically if the target code carries type information
ย A sound type system eliminates the need for dynamic checking
ย A language is strongly typed of its compiler only accepts programs that have no type errors
ย In practice, some checks can only be done dynamically (e.g., checking array indices)
CS 5300 - SJAllan 10
Simple Type Checker
ย The simple language above allows a sequence of declarations followed by a single expression ย A simple syntax-directed definition can specify a type checker for this language
Pร D ; E D ร D ; D | id : T T ร char | integer | array [num] of T | โ T E ร literal | num | id | E mod E | E[E] | E โ
CS 5300 - SJAllan 13
Type Checking of Statements
S.type := if S 1 .type = void and S 2 .type = void then void else type_error
S ร S 1 ; S 2
S.type := if E.type = boolean S ร while E do S (^1) then S 1 .type else type_error
S.type := if E.type = boolean S ร if E then S (^1) then S 1 .type else type_error
S.type := if id.type = E.type S ร id := E then void else type_error
Production Statements
CS 5300 - SJAllan 14
Type Checking of Functions
E.type := if E 2 .type = s and E 1 .type = s ร t then t else type_error
E ร E 1 (E 2 )
id.type := arguments.type ร standard_type.type
subprogam_head ร function id arguments : standard_type ';'
Production Statements
CS 5300 - SJAllan 15
Type Systems
ย A collection of rules for assigning type
expressions to the various parts of a
program
ย A type checker implements a type system
CS 5300 - SJAllan 16
Type Checkers
ย Static
- Checking is done by the compiler ย Dynamic
- Checking is done at run-time ย A sound type system eliminates the need for dynamic checking for type errors because it allows us to determine statically that these errors cannot occur at run-time ย A langue is strongly typed if its compiler can guarantee that the programs it accepts will execute without errors
CS 5300 - SJAllan 19
Type Checking Scheme
T โ array [ num ] of T 1 T.type = array( num .val, T 1 .type)
T โ โT 1 T.type = pointer(T 1 .type)
T โ integer T.type = integer
T โ char T.type = char
D โ id : T addtype( id .entry, T.type)
D โ D ; D
P โ D ; E
Production Semantic Rules
CS 5300 - SJAllan 20
Type System for Expressions
E.type = if E 1 .type = pointer(t) then t else type_error
E โ E 1 โ
E.type = if E 2 .type = integer and E 1 .type = array(s,t) then t else type_error
E โ E 1 [E 2 ]
E.type = if E 1 .type = integer and E 2 .type = integer then integer else type_error
E โ E 1 mod E 2
E โ id E.type = lookup(id.entry)
E โ num E.type = integer
E โ literal E.type = char
Production Semantic Rules
CS 5300 - SJAllan 21
Type System for Statements
S.type = if S 1 .type = void and S 2 .type = void then void else type_error
S โ S 1 ; S (^2)
S.type = if E.type = boolean then void else type_error
S โ while E do S (^1)
S.type = if E.type = boolean then void else type_error
S โ if E then S (^1)
S.type = if id.type = E.type then void else type_error
S โ id = E
Production Semantic Rules
CS 5300 - SJAllan 22
Type System for Functions
E.type = if E 2 .type = s and E 1 .type = s โ t then t else type_error
E โ E 1 (E 2 )
T โ T 1 โโ โ T 2 T.type = T 1 .type โ T 2 .type
Production Semantic Rules
CS 5300 - SJAllan 25
Coercion of Expressions
E.type = if E 1 .type = integer and E 2 .type = integer then integer else if E 1 .type = integer and E 2 .type = real then real else if E 1 .type = real and E 2. type = integer then real else if E 1 .type = real and E 2 .type = real then real else type_error
E โ E 1 op E 2
E โ id E.type = lookup( id .Entry)
E โ num. num E.type = real
E โ num E.type = integer
Production Semantic Rules
