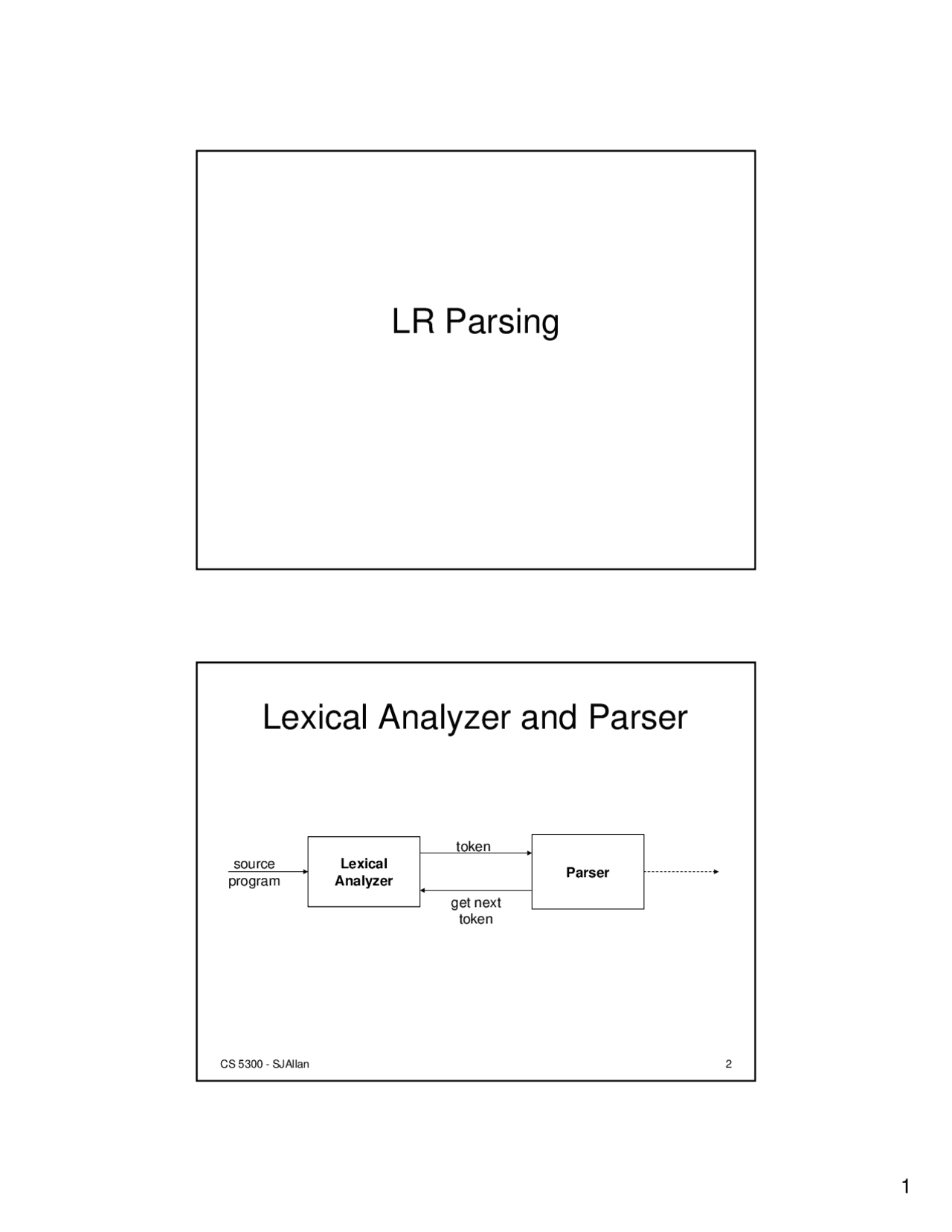

LR Parsing

CS 5300 - SJAllan 2

Lexical Analyzer and Parser

Lexical

Analyzer

Parser

token

get next

token

source

program

CS 5300 - SJAllan 3

Shift-Reduce or LR(k) Parsing

ƒ Bottom-up parsing technique

ƒ LR(k) parsing

– L – scan the input from left-to-right

– R – construct a right-most derivation

– k – number of look-ahead symbols needed

ƒ Called a shift-reduce parsing method

– Shift and reduce are the major actions done by

the parser

CS 5300 - SJAllan 4

LR(k) Parsers

ƒ Advantages

– Can be constructed for virtually all programming

language constructs for which a CFG can be written

– Is more general than other parsers

ƒ Better than LL(k) parsers

– Can detect syntactic errors as soon as possible on a

left-to-right scan of the input

ƒ Disadvantages

– Too much work to implement by hand; you must use a

parser generator

CS 5300 - SJAllan 7

Why LR(k) Grammars are Useful

ƒ The parser know when to cease scanning given a

sentential form αβγ, i.e., it can detect the boundary

between β and γ

ƒ The parser is able to identify the handle β

ƒ The parser is able to uniquely select a production

A → β that corresponds to the handle and to this

sentential form

– Grammars can be LR(k) and yet have productions A →

β, B → β with the same right-hand side

ƒ The parser knows when to stop

CS 5300 - SJAllan 8

LR(K) (Shift-Reduce) Parsing

ƒ Parsing performed by a finite state machine

ƒ Parsing algorithm is language-independent

ƒ FSM driven by table (s) generated

automatically from grammar

ƒ Language Generator Tables

CS 5300 - SJAllan 9

Model of LR Parser

a 1 … ai … an $

LR

Parsing

Program

action goto

Output

sm

xm

sm-

xm-

s 0

Parse table

Stack

Input

CS 5300 - SJAllan 10

LR Parsing Algorithm

set ip to point to the first symbol in ω$ initialize stack to s (^0) repeat forever let s be topmost state on stack let a be symbol pointed to by ip if action[s,a] = shift s’ push a then s’ onto stack advance ip to next input symbol else if action[s,a] = reduce A Æ B pop 2*|B| symbols of stack let s’ be state now on top of stack push A then goto[s’,A] onto stack output production A Æ B else if action[s,a] == accept return success else error()

CS 5300 - SJAllan 13

Another Example

(14) 0 E 1 $ accept

(13) 0 E 1 + 6 T 9 $ reduce by E Æ E + T

(12) 0 E 1 + 6 F 3 $ reduce by T Æ F

(11) 0 E 1 + 6 id 5 $ reduce by F Æ id

(10) 0 E 1 + 6 id $ shift

(9) 0 E 1 + id $ shift

(8) 0 T 2 + id $ reduce by E Æ T

(7) 0 T 2 * 7 F 10 + id $ reduce by T Æ T * F

(6) 0 T 2 * 7 id 5 + id $ reduce by F Æ id

(5) 0 T 2 * 7 id + id $ shift

(4) 0 T 2 * id + id $ shift

(3) 0 F 3 * id + id $ reduce by T Æ F

(2) 0 id 5 * id + id $ reduce by F Æ id

(1) 0 id * id + id $ shift

Stack Input Action

CS 5300 - SJAllan 14

Yet Another Example (G

4. T→F 9. F→e

3. T→T F 8. F→b

2. E→T 7.^ F→a

1. E→E+T 6. F→(E)

0. E’→E$ 5. F→F*

12 S5 S6 S7 S4 R1 R1 R1 9 13 R6 R6 R6 R6 R6 R6 R6 R

11 S13 S

10 R5 R5 R5 R5 R5 R5 R5 R

9 R3 R3 R3 R3 R3 R3 S10 R

8 S5 S6 S7 S4 12 3

7 R9 R9 R9 R9 R9 R9 R9 R

6 R8 R8 R8 R8 R8 R8 R8 R

5 R7 R7 R7 R7 R7 R7 R7 R

4 S5 S6 S7 S4 11 2 3

3 R4 R4 R4 R4 R4 R4 S10 R

2 S5 S6 S7 S4 R2 R2 R2 9

1 S8 acc

0 S5 S6 S7 S4 1 2 3

a b e ( ) + * $ E T F

action goto

Grammar

Parse Table

CS 5300 - SJAllan 15

Yet Another Example

0 4 11 8 3 )*b$ R

0 4 11 8 5 )*b$ R7 0 1 $ acc

0 4 11 8 a)*b$ S5 0 2 $ R

0 4 11 +a)*b$ S8 0 2 9 $ R

0 4 2 +a)*b$ R2 0 2 6 $ R

0 4 2 9 +a)*b$ R3 0 2 b$ S

0 4 2 6 +a)*b$ R8 0 3 b$ R

0 4 2 b+a)*b$ S6 0 3 10 b$ R

0 4 3 b+a)*b$ R4 0 3 *b$ S

0 4 5 b+a)*b$ R7 0 4 11 13 *b$ R

0 4 ab+a)b$ S5 0 4 11 )b$ S

0 (ab+a)b$ S4 0 4 11 8 12 )b$ R

Stack Input Action Stack Input Action

CS 5300 - SJAllan 16

LR(k) Parsing

ƒ The only difference between parsing one LR

language and another is the information in

the action and goto fields of the parse table

ƒ The parsing algorithm is always the same

CS 5300 - SJAllan 19

Item Set Construction

ƒ Start operation:

– If S is the start symbol, and S→α is some production,

the item [S→⋅α] is associated with the start state

ƒ Completion operation (closure):

– If [A→α⋅Bγ], where B∈Vn , is an item in some state I,

then every item of the form [B→⋅β] must be included in

state I. This rule is repeated until no more new items

can be added to state I

ƒ Read operation:

– Let [A→α⋅Xγ], where X∈(Vn∪Vt ), be an item associated

with some state I. Then [A→αX⋅γ] is associated with

state J (possibly the same as I), and a transition from I

to J on symbol X exists

CS 5300 - SJAllan 20

Construction of Finite State System

1. Give the start state a number and use the start operation

to put one item into it

• Use the completion operation to get more items into this state

ƒ Eventually the completion operation has to end

2. Use the read operation to start one or more new states,

based on the present state

• It is possible for this new state to be equivalent to some previous state

ƒ If so, these states are merged

3. Complete the new state started previously by applying the

completion operation

4. Repeat steps 2 and 3 until no new states are added

CS 5300 - SJAllan 21

Example of LR(0) Items

0. S’→S

1. S→aSbS
2. S→a
   1. [S’→⋅S] 3. [S→aS⋅bS] [S→⋅aSbS] [S→⋅a] 4. [S→aSb⋅S] [S→⋅aSbS]
   2. [S’→S⋅] [S→⋅a]
   3. [S→a⋅SbS] 5. [S→aSbS⋅] [S→a⋅] [S→⋅aSbS] [S→⋅a]

a b S

Grammar

LR(0) Items

Transition Table

CS 5300 - SJAllan 22

Inadequate or Inconsistent States

ƒ Definition:

– Any state containing both a completed item

[A→α⋅] and any other item is said to be

inadequate or inconsistent

– Such a state represents a conflict in a parsing

decision

ƒ If the item sets contain no inadequate

states, the grammar is said to be LR(0)

CS 5300 - SJAllan 25

FOLLOW

ƒ FOLLOW(A), for A∈Vn, is the set of

terminals a that can appear immediately to

the right if A in some sentential form

ƒ More formally, a is in FOLLOW(A) if and

only if there exists a derivation of the form

S⇒

αAaβ

ƒ $ is in FOLLOW(A) if and only if there

exists a derivation of the form S⇒

αA

CS 5300 - SJAllan 26

Computing FOLLOW

ƒ Place $ in FOLLOW(S)

ƒ If there is a production A Æ αBβ, then

everything in FIRST(β) (except for ε) is in

FOLLOW(B)

ƒ If there is a production A Æ αB, or a

production A Æ αBβ where FIRST(β)

contains ε,then everything in FOLLOW(A) is

also in FOLLOW(B)

CS 5300 - SJAllan 27

FIRST and FOLLOW Example

E Æ TE’

E’ Æ +TE’ | ε

T Æ FT’

T’ Æ *FT’ | ε

F Æ (E) | id

FIRST(E) = FIRST(T) = FIRST(F) = {(, id }

FIRST(E’) = {+, ε}

FIRST(T’) = {*, ε}

FOLLOW(E) = FOLLOW(E’) = {), $}

FOLLOW(T) = FOLLOW(T’) = {+, ), $}

FOLLOW(F) = {+, *, $}

CS 5300 - SJAllan 28

SLR(1) Parse Table Construction

1. Construct LR(0) item sets {I 0 , …, In }

2. State i is constructed from I i:

a. If [A→α⋅aβ] ∈ Ii , goto(Ii ,a) = Ij , and a ∈ Vt, then set action [i,a] = shift j b. If [A→α⋅] ∈ Ii then action [i,a] = reduce A→α ∀ Follow (A) c. If [S’→S⋅] ∈ Ii , then action [i,$] = accept

3. The goto transitions for state i are constructed for all

nonterminals A using the rule: If goto(Ii,A) = Ij, then

goto [i,A] = j

4. All entires not defined by rules 2 and 3 are made error

5. The intial state of the parser is the one constructed from

the set of items containing [S’→S⋅]

CS 5300 - SJAllan 31

Item Sets Using G

I 0 : [E’→⋅E] I 4 : [F→(⋅E)] I 9 : [T→TF⋅]

[E→⋅E+T] [E→⋅E+T] [F→F⋅∗]

[E→⋅T] [E→⋅T] I 10 : [F→F∗⋅]

[T→⋅TF] [T→⋅TF] I 11 : [F→(E⋅)]

[T→⋅F] [T→⋅F] [E→E⋅+T]

[F→⋅F∗] [F→⋅F∗] I 12 : [E→E+T⋅]

[F→⋅(E)] [F→⋅(E)] [T→T⋅F]

[F→⋅a] [F→⋅a] [F→⋅F∗] [F→⋅b] [F→⋅b] [F→⋅(E)] [F→⋅e] [F→⋅e] [F→⋅a] I 1 : [E’→E⋅] I 5 : [F→a⋅] [F→⋅b] [E→E⋅+T] I 6 : [F→b⋅] [F→⋅e] I 2 : [E→T⋅] I 7 : [F→e⋅] I 13 : [F→(E)⋅] [T→T⋅F] I 8 : [E→E+⋅T] [F→⋅F∗] [T→⋅TF] [F→⋅(E)] [T→⋅F] [F→⋅a] [F→⋅F∗] [F→⋅b] [F→⋅(E)] [F→⋅e] [F→⋅a] I 3 : [T→F⋅] [F→⋅b] [F→F⋅∗] [F→⋅e]

Follow(E) = {+, ), $} Follow(T) = {+, ), $, (, a, b, e} Follow(F) = {+, ), $, ∗, (, a, b, e}

The SLR(1) table is shown on slide 14

CS 5300 - SJAllan 32

Grammar G

10 R

9 R

8 R

7 R5/S10 R

6 S

5 R

4 R5 S8/R

3 S7 6

2 S

1 acc

0 S4 S3 1 2

a b c d $ S A

1. S’→S action^ goto
2. S→Aa
3. S→dAb
4. S→dca
5. S→cb
6. A→c Grammar G 3

SLR(1) Parse Table

CS 5300 - SJAllan 33

Looking at G

ƒ Consider the string cb

ƒ We run into problems in state 4

– Notice that we can never have a b following an

A (under the assumption we reduce)

– Ab is not a viable prefix

ƒ A viable prefix is so called because it is

always possible to add terminal symbols to

the end of a viable prefix to obtain a right

sentential form

CS 5300 - SJAllan 34

Construction of LR(1) Parse Table

ƒ Using LR(0) item, inadequate are resolved as

follows:

– On the item [A→α⋅], the reduce operation is used on the

Follow(A)

– As we have seen, this doesn’t always work

ƒ We want to carry more information in the item

– We will add look ahead symbols

– [A→α⋅β,a] where

ƒ A → αβ ƒ a is a terminal or $

CS 5300 - SJAllan 37

LR(1) Parsing Tables – Example 1

1. [S’→⋅S,$] 1. [S’→S⋅,$] 2. [S→A⋅a,$] [S→⋅Aa,$] [S→⋅dAb,$] [S→⋅dca,$] [S→⋅cb,$] [A→⋅c,a]
2. [S→d⋅Ab,$] 4. [S→c⋅b,$] 5. [S→Aa⋅,$] [S→d⋅ca,$] [A→c⋅,a] [A→⋅c,b]
3. [S→dA⋅b,$] 7. [S→dc⋅a,$] 8. [S→cb⋅,$] [A→c⋅,b]
4. [S→dAb⋅,$] 10. [S→dca⋅,$]

0. S’→S

1. S→Aa
2. S→dAb
3. S→dca
4. S→cb
5. A→c

CS 5300 - SJAllan 38

LR(1) Parsing Tables – Example 1

10 R

9 R

8 R

7 S10 R

6 S

5 R

4 R5 S

3 S7 6

2 S

1 acc

0 S4 S3 1 2

a b c d $ S A

action goto

CS 5300 - SJAllan 39

LR(1) Parsing Tables – Example 2

0. [S’→⋅S,$] 1. [S’→S⋅,$] 2. [S→C⋅C,$]

[S→⋅CC,$] [C→⋅eC,$] [C→⋅eC,e/d] [C→⋅d,$] [C→⋅d,e/d]

3. [C→e⋅C,e/d] 4. [C→d⋅,e/d] 5. [S→CC⋅,$] [C→eC,e/d] [C→⋅d,e/d]
4. [C→e⋅C,$] 7. [C→d⋅,$] 8. [C→eC⋅,e/d] [C→⋅eC,$] [C→⋅d,$]
5. [C→eC⋅,$]

0. S’→S

1. S→CC

2. C→eC
3. C→d

CS 5300 - SJAllan 40

LR(1) Parsing Tables – Example 2

9 R

8 R2 R

7 R

6 S6 S7 9

5 R

4 R3 S

3 S3 S4 8

2 S6 S7 5

1 acc

0 S3 S4 1 2

e d $ S C

action goto
