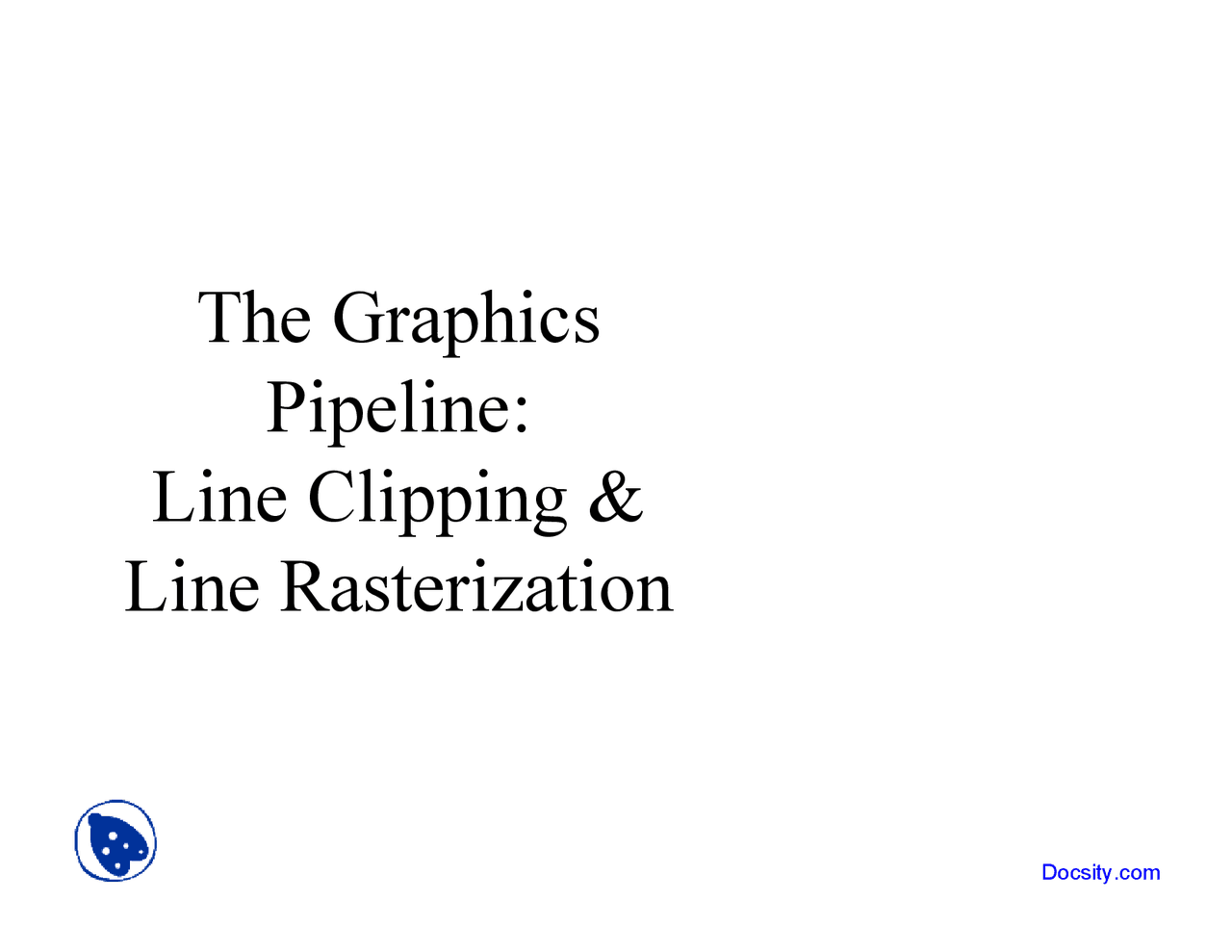

The Graphics^ Pipeline: Line Clipping & Line Rasterization
Docsity.com
Last Time?
-^ Ray Tracing vs. Scan Conversion•^ Overview of the Graphics Pipeline•^ Projective Transformations ModelingTransformations Illumination(Shading) Viewing Transformation(Perspective / Orthographic)^ Clipping Projection(to Screen Space) Scan Conversion(Rasterization) Visibility / Display
Docsity.com
Today: Line Clipping & Rasterization
-^ Portions of theobject outsidetheview frustumare removed•^ Rasterizeobjectsinto pixels ModelingTransformations Illumination(Shading) Viewing Transformation(Perspective / Orthographic)^ Clipping^ Projection(to Screen Space) Scan Conversion(Rasterization) Visibility / Display
Docsity.com
Today • Why Clip? • Line Clipping • Overview of Rasterization • Line Rasterization • Circle Rasterization • Antialiased Lines
Docsity.com
Why clip? • Avoid degeneracies– Don’t draw stuffbehind the eye– Avoid divisionby 0 and overflow• Efficiency– Don’t waste time on objectsoutside the image boundary• Other graphics applications (often non-convex)– Hidden-surface removal, Shadows, Picking,Binning, CSG (Boolean) operations (2D & 3D)
Docsity.com
Clipping strategies • Don’t clip (and hope for the best) • Clip on-the-fly during rasterization • Analytical clipping: alter input geometry
Docsity.com
Today • Why Clip? • Point & Line Clipping^ – Plane – Line intersection^ – Segment Clipping^ – Acceleration using outcodes • Overview of Rasterization • Line Rasterization • Circle Rasterization • Antialiased Lines
Docsity.com
Implicit 3D Plane Equation • Plane defined by:^ point
p &^ normal
n^ OR
normal^ n &
offset^ d^
OR
3 points • Implicit plane equation A x +B y +C
z +D = 0
P^ P^0 Docsity.com
Point-to-Plane Distance
P^0 P’
P d^ H = (A,B,C,D)
- If (A,B,C) is normalized:^ d = H•p = H
Tp
(the dot product in homogeneous coordinates) • d is a^ signed distance positive = "inside" negative = "outside"
Docsity.com
Clipping a Point with respect to a Plane
P^0 P’
P d^ H = (A,B,C,D)
- If d = H•p
≥^0 Pass through • If d = H•p < 0: Clip (or cull or reject)
Docsity.com
What are the View Frustum Planes?
H=(^0 near^ H= far^ H= bottom^ H= top^ H= left^ H= right^
–1^ – near ) (^0
1 far^ ) (^0 near bottom
(^0 – near
- top^ 0 ) (^ left^ near
^0 0 )
(– right^ – near
^0 0 )
P ( left , bottom , – near
( right*far/near
,^ top*far/near
, – far )
Docsity.com
Clipping & Transformation • Transform M (e.g. from world space to NDC) • The plane equation is transformed with (M
-1T )^ ( 1,1,1 )
y nearfar z
y x
xo^ eye
z
Docsity.com
Segment Clipping • If H^ •^ p > 0 and H
•q < 0
- clip q to plane • If H^ •^ p < 0 and H
•q > 0
- If H^ •^ p > 0 and H
•q > 0
- If H^ •^ p < 0 and H
•q < 0
p^ n q Docsity.com
Segment Clipping • If H^ •^ p > 0 and H
•q < 0
- clip q to plane • If H^ •^ p < 0 and H
•q > 0
- clip p to plane • If H^ •^ p > 0 and H
•q > 0
- If H^ •^ p < 0 and H
•q < 0
