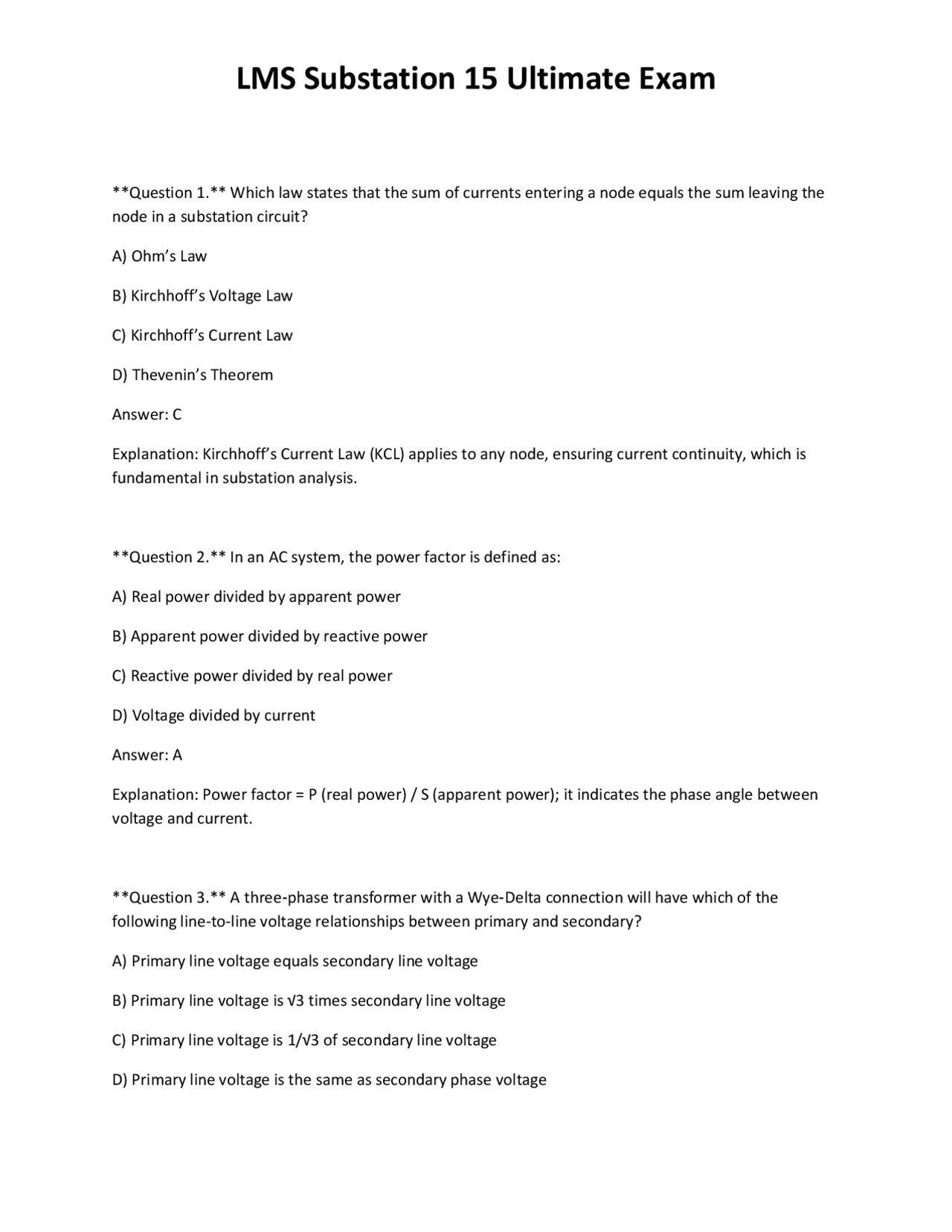

Question 1. Which law states that the sum of currents entering a node equals the sum leaving the node in a substation circuit? A) Ohm’s Law B) Kirchhoff’s Voltage Law C) Kirchhoff’s Current Law D) Thevenin’s Theorem Answer: C Explanation: Kirchhoff’s Current Law (KCL) applies to any node, ensuring current continuity, which is fundamental in substation analysis. Question 2. In an AC system, the power factor is defined as: A) Real power divided by apparent power B) Apparent power divided by reactive power C) Reactive power divided by real power D) Voltage divided by current Answer: A Explanation: Power factor = P (real power) / S (apparent power); it indicates the phase angle between voltage and current. Question 3. A three‑phase transformer with a Wye‑Delta connection will have which of the following line-to-line voltage relationships between primary and secondary? A) Primary line voltage equals secondary line voltage B) Primary line voltage is √3 times secondary line voltage C) Primary line voltage is 1/√3 of secondary line voltage D) Primary line voltage is the same as secondary phase voltage
Answer: B Explanation: In a Wye‑Delta transformer, the primary (Wye) line voltage equals √3 times the secondary (Delta) phase voltage; thus line-to-line voltage steps up by √3. Question 4. Which cooling method for power transformers circulates oil internally without external pumps? A) ONAN B) ONAF C) OFAF D) ONAF Answer: A Explanation: ONAN (Oil Natural Air Natural) relies on natural convection of oil and air, requiring no external pumps. Question 5. The primary purpose of an On‑Load Tap Changer (OLTC) is to: A) Reduce transformer losses during no‑load conditions B) Adjust voltage while the transformer is energized C) Disconnect the transformer for maintenance D) Provide overload protection Answer: B Explanation: OLTC allows voltage regulation without de‑energizing the transformer, maintaining service continuity. Question 6. Which arc‑quenching medium is most commonly used in high‑voltage vacuum circuit breakers? A) SF₆ gas
Question 9. A step‑down substation primarily serves which function? A) Increase voltage for transmission B) Decrease voltage for distribution to consumers C) Provide generation voltage regulation D) Isolate sections of the grid for maintenance Answer: B Explanation: Step‑down substations reduce high transmission voltages to lower levels suitable for distribution networks. Question 10. The phase relationship between voltage and current in a purely inductive load is: A) In phase B) Voltage leads current by 90° C) Current leads voltage by 90° D) 45° lag Answer: B Explanation: In an inductive load, the current lags the voltage by 90°, meaning voltage leads. Question 11. Which fault type involves a line-to-ground connection on a single phase? A) L‑L fault B) L‑L‑G fault C) L‑G fault D) Three‑phase fault Answer: C Explanation: A line‑to‑ground (L‑G) fault is a single‑phase fault where one phase contacts earth.
Question 12. In differential protection of a transformer, which principle is applied? A) Voltage drop across windings B) Kirchhoff’s Current Law (KCL) at the transformer's terminals C) Impedance measurement of line sections D) Zero‑sequence current detection only Answer: B Explanation: Differential protection compares currents entering and leaving the protected zone; KCL ensures sum of currents equals zero under normal conditions. Question 13. The characteristic curve of an inverse definite minimum time (IDMT) overcurrent relay shows: A) Fixed operating time regardless of current magnitude B) Decreasing time with increasing fault current, but not below a minimum time C) Increasing time as fault current rises D) A linear relationship between current and time Answer: B Explanation: IDMT relays provide faster operation for higher currents, with a preset minimum operating time. Question 14. Which type of instrument transformer is used primarily for protection schemes? A) High‑accuracy metering CT (Class 0.2) B) Low‑accuracy voltage transformer (Class 5) C) Protection CT (Class 10P) D) Power transformer winding
C) Constant apparent power curve D) Constant admittance circle Answer: A Explanation: The Mho characteristic is a circle in the R‑X plane representing a constant apparent impedance. Question 18. Auto‑reclosing of a breaker after a fault is generally applied to: A) Prevent equipment damage due to repeated trips B) Reduce outage time on transmission lines C) Increase fault current magnitude D) Eliminate the need for protection relays Answer: B Explanation: Auto‑reclosing restores service quickly after transient faults, minimizing outage duration. Question 19. Which test is used to verify the polarity of a current transformer? A] Open‑circuit voltage test B] Polarity test with a known current source and a reference CT C] Turns ratio test D] Insulation resistance test Answer: B Explanation: Applying a known current and checking the direction of the secondary current confirms polarity. Question 20. The IEC 61850 protocol primarily defines:
A) Mechanical standards for switchgear B) Communication services for substation automation C) Oil quality testing procedures D) Grounding resistance limits Answer: B Explanation: IEC 61850 standardizes communication, data models, and services (e.g., GOOSE) for substation automation. Question 21. In a Load Management System (LMS) using ripple control, the ripple signal is transmitted on: A) Dedicated fiber optic line B) Power line carrier at a specific frequency C) Wireless RF channel D) Satellite link Answer: B Explanation: Ripple control injects a low‑frequency carrier onto the distribution network to command LMS receivers. Question 22. A Static VAR Compensator (SVC) provides reactive power support by: A) Switching large capacitor banks only B) Using thyristor‑controlled reactors and capacitors for continuous adjustment C) Rotating synchronous condensers D) Storing energy in batteries Answer: B
D] Air blast Answer: B Explanation: In oil breakers, the arc causes oil to vaporize, forming gas bubbles that increase dielectric strength and extinguish the arc. Question 26. Which of the following is a key advantage of Gas‑Insulated Switchgear (GIS) over Air‑Insulated Switchgear (AIS)? A] Lower initial cost B] Smaller footprint and higher reliability in contaminated environments C] Easier maintenance without specialized equipment D] Ability to operate at higher temperatures without cooling Answer: B Explanation: GIS provides compactness and superior performance in polluted or limited‑space sites. Question 27. In a three‑phase busbar differential protection scheme, the relay will trip when: A] The sum of the three phase currents is zero B] The vector sum of the three phase currents exceeds a set threshold C] Any single phase current exceeds its over‑current setting D] The zero‑sequence current exceeds a limit Answer: B Explanation: Bus differential relays compare the vector sum of incoming and outgoing currents; a non‑zero sum indicates a fault. Question 28. The “minimum operating time” for an IDMT relay is typically set to: A] 0.1 s
B] 0.2 s to 0.5 s, depending on coordination requirements C] 1 s D] 5 s Answer: B Explanation: Coordination studies often set a minimum time between 0.2 s and 0.5 s to ensure selectivity. Question 29. Which test is used to assess the condition of oil in a power transformer? A] Dissolved Gas Analysis (DGA) B] Insulation resistance test only C] Voltage withstand test D] Frequency response analysis Answer: A Explanation: DGA detects gases dissolved in transformer oil, indicating degradation or incipient faults. Question 30. The protective function of a ground‑fault relay based on zero‑sequence current detection is most effective for which fault type? A] L‑L fault B] L‑L‑G fault C] L‑G fault D] Three‑phase fault Answer: C Explanation: Zero‑sequence current appears prominently in single‑phase‑to‑ground faults.
Explanation: Capacitor banks generate leading VARs, supporting voltage regulation and reducing reactive power demand. Question 34. A “partial discharge” event in a high‑voltage cable is most likely to be detected by: A] Measuring the temperature rise of the cable sheath B] Acoustic emission monitoring or UHF sensors C] Visual inspection of the insulation surface D] Checking the cable’s tensile strength Answer: B Explanation: PD emits electromagnetic and acoustic energy that can be captured by UHF or acoustic sensors. Question 35. In a three‑phase transformer, the term “phase shift” refers to: A] The difference in voltage magnitude between primary and secondary B] The 30° angular displacement between primary and secondary line voltages caused by a Wye‑Delta connection C] The frequency change across the transformer D] The loss of voltage due to leakage reactance Answer: B Explanation: Wye‑Delta transformers introduce a 30° phase shift between primary and secondary line voltages. Question 36. Which type of protection relay uses the principle of “impedance measurement” to detect faults on a transmission line? A] Overcurrent relay B] Distance relay (21)
C] Differential relay D] Under‑voltage relay Answer: B Explanation: Distance relays calculate apparent impedance to determine fault location and severity. Question 37. The “Mho” characteristic of a distance relay is plotted in which coordinate system? A] Voltage‑current (V‑I) plane B] Resistance‑reactance (R‑X) plane C] Power‑frequency (P‑f) plane D] Time‑current (t‑I) plane Answer: B Explanation: The Mho circle is drawn in the R‑X plane, representing constant impedance. Question 38. Which of the following is a common cause of CT saturation during high fault currents? A] Incorrect polarity wiring B] Low burden on the secondary circuit C] Excessive magnetizing current due to high primary current D] Use of a Wye‑connected CT instead of Delta Answer: C Explanation: High primary currents generate large magnetizing flux, pushing the CT core into saturation and distorting secondary output. Question 39. In a substation earthing system, the “touch voltage” is defined as: A] Voltage between two points on the ground surface a few meters apart
A] Setting all relays to the same time delay B] Adjusting relay settings so that the closest protective device operates first, preserving selectivity C] Using identical relay models across the network D] Synchronizing relay clocks to UTC Answer: B Explanation: Coordination ensures fault clearance by the most appropriate device, preventing unnecessary outages. Question 43. In a three‑phase AIS arrangement, the clearances between live parts and ground are primarily determined by: A] Voltage level and pollution severity class B] The type of conductor material C] The number of phases present D] The rating of the protective relays Answer: A Explanation: Clearance standards depend on system voltage and environmental conditions to prevent flashover. Question 44. A “breaker failure” relay is intended to: A] Detect when a breaker fails to open during a fault and initiate backup protection B] Measure the breaker’s contact resistance after operation C] Verify the breaker’s oil temperature D] Provide a status indication for SCADA Answer: A
Explanation: Breaker failure relays monitor the expected current change after a trip; lack of change indicates failure, prompting backup actions. Question 45. The “zero‑sequence” network of a power system is used primarily for: A] Positive‑sequence power flow analysis B] Detecting ground faults and unbalanced conditions C] Calculating line impedance for distance protection D] Managing load balancing among phases Answer: B Explanation: Zero‑sequence components arise from unbalanced or ground‑fault conditions, aiding detection and protection. Question 46. Which of the following statements about a “metal‑oxide varistor (MOV)” used in surge arresters is true? A] It conducts continuously under normal voltage levels B] Its resistance decreases sharply when voltage exceeds a clamping level C] It provides isolation for low‑frequency signals only D] It requires external cooling to function Answer: B Explanation: MOVs exhibit nonlinear V‑I characteristics; resistance drops dramatically when voltage exceeds the designed clamping voltage, diverting surge energy. Question 47. In IEC 61850, the term “IED” stands for: A] Intelligent Electronic Device B] Integrated Energy Distributor
A] The metallic conductor core B] The insulation interfaces where electric stress is highest C] The sheath grounding lug D] The cable’s external armor Answer: B Explanation: PD originates in insulation defects where electric field intensity exceeds the breakdown strength. Question 51. Which parameter is primarily used to set the reach of a distance relay? A] Fault current magnitude B] Desired protection zone impedance C] Time delay setting D] Voltage magnitude on the protected line Answer: B Explanation: The reach is set by defining the impedance boundary (in ohms) that corresponds to the protected line length. Question 52. The “zero‑sequence impedance” of a transformer is: A] The same as its positive‑sequence impedance B] Typically higher than positive‑sequence impedance due to magnetic coupling with the ground C] Zero, because zero‑sequence currents do not flow through a delta winding D] Irrelevant for ground‑fault protection Answer: B Explanation: Zero‑sequence impedance includes additional leakage paths and is generally larger than positive‑sequence impedance.
Question 53. In a substation, a “bus‑duct” is used primarily to: A] Provide a compact, insulated conduit for three‑phase conductors with high current‑carrying capability B] House protective relays and meters C] Serve as a grounding electrode D] Act as a surge arrester Answer: A Explanation: Bus‑ducts are metal enclosures that contain conductors, offering low impedance and space‑saving benefits. Question 54. The main advantage of using a “digital relay” over an electromechanical relay is: A] Lower initial cost B] Ability to perform multiple protection functions and provide self‑diagnostics C] No need for power supply D] Immunity to electromagnetic interference Answer: B Explanation: Digital relays offer programmable logic, multiple functions, event recording, and health monitoring. Question 55. Which of the following best describes the “trip circuit” in a circuit breaker? A] The power circuit that carries load current B] The control circuit that energizes the trip coil to open the breaker contacts C] The cooling circuit for the breaker’s oil D] The grounding circuit for the breaker frame
