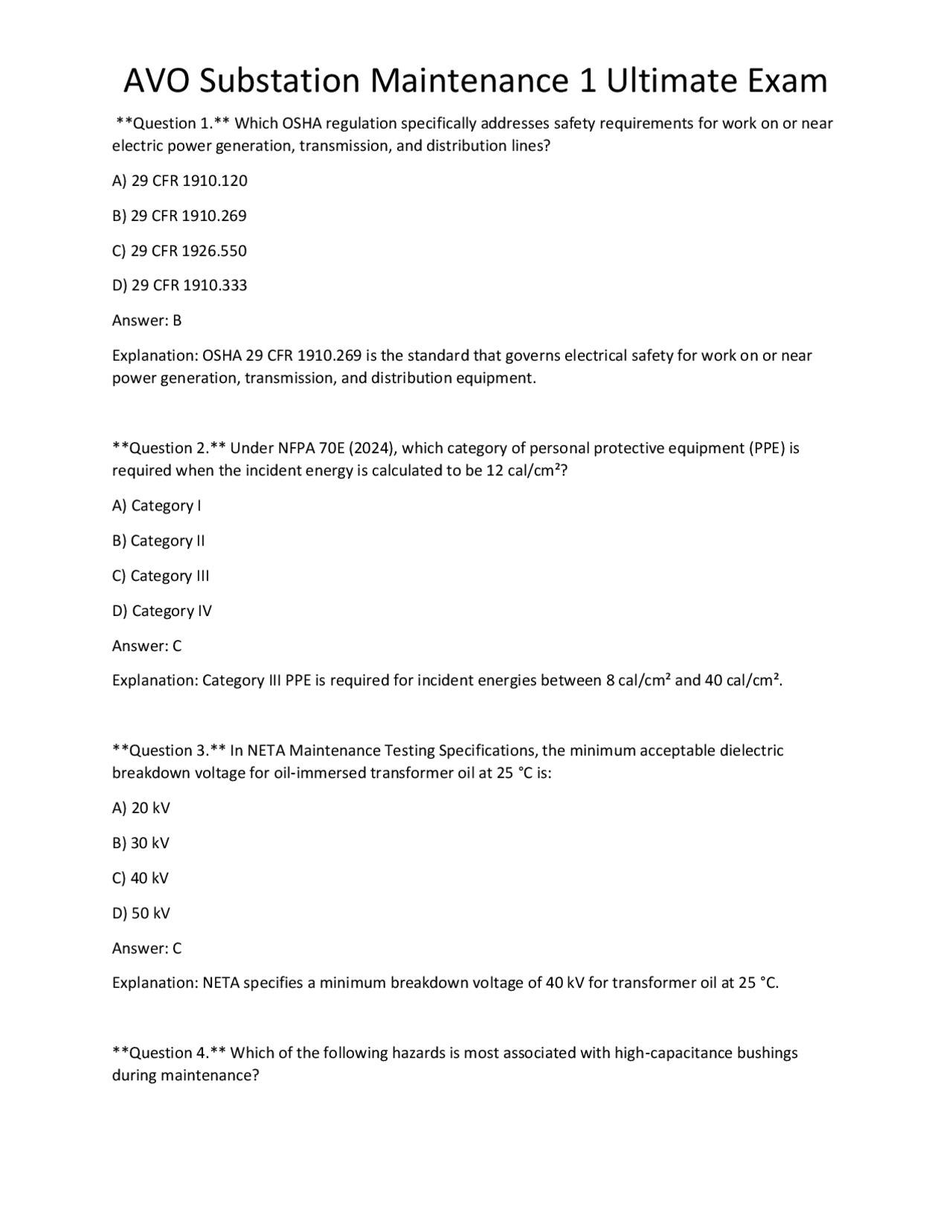

Question 1. Which OSHA regulation specifically addresses safety requirements for work on or near electric power generation, transmission, and distribution lines? A) 29 CFR 1910. B) 29 CFR 1910. C) 29 CFR 1926. D) 29 CFR 1910. Answer: B Explanation: OSHA 29 CFR 1910.269 is the standard that governs electrical safety for work on or near power generation, transmission, and distribution equipment. Question 2. Under NFPA 70E (2024), which category of personal protective equipment (PPE) is required when the incident energy is calculated to be 12 cal/cm²? A) Category I B) Category II C) Category III D) Category IV Answer: C Explanation: Category III PPE is required for incident energies between 8 cal/cm² and 40 cal/cm². Question 3. In NETA Maintenance Testing Specifications, the minimum acceptable dielectric breakdown voltage for oil‑immersed transformer oil at 25 °C is: A) 20 kV B) 30 kV C) 40 kV D) 50 kV Answer: C Explanation: NETA specifies a minimum breakdown voltage of 40 kV for transformer oil at 25 °C. Question 4. Which of the following hazards is most associated with high‑capacitance bushings during maintenance?
A) Step potential B) Induction shock C) Trapped charge D) Arc flash Answer: C Explanation: High‑capacitance equipment can retain trapped charges that may discharge when disturbed, posing a shock hazard. Question 5. The Minimum Approach Distance (MAD) for a 138 kV system when a worker is unqualified is: A) 0.5 m B) 1.0 m C) 1.5 m D) 2.0 m Answer: C Explanation: NFPA 70E provides MAD tables; for 138 kV an unqualified worker must stay at least 1.5 m away. Question 6. When performing a Lockout/Tagout (LOTO) procedure on a breaker, which step must be performed first? A) Verify de‑energization B) Apply lockout device C) Notify affected personnel D) Remove all stored energy Answer: D Explanation: The first step is to ensure all stored energy (mechanical, hydraulic, pneumatic) is isolated before applying locks. Question 7. During an arc‑flash incident, which first‑aid technique is recommended for a victim with a suspected cardiac arrest? A) Immediate CPR
C) Highly degraded insulation D) No insulation at all Answer: C Explanation: PI values below 2.0 suggest severely degraded insulation; values above 4.0 are considered good. Question 11. The Dielectric Absorption Ratio (DAR) is most useful for detecting: A) Moisture in oil B) Gas bubbles in windings C) Surface contamination on windings D) Core shorted turns Answer: C Explanation: DAR highlights the ability of the insulation to absorb charge, which is affected by surface contamination. Question 12. When performing a Turns Ratio Test, a ratio error of +3 % at the 5% tap position most likely indicates: A) Open circuit in the high‑voltage winding B) Shorted turns in the low‑voltage winding C) Incorrect tap position selection D) Faulty test equipment Answer: B Explanation: A positive ratio error points to a reduction in the effective number of turns, typical of shorted turns. Question 13. The Tan δ (tangent delta) test measures: A) Core losses B) Dielectric loss factor of insulation C) Winding resistance D) Oil flash point
Answer: B Explanation: Tan δ quantifies the dielectric loss of insulation; higher values indicate greater moisture or contamination. Question 14. A DC resistance measurement of a transformer winding shows a sudden increase of 15 % compared with the nameplate value. The most probable cause is: A) Temperature rise B) Loose internal connection C) Core saturation D) Oil oxidation Answer: B Explanation: A sudden increase in resistance typically results from a loose or broken internal connection. Question 15. An excitation current that is higher than normal at rated voltage most likely indicates: A) Shorted laminations in the core B) Over‑excited voltage regulator C) Low oil temperature D) High winding resistance Answer: A Explanation: Core defects such as shorted laminations increase magnetizing current. Question 16. Dissolved Gas Analysis (DGA) of transformer oil shows a high concentration of ethylene (C₂H₄). This is most commonly associated with: A) Overheating of oil B) Low‑temperature discharge (partial discharge) C) Moisture ingress D) Mechanical failure of bushings Answer: B Explanation: Ethylene is a typical product of low‑temperature electrical discharges (partial discharge).
Answer: C Explanation: Proper racking mechanism alignment ensures reliable opening and closing of oil breakers. Question 21. In a vacuum circuit breaker, the most critical test to verify interrupter integrity is: A) Contact resistance test B) Hi‑Pot test at 2 × rated voltage C) Vacuum bottle pressure test D) Oil dielectric test Answer: B Explanation: A Hi‑Pot test applies high voltage to confirm the vacuum interrupter can withstand the stress without breakdown. Question 22. The contact resistance (Ductor) of a 400 kV breaker should not exceed: A) 0.1 μΩ B) 1 μΩ C) 5 μΩ D) 10 μΩ Answer: C Explanation: NETA specifies a maximum contact resistance of 5 μΩ for high‑voltage breakers to limit heating. Question 23. Timing analysis of a breaker shows a closing time of 45 ms, whereas the specification requires ≤ 30 ms. The likely cause is: A) Excessive lubricants in the mechanism B) Worn contact springs C) Low oil pressure D) Incorrect tap changer setting Answer: B Explanation: Worn contact springs increase closing time due to reduced mechanical force.
Question 24. Contact bounce in a breaker is undesirable because it: A) Increases arc flash energy B) Reduces breaker life due to mechanical wear C) Causes multiple current interruptions leading to over‑current D) All of the above Answer: D Explanation: Bounce creates repeated arcing, mechanical stress, and can amplify arc‑flash energy. Question 25. When measuring SF₆ pressure in a gas‑filled breaker, a reading of 0.8 MPa (absolute) at 25 °C indicates: A) Normal pressure B) Under‑pressure condition C) Over‑pressure condition D) Gas contamination Answer: B Explanation: Typical SF₆ pressure for a 138 kV breaker is about 0.9–1.0 MPa absolute; 0.8 MPa is low. Question 26. The moisture content of SF₆ gas is best measured by: A) Dew point meter B) Gas chromatography C) Infrared spectroscopy D) Mass spectrometry Answer: A Explanation: Dew point meters directly assess moisture in SF₆, critical for quenching performance. Question 27. The Fall‑of‑Potential (FOP) method for grounding testing requires a minimum of: A) 3 electrodes B) 2 electrodes C) 4 electrodes
Question 31. When performing an internal resistance test on a battery, a higher than normal resistance indicates: A) Low temperature B) Sulfated plates C) High state of charge D) Excessive electrolyte Answer: B Explanation: Sulfation increases internal resistance, reducing battery performance. Question 32. A load bank test on a battery bank is used to determine: A) Open‑circuit voltage only B) Charge acceptance rate C) Discharge capacity under controlled load D) Electrolyte temperature Answer: C Explanation: Load bank testing simulates real load to assess discharge capacity and performance. Question 33. Ripple voltage in a charger should not exceed: A) 0.1 V p‑p B) 0.5 V p‑p C) 1.0 V p‑p D) 2.0 V p‑p Answer: B Explanation: Excessive ripple (> 0.5 V p‑p) can damage battery cells and reduce life. Question 34. The equalization stage of battery charging primarily serves to: A) Balance cell voltages by over‑charging each cell slightly B) Reduce electrolyte temperature
C) Increase float voltage permanently D) Decrease charging current to zero Answer: A Explanation: Equalization over‑charges batteries to remove sulfation and equalize cell voltages. Question 35. In an air disconnect switch, the blade alignment tolerance is typically: A) ±0.5 mm B) ±1.0 mm C) ±2.0 mm D) ±5.0 mm Answer: A Explanation: Precise blade alignment (±0.5 mm) ensures reliable contact pressure and low resistance. Question 36. Contact pressure in an air disconnect switch is measured with a: A) Torque wrench B) Pressure gauge C) Hydraulic tester D) Micrometer Answer: A Explanation: Torque applied to the operating mechanism correlates directly with contact pressure. Question 37. A current transformer (CT) with a ratio of 2000:5 has a measured secondary current of 4.9 A when the primary current is 2000 A. The ratio error is: A) +0.5 % B) – 0.5 % C) +1.0 % D) – 1.0 % Answer: B
Explanation: Cracks compromise dielectric strength and require immediate bushing replacement. Question 41. The torque specification for a 138 kV bus bar bolted joint is typically: A) 50 Nm B) 150 Nm C) 300 Nm D) 600 Nm Answer: D Explanation: High‑voltage bus bar connections require high torque (≈ 600 Nm) to ensure proper clamping pressure. Question 42. Tracking‑resistant insulation on a switchgear enclosure is primarily designed to resist: A) Moisture ingress B) Surface arcing caused by contaminant films C) Mechanical impact D) UV radiation Answer: B Explanation: Tracking‑resistant materials prevent carbon track formation from surface contamination. Question 43. When comparing test results to nameplate values, a temperature correction factor must be applied to which measurement? A) Contact resistance B) Insulation resistance C) Winding resistance D) All of the above Answer: D Explanation: All electrical resistance measurements are temperature dependent and require correction. Question 44. According to IEEE 242 (Buff) guidelines, the recommended interval for visual inspection of high‑voltage bushings is:
A) Monthly B) Quarterly C) Annually D) Every 5 years Answer: C Explanation: IEEE 242 suggests an annual visual inspection for bushings. Question 45. A trend analysis of transformer oil DGA over 12 months shows a steady increase in acetylene (C₂H₂) concentration. The most probable underlying condition is: A) Overheating of the oil B) Low‑temperature discharge due to deteriorated insulation C) Water ingress D) Contamination with diesel fuel Answer: B Explanation: Acetylene is a hallmark of low‑temperature electrical discharges (partial discharge). Question 46. The recommended maximum allowable temperature rise for a 500 kVA transformer under full load is: A) 10 °C B) 20 °C C) 30 °C D) 40 °C Answer: B Explanation: IEEE C57.12.90 limits temperature rise to 20 °C for standard distribution transformers. Question 47. In a substation, the grounding resistance should be less than: A) 10 Ω B) 5 Ω C) 2 Ω
Question 51. In a substation control panel, a relay with a 0.1 s operating time is considered a: A) Instantaneous protective device B) Definite‑time over‑current relay C) Time‑delay relay D) Voltage‐sensing relay Answer: B Explanation: A 0.1 s (100 ms) definite‑time relay operates after a fixed delay, not instantaneously. Question 52. The purpose of “pre‑insertion resistors” in a breaker’s control circuit is to: A) Limit inrush current during coil energization B) Provide a voltage drop for diagnostics C) Balance the three phases D) Reduce contact resistance Answer: A Explanation: Pre‑insertion resistors limit the initial surge when the coil is energized, protecting the control circuit. Question 53. Which of the following is NOT a typical symptom of a failing oil‑filled transformer? A) Increased noise from the tank B) Rising oil temperature despite load C) Decreased oil dielectric strength D) Decreased core magnetizing current Answer: D Explanation: Core magnetizing current usually rises with core faults; a decrease is not typical of oil problems. Question 54. The IEC 61850 standard primarily addresses: A) Transformer oil testing procedures
B) Substation communication and automation protocols C) Ground resistance measurement methods D) Battery charging algorithms Answer: B Explanation: IEC 61800 series, especially IEC 61850, defines communication networks and systems in substations. Question 55. A “dead‑tank” transformer is distinguished by: A) An external oil tank filled with air B. A sealed tank without an oil expansion device C) A tank that is not connected to the core windings D) A tank that can be operated without oil Answer: B Explanation: Dead‑tank transformers have a sealed oil tank that does not expand, requiring a separate conservator. Question 56. For a 138 kV breaker, the recommended contact bounce voltage limit is: A) 5 V B) 10 V C) 20 V D) 50 V Answer: C Explanation: IEEE 528 specifies a maximum bounce voltage of 20 V for 138 kV breakers. Question 57. In a battery equalization process, the recommended end‑of‑equalization voltage for a 48 V lead‑acid bank is: A) 48.5 V B) 53.5 V C) 57.6 V D) 60.0 V
Question 61. The “back‑feed” protection in a substation is intended to prevent: A) Over‑voltage on the utility side during a fault B) Reverse power flow into the substation from downstream sources C) Ground potential rise D) Excessive harmonic distortion Answer: B Explanation: Back‑feed protection stops power from flowing upstream into the substation during faults or islanding. Question 62. A “metal‑clad” bushing is preferred over a “porcelain‑clad” bushing for high‑frequency transient protection because: A) Metal provides better mechanical strength B) Metal offers lower capacitance and better shielding C) Metal is cheaper to replace D) Metal does not require oil cooling Answer: B Explanation: Metal‑clad bushings have lower capacitance and superior shielding against high‑frequency transients. Question 63. In an SF₆ breaker, the presence of a “dry‑ice” (solid) deposit inside the interrupter indicates: A) Over‑pressurization of the gas B) Moisture ingress and possible loss of dielectric strength C) Normal operation at low temperatures D) Contamination with oil Answer: B Explanation: Solid deposits are usually ice formed from moisture, which degrades SF₆ performance.
Question 64. The recommended frequency for calibrating a digital multimeter used for insulation resistance testing is: A) Every month B) Every 6 months C) Annually D) Every 2 years Answer: B Explanation: NETA recommends semi‑annual calibration of critical test equipment. Question 65. For a 33 kV air‑blast breaker, the required blast pressure to achieve proper arc quenching is approximately: A) 0.5 bar B) 1.0 bar C) 2.0 bar D) 4.0 bar Answer: C Explanation: Air‑blast breakers typically need around 2 bar of compressed air for effective arc extinction. Question 66. The “partial discharge (PD) inception voltage” is defined as: A) The voltage at which a PD event first appears B) The maximum voltage the equipment can sustain without failure C) The voltage necessary to fully extinguish an arc D) The nominal operating voltage of the equipment Answer: A Explanation: PD inception voltage is the minimum voltage at which partial discharge begins. Question 67. In a transformer, the “K factor” of the winding is used to assess: A) Core loss B) Temperature rise due to harmonic loading
