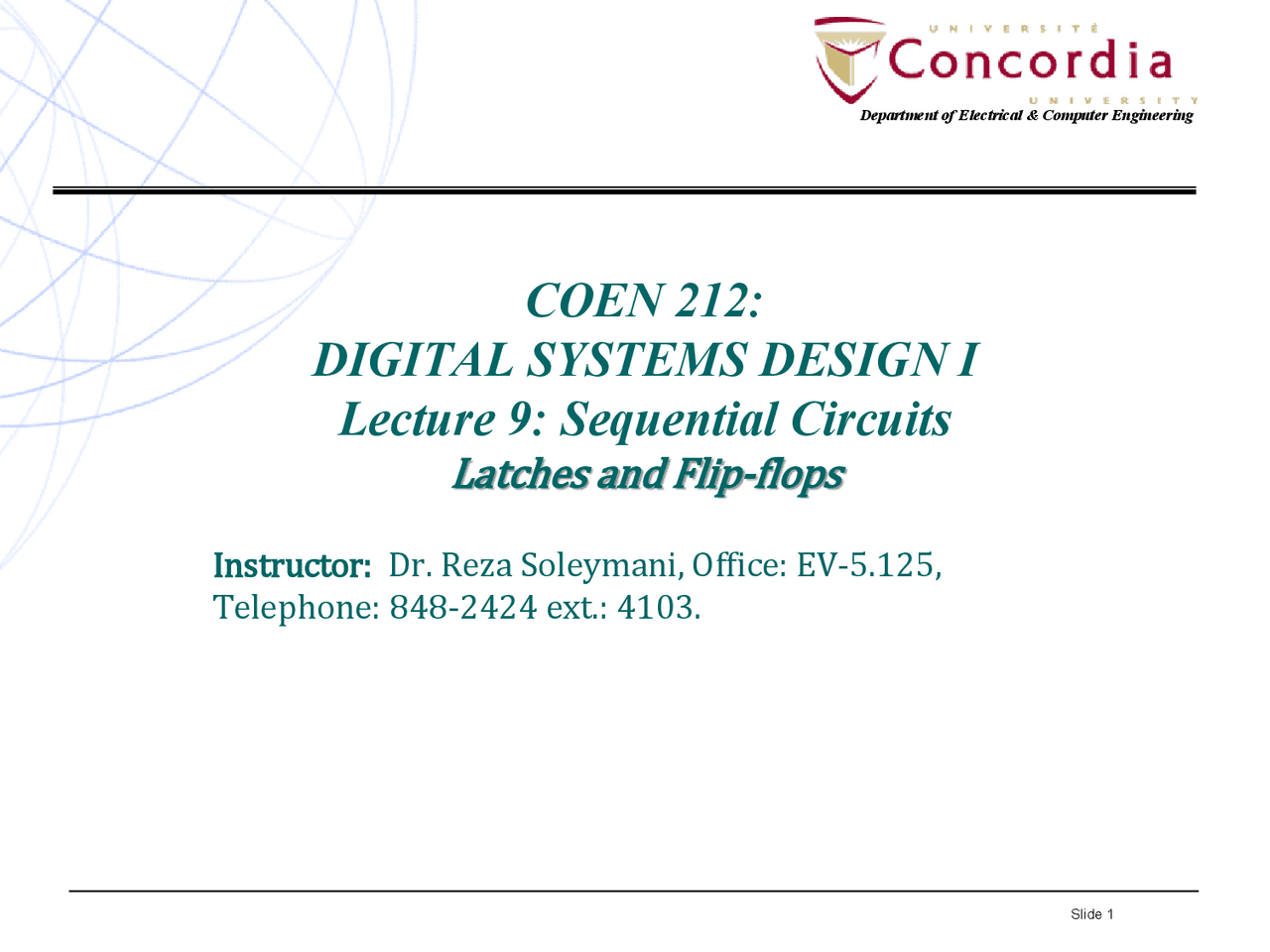

Department of Electrical & Computer Engineering
COEN 212:
DIGITAL SYSTEMS DESIGN I
Lecture 9: Sequential Circuits
Latches and Flip-flops
Instructor: Dr. Reza Soleymani, Office: EV-5.125, Telephone: 848-2424 ext.: 4103.
Department of Electrical & Computer Engineering
Objectives of this lecture
โข In this lecture, we talk about:
โ Sequential Circuits.
โ Latches.
โ Flip-flops.
Department of Electrical & Computer Engineering
Sequential Circuits:
- A typical Sequential Circuit:
- Example:
- State Table:
Department of Electrical & Computer Engineering
Sequential Circuits:
- There are two types of sequential circuits:
- The synchronous circuits,
- The asynchronous circuits.
- In the synchronous circuits:
- state and also outputs change at discrete times dictated by a clock.
- In an asynchronous sequential circuit:
- the output of each gate is defined based on its input and gates delay. So, the state and outputs can change at any time.
- The problem with asynchronous circuits is the possibility of encountering instability due to feedback.
- In this course, we mainly consider Synchronous Sequential Circuits.
Department of Electrical & Computer Engineering
Latches: SR-Latch with NAND
- SR latch implementation using NAND gates:
- Implementation: Operation:
- A Control or Enable input can be added.
Department of Electrical & Computer Engineering
Latches: D-Latch
- D-Latch: avoids indeterminate state by making ๐ ๐ = ๐๐ โฒ
Department of Electrical & Computer Engineering
Flip-flops
- There are two ways to implement edge-triggered flip-flops:
- isolate the input from the output. The output change only after control (clock) signal has been removed.
- make a flip-flop that only changes when level of its clock goes from 0 to 1 or from 1 to 0 and remains unchanged rest of the time.
- Implementing edge-triggered D flip-flop:
Department of Electrical & Computer Engineering
D-Flip-flop
- Implementing D flip-flop using SR-Latch:
- as long as clk=0, ๐๐ = 1 and ๐ ๐ = 1 and output is unchanged.
- When clk goes to 1:
- if ๐ท๐ท = 0 makes ๐ ๐ = 0 and ๐๐ โฒ^ = 1 and ๐๐ = 0,
- if ๐ท๐ท = 1 the output of the lower most NAND will be 0 and ๐๐ = 0. ๐๐ = 1, ๐๐ โฒ^ = 0.
- Any further change in ๐ท๐ท while clk=1 will have no effect on the output.
Department of Electrical & Computer Engineering
JK-Flip-flop
- Truth Table for D
- as a function of J, K and Q:
- The K-map for ๐ท๐ท
โข ๐ท๐ท = ๐ฝ๐ฝ๐๐ โฒ^ + ๐พ๐พ โฒ^ ๐๐
Department of Electrical & Computer Engineering
JK-Flip-flop
- The Circuit Diagram for the J-K FF is:
- and the symbol is:
Department of Electrical & Computer Engineering
T-Flip-flop
- For implementation using D-FF, we have:
โข and the circuit diagram is:
- T-FF could also be implemented using JK-FF
Department of Electrical & Computer Engineering
Characteristic tables and equations:
โข Characteristic tables (or equations) describe the operation
of sequential circuits:
โข For a JK flip-flop the characteristic table is:
- And the Characteristic Function is:
๐๐ ๐ก๐ก + 1 = ๐ฝ๐ฝ๐๐ โฒ^ ๐ก๐ก + ๐พ๐พ โฒ^ ๐๐(๐ก๐ก)
where Q(t) and Q(t+1) are the state of the flip-flop, before and after the application of the clock signal.
Department of Electrical & Computer Engineering
Flip-Flop with Direct Inputs:
- A flip-flop with a reset state:
- The symbol for D-FF with reset:
Department of Electrical & Computer Engineering
Knowledge Check
- Question 1: In a JK FF Q=1, the input J=1, K=1 results in:
a) Q=1, b) Q=0, c) Qโ=0, d) undefined state
- Question 1: In a T FF Q=1, applying a four bit stream 1010 results in:
a) Q=1, b) Q=0, c) Qโ=0, d) Q=
