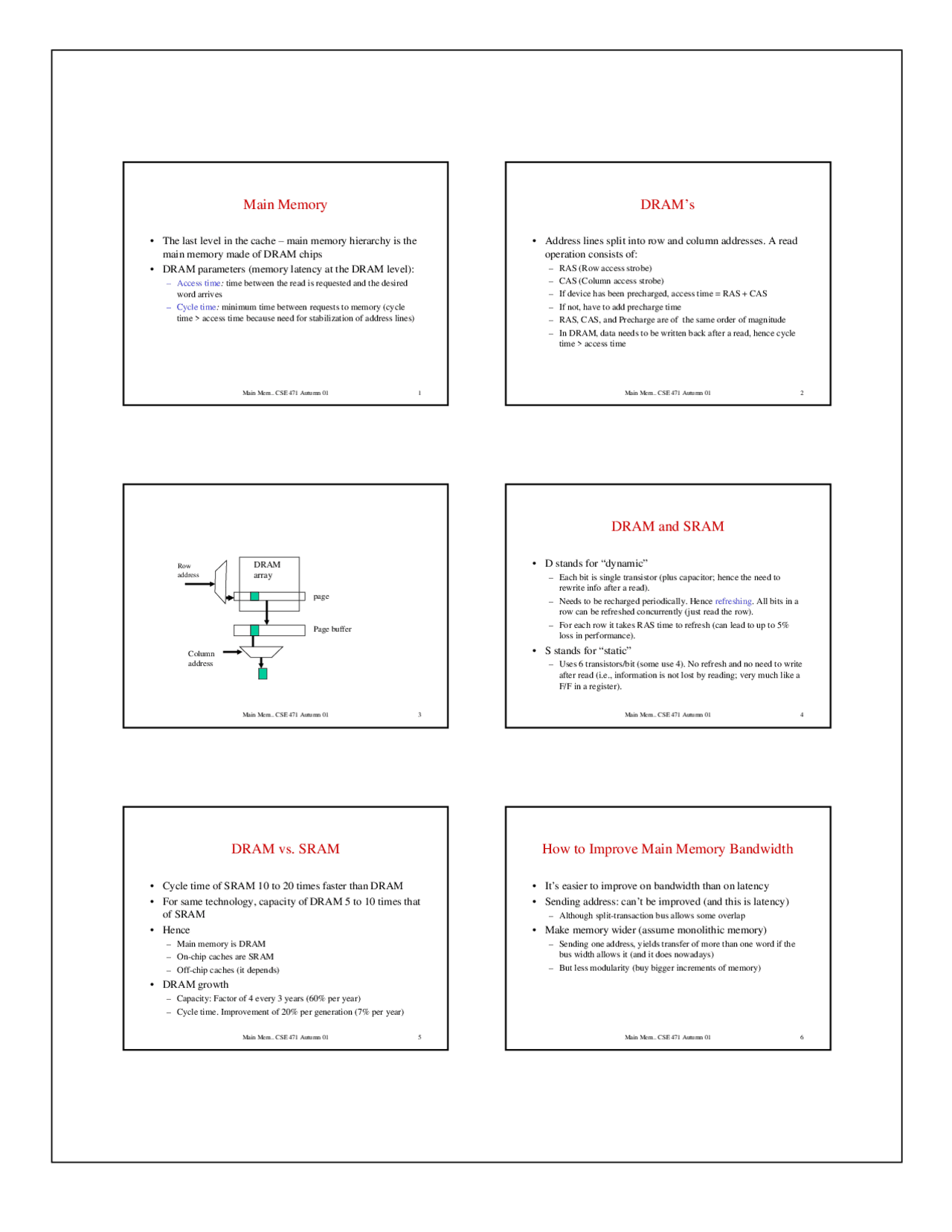

Main Mem.. CSE 471 Autumn 01 1
Main Memory
The last level in the cache – main memory hierarchy is the
main memory made of DRAM chips
DRAM parameters (memory latency at the DRAM level):
Access time: time between the read is requested and the desired
word arrives
Cycle time: minimum time between requests to memory (cycle
time > access time because need for stabilization of address lines)
Main Mem.. CSE 471 Autumn 01 2
DRAMs
Address lines split into row and column a ddresses. A read
operation consists of:
RAS (Row access strobe)
CAS (Column access strobe)
If device has been precharged, access time = RAS + CAS
If not, have to add precharge time
RAS, CAS, and Precharge are of the same order of magnitude
In DRAM, data needs to be written back aft er a read, hence cycle
time > access time
Main Mem.. CSE 471 Autumn 01 3
DRAM
array
Row
address
Column
address
page
Page buffer
Main Mem.. CSE 471 Autumn 01 4
DRAM and SRAM
D stands for dynamic
Each bit is single transistor (plus capacitor; hence the need to
rewrite info after a read).
Needs to be recharged periodically. Hence re freshing. All bits in a
row can be refreshed concurrently (just read t he row).
For each row it takes RAS time to refresh (c an lead to up to 5%
loss in performance).
S stands for static
Uses 6 transistors/bit (some use 4). No refresh a nd no need to write
after read (i.e., information is not lost by reading; ve ry much like a
F/F in a register).
Main Mem.. CSE 471 Autumn 01 5
DRAM vs. SRAM
Cycle time of SRAM 10 to 20 times faster than DRAM
For same technology, capacity of DRAM 5 to 10 times that
of SRAM
Hence
Main memory is DRAM
On-chip caches are SRAM
Off-chip caches (it depends)
DRAM growth
Capacity: Factor of 4 every 3 years (60% per ye ar)
Cycle time. Improvement of 20% per genera tion (7% per year)
Main Mem.. CSE 471 Autumn 01 6
How to Improve Main Memory Bandwidth
Its easier to improve on bandwidth than o n latency
Sending address: cant be improved (and this is latency)
Although split-transaction bus allows some ove rlap
Make memory wider (assume monolithic m emory)
Sending one address, yields transfer of more tha n one word if the
bus width allows it (and it does nowadays)
But less modularity (buy bigger increments of memory)
pf3

Partial preview of the text

Download Main Memory and more Slides Technology in PDF only on Docsity!

Main Mem.. CSE 471 Autumn 01 1

Main Memory

• The last level in the cache – main memory hierarchy is the

main memory made of DRAM chips

• DRAM parameters (memory latency at the DRAM level):

  • Access time : time between the read is requested and the desired word arrives
  • Cycle time : minimum time between requests to memory (cycle time > access time because need for stabilization of address lines)

Main Mem.. CSE 471 Autumn 01 2

DRAM’s

• Address lines split into row and column addresses. A read

operation consists of:

  • RAS (Row access strobe)
  • CAS (Column access strobe)
  • If device has been precharged, access time = RAS + CAS
  • If not, have to add precharge time
  • RAS, CAS, and Precharge are of the same order of magnitude
  • In DRAM, data needs to be written back after a read, hence cycle time > access time

Main Mem.. CSE 471 Autumn 01 3

DRAM

array

Row address

Column address

page

Page buffer

Main Mem.. CSE 471 Autumn 01 4

DRAM and SRAM

• D stands for “dynamic”

  • Each bit is single transistor (plus capacitor; hence the need to rewrite info after a read).
  • Needs to be recharged periodically. Hence refreshing. All bits in a row can be refreshed concurrently (just read the row).
  • For each row it takes RAS time to refresh (can lead to up to 5% loss in performance).

• S stands for “static”

  • Uses 6 transistors/bit (some use 4). No refresh and no need to write after read (i.e., information is not lost by reading; very much like a F/F in a register).

DRAM vs. SRAM

• Cycle time of SRAM 10 to 20 times faster than DRAM

• For same technology, capacity of DRAM 5 to 10 times that

of SRAM

• Hence

  • Main memory is DRAM
  • On-chip caches are SRAM
  • Off-chip caches (it depends)

• DRAM growth

  • Capacity: Factor of 4 every 3 years (60% per year)
  • Cycle time. Improvement of 20% per generation (7% per year)

How to Improve Main Memory Bandwidth

• It’s easier to improve on bandwidth than on latency

• Sending address: can’t be improved (and this is latency)

  • Although split-transaction bus allows some overlap

• Make memory wider (assume monolithic memory)

  • Sending one address, yields transfer of more than one word if the bus width allows it (and it does nowadays)
  • But less modularity (buy bigger increments of memory)

Main Mem.. CSE 471 Autumn 01 7

Interleaving (introducing parallelism at the

DRAM level)

• Memory is organized in banks

• Bank i stores all words at address j modulo i

• All banks can read a word in parallel

  • Ideally, number of banks should match (or be a multiple of) the L block size (in words)

• Bus does not need to be wider (buffer in the DRAM bank)

• Writes to individual banks for different addresses can

proceed without waiting for the preceding write to finish

(great for write-through caches)

Main Mem.. CSE 471 Autumn 01 8

Banks of Banks

• Superbanks interleaved by some bits other than lower bits

• Superbanks composed of banks interleaved on low order

bits for sequential access

• Superbanks allow parallel access to memory

  • Great for lock-up free caches, for concurrent I/O and for multiprocessors sharing main memory

Main Mem.. CSE 471 Autumn 01 9

Limitations of Interleaving (sequential access)

• Number of banks limited by increasing chip capacity

  • With 1M x 1 bit chips, it takes 64 x 8 = 512 chips to get 64 MB (easy to put 16 banks of 32 chips)
  • With 16 M x 1 chips, it takes only 32 chips (only one bank)
  • More parallelism in using 4M x 4 chips (32 chips in 4 banks )

• In the N * m (N number of MB, m width of bits out of

each chip) m is limited by electronic constraints to about 8

or maybe 16.

Main Mem.. CSE 471 Autumn 01 10

Example Memory Path of a Workstation

CPU + L

L

Data switch

DRAM

Bank n

Bank 0

16B 32B

Processor bus

Memory bus

To/from I/O bus

Page-mode and Synchronous DRAMs

• Introduce a page buffer

  • In page mode no need for a RAS
  • But if a miss, need to precharge + RAS + CAS

• In SDRAM, same as page-mode but subsequent accesses

even faster (burst mode)

Cached DRAM and Processor in Memory

• Put some SRAM on DRAM chip

  • More flexibility in buffer size than page mode
  • Can precharge DRAM while accessing SRAM
  • But fabrication is different hence has not caught up in mass market

• Go one step further (1 billion transistors/chip)

  • Put “simple” processor and SRAM and DRAM on chip
  • Great bandwidth for processor-memory interface
  • Cache with very large block size since parallel access to many banks is possible
  • Can’t have too complex of a processor
  • Need to invest in new fabs
