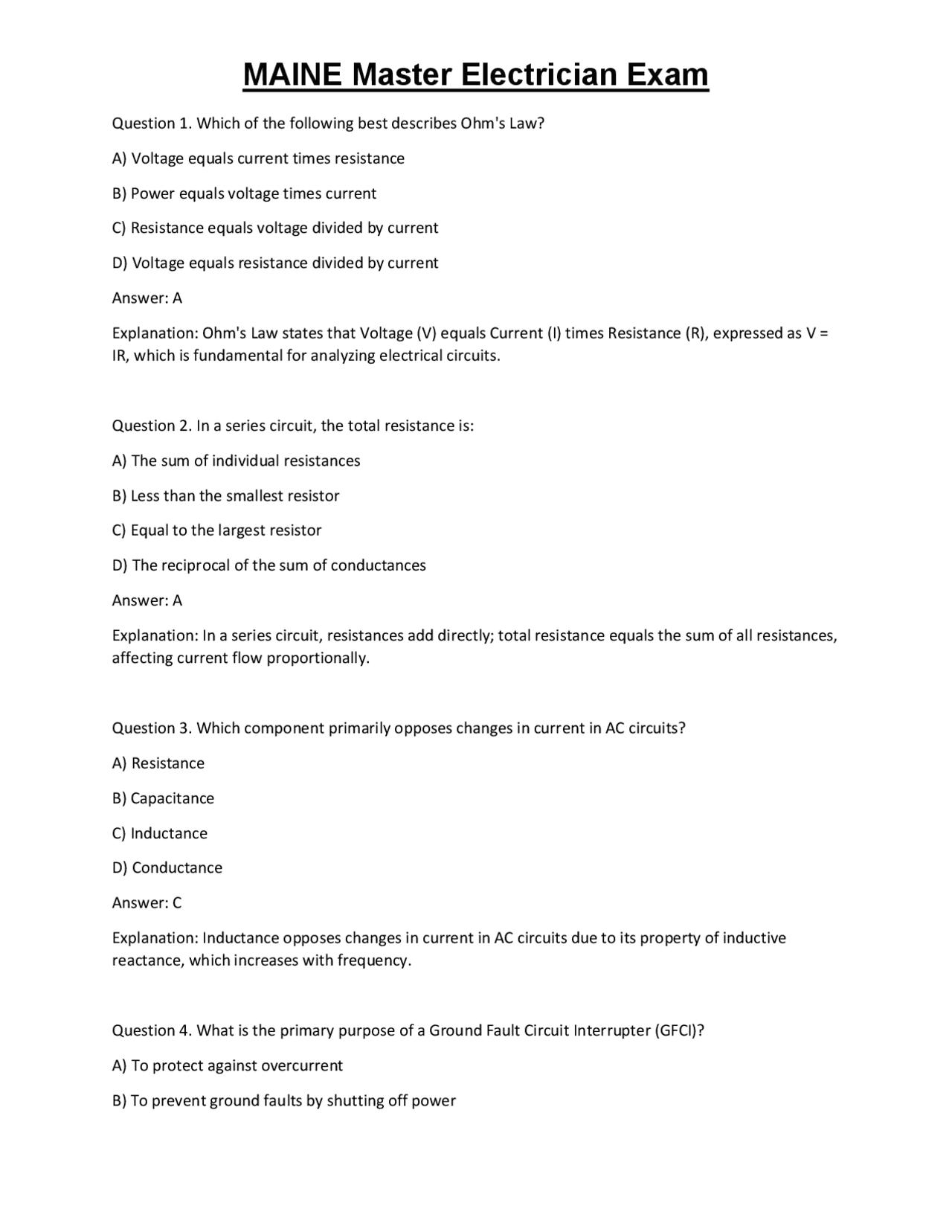

Question 1. Which of the following best describes Ohm's Law? A) Voltage equals current times resistance B) Power equals voltage times current C) Resistance equals voltage divided by current D) Voltage equals resistance divided by current Answer: A Explanation: Ohm's Law states that Voltage (V) equals Current (I) times Resistance (R), expressed as V = IR, which is fundamental for analyzing electrical circuits. Question 2. In a series circuit, the total resistance is: A) The sum of individual resistances B) Less than the smallest resistor C) Equal to the largest resistor D) The reciprocal of the sum of conductances Answer: A Explanation: In a series circuit, resistances add directly; total resistance equals the sum of all resistances, affecting current flow proportionally. Question 3. Which component primarily opposes changes in current in AC circuits? A) Resistance B) Capacitance C) Inductance D) Conductance Answer: C Explanation: Inductance opposes changes in current in AC circuits due to its property of inductive reactance, which increases with frequency. Question 4. What is the primary purpose of a Ground Fault Circuit Interrupter (GFCI)? A) To protect against overcurrent B) To prevent ground faults by shutting off power
C) To limit current to appliances D) To balance three-phase loads Answer: B Explanation: GFCIs detect imbalance between hot and neutral conductors indicative of ground faults, shutting off power to prevent electric shock. Question 5. Which PPE is most essential when working on energized electrical equipment? A) Safety glasses B) Insulated gloves C) Steel-toed boots D) Hard hat Answer: B Explanation: Insulated gloves provide critical protection against electrical shock when working on energized equipment, reducing the risk of injury. Question 6. According to the NEC, what color is typically used to identify a grounded neutral conductor? A) Black B) Red C) White or Gray D) Green Answer: C Explanation: Neutral conductors are identified by white or gray insulation per NEC requirements, helping distinguish them from hot conductors. Question 7. When performing a load calculation for a dwelling, which factor must be considered? A) Number of outlets only B) Total connected load and demand factors C) Only lighting loads D) Only fixed appliances Answer: B
Question 11. In a three-phase delta connection, the line-to-line voltage is: A) Equal to the phase voltage B) √3 times the phase voltage C) Half the phase voltage D) Equal to the phase current Answer: B Explanation: In a delta system, the line-to-line voltage is √3 (approximately 1.732) times greater than the phase voltage. Question 12. Which of the following best describes the purpose of bonding in electrical systems? A) To connect conductive parts to ground for safety B) To increase circuit impedance C) To reduce voltage drop D) To provide a return path for current Answer: A Explanation: Bonding ensures conductive parts are connected to ground, reducing shock hazards and ensuring proper operation of protective devices. Question 13. When troubleshooting an open circuit, which instrument is most appropriate to verify continuity? A) Clamp meter B) Multimeter set to resistance or continuity C) Insulation resistance tester D) Circuit tracer Answer: B Explanation: A multimeter set to resistance or continuity mode can verify if a circuit is open by checking for continuity. Question 14. What is the main use of a clamp meter?
A) To measure resistance B) To measure current without breaking the circuit C) To test insulation resistance D) To measure voltage in high-voltage circuits Answer: B Explanation: Clamp meters measure current by clamping around a conductor, allowing measurement without disconnecting the circuit. Question 15. Which NEC chapter covers wiring methods and materials? A) Chapter 2 B) Chapter 3 C) Chapter 4 D) Chapter 5 Answer: B Explanation: Chapter 3 of the NEC covers wiring methods, conductors, raceways, cables, and enclosures. Question 16. What is the maximum number of conductors allowed in a 3/4-inch conduit, according to fill calculations? A) 4 conductors B) 6 conductors C) 9 conductors D) 12 conductors Answer: C Explanation: Fill calculations based on NEC tables typically limit 3/4-inch conduit to about 9 conductors of 12 AWG, depending on insulation type. Question 17. Which type of wiring method is most suitable for wet or outdoor locations? A) EMT B) Rigid Metal Conduit (RMC) C) Liquidtight Flexible Conduit
Explanation: Grounding electrodes establish a low-resistance path to earth, enhancing safety and stabilizing system voltages. Question 21. Which type of circuit configuration allows current to flow through multiple paths simultaneously? A) Series circuit B) Parallel circuit C) Series-parallel circuit D) Open circuit Answer: B Explanation: Parallel circuits provide multiple paths for current, so each branch receives the full voltage and current divides among branches. Question 22. Which of the following best describes the function of a capacitor in an AC circuit? A) To oppose changes in voltage B) To oppose changes in current C) To store energy in an electric field D) To generate magnetic flux Answer: C Explanation: Capacitors store energy in an electric field, affecting phase shift and power factor in AC circuits. Question 23. What is the primary hazard associated with arc flash? A) Electric shock B) Thermal burns and blast injuries C) Ground potential rise D) Electromagnetic interference Answer: B Explanation: Arc flash releases intense heat and energy, causing thermal burns, blast injuries, and potential fatalities.
Question 24. When working on energized equipment, the safe working clearance around live parts is required to be at least: A) 1 foot B) 3 feet C) 10 feet D) As specified by the voltage and NEC tables Answer: D Explanation: The NEC specifies working clearances based on voltage levels, typically found in tables that specify minimum distances. Question 25. Which instrument is best suited for measuring insulation resistance? A) Multimeter B) Clamp meter C) Megohmmeter (Insulation Resistance Tester) D) Circuit tracer Answer: C Explanation: Megohmmeters, or insulation resistance testers, measure the resistance of insulating materials to detect deterioration or faults. Question 26. The phase relationship between voltage and current in a purely inductive AC circuit is: A) In phase B) Voltage leads current by 90 degrees C) Current leads voltage by 90 degrees D) Out of phase by 180 degrees Answer: B Explanation: In a purely inductive circuit, voltage leads current by 90 degrees due to the inductive reactance. Question 27. Which type of electrical system is typically used in large commercial or industrial factories?
D) Plastic piping Answer: B Explanation: Steel rods or rebar are commonly used as grounding electrodes because they are conductive and durable for earth grounding systems. Question 31. In a three-phase wye system, the phase voltage is: A) Equal to the line-to-line voltage B) 1/√3 times the line-to-line voltage C) √3 times the line-to-line voltage D) Half the line-to-line voltage Answer: B Explanation: In a wye system, phase voltage equals the line-to-line voltage divided by √3, which is essential for system analysis. Question 32. The main purpose of a circuit breaker’s interrupting rating is to: A) Limit current flow B) Specify the maximum fault current it can safely interrupt C) Protect against overloads D) Reduce voltage Answer: B Explanation: The interrupting rating indicates the maximum fault current a circuit breaker can safely interrupt without failure. Question 33. Which NEC chapter covers special occupancies such as hazardous locations? A) Chapter 2 B) Chapter 5 C) Chapter 4 D) Chapter 6 Answer: B
Explanation: Chapter 5 of the NEC addresses special occupancies, including hazardous (classified) locations. Question 34. For a typical residential lighting circuit, what is the minimum size of grounding conductor? A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: The NEC generally requires a minimum of 12 AWG grounding conductor for 20-amp residential lighting circuits. Question 35. Which device is used to protect against overcurrent in a branch circuit? A) GFCI B) Circuit breaker C) Surge suppressor D) Transformer Answer: B Explanation: Circuit breakers are designed to trip and disconnect the circuit when overcurrent conditions occur. Question 36. In a delta-connected system, the line-to-neutral voltage is: A) Equal to the line-to-line voltage B) 1/√3 times the line-to-line voltage C) Not present in delta systems D) √3 times the line-to-line voltage Answer: C Explanation: Delta systems do not have a line-to-neutral voltage; they are typically used in three-phase systems without a neutral.
B) Used primarily for indoor residential wiring C) Requires conduit for protection D) Contains armored metal conductors Answer: B Explanation: NM cable is flexible, insulated, and primarily used for indoor residential wiring, not suitable for wet locations. Question 41. Which type of lighting fixture uses a lamp with a filament that is heated by an electric current? A) Fluorescent B) Incandescent C) LED D) HID Answer: B Explanation: Incandescent fixtures produce light by heating a filament until it glows, a traditional lighting method. Question 42. What is the function of a transfer switch in standby generator systems? A) To regulate voltage output B) To automatically switch loads between utility and generator power C) To increase current capacity D) To protect against overloads Answer: B Explanation: Transfer switches automatically disconnect from utility power and connect to the generator during outages, ensuring continuous power. Question 43. Which of the following is the most appropriate PPE when working on live parts over 50 volts? A) Safety glasses only B) Insulated gloves and face shields
C) Hard hat only D) Steel-toed boots Answer: B Explanation: Insulated gloves and face shields protect against electrical shock and arc flash hazards during work on energized parts above 50 volts. Question 44. The purpose of a grounding electrode conductor is to connect: A) The grounding system to the electrical service B) The neutral to the ground C) The circuit breaker to the load D) The hot wire to the neutral Answer: A Explanation: The grounding electrode conductor connects the system to the earth ground, establishing a low-resistance path. Question 45. What is the typical phase sequence in a three-phase system? A) ABC B) ACB C) BAC D) Any of the above Answer: D Explanation: The phase sequence can be ABC, ACB, or other arrangements; the sequence affects motor rotation and system operation. Question 46. Which device is used to limit current in a circuit during a short circuit? A) Fuse B) Resistor C) Capacitor D) Transformer Answer: A
Question 50. The maximum permitted length for a #14 AWG circuit conductors in a 15-amp circuit is primarily limited by: A) Voltage drop B) Conductor temperature C) Circuit breaker rating D) Conductor insulation Answer: A Explanation: Voltage drop over long runs can reduce voltage below acceptable levels; NEC recommends limiting voltage drop to 3% for branch circuits. Question 51. Which of the following is an example of a nonmetallic raceway? A) Rigid Metal Conduit (RMC) B) Liquidtight Flexible Conduit C) EMT D) PVC conduit Answer: D Explanation: PVC conduit is a plastic, nonmetallic raceway suitable for various applications, including wet locations. Question 52. The primary purpose of a fuse in an electrical circuit is to: A) Limit current flow B) Protect wiring and devices by melting during overloads C) Increase circuit capacity D) Step down voltage Answer: B Explanation: Fuses protect circuits by melting and disconnecting when current exceeds their rated capacity, preventing damage. Question 53. Which NEC chapter addresses special equipment such as electric signs and elevators? A) Chapter 5
B) Chapter 6 C) Chapter 4 D) Chapter 7 Answer: B Explanation: Chapter 6 covers special equipment including signs, elevators, cranes, and industrial machinery. Question 54. The typical voltage used for residential service in the United States is: A) 120/240 volts AC B) 277/480 volts AC C) 240 volts AC only D) 600 volts DC Answer: A Explanation: Residential services commonly use 120/240 volts AC split-phase system for standard household loads. Question 55. Which of the following is a common method to correct poor power factor in an AC system? A) Installing a resistor B) Installing a capacitor bank C) Increasing resistance D) Using a transformer Answer: B Explanation: Capacitor banks are used to improve power factor by offsetting inductive reactance. Question 56. In a circuit, the total impedance is a combination of resistance and: A) Capacitance B) Reactance C) Conductance D) Inductance only
Question 60. Which of the following is a key safety measure when working with energized electrical equipment? A) Using only insulated tools B) Wearing leather shoes C) Working alone D) Disabling the circuit breaker Answer: A Explanation: Using insulated tools minimizes the risk of accidental electrical contact and shock. Question 61. The maximum allowable voltage drop on branch circuits is typically: A) 1% B) 3% C) 5% D) 10% Answer: B Explanation: The NEC generally recommends limiting voltage drop to 3% for branch circuits to ensure proper operation. Question 62. Which type of transformer is used primarily for stepping down voltage in residential applications? A) Power transformer B) Distribution transformer C) Control transformer D) Instrument transformer Answer: B Explanation: Distribution transformers step down high voltages for residential and commercial use. Question 63. What is the primary purpose of a system bonding jumper? A) To connect the grounding system to the neutral bus
B) To connect equipment enclosures to ground C) To bond various parts of the electrical system electrically D) To connect hot conductors Answer: C Explanation: Bonding jumpers electrically connect different parts of the system, ensuring proper fault current paths. Question 64. Which of the following is an example of a Class I hazardous location? A) A storage room with flammable dust B) A gasoline dispensing area C) A dry storage warehouse D) An office building Answer: B Explanation: Class I locations involve flammable gases or vapors, such as gasoline dispensing areas, requiring explosion-proof equipment. Question 65. The main purpose of an arc flash hazard analysis is to: A) Calculate voltage drops B) Identify potential arc flash energy levels for safety planning C) Determine grounding methods D) Size conductors Answer: B Explanation: Arc flash analysis assesses potential incident energy levels to implement safety measures and PPE requirements. Question 66. Which type of conduit is most appropriate for a high vibration environment? A) EMT B) Rigid Metal Conduit (RMC) C) Liquidtight Flexible Conduit D) Flexible metallic conduit (FM)
