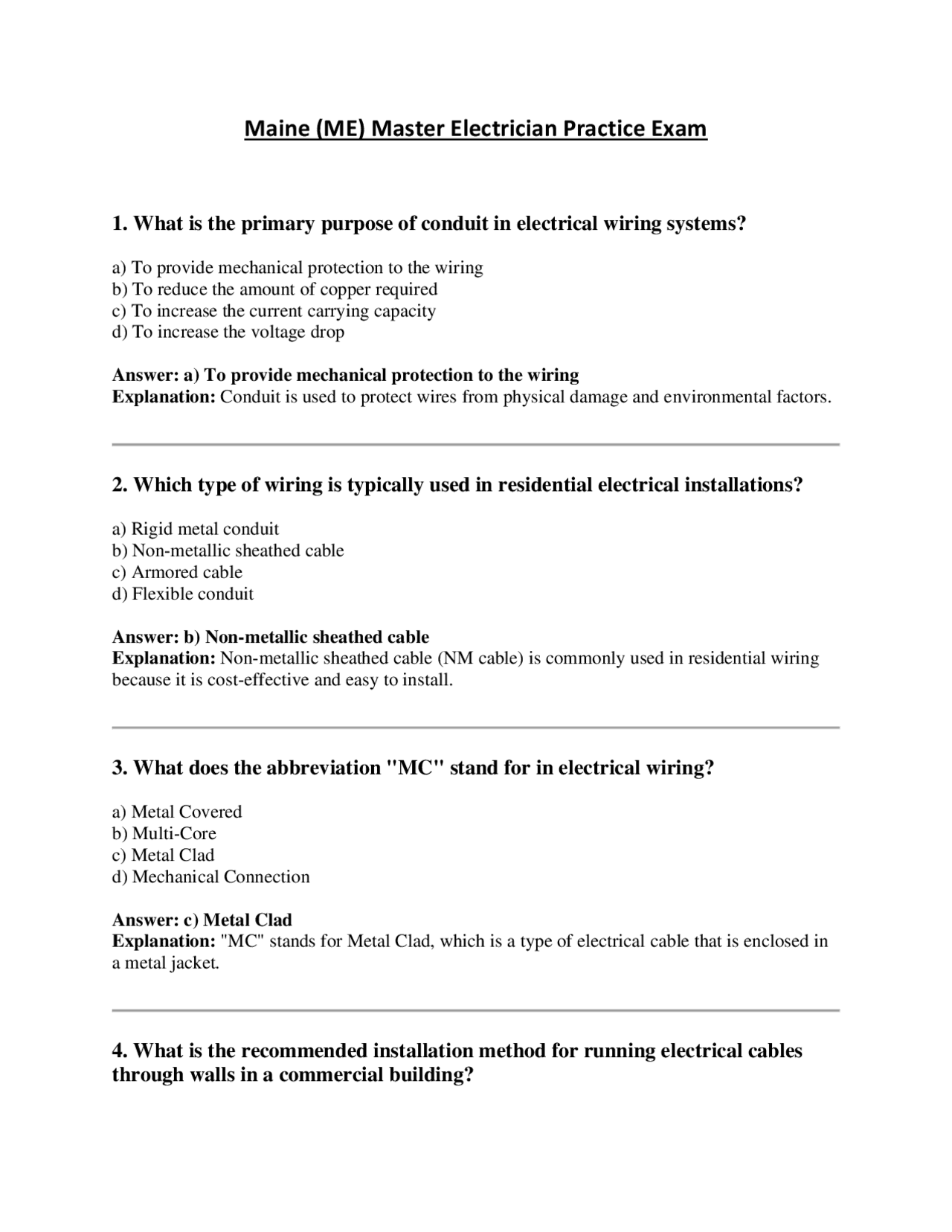

Maine (ME) Master Electrician Practice Exam
1. What is the primary purpose of conduit in electrical wiring systems?
a) To provide mechanical protection to the wiring b) To reduce the amount of copper required c) To increase the current carrying capacity d) To increase the voltage drop Answer: a) To provide mechanical protection to the wiring Explanation: Conduit is used to protect wires from physical damage and environmental factors.
2. Which type of wiring is typically used in residential electrical installations?
a) Rigid metal conduit b) Non-metallic sheathed cable c) Armored cable d) Flexible conduit Answer: b) Non-metallic sheathed cable Explanation: Non-metallic sheathed cable (NM cable) is commonly used in residential wiring because it is cost-effective and easy to install.
3. What does the abbreviation "MC" stand for in electrical wiring?
a) Metal Covered b) Multi-Core c) Metal Clad d) Mechanical Connection Answer: c) Metal Clad Explanation: "MC" stands for Metal Clad, which is a type of electrical cable that is enclosed in a metal jacket.
4. What is the recommended installation method for running electrical cables
through walls in a commercial building?
a) Direct burial b) EMT (Electrical Metallic Tubing) conduit c) PVC conduit d) Non-metallic sheathed cable Answer: b) EMT (Electrical Metallic Tubing) conduit Explanation: EMT is often used for commercial installations where flexibility and durability are required.
5. What is the primary advantage of using rigid metal conduit (RMC)?
a) Flexibility b) Light weight c) Durability and protection from physical damage d) Cost efficiency Answer: c) Durability and protection from physical damage Explanation: Rigid metal conduit offers high protection from mechanical damage, making it ideal for industrial applications.
6. What is the code requirement for securing and supporting non-metallic
sheathed cable (NM) in residential applications?
a) Every 4 feet b) Every 6 feet c) Every 12 inches d) Every 10 feet Answer: a) Every 4 feet Explanation: The National Electrical Code (NEC) requires that NM cable be secured and supported at intervals not exceeding 4.5 feet.
7. In which situation would flexible conduit typically be used?
a) As a primary wiring method in residential buildings b) When wiring needs to be run through areas with frequent movement c) For wiring buried underground d) As the main wiring in industrial facilities
11. Which type of cable is typically used in branch circuit installations in
commercial buildings?
a) MC (Metal Clad) cable b) PVC cable c) THHN wire d) AC (Armored Cable) wire Answer: a) MC (Metal Clad) cable Explanation: MC cable is often used in commercial buildings due to its robustness and fire- resistant properties.
12. What is the minimum bending radius for a flexible cord?
a) 1.5 times the cord's diameter b) 10 times the cord's diameter c) 5 times the cord's diameter d) 3 times the cord's diameter Answer: b) 10 times the cord's diameter Explanation: Flexible cords should be bent with a radius that is at least 10 times the cord’s diameter to avoid damaging the insulation.
13. Which of the following is a requirement for running a cable through a metal
conduit?
a) Use of grounding conductors b) Cable insulation must be stripped c) No bends in the conduit d) No grounding is required Answer: a) Use of grounding conductors Explanation: Metal conduit systems must include grounding conductors to ensure electrical safety.
14. When using PVC conduit for wiring, what should be done at the ends of the
conduit?
a) The ends should be taped shut. b) A connector must be used to prevent physical damage. c) The ends should be left open for ventilation. d) No connectors are needed if the conduit is not bent. Answer: b) A connector must be used to prevent physical damage. Explanation: PVC conduit requires connectors at the ends to ensure a secure and safe installation.
15. What is the maximum number of conductors allowed in a conduit?
a) Based on the conduit’s internal diameter b) Based on the wire insulation color c) Based on the voltage rating of the system d) Based on the wire’s current-carrying capacity Answer: a) Based on the conduit’s internal diameter Explanation: The number of conductors that can be installed in a conduit depends on the conduit’s internal diameter, which is specified by the NEC.
16. In a dry location, what is the minimum allowable spacing for securing a non-
metallic sheathed cable (NM) to a stud?
a) Every 8 feet b) Every 4.5 feet c) Every 6 feet d) Every 12 inches Answer: b) Every 4.5 feet Explanation: NM cable must be secured and supported at intervals not exceeding 4.5 feet in dry locations.
17. What type of wiring method is used to run electrical conductors directly
underground?
a) Direct-buried cable b) Flexible conduit c) PVC conduit d) Armored cable
21. Which of the following materials is used for grounding conductors?
a) Copper b) Aluminum c) Steel d) Lead Answer: a) Copper Explanation: Copper is commonly used for grounding conductors due to its excellent conductivity and reliability.
22. What is the maximum length for using flexible conduit in an installation?
a) 6 feet b) 10 feet c) 12 feet d) There is no length limitation Answer: d) There is no length limitation Explanation: Flexible conduit can be used for as long as needed, provided it is properly supported and installed according to code.
23. What is the benefit of using metal-clad (MC) cable in industrial installations?
a) Higher voltage rating b) Enhanced mechanical protection c) Reduced current carrying capacity d) Easier to install Answer: b) Enhanced mechanical protection Explanation: MC cable offers enhanced protection against physical damage in industrial environments.
24. What is the maximum number of conductors allowed in a conduit in relation
to its size?
a) There is no limit b) One conductor per conduit size c) Based on the NEC fill calculation formula d) Limited by the voltage rating of the conductors
Answer: c) Based on the NEC fill calculation formula Explanation: The NEC provides specific fill calculations to determine the maximum number of conductors allowed in a conduit based on its size.
25. Which of the following wiring methods is considered the most durable for use
in harsh environments?
a) PVC conduit b) EMT conduit c) Rigid metal conduit d) Non-metallic sheathed cable Answer: c) Rigid metal conduit Explanation: Rigid metal conduit offers superior durability and protection, making it suitable for harsh environments.
26. Which of the following wiring methods is most commonly used in residential
branch circuits?
a) MC cable b) RMC conduit c) PVC conduit d) Non-metallic sheathed cable Answer: d) Non-metallic sheathed cable Explanation: NM cable is the most commonly used wiring method in residential branch circuits.
27. What is the main purpose of using a junction box in electrical wiring
installations?
a) To increase current-carrying capacity b) To prevent overheating c) To provide a safe and accessible location for splicing wires d) To reduce voltage drop Answer: c) To provide a safe and accessible location for splicing wires Explanation: Junction boxes are used to house wire connections or splices, providing safety and accessibility.
a) PVC conduit b) EMT conduit c) Flexible metal conduit d) Non-metallic sheathed cable Answer: a) PVC conduit Explanation: PVC conduit is commonly used for running cables through concrete or masonry walls due to its resistance to moisture and physical protection.
32. Which type of cable is typically used for circuits that require a higher level of
protection against physical damage?
a) Non-metallic sheathed cable b) Armored cable (AC) c) Flexible conduit d) PVC conduit Answer: b) Armored cable (AC) Explanation: Armored cable offers greater protection against physical damage compared to other types of cables.
33. Which of the following is NOT a characteristic of Type NM (Non-Metallic)
cable?
a) It is commonly used in residential installations. b) It has a plastic sheath. c) It is used for underground installations. d) It is used for branch circuits. Answer: c) It is used for underground installations. Explanation: Type NM cable is not suitable for direct burial or underground installations. It is typically used in dry, indoor locations.
34. What is the maximum distance between supports for EMT (Electrical
Metallic Tubing)?
a) 3 feet b) 10 feet c) 8 feet d) 5 feet
Answer: b) 10 feet Explanation: According to NEC, EMT should be supported every 10 feet for secure installation.
35. When using flexible metal conduit (FMC), which of the following must be
done?
a) It must be installed without grounding. b) The conduit should be supported every 3 feet. c) The conduit must be continuous without any connections. d) It must be grounded if used in a wet location. Answer: d) It must be grounded if used in a wet location. Explanation: Flexible metal conduit (FMC) must be properly grounded, especially when used in wet or hazardous locations, for safety.
36. In which of the following scenarios is the use of PVC conduit appropriate?
a) In dry locations only b) In wet locations only c) In locations with high mechanical impact d) For use in areas with frequent movement of the wiring Answer: a) In dry locations only Explanation: PVC conduit is most commonly used in dry locations. For wet or hazardous locations, other materials like EMT or RMC are preferred.
37. What is the maximum voltage rating for most armored cables (AC)?
a) 100 volts b) 300 volts c) 600 volts d) 1000 volts Answer: c) 600 volts Explanation: Most armored cables (AC) are rated for 600 volts, which is suitable for residential and light commercial use.
c) Based on the conductor’s voltage rating d) Based on the conduit’s physical length Answer: b) Based on the NEC conduit fill calculation Explanation: The NEC specifies conduit fill calculations that take into account the conduit size and wire type to ensure safe and effective installations.
42. Which wiring method is specifically designed for use in hazardous locations?
a) PVC conduit b) Rigid metal conduit (RMC) c) FMC (Flexible Metal Conduit) d) IMC (Intermediate Metal Conduit) Answer: b) Rigid metal conduit (RMC) Explanation: RMC is designed for use in hazardous locations, offering a high degree of protection against environmental hazards and mechanical damage.
43. In which of the following scenarios is the use of EMT conduit not
recommended?
a) Indoor wiring in residential areas b) Outdoor wiring in dry locations c) Underground installations d) Exposed areas in commercial buildings Answer: c) Underground installations Explanation: EMT conduit is not suitable for underground installations, where greater protection is required. Rigid metal conduit (RMC) or PVC conduit is preferred for these environments.
44. When selecting the appropriate wiring method for a wet location, which
factor is most important?
a) Voltage rating b) Conductivity of the material c) Material’s moisture resistance d) Installation cost
Answer: c) Material’s moisture resistance Explanation: In wet locations, it is important to select materials that are resistant to moisture and corrosion, such as PVC or special rated conduit.
45. When installing a cable in a metal conduit, what must be used to prevent the
wire from being damaged by sharp edges?
a) Insulated connectors b) Plastic bushings or fittings c) Grounding conductors d) Conduit caps Answer: b) Plastic bushings or fittings Explanation: Plastic bushings or fittings are used to prevent wire insulation from being damaged by sharp edges in metal conduit.
46. What does the NEC require when using non-metallic sheathed cable (NM) in
an attic?
a) The cable must be supported every 6 feet b) The cable must be installed in conduit c) The cable must be secured every 12 inches d) The cable must be insulated Answer: a) The cable must be supported every 6 feet Explanation: In an attic, NM cable must be supported and secured at intervals no greater than 6 feet to prevent damage.
47. Which wiring method is ideal for installations where physical protection from
impact is not critical but flexibility is needed?
a) EMT conduit b) Flexible metal conduit (FMC) c) Rigid metal conduit (RMC) d) Non-metallic sheathed cable Answer: b) Flexible metal conduit (FMC) Explanation: FMC is used when flexibility is required and impact protection is not critical, making it ideal for certain residential and commercial applications.
a) Utility power b) Battery backup c) Generator power d) Wind power Answer: a) Utility power Explanation: Elevators are primarily powered by utility power, although they may have a battery backup or generator for emergencies.
2. In the event of a power failure, what is the role of the emergency power system
in an elevator?
a) To allow the elevator to continue running as usual b) To stop the elevator immediately c) To return the elevator to the ground floor and allow passengers to exit d) To switch off all electrical equipment in the building Answer: c) To return the elevator to the ground floor and allow passengers to exit Explanation: In the event of a power failure, emergency power systems in elevators allow the system to safely return to the ground floor and provide for passenger safety.
3. Which component is most commonly used for emergency power in an elevator
system?
a) Fuel-powered generator b) Battery backup c) Solar panels d) Wind turbines Answer: b) Battery backup Explanation: Battery backups are commonly used in elevator systems to provide power during a failure, ensuring the elevator can return to the ground floor.
4. What type of wiring method is typically required for emergency and standby
power systems?
a) Non-metallic sheathed cable b) Armored cable c) Flexible conduit d) Rigid metal conduit
Answer: d) Rigid metal conduit Explanation: Rigid metal conduit (RMC) is typically required for emergency and standby power systems because it provides extra protection in case of a fault.
5. When installing a fire alarm system, what is the main consideration for the
location of smoke detectors?
a) Close to windows b) In each room and hallway c) Near heat sources d) Only in the basement Answer: b) In each room and hallway Explanation: Smoke detectors should be installed in every room and hallway to maximize coverage and ensure the earliest possible detection of a fire.
6. What is the purpose of a fire alarm system’s control panel?
a) To test the alarm’s volume b) To control the timing of the alarm c) To monitor and control the operation of the fire detection system d) To measure the temperature in the building Answer: c) To monitor and control the operation of the fire detection system Explanation: The control panel of a fire alarm system monitors the system’s components, including detectors, and triggers alarms when necessary.
7. Which of the following wiring methods is most appropriate for a fire alarm
system?
a) Non-metallic sheathed cable b) Armored cable c) Plenum-rated cable d) PVC conduit Answer: c) Plenum-rated cable Explanation: Plenum-rated cables are required for fire alarm systems to ensure they are safe to use in air ducts and areas with ventilation systems.
a) Efficiency of wiring b) Accessibility of routers c) Bandwidth and data speed d) Aesthetic placement of cables Answer: c) Bandwidth and data speed Explanation: Bandwidth and data speed are key considerations in designing a data and communication system to ensure fast and reliable communication.
12. Which of the following is a typical wiring method for data and
communication systems in commercial buildings?
a) Non-metallic sheathed cable b) Plenum-rated cable c) Armored cable d) Rigid metal conduit Answer: b) Plenum-rated cable Explanation: Plenum-rated cables are used in data and communication systems because they are designed to resist fire and emit low smoke in the event of a fire.
13. What must be installed when retrofitting a building with renewable energy
sources to ensure electrical code compliance?
a) A dedicated transformer b) A backup generator c) An approved inverter system d) A solar power monitor Answer: c) An approved inverter system Explanation: An inverter system is necessary to convert the DC output from renewable energy sources (such as solar panels) into AC power suitable for the electrical grid.
14. What is a key requirement when designing an emergency and standby power
system?
a) Power must be sufficient to run all electrical equipment in the building b) The system must be installed with remote operation capabilities c) The system must include an automatic transfer switch (ATS) d) The system must only include battery backups
Answer: c) The system must include an automatic transfer switch (ATS) Explanation: An automatic transfer switch (ATS) is essential in emergency and standby power systems to automatically switch between the utility power and the backup power source.
8. Special Conditions (5%)
15. Which of the following is the best way to prevent electrical shock when
working in damp or wet locations?
a) Use insulated tools b) Wear rubber gloves c) Ensure all equipment is grounded d) All of the above Answer: d) All of the above Explanation: Working in damp or wet locations requires the use of insulated tools, rubber gloves, and grounding of all equipment to minimize the risk of electrical shock.
16. What is the recommended wiring method for electrical installations in wet
locations?
a) Non-metallic sheathed cable b) PVC conduit c) Armored cable d) Rigid metal conduit Answer: b) PVC conduit Explanation: PVC conduit is resistant to moisture and is commonly used for electrical installations in wet locations.
17. What type of grounding system is required for installations in damp or wet
locations?
a) Ungrounded system b) Equipment grounding only c) Grounding of both the equipment and the neutral d) Isolation transformer grounding
