Burning Appliance Certification Exam Guide

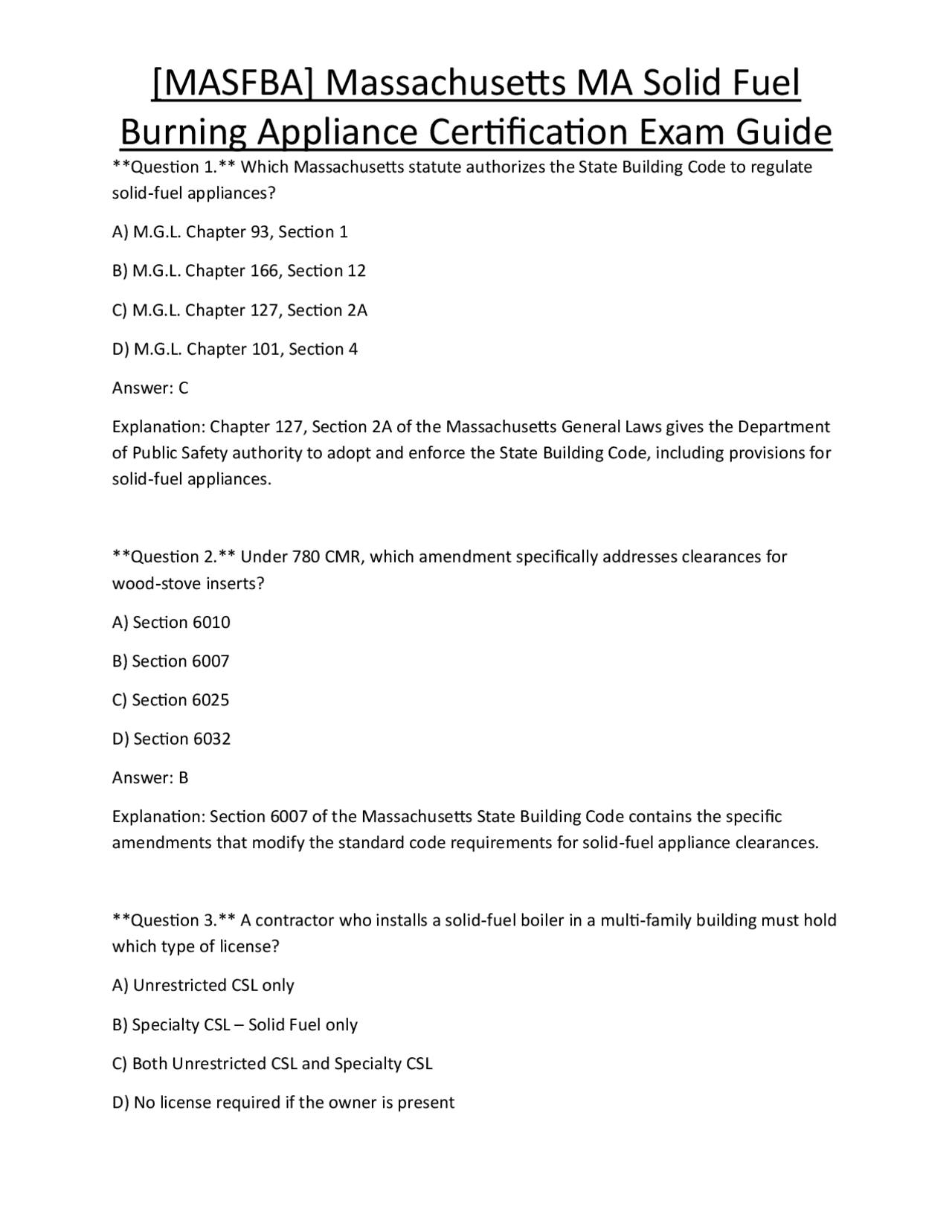

Question 1. Which Massachusetts statute authorizes the State Building Code to regulate solid‑fuel appliances? A) M.G.L. Chapter 93, Section 1 B) M.G.L. Chapter 166, Section 12 C) M.G.L. Chapter 127, Section 2A D) M.G.L. Chapter 101, Section 4 Answer: C Explanation: Chapter 127, Section 2A of the Massachusetts General Laws gives the Department of Public Safety authority to adopt and enforce the State Building Code, including provisions for solid‑fuel appliances. Question 2. Under 780 CMR, which amendment specifically addresses clearances for wood‑stove inserts? A) Section 6010 B) Section 6007 C) Section 6025 D) Section 6032 Answer: B Explanation: Section 6007 of the Massachusetts State Building Code contains the specific amendments that modify the standard code requirements for solid‑fuel appliance clearances. Question 3. A contractor who installs a solid‑fuel boiler in a multi‑family building must hold which type of license? A) Unrestricted CSL only B) Specialty CSL – Solid Fuel only C) Both Unrestricted CSL and Specialty CSL D) No license required if the owner is present
Burning Appliance Certification Exam Guide
Answer: C Explanation: Installation of solid‑fuel appliances in multi‑family dwellings requires both an Unrestricted Construction Supervisor License (CSL) and the Specialty CSL for solid‑fuel appliances. Question 4. Which of the following is NOT a required label on a UL‑listed wood‑stove? A) Manufacturer’s permanent label B) UL 1482 certification mark C) Energy Star rating D) ASTM E1509 test reference Answer: C Explanation: Energy Star is not a mandatory labeling requirement for solid‑fuel appliances; the other three are required for UL compliance. Question 5. The primary difference between an active‑feed and a passive‑feed pellet stove is: A) Active‑feed uses electricity to move pellets; passive‑feed relies on gravity. B) Passive‑feed requires a larger fuel hopper. C) Active‑feed can burn coal; passive‑feed cannot. D) Passive‑feed has higher combustion efficiency. Answer: A Explanation: Active‑feed pellet stoves use an auger or blower powered by electricity to deliver pellets to the burn pot, while passive‑feed systems rely on gravity. Question 6. Which data plate item is essential for determining the required clearance to combustible walls? A) BTU rating
Burning Appliance Certification Exam Guide
Question 9. Which NFPA 211 method allows reduction of clearance using a ventilated shield? A) 2‑inch air gap method B) 1‑hour fire‑rating method C) 3‑inch metal shield method D) 4‑inch concrete pad method Answer: C Explanation: NFPA 211 permits clearance reduction when a ventilated metal shield with a minimum 3‑inch air space is installed between the appliance and combustible material. Question 10. The minimum R‑value required for a hearth extension beneath a wood‑stove in Massachusetts is: A) R‑ 2 B) R‑ 4 C) R‑ 6 D) R‑ 8 Answer: B Explanation: The 780 CMR requires hearth extensions beneath solid‑fuel appliances to have a minimum thermal resistance of R‑4 to limit heat transfer. Question 11. When installing a non‑combustible wall shield behind a wood‑stove, the required air space between the shield and the wall must be at least: A) ¼ inch B) ½ inch C) ¾ inch D) 1 inch
Burning Appliance Certification Exam Guide
Answer: B Explanation: NFPA 211 specifies a minimum ½‑inch air gap between the heat shield and the combustible wall to allow heat dissipation. Question 12. Which type of chimney is prohibited for use with a coal‑burning appliance in Massachusetts? A) Class A factory‑built chimney B) Masonry chimney with a clay liner C) Double‑wall stainless steel chimney D) Prefabricated concrete chimney Answer: B Explanation: Clay liners in masonry chimneys can deteriorate under the high temperatures and corrosive gases produced by coal combustion, making them prohibited. Question 13. The maximum allowable length of a single‑wall stovepipe run without a support bracket is: A) 6 feet B) 8 feet C) 10 feet D) 12 feet Answer: B Explanation: Single‑wall stovepipes must be supported at intervals not exceeding 8 feet to prevent sagging and maintain proper draft. Question 14. According to the “10‑foot/3‑foot/2‑foot” rule, the minimum chimney height above the roofline for a wood‑stove is: A) 10 ft above the roof, 3 ft above any sidewall, 2 ft above any adjoining structure.
Burning Appliance Certification Exam Guide
Question 17. Which mechanical draft device is commonly used with pellet stoves to ensure proper venting? A) Induced‑draft blower B) Natural‑draft chimney cap C) Fan‑assisted flue liner D) Exhaust stack damper Answer: A Explanation: Pellet stoves typically employ an induced‑draft blower to pull combustion gases through the venting system. Question 18. A common cause of “smoking back” in a wood‑stove is: A) Excessive secondary air. B) Chimney height less than required. C) Use of seasoned hardwood. D) Properly sized flue diameter. Answer: B Explanation: Insufficient chimney height can cause poor draft, leading to smoke spillage into the living space. Question 19. Which type of creosote is the most difficult to remove and indicates the greatest fire hazard? A) Light tar (Type 1) B) Heavy tar (Type 2) C) Hard black (Type 3) D) Powdery (Type 0)
Burning Appliance Certification Exam Guide
Answer: C Explanation: Type 3 creosote is a hard, black, crystalline deposit that adheres strongly to the flue and poses the highest fire risk. Question 20. According to 780 CMR, where must carbon monoxide alarms be installed in a home with a solid‑fuel boiler? A) Inside each bedroom. B) On every floor, outside sleeping areas. C) Only in the basement. D) Within 10 ft of the boiler. Answer: B Explanation: The code requires CO alarms on each level of the dwelling, positioned outside sleeping areas to provide early warning. Question 21. The minimum thickness of a non‑combustible hearth pad for a coal‑burning stove is: A) ½ inch steel B) ¾ inch concrete C) 1 inch brick D) ¼ inch ceramic tile Answer: B Explanation: Massachusetts requires a minimum ¾‑inch concrete hearth pad for coal‑burning appliances to provide adequate thermal protection. Question 22. Which ASTM standard specifies the testing method for solid‑fuel appliance emissions? A) ASTM E
Burning Appliance Certification Exam Guide
Question 25. Which of the following best describes “mechanical draft” in the context of solid‑fuel appliances? A) Natural airflow due to chimney height. B) Forced air movement created by a fan or blower. C) Pressure differentials caused by wind. D) Draft created by the stack effect of hot gases. Answer: B Explanation: Mechanical draft refers to the use of a fan or blower to move combustion gases through the venting system. Question 26. The correct procedure for disposing of hot ash from a wood‑stove is: A) Dump it directly into a plastic bag. B) Allow it to cool in a metal container with a tight‑fitting lid. C) Spread it on the ground outside. D) Store it in a wooden box. Answer: B Explanation: Hot ash must be placed in a metal container with a secure lid to prevent accidental fires. Question 27. Which of the following fuel characteristics most directly contributes to creosote formation? A) High moisture content. B) Low ash content. C) High volatile organic compounds. D) Large particle size.
Burning Appliance Certification Exam Guide
Answer: C Explanation: Fuels rich in volatile organic compounds produce more tar‑rich gases that condense as creosote in the flue. Question 28. In Massachusetts, a Home Improvement Contractor (HIC) must register with the Department of Consumer Affairs when working on: A) Commercial properties over 5,000 sq ft. B) Owner‑occupied 1‑to‑ 4 ‑family dwellings. C) Rental apartments with more than 10 units. D) New construction of single‑family homes. Answer: B Explanation: HIC registration is required for contractors performing work on owner‑occupied residential properties of up to four families. Question 29. The primary purpose of a thimble when passing a vent through a combustible wall is to: A) Increase draft velocity. B) Provide a fire‑resistant barrier. C) Reduce condensation. D) Insulate the vent pipe. Answer: B Explanation: Thimbles are made of non‑combustible material and create a fire‑resistant sleeve for the vent pipe through combustible walls. Question 30. Which of the following is a required feature of a UL‑listed pellet stove’s electrical system? A) A dedicated 15‑amp circuit.
Burning Appliance Certification Exam Guide
Explanation: 0.1 cfm per 1,000 BTU/hr × 70 = 7 cfm, so 7 cfm is required. Question 33. Which of the following is NOT a permissible material for a fireplace hearth extension? A) Concrete slab. B) Ceramic tile rated for 1500 °F. C) ¼‑inch plywood. D) Fire‑brick. Answer: C Explanation: Plywood is combustible and cannot be used as a hearth extension material. Question 34. A solid‑fuel boiler’s water‑side temperature limit is dictated primarily by: A) The type of fuel used. B) The manufacturer’s pressure‑temperature chart. C) The size of the flue pipe. D) The height of the chimney. Answer: B Explanation: The boiler’s pressure‑temperature chart specifies the maximum safe water temperature for a given pressure. Question 35. Which venting configuration is prohibited for a wood‑stove in a high‑rise multifamily building? A) Direct vent through the roof. B) Sidewall vent terminating at least 4 ft above the roof. C) Horizontal vent with a 10‑ft rise in the pipe. D) Chimney shared with a gas furnace.
Burning Appliance Certification Exam Guide
Answer: D Explanation: Sharing a chimney with a gas furnace is prohibited due to differing temperature and corrosion characteristics. Question 36. The most common method to verify that a chimney liner is properly sized for a wood‑stove is to: A) Measure the outside diameter of the stovepipe. B) Use the stove’s BTU rating and consult the liner sizing chart. C) Check the length of the chimney. D) Inspect the manufacturer’s label on the chimney. Answer: B Explanation: Sizing charts correlate the appliance’s BTU output with the required flue cross‑section to ensure adequate draft. Question 37. In a tightly sealed home, the installation of a make‑up air inlet for a solid‑fuel appliance must be located: A) Within 3 ft of the appliance. B) On the opposite side of the house from the appliance. C) Directly above the appliance. D) In the basement only. Answer: A Explanation: The make‑up air inlet should be as close as practicable to the appliance (within 3 ft) to provide sufficient combustion air. Question 38. Which of the following is a required feature of a smoke detector installed near a solid‑fuel appliance? A) Photoelectric sensor only.
Burning Appliance Certification Exam Guide
Question 41. Which of the following statements about “primary air” in a wood‑stove is correct? A) It is supplied from the room where the stove is located. B) It is drawn from the flue gases. C) It is only used during startup. D) It is regulated by a damper. Answer: A Explanation: Primary air is drawn directly from the room and provides the oxygen needed for the initial combustion of solid fuel. Question 42. The required minimum distance between a wood‑stove and a combustible ceiling is: A) 12 inches. B) 18 inches. C) 24 inches. D) 36 inches. Answer: B Explanation: The Massachusetts code mandates at least an 18‑inch clearance from a wood‑stove to any combustible ceiling. Question 43. Which of the following fuel qualities will produce the least amount of creosote in a wood‑stove? A) Green (unseasoned) hardwood. B) 10‑month seasoned softwood. C) 6‑month seasoned hardwood.
Burning Appliance Certification Exam Guide
D) 20‑month seasoned hardwood. Answer: D Explanation: Longer seasoning reduces moisture and volatile compounds, leading to less creosote formation. Question 44. The term “air‑to‑fuel ratio” in solid‑fuel appliances refers to: A) The volume of combustion air divided by the mass of fuel burned per hour. B) The pressure differential across the firebox. C) The temperature of the flue gases. D) The ratio of secondary to primary air. Answer: A Explanation: Air‑to‑fuel ratio quantifies the amount of air supplied relative to the amount of fuel, influencing combustion efficiency. Question 45. Which of the following is NOT a permissible method for reducing required clearance to combustibles for a listed wood‑stove? A) Installing a certified heat shield. B) Using a non‑combustible hearth pad. C) Adding a forced‑draft blower. D) Applying a thermal barrier coating to the stove. Answer: D Explanation: Thermal barrier coatings are not recognized by the code as a method to reduce clearances. Question 46. According to NFPA 211, the minimum horizontal clearance between a chimney base and a combustible wall is:
Burning Appliance Certification Exam Guide
Question 49. In a pellet stove, the “hopper” is used to: A) Store combustion air. B) Hold the pellets before they are fed to the burn pot. C) Collect ash. D) House the igniter. Answer: B Explanation: The hopper is the storage compartment where pellets are kept before being automatically fed into the burn pot. Question 50. The minimum required distance between a solid‑fuel appliance and a combustible door is: A) 6 inches. B) 12 inches. C) 18 inches. D) 24 inches. Answer: B Explanation: The code requires at least a 12‑inch clearance from a solid‑fuel appliance to any combustible door. Question 51. Which of the following statements about “negative pressure” in a home is true? A) It improves draft for solid‑fuel appliances. B) It can cause back‑drafting of combustion gases. C) It is created by opening windows. D) It has no effect on CO levels.
Burning Appliance Certification Exam Guide
Answer: B Explanation: Negative pressure can reverse the flow of flue gases, causing back‑draft and potential CO infiltration. Question 52. The required minimum thickness for a fire‑rated wall shield protecting a wood‑stove is: A) ¼ inch steel. B) ½ inch steel. C) ¾ inch steel. D) 1 inch steel. Answer: B Explanation: NFPA 211 specifies a minimum ½‑inch steel shield for protecting combustible walls behind wood‑stoves. Question 53. Which of the following is the correct definition of “BTU rating” on a solid‑fuel appliance data plate? A) The maximum heat output per hour. B) The amount of fuel consumed per hour. C) The amount of carbon monoxide produced per hour. D) The efficiency percentage of the appliance. Answer: A Explanation: The BTU rating indicates the maximum thermal energy the appliance can produce in one hour. Question 54. When a solid‑fuel appliance is installed in a room with a forced‑air heating system, the venting must be designed to: A) Share the same ductwork as the forced‑air system.
