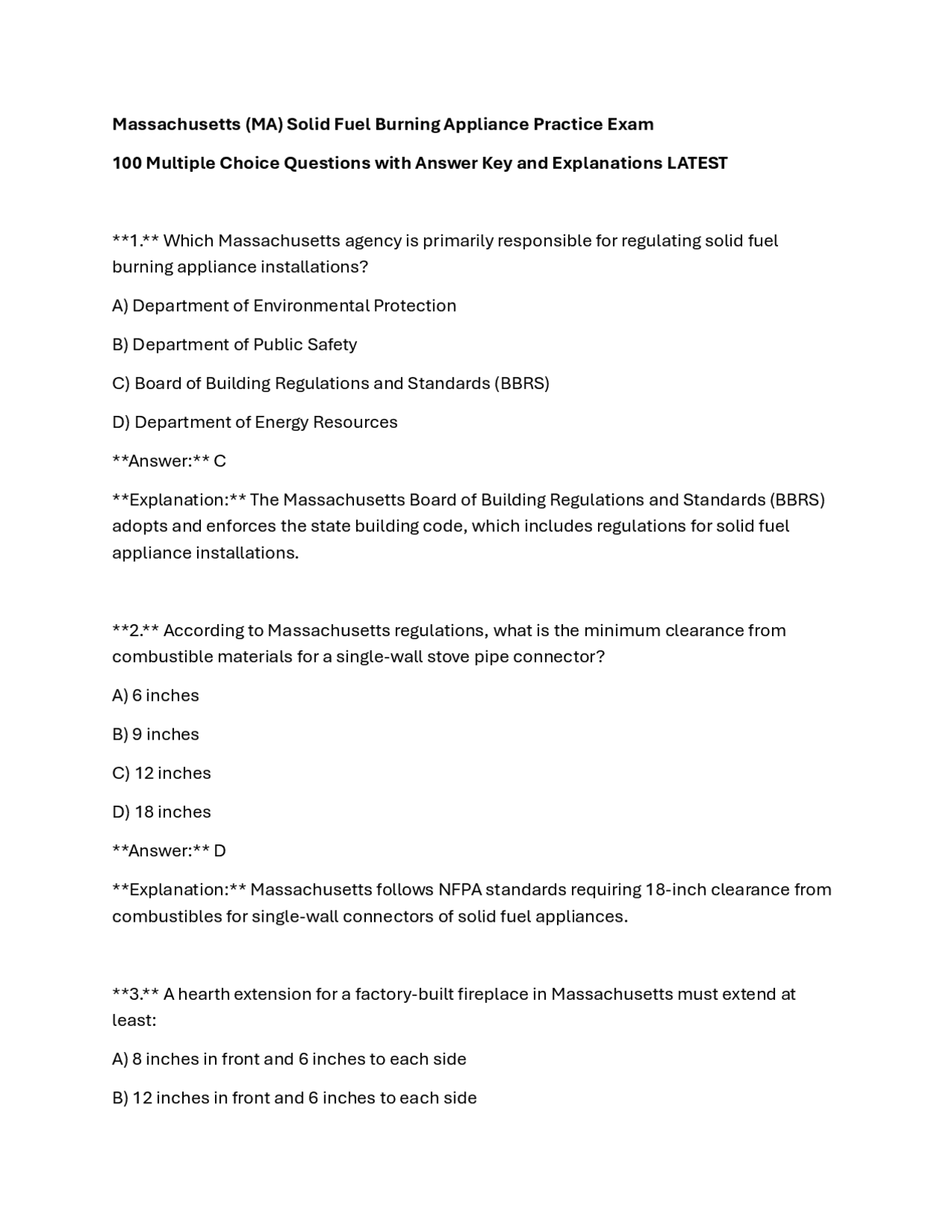

Massachusetts (MA) Solid Fuel Burning Appliance Practice Exam 100 Multiple Choice Questions with Answer Key and Explanations LATEST 1. Which Massachusetts agency is primarily responsible for regulating solid fuel burning appliance installations? A) Department of Environmental Protection B) Department of Public Safety C) Board of Building Regulations and Standards (BBRS) D) Department of Energy Resources Answer: C Explanation: The Massachusetts Board of Building Regulations and Standards (BBRS) adopts and enforces the state building code, which includes regulations for solid fuel appliance installations. 2. According to Massachusetts regulations, what is the minimum clearance from combustible materials for a single-wall stove pipe connector? A) 6 inches B) 9 inches C) 12 inches D) 18 inches Answer: D Explanation: Massachusetts follows NFPA standards requiring 18-inch clearance from combustibles for single-wall connectors of solid fuel appliances. 3. A hearth extension for a factory-built fireplace in Massachusetts must extend at least: A) 8 inches in front and 6 inches to each side B) 12 inches in front and 6 inches to each side
C) 16 inches in front and 8 inches beyond each side D) 20 inches in front and 12 inches to each side Answer: C Explanation: Massachusetts adopts NFPA 211 standards requiring hearth extensions of at least 16 inches in front and 8 inches beyond each side of the opening. 4. What type of chimney lining is required for solid fuel appliances in Massachusetts? A) Type B vent B) Type L vent C) UL 103 HT or UL 1777 listed chimney D) Single-wall metal pipe Answer: C Explanation: Solid fuel appliances require chimneys listed to UL 103 HT (High Temperature) or UL 1777 for factory-built chimneys that can withstand chimney fire temperatures. 5. In Massachusetts, what is the minimum chimney height above the roof penetration? A) 1 foot B) 2 feet C) 3 feet D) 4 feet Answer: C Explanation: The "3- 2 - 10" rule applies: 3 feet above the roof penetration and 2 feet above any ridge within 10 feet. 6. Which of the following fuels is NOT approved for indoor solid fuel burning appliances in Massachusetts?
9. What is the maximum horizontal run allowed for a chimney connector in Massachusetts? A) Equal to the vertical rise B) 75% of the vertical rise C) 50% of the vertical rise D) 25% of the vertical rise Answer: B Explanation: The horizontal run should not exceed 75% of the vertical rise to maintain proper draft. 10. A solid fuel appliance installed in a mobile home in Massachusetts must be: A) Listed for mobile home installation B) Elevated 24 inches above the floor C) In a separate, ventilated room D) All of the above Answer: D Explanation: Mobile home installations have special requirements including listed appliances, elevation, and often a separate room. 11. What is the minimum clearance from a single-wall stove pipe to a combustible wall with no protection? A) 6 inches B) 12 inches C) 18 inches D) 24 inches Answer: C
Explanation: 18 inches is the standard clearance for single-wall connectors to unprotected combustible walls. 12. According to Massachusetts building code, what is the minimum thickness for a solid masonry hearth? A) 2 inches B) 4 inches C) 6 inches D) 8 inches Answer: B Explanation: Solid masonry hearths must be at least 4 inches thick to provide adequate thermal protection. 13. Which type of chimney cap is recommended for solid fuel burning appliances in Massachusetts? A) No cap needed B) Decorative cap only C) Mesh screen spark arrestor cap D) Solid metal rain cap Answer: C Explanation: Spark arrestor caps with mesh screening help prevent sparks from escaping and starting roof fires. 14. What is the purpose of a thimble when passing a chimney connector through a combustible wall? A) Decorative trim B) To provide proper clearance and support C) To increase draft
B) Emission standards for new wood stoves C) Chimney sweep licensing D) Firewood certification Answer: B Explanation: MassDEP's program focuses on air quality and requires new wood stoves to meet EPA emission standards. 18. What is the recommended moisture content for seasoned firewood in Massachusetts? A) Below 10% B) Below 20% C) Below 30% D) Below 40% Answer: B Explanation: Properly seasoned firewood should have moisture content below 20% for efficient, cleaner burning. 19. A chimney cleanout door must be at least what size according to Massachusetts codes? A) 4 x 4 inches B) 6 x 6 inches C) 8 x 8 inches D) 10 x 10 inches Answer: B Explanation: 6 x 6 inches is the minimum size to allow proper ash removal and cleaning access.
20. What type of mortar is required for masonry chimneys serving solid fuel appliances? A) Regular masonry mortar B) Type N mortar C) Type S mortar D) Refractory mortar Answer: D Explanation: Refractory mortar can withstand high temperatures encountered with solid fuel appliance chimneys. 21. According to Massachusetts regulations, how often should a solid fuel appliance chimney be cleaned? A) Monthly B) Annually C) Every 2 years D) Only when problems occur Answer: B Explanation: Annual cleaning is recommended, and more frequently if creosote buildup is observed. 22. What is the minimum distance a chimney must extend above any part of the building within 10 feet? A) 1 foot B) 2 feet C) 3 feet D) 4 feet Answer: B
Answer: B Explanation: Tightly constructed homes may not provide adequate combustion air, requiring an outside air source. 26. The minimum clearance for a chimney to a combustible roof surface is: A) 1 inch B) 2 inches C) 3 inches D) 4 inches Answer: B Explanation: Factory-built chimneys typically require 2 inches clearance to combustibles. 27. What is the primary hazard of burning unseasoned wood? A) Lower heat output B) Increased creosote formation C) More frequent ash cleanup D) Both A and B Answer: D Explanation: Unseasoned wood burns cooler and produces more smoke, leading to creosote buildup. 28. A masonry chimney must be lined if the flue area is more than: A) 4 times the area of the connected appliance flue B) 6 times the area of the connected appliance flue C) 8 times the area of the connected appliance flue D) 10 times the area of the connected appliance flue
Answer: B Explanation: The 6:1 area ratio rule determines when an unlined masonry flue needs relining. 29. According to Massachusetts fire code, what is required when installing a wood stove in a one- or two-family dwelling? A) Building permit only B) Fire department inspection only C) Building permit and inspection D) No permit required Answer: C Explanation: Most Massachusetts municipalities require both a building permit and inspection for wood stove installations. 30. What is the minimum wall thickness for a masonry chimney? A) 4 inches B) 6 inches C) 8 inches D) 10 inches Answer: A Explanation: Masonry chimney walls must be at least 4 inches thick (nominal). 31. A solid fuel appliance may be installed on a combustible floor if: A) The floor is carpeted B) Approved floor protection is provided C) The appliance has legs D) The room is large
D) Type L vent Answer: D Explanation: Pellet stoves typically require Type L vent pipe, which is listed for pellet fuel appliances. 35. A solid fuel appliance installed before 1988 in Massachusetts: A) Must be removed immediately B) Must be retrofitted with catalytic combustor C) May be used if in safe condition D) Requires special permit Answer: C Explanation: Older appliances may be used if they pass inspection, though they may not meet current efficiency standards. 36. What is the minimum flue size for a wood burning fireplace? A) Determined by the fireplace opening area B) Always 8 inches C) Always 10 inches D) Specified by the manufacturer Answer: A Explanation: Flue size is calculated based on fireplace opening dimensions per code requirements. 37. According to Massachusetts regulations, what must be done with ashes from solid fuel appliances? A) Dispose in regular trash B) Store in metal container with tight lid
C) Compost in garden D) Flush down toilet Answer: B Explanation: Ashes must be stored in metal containers with tight lids away from combustibles, as they can retain heat for days. 38. What is the maximum creosote accumulation allowed before cleaning is required? A) 1/8 inch B) 1/4 inch C) 1/2 inch D) 1 inch Answer: A Explanation: NFPA 211 recommends cleaning when creosote reaches 1/8 inch thickness. 39. A chimney lining system for solid fuel appliances must withstand temperatures up to: A) 1,000°F B) 1,400°F C) 2,100°F D) 2,500°F Answer: C Explanation: Chimney liners for solid fuel must withstand 2100°F to survive potential chimney fires. 40. What is the purpose of a barometric draft control? A: To regulate chimney draft automatically
B) 15 feet C) 20 feet D) 25 feet Answer: B Explanation: Minimum total chimney height is typically 15 feet from appliance to termination. 44. What type of foundation is required for a masonry chimney? A) Concrete slab B) Concrete footing extending below frost line C) Compacted gravel D) Pressure-treated wood Answer: B Explanation: Masonry chimneys require concrete footings extending below frost line for stability. 45. According to Massachusetts regulations, what information must be on a permanently attached label on a solid fuel appliance? A) Manufacturer's name B) Model number C) Clearance requirements D) All of the above Answer: D Explanation: Permanent labels must include manufacturer info, model, and clearance requirements. 46. What is the minimum clearance reduction allowed with an approved wall shield?
A) 33%
B) 50%
C) 66%
D) 75%
Answer: C Explanation: Properly installed wall shields can typically reduce clearances by up to 66%. 47. A chimney cleanout must be located: A) At the base of the chimney B) At the top of the chimney C) Every 10 feet D) Not required if chimney is straight Answer: A Explanation: Cleanouts are required at the base of the chimney for ash removal. 48. What is the primary purpose of a damper in a solid fuel fireplace? A) To regulate combustion air B) To control heat output C) To prevent heat loss when not in use D) All of the above Answer: D Explanation: Dampers serve multiple functions in solid fuel fireplaces. 49. According to Massachusetts regulations, what type of connector is prohibited for solid fuel appliances? A: Single-wall galvanized steel
C) To support the damper D) To increase draft Answer: B Explanation: Smoke shelves help prevent downdrafts by creating a turbulence zone. 53. According to Massachusetts regulations, how close may a wood pile be stored to a solid fuel appliance? A) 3 feet B) 6 feet C) 10 feet D) 20 feet Answer: D Explanation: Firewood should be stored at least 20 feet from the appliance to prevent accidental ignition. 54. What is the minimum thickness for a hearth extension made of approved millboard? A) 1/4 inch B) 1/2 inch C) 3/4 inch D) 1 inch Answer: B Explanation: Approved millboard must be at least 1/2 inch thick for hearth extensions. 55. A chimney connector should slope: A) Upward toward chimney at least 1/4 inch per foot B) Downward toward appliance at least 1/4 inch per foot
C) Level D) As needed to fit Answer: A Explanation: Connectors should slope upward toward chimney to prevent condensation drainage into appliance. 56. What is the primary cause of chimney fires? A) Overfiring B) Burning unseasoned wood C) Creosote ignition D) All of the above Answer: D Explanation: All these factors contribute to creosote buildup and chimney fires. 57. According to Massachusetts regulations, what type of fire extinguisher should be near a solid fuel appliance? A) Class A B) Class B C) Class C D) Class ABC Answer: A Explanation: Class A extinguishers are for ordinary combustibles like wood and paper. 58. What is the minimum clearance for a chimney to a vinyl-sided wall? A) 1 inch B) 2 inches C) 3 inches
