Republic of the Philippines BATANGAS STATE UNIVERSITY College of Engineering, Architecture, & Fine Arts

ECE 416

Microprocessor Systems with Programming (8x5 LED MARQUE)

Submitted by: Fampulme, Christine Angelic F. Landicho, Jeffrey Pamilara, Dennis Joseph

Submitted to: John Allan V. De Villa

October 10,

8 by 5 LED MARQUE

Objective:

  • To display the initial of first name and surname of group members in MARQUE.

Materials:

  • 40 LEDS
  • Arduino Uno
  • Connecting wires
  • PCB

Procedure:

  1. Construct a schematic diagram for the layout of the LEDs in the PCB.
  2. Place the LEDs in the PCB as shown in the schematic diagram. The anodes are connected of each row together at pins 1,2,3,4,5,6,8,9 and cathodes of each rows together A1,A2,A3,A4,A5. Use the wires to connect the columns and rows.
  3. After the connection, connect the setup to the Arduino board using the configuration specified above.
  4. Program the sequences considering that 1,2,3,4,5,6,8,9 pins will turn on when the level is HIGH while A1,A2,A3,A4,A5 when the level is LOW.
  5. (^) Test the program.

CODES:

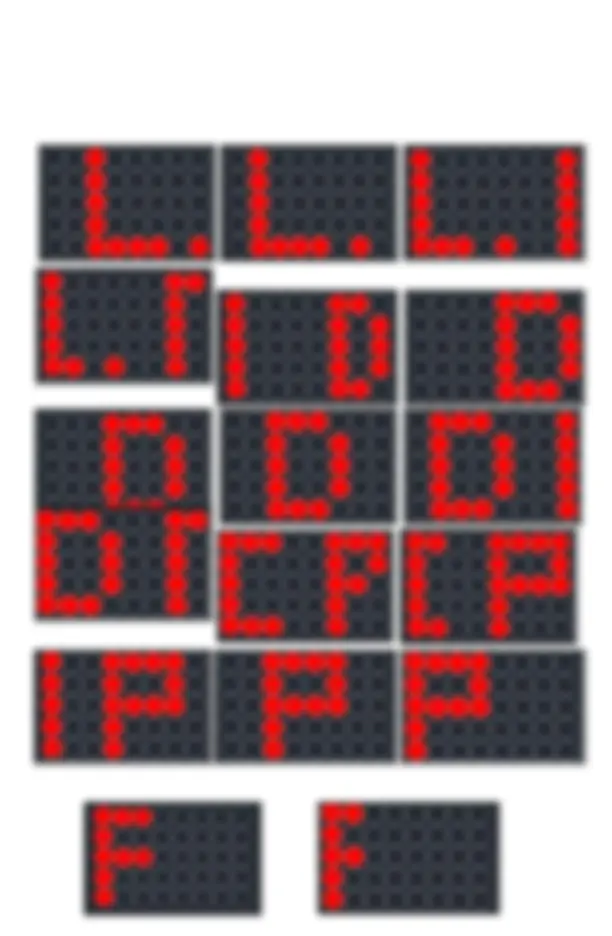

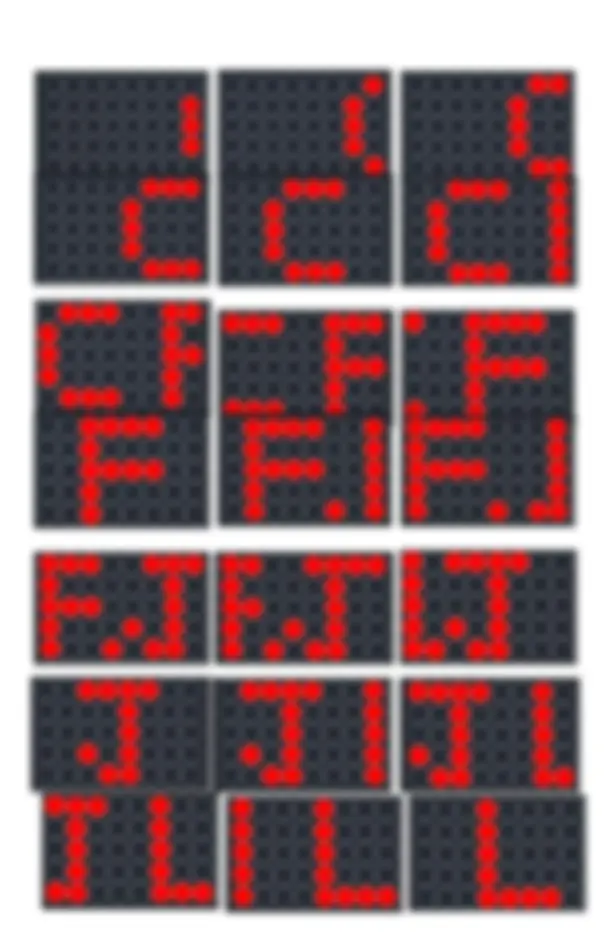

showPattern();

//F data[0] = B00111001; data[1] = B01000001; data[2] = B01000001; data[3] = B01000001; data[4] = B00111001; showPattern();

data[0] = B01110011; data[1] = B10000010; data[2] = B10000011; data[3] = B10000010; data[4] = B01110010; showPattern();

data[0] = B11100111; data[1] = B00000100; data[2] = B00000111; data[3] = B00000100; data[4] = B11100100; showPattern();

data[0] = B10011110; data[1] = B00010000; data[2] = B00011110; data[3] = B00010000; data[4] = B10010000; showPattern();

data[0] = B00111100;

data[1] = B00100000; data[2] = B00111100; data[3] = B00100000; data[4] = B00100001; showPattern();

data[0] = B01111000; data[1] = B01000000; data[2] = B01111000; data[3] = B01000000; data[4] = B01000010; showPattern();

//J

data[0] = B11110001; data[1] = B10000000; data[2] = B11110000; data[3] = B10000001; data[4] = B10000100; showPattern();

data[0] = B11100011; data[1] = B00000000; data[2] = B11100000; data[3] = B00000010; data[4] = B00001001; showPattern();

data[0] = B11000111; data[1] = B00000001; data[2] = B11000001; data[3] = B00000101;

data[4] = B00010011; showPattern();

data[0] = B10001111; data[1] = B00000010; data[2] = B10000010; data[3] = B00001010; data[4] = B00100110; showPattern();

data[0] = B00011110; data[1] = B00000100; data[2] = B00000100; data[3] = B00010100; data[4] = B01001100; showPattern();

data[0] = B00111101; data[1] = B00001001; data[2] = B00001001; data[3] = B00101001; data[4] = B10011001; showPattern();

data[0] = B01111010; data[1] = B00010010; data[2] = B00010010; data[3] = B01010010; data[4] = B00110011; showPattern();

data[0] = B11110100;

data[1] = B00100100; data[2] = B00100100; data[3] = B10100100; data[4] = B01100111; showPattern();

data[0] = B11101000; data[1] = B01001000; data[2] = B01001000; data[3] = B01001000; data[4] = B11001111; showPattern();

data[0] = B11010000; data[1] = B10010000; data[2] = B10010000; data[3] = B10010000; data[4] = B10011110; showPattern();

data[0] = B10100000; data[1] = B00100000; data[2] = B00100000; data[3] = B00100000; data[4] = B00111101; showPattern();

data[0] = B01000000; data[1] = B01000000; data[2] = B01000000; data[3] = B01000000; data[4] = B01111010; showPattern();

data[1] = B01010010; data[2] = B01011100; data[3] = B01010000; data[4] = B10010000; showPattern();

data[0] = B00111000; data[1] = B10100100; data[2] = B10111000; data[3] = B10100000; data[4] = B00110000; showPattern();

data[0] = B01110000; data[1] = B01001000; data[2] = B01110000; data[3] = B01000000; data[4] = B01000000; showPattern();

data[0] = B11100000; data[1] = B10010000; data[2] = B11100000; data[3] = B10000000; data[4] = B10000000; showPattern();

data[0] = B11000000; data[1] = B00100000; data[2] = B11000000; data[3] = B00000000; data[4] = B00000000;

showPattern();

data[0] = B10000000; data[1] = B01000000; data[2] = B10000000; data[3] = B00000000; data[4] = B00000000; showPattern();

data[0] = B00000000; data[1] = B10000000; data[2] = B00000000; data[3] = B00000000; data[4] = B00000000; showPattern();

// data[0] = B00000000; // data[1] = B00000000; // data[2] = B00000000; // data[3] = B00000000; // data[4] = B00000000; }

void allOff() { for (int i=0; i<5; i++) for (int j=0; j<8; j++) { digitalWrite(row[i], LOW); digitalWrite(col[j], HIGH); } }

void showPattern() {

for (int sec = 0; sec < 25; sec++) { for (int trow = 0; trow < rows; trow++) { allOff(); digitalWrite(row[trow], HIGH);

for (int tcol=0; tcol<columns; tcol++) { if(bitRead(data[trow],columns - tcol -1) ==1) { digitalWrite(col[tcol], LOW); } else { digitalWrite(col[tcol], HIGH); } }

delay(pause); }

} allOff(); }
