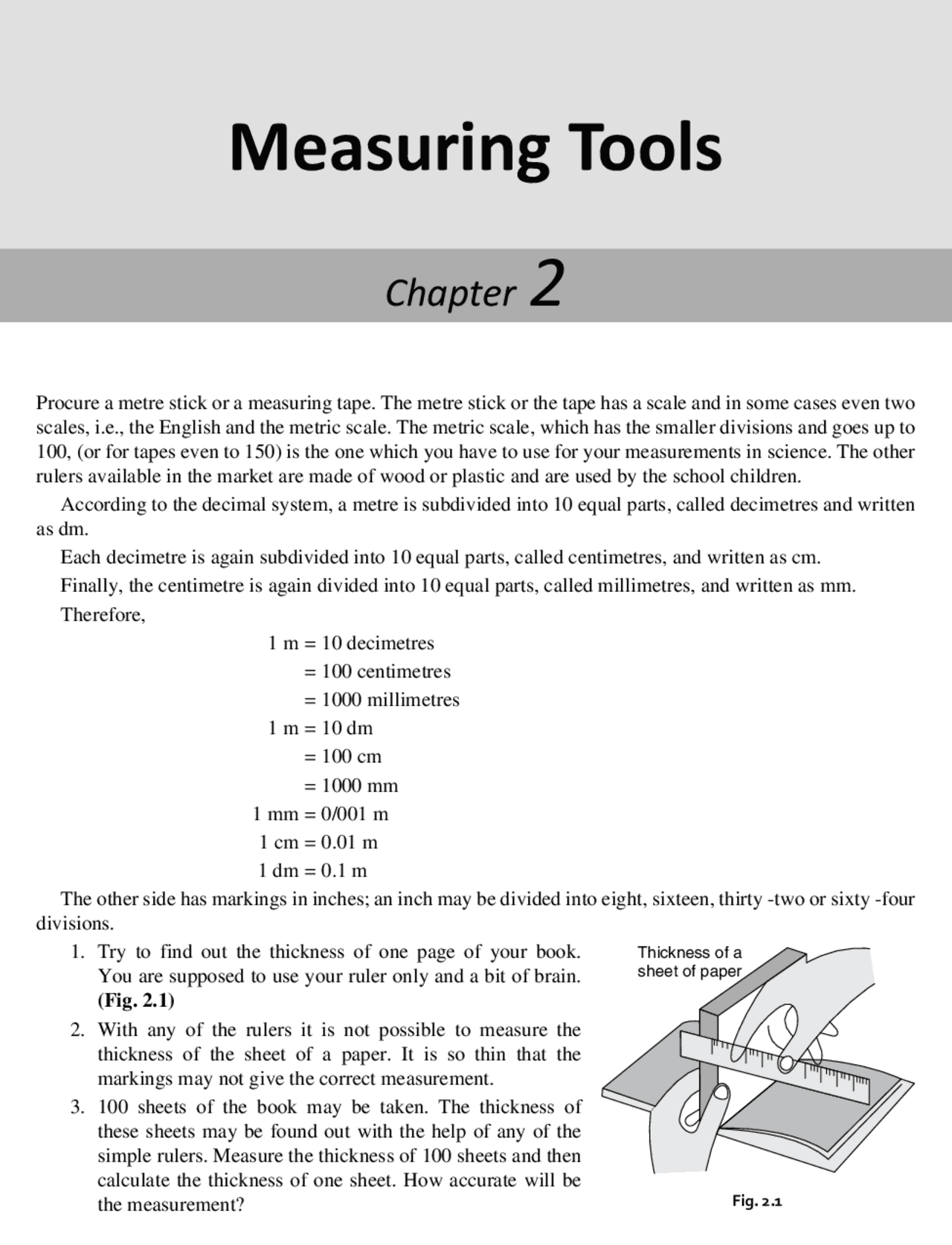

Chapter 2
Procure a metre stick or a measuring tape. The metre stick or the tape has a scale and in some cases even two scales, i.e., the English and the metric scale. The metric scale, which has the smaller divisions and goes up to 100, (or for tapes even to 150) is the one which you have to use for your measurements in science. The other rulers available in the market are made of wood or plastic and are used by the school children.
According to the decimal system, a metre is subdivided into 10 equal parts, called decimetres and written as dm.
Each decimetre is again subdivided into 10 equal parts, called centimetres, and written as cm. Finally, the centimetre is again divided into 10 equal parts, called millimetres, and written as mm. Therefore, 1 m = 10 decimetres = 100 centimetres = 1000 millimetres 1 m = 10 dm = 100 cm = 1000 mm 1 mm = 0/001 m 1 cm = 0.01 m 1 dm = 0.1 m The other side has markings in inches; an inch may be divided into eight, sixteen, thirty -two or sixty -four divisions.
- Try to find out the thickness of one page of your book. You are supposed to use your ruler only and a bit of brain. (Fig. 2.1)
- With any of the rulers it is not possible to measure the thickness of the sheet of a paper. It is so thin that the markings may not give the correct measurement.
- 100 sheets of the book may be taken. The thickness of these sheets may be found out with the help of any of the simple rulers. Measure the thickness of 100 sheets and then calculate the thickness of one sheet. How accurate will be the measurement?
Thickness of a sheet of paper
Fig. 2.
12 ≤ size are most widely used. Foot rules indicate inches or millimetres or both, and division of inches and millimetres. Generally, foot rules indicate division markings at a distance of an inch. One inch is divided into 8 equal parts. In this way, each marking represents 1/8 th^ of an inch, known as soot. This 1/8th is divided into two parts making it 1/16 th^ of an inch. Further, this1/16th is divided making it 1/32th and 1/64th part of an inch.
This foot rule can be used to measure minimum up to 1/64 th^ of an inch. The graduation can be indicated on one edge or both the edges of the foot rule. Some foot rules have signs on one edge only and on the other edge there is marking of metric system. These foot rules are more useful as we can measure in British as well as metric system. In the edge where millimetre graduation is indicated, markings at every centimetre are indicated. Each centimetre is divided into ten equal parts to indicate a millimetre. Each sign of millimetre is also divided into two equal parts. Thus, we can measure up to ½ millimetre from this edge.
Types of foot rules
- Flexible steel rule
- Hook rule
- Narrow rule
- Shrink rule
- Short rule
- Key-set rule
- Calliper rule
- Steel tape rule
- Folding rule
- Canvas tape rule
2.1.2 Flexible Rule
This rule is used for measuring spherical or hemispherical objects. These are 6≤ to 12≤ in size. These are made from spring steel sheet of 1/64≤ thickness so that it attains elasticity.
This rule contains measurement both in inches and millimetres.
Fig. 2.3 Flexible rule
These rules contain both the Metric system and the British systems of graduation.
2.1.9 Steel Tape Rule (Fig. 2.8)
It is often difficult or rather impractical to carry long foot rules. For the purpose of convenience steel tape rules are available.
This is made of spring steel and is elastic. It can be rolled and packed in a round tiny box (case). Its breadth is 1≤ and length is 6≤. It contains inch as well as millimetre graduation.
2.1.10 Canvas Tape (Fig. 2.9)
This rule is used for measuring greater lengths. This is made of a long canvas tape which can be rolled and packed in a small leather or steel box. A ring is attached to the one end. By pulling this ring we can pull out the tape. For folding it a small handle is provided. These tape rules are generally of 50 to 100 feet in length.
2.1.11 Folding Rule (Fig. 2.10)
This rule is made by joining four pieces of 6 inches. These pieces are either wooden or of steel. It is generally used by the carpenters and masons, by unfolding this rule we can take measurement up to 2 feet. When we fold it, it is reduced to 6≤. Graduation in inches and millimetres is indicated on it.
Fig. 2.8 Steel tape rule
Fig. 2.9 Canvas tape
23 22
21
19 18
7 8 9 10
1 2 3 4 5
(^12 13 14 15 16 )
Fig. 2.10 Folding rule
2.2 MEASURING WITH THESE TOOLS
The method of using a trisquare and a steel rule for accurate measurement is illustrated. For accurate readings, it is necessary to read vertically and avoid errors arising out of parallax.
Some important points to be remembered while using the steel rule:
- Measurement should be taken by keeping the steel rule erect on the job and not by laying it down on the job.
- As far as possible measurement should be taken from the corner of the steel rule.
- Prevent the steel rule from getting rusted.
- Steel rules should be kept separate from other tools so that it does not get any scratches.
Measuring a cubical and cylindrical job (Fig. 2.13) The points at the end of the legs are opened to cover the round shape. Between these legs the measurement of the job is taken, for gauging inside diameters. It can also gauge the breadth and depth of a slot or slit groove etc.
Fig. 2.
2.3.2 Inside Callipers
It has the points at the end of the legs turned outward instead of inward, so that it may be used of gauging inside diameters, but we can also gauge the breadth and depth of a slot or slit groove etc.
Use of Callipers and Precautions
- Select the callipers according to the job.
- Open the calliper according to the job.
- Set the calliper in such a manner that its legs have only a mild touch with the job.
- While opening and closing the calliper with firm joint it should be ensured that we do not strike it on any other metal except wood. Otherwise its points would be damaged and would not be able to measure correctly.
- Spring callipers should be handled (picked up) in such a way that we are able to move its nut with our thumb and finger.
- After taking correct measurement we should read from the steel rule.
- Measurement with callipers should be taken to get actual measurement.
- Do not measure a fixed part on a moving machine, the calliper may fall down and get damaged.
- At times, for certain purpose, measurement has to be transferred from one calliper to another. In such a case, ensure that the tips of the legs of both the callipers meet at the same point.
- Do not tighten or loosen the joints of callipers.
2.3.3 Spring Callipers (Fig. 2.15)
The legs of spring callipers are made from suitable alloy steel, measuring faces properly heat treated and hardened to a hardness of 65+50 HV. All the component parts are smoothly finished. The right part which is made from carbon spring steel is properly hardened and tempered to a hardness of 0 to 520 HV and all the components are manufactured and assembled in such a way as to achieve and maintain the smooth adjustment and efficient operation.
Fig. 2.14 Inside calliper
