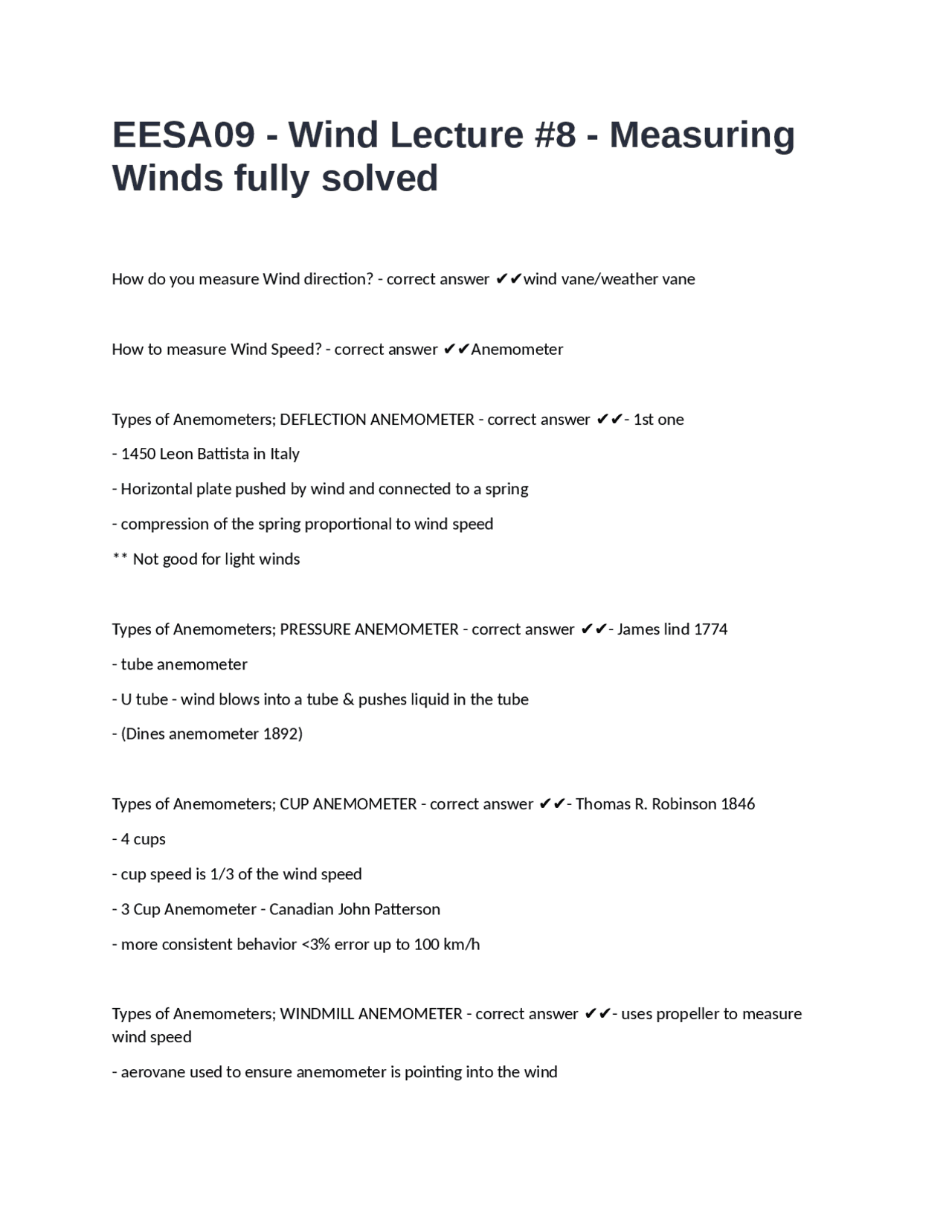

EESA09 - Wind Lecture #8 - Measuring
Winds fully solved
How do you measure Wind direction? - correct answer โœ”โœ”wind vane/weather vane
How to measure Wind Speed? - correct answer โœ”โœ”Anemometer
Types of Anemometers; DEFLECTION ANEMOMETER - correct answer โœ”โœ”- 1st one
- 1450 Leon Battista in Italy
- Horizontal plate pushed by wind and connected to a spring
- compression of the spring proportional to wind speed
** Not good for light winds
Types of Anemometers; PRESSURE ANEMOMETER - correct answer โœ”โœ”- James lind 1774
- tube anemometer
- U tube - wind blows into a tube & pushes liquid in the tube
- (Dines anemometer 1892)
Types of Anemometers; CUP ANEMOMETER - correct answer โœ”โœ”- Thomas R. Robinson 1846
- 4 cups
- cup speed is 1/3 of the wind speed
- 3 Cup Anemometer - Canadian John Patterson
- more consistent behavior <3% error up to 100 km/h
Types of Anemometers; WINDMILL ANEMOMETER - correct answer โœ”โœ”- uses propeller to measure
wind speed
- aerovane used to ensure anemometer is pointing into the wind
pf3
pf4
pf5

Partial preview of the text

Download Measuring Winds: Techniques and Principles and more Exams Nursing in PDF only on Docsity!

EESA09 - Wind Lecture #8 - Measuring

Winds fully solved

How do you measure Wind direction? - correct answer โœ”โœ”wind vane/weather vane How to measure Wind Speed? - correct answer โœ”โœ”Anemometer Types of Anemometers; DEFLECTION ANEMOMETER - correct answer โœ”โœ”- 1st one

  • 1450 Leon Battista in Italy
  • Horizontal plate pushed by wind and connected to a spring
  • compression of the spring proportional to wind speed ** Not good for light winds Types of Anemometers; PRESSURE ANEMOMETER - correct answer โœ”โœ”- James lind 1774
  • tube anemometer
  • U tube - wind blows into a tube & pushes liquid in the tube
  • (Dines anemometer 1892) Types of Anemometers; CUP ANEMOMETER - correct answer โœ”โœ”- Thomas R. Robinson 1846
  • 4 cups
  • cup speed is 1/3 of the wind speed
  • 3 Cup Anemometer - Canadian John Patterson
  • more consistent behavior <3% error up to 100 km/h Types of Anemometers; WINDMILL ANEMOMETER - correct answer โœ”โœ”- uses propeller to measure wind speed
  • aerovane used to ensure anemometer is pointing into the wind

Types of Anemometers; THERMOELECTRIC ANEMOMETER - correct answer โœ”โœ”- heated wire to above the ambient temp

  • rate of cooling of wire is proportional to wind speed
  • in ancient times hair was used Types of Anemometers; LASER RADAR ANEMOMETER - correct answer โœ”โœ”- same principle as Doppler Radar (Shift in frequency i.e. train whistle at railway crossings, sirens on emergency vehicles)
  • laser beams are back-scattered by moving air molecules
  • Doppler shifted frequency of the back-scatter indicates wind speed Types of Anemometers; SONIC ANEMOMETER - correct answer โœ”โœ”- Dr. Andreas Pflitsch 1994 (geologist)
  • Measures how sound waves are modified by the wind
  • deduces wind speed Upper Level Winds: Radiosonde Drift (Weather Balloon) - correct answer โœ”โœ”Radiosonde: an instrument carried by balloon or other means to various levels of the atmosphere and transmitting measurements by radio.
  • measures temp, pressure, humidity, wind
  • usually pop around 30 km (halfway through Stratosphere)
  • 34 in Canada, 1500 world wide Dropsonde: Instruments dropped from Airplane
  • designed to be dropped from an aircraft at altitude to more accurately measure (and therefore track) tropical storm conditions as the device falls to the surface Upper Wing Calculations - Geostrophic Winds - correct answer โœ”โœ”- Balance between PGF and Coriolis:
  • Geostrophic winds are when pressure gradient force pulls from high pressure to low pressure
  • coriolis force pulls moving objects to the right in NH and left in SH
  • strength of Coriolis force is proportional to the speed of the object
  • friction is negligible in upper level winds
  • Typically hourly data is used for a 30 year period
  • a diagram showing the relative frequency of wind directions at a place. Local Winds - correct answer โœ”โœ”- Sound in the Atmosphere - correct answer โœ”โœ”- sound is transmitted by air molecules pushing against each other
  • speed of sound in the atmosphere: 344 m/s at 21 deg C at sea level
  • speed in inversely proportional to density Increases with increasing temperature Increases with increasing humidity Decreases with increasing altitude (temperature decreases with altitude) Thunder & Lightning - correct answer โœ”โœ”- scary sound effect
  • Thunder/lightning are produced by same phenomenon
  • lightning produces a localized region of >28,000 Deg C- thermal expansion produces a shock wave, heard as thunder
  • lightning travels at the speed of light in air (300,000 km/s)
  • thunder travels at the speed of sound in air (344 m/s)
  • light is little less than 1 M times faster
  • delay of three seconds betwen lightning/thunder indicates that the lightning strike was 1 KM away Beaufort Scale - correct answer โœ”โœ”- Sir Francis Beaufort (1774-1857) (Admiral)
  • 1788 - First voyage (shipwrecked)
  • joined royal navy in 1790
  • scale devised from ocean observation from 1805 to 1810
  • 12 point qualitative scale

Subsequently adapted to specific winds speeds

  • 1 knot = 1.8 km/ Tornadoes - correct answer โœ”โœ”- Strongest winds on the planet
  • strongest hurricane would fall in F3 Tornado Range Saffir-Simpson Scale - correct answer โœ”โœ”- developed for hurricane damage estimation in the Atlantic Basin by the Head of NHC (US) Mach Scale - correct answer โœ”โœ” Mach Number - correct answer โœ”โœ”- the ratio of the speed of an object to the speed of sound M = v/vs If M > 1 then the object is exceeding the speed of sound At 15oC at sea level, speed of sound is 330 m/s (1190km/h), at 21oC at sea level it is 344 m/s (Speed of sound does vary with temperature Sonic Boom - correct answer โœ”โœ”- Prandt-Glauret Singularity
  • Cone shaped cloud that forms at transonic speeds
  • Sonic compression wave is formed
  • intense pressure is followed by a region of much lower pressure
  • lower pressure causes steep drop in temp below dew point
  • this leads to condensation and the visible cone
  • ie. thunder is a sonic boom resulting from lightning strike
  • bullwhip - snapping sound occurs when lower end of whip exceeds speed of sound
  • Aircraft - supersonic jets, concorde
