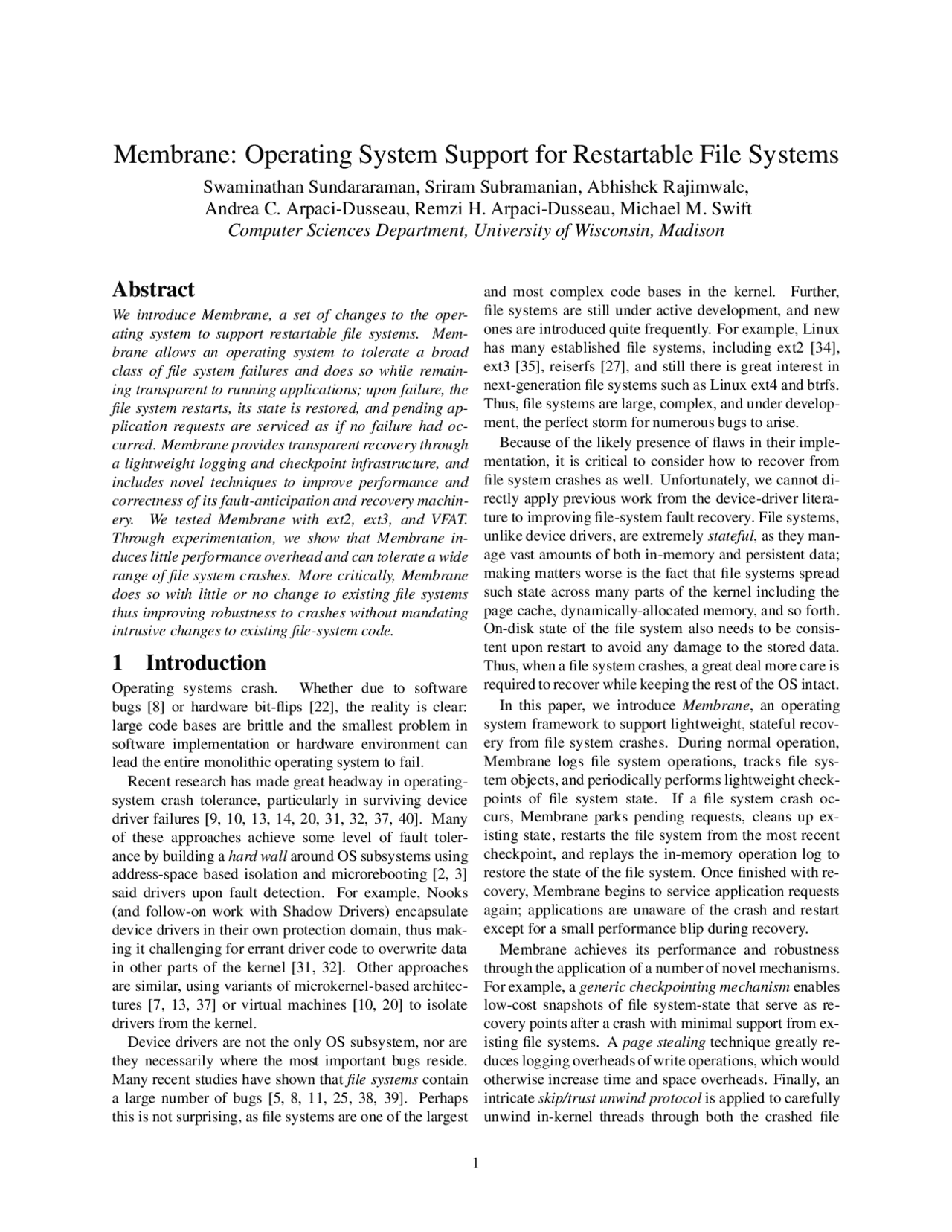

Membrane: Operating System Support for Restartable File Systems
Swaminathan Sundararaman, Sriram Subramanian, Abhishek Rajimwale,
Andrea C. Arpaci-Dusseau, Remzi H. Arpaci-Dusseau, Michael M. Swift
Computer Sciences Department, University of Wisconsin, Madison
Abstract
We introduce Membrane, a set of changes to the oper- ating system to support restartable file systems. Mem- brane allows an operating system to tolerate a broad class of file system failures and does so while remain- ing transparent to running applications; upon failure, the file system restarts, its state is restored, and pending ap- plication requests are serviced as if no failure had oc- curred. Membrane provides transparent recovery through a lightweight logging and checkpoint infrastructure, and includes novel techniques to improve performance and correctness of its fault-anticipation and recovery machin- ery. We tested Membrane with ext2, ext3, and VFAT. Through experimentation, we show that Membrane in- duces little performance overhead and can tolerate a wide range of file system crashes. More critically, Membrane does so with little or no change to existing file systems thus improving robustness to crashes without mandating intrusive changes to existing file-system code.
1 Introduction
Operating systems crash. Whether due to software bugs [8] or hardware bit-flips [22], the reality is clear: large code bases are brittle and the smallest problem in software implementation or hardware environment can lead the entire monolithic operating system to fail. Recent research has made great headway in operating- system crash tolerance, particularly in surviving device driver failures [9, 10, 13, 14, 20, 31, 32, 37, 40]. Many of these approaches achieve some level of fault toler- ance by building a hard wall around OS subsystems using address-space based isolation and microrebooting [2, 3] said drivers upon fault detection. For example, Nooks (and follow-on work with Shadow Drivers) encapsulate device drivers in their own protection domain, thus mak- ing it challenging for errant driver code to overwrite data in other parts of the kernel [31, 32]. Other approaches are similar, using variants of microkernel-based architec- tures [7, 13, 37] or virtual machines [10, 20] to isolate drivers from the kernel. Device drivers are not the only OS subsystem, nor are they necessarily where the most important bugs reside. Many recent studies have shown that file systems contain a large number of bugs [5, 8, 11, 25, 38, 39]. Perhaps this is not surprising, as file systems are one of the largest
and most complex code bases in the kernel. Further, file systems are still under active development, and new ones are introduced quite frequently. For example, Linux has many established file systems, including ext2 [34], ext3 [35], reiserfs [27], and still there is great interest in next-generation file systems such as Linux ext4 and btrfs. Thus, file systems are large, complex, and under develop- ment, the perfect storm for numerous bugs to arise. Because of the likely presence of flaws in their imple- mentation, it is critical to consider how to recover from file system crashes as well. Unfortunately, we cannot di- rectly apply previous work from the device-driver litera- ture to improving file-system fault recovery. File systems, unlike device drivers, are extremely stateful , as they man- age vast amounts of both in-memory and persistent data; making matters worse is the fact that file systems spread such state across many parts of the kernel including the page cache, dynamically-allocated memory, and so forth. On-disk state of the file system also needs to be consis- tent upon restart to avoid any damage to the stored data. Thus, when a file system crashes, a great deal more care is required to recover while keeping the rest of the OS intact. In this paper, we introduce Membrane , an operating system framework to support lightweight, stateful recov- ery from file system crashes. During normal operation, Membrane logs file system operations, tracks file sys- tem objects, and periodically performs lightweight check- points of file system state. If a file system crash oc- curs, Membrane parks pending requests, cleans up ex- isting state, restarts the file system from the most recent checkpoint, and replays the in-memory operation log to restore the state of the file system. Once finished with re- covery, Membrane begins to service application requests again; applications are unaware of the crash and restart except for a small performance blip during recovery. Membrane achieves its performance and robustness through the application of a number of novel mechanisms. For example, a generic checkpointing mechanism enables low-cost snapshots of file system-state that serve as re- covery points after a crash with minimal support from ex- isting file systems. A page stealing technique greatly re- duces logging overheads of write operations, which would otherwise increase time and space overheads. Finally, an intricate skip/trust unwind protocol is applied to carefully unwind in-kernel threads through both the crashed file
system and kernel proper. This process restores kernel state while preventing further file-system-induced damage from taking place. Interestingly, file systems already contain many ex- plicit error checks throughout their code. When triggered, these checks crash the operating system (e.g., by calling panic) after which the file system either becomes unus- able or unmodifiable. Membrane leverages these explicit error checks and invokes recovery instead of crashing the file system. We believe that this approach will have the propaedeutic side-effect of encouraging file system devel- opers to add a higher degree of integrity checking in order to fail quickly rather than run the risk of further corrupting the system. If such faults are transient (as many important classes of bugs are [21]), crashing and quickly restarting is a sensible manner in which to respond to them. As performance is critical for file systems, Membrane only provides a lightweight fault detection mechanism and does not place an address-space boundary between the file system and the rest of the kernel. Hence, it is possible that some types of crashes (e.g., wild writes [4]) will corrupt kernel data structures and thus prohibit com- plete recovery, an inherent weakness of Membrane’s ar- chitecture. Users willing to trade performance for relia- bility could use Membrane on top of stronger protection mechanism such as Nooks [31]. We evaluated Membrane with the ext2, VFAT, and ext file systems. Through experimentation, we find that Mem- brane enables existing file systems to crash and recover from a wide range of fault scenarios (around 50 fault in- jection experiments). We also find that Membrane has less than 2% overhead across a set of file system benchmarks. Membrane achieves these goals with little or no intrusive- ness to existing file systems: only 5 lines of code were added to make ext2, VFAT, and ext3 restartable. Finally, Membrane improves robustness with complete applica- tion transparency; even though the underlying file system has crashed, applications continue to run. The rest of this paper is organized as follows. Sec- tion 2 places Membrane in the context of other relevant work. Sections 3 and 4 present the design and imple- mentation, respectively, of Membrane; finally, we eval- uate Membrane in Section 5 and conclude in Section 6.
2 Background
Before presenting Membrane, we first discuss previous systems that have a similar goal of increasing operating system fault resilience. We classify previous approaches along two axes: overhead and statefulness. We classify fault isolation techniques that incur little overhead as lightweight , while more costly mechanisms are classified as heavyweight. Heavyweight mechanisms are not likely to be adopted by file systems, which have been tuned for high performance and scalability [15, 30,
1], especially when used in server environments. We also classify techniques based on how much system state they are designed to recover after failure. Techniques that assume the failed component has little in-memory state is referred to as stateless , which is the case with most device driver recovery techniques. Techniques that can handle components with in-memory and even persis- tent storage are stateful ; when recovering from file-system failure, stateful techniques are required. We now examine three particular systems as they are exemplars of three previously explored points in the de- sign space. Membrane, described in greater detail in sub- sequent sections, represents an exploration into the fourth point in this space, and hence its contribution.
2.1 Nooks and Shadow Drivers
The renaissance in building isolated OS subsystems is found in Swift et al.’s work on Nooks and subsequently shadow drivers [31, 32]. In these works, the authors use memory-management hardware to build an isolation boundary around device drivers; not surprisingly, such techniques incur high overheads [31]. The kernel cost of Nooks (and related approaches) is high, in this one case spending nearly 6 × more time in the kernel. The subsequent shadow driver work shows how re- covery can be transparently achieved by restarting failed drivers and diverting clients by passing them error codes and related tricks. However, such recovery is relatively straightforward: only a simple reinitialization must occur before reintegrating the restarted driver into the OS.
2.2 SafeDrive
SafeDrive takes a different approach to fault re- silience [40]. Instead of address-space based protec- tion, SafeDrive automatically adds assertions into device drivers. When an assert is triggered (e.g., due to a null pointer or an out-of-bounds index variable), SafeDrive en- acts a recovery process that restarts the driver and thus survives the would-be failure. Because the assertions are added in a C-to-C translation pass and the final driver code is produced through the compilation of this code, SafeDrive is lightweight and induces relatively low over- heads (up to 17% reduced performance in a network throughput test and 23% higher CPU utilization for the USB driver [40], Table 6.). However, the SafeDrive recovery machinery does not handle stateful subsystems; as a result the driver will be in an initial state after recovery. Thus, while currently well-suited for a certain class of device drivers, SafeDrive recovery cannot be applied directly to file systems.
2.3 CuriOS
CuriOS, a recent microkernel-based operating system, also aims to be resilient to subsystem failure [7]. It achieves this end through classic microkernel techniques
code. We assume that testing and other standard code- hardening techniques have eliminated most of these bugs. Faults such as a bug that is triggered on a given input se- quence could be handled by failing the particular request. Currently, we return an error (-EIO) to the requests trig- gering such deterministic faults, thus preventing the same fault from being triggered again and again during recov- ery. Transient faults, on the other hand, are caused by race conditions and other environmental factors [33]. Thus, our aim is to mainly cope with transient faults, which can be cured with recovery and restart. We feel that many faults and bugs can be caught with lightweight hardware and software checks. Other solu- tions, such as extremely large address spaces [17], could help reduce the chances of wild writes causing harm by hiding kernel objects (“needles”) in a much larger ad- dressable region (“the haystack”). Recovering a stateful file system with lightweight mechanisms is especially challenging when faults are not fail-stop. For example, consider buggy file-system code that attempts to overwrite important kernel data structures. If there is a heavyweight address-space boundary between the file system and kernel proper, then such a stray write can be detected immediately; in effect, the fault becomes fail-stop. If, in contrast, there is no machinery to detect stray writes, the fault can cause further silent damage to the rest of the kernel before causing a detectable fault; in such a case, it may be difficult to recover from the fault. We strongly believe that once a fault is detected in the file system, no aspect of the file system should be trusted: no more code should be run in the file system and its in- memory data structures should not be used. The major drawback of our approach is that the bound- ary we use is soft: some file system bugs can still cor- rupt kernel state outside the file system and recovery will not succeed. However, this possibility exists even in sys- tems with hardware boundaries: data is still passed across boundaries, and no matter how many integrity checks one makes, it is possible that bad data is passed across the boundary and causes problems on the other side.
3.3 Overview
The main design challenge for Membrane is to recover file-system state in a lightweight, transparent fashion. At a high level, Membrane achieves this goal as follows. Once a fault has been detected in the file system, Mem- brane rolls back the state of the file system to a point in the past that it trusts: this trusted point is a consistent file- system image that was checkpointed to disk. This check- point serves to divide file-system operations into distinct epochs; no file-system operation spans multiple epochs. To bring the file system up to date, Membrane re- plays the file-system operations that occurred after the checkpoint. In order to correctly interpret some opera-
o p e n ( " fi l e " ) w r i t e ( 4 K ) w r i t e ( 4 K )
F D 3
F i l e p o s i t i o n 0
F D 3
F i l e p o s i t i o n 4 K
F D 3
F i l e p o s i t i o n 8 K
s u c c e s s s u c c e s s s u c c e s s
F D 3
F i l e p o s i t i o n??
C h
ec
k p
i on
t
C r a s h!
R o l l b a c k
U n w i n d
R e p l a y ( w 1 )
w 0 : w 1 : w 2 :
4 R^ e^ t^ r^ y^ ( w 2 )
w r i t e ( 4 K )
Figure 1: Membrane Overview. The figure shows a file being created and written to on top of a restartable file sys- tem. Halfway through, Membrane creates a checkpoint. After the checkpoint, the application continues to write to the file; the first succeeds (and returns success to the application) and the program issues another write, which leads to a file system crash. For Membrane to operate correctly, it must (1) unwind the currently-executing write and park the calling thread, (2) clean up file system objects (not shown), restore state from the previous checkpoint, and (3) replay the activity from the current epoch (i.e., write w1 ). Once file-system state is restored from the checkpoint and session state is restored, Membrane can (4) unpark the unwound calling thread and let it reissue the write, which (hopefully) will succeed this time. The application should thus remain unaware, only perhaps noticing the timing of the third write ( w2 ) was a little slow.
tions, Membrane must also remember small amounts of application-visible state from before the checkpoint, such as file descriptors. Since the purpose of this replay is only to update file-system state, non-updating operations such as reads do not need to be replayed. Finally, to clean up the parts of the kernel that the buggy file system interacted with in the past, Membrane releases the kernel locks and frees memory the file system allo- cated. All of these steps are transparent to applications and require no changes to file-system code. Applications and the rest of the OS are unaffected by the fault. Figure 1 gives an example of how Membrane works during normal file-system operation and upon a file system crash. Thus, there are three major pieces in the Membrane de- sign. First, fault detection machinery enables Membrane to detect faults quickly. Second, fault anticipation mecha- nisms record information about current file-system opera- tions and partition operations into distinct epochs. Finally, the fault recovery subsystem executes the recovery proto- col to clean up and restart the failed file system.
3.4 Fault Detection
The main aim of fault detection within Membrane is to be lightweight while catching as many faults as possible. Membrane uses both hardware and software techniques to catch faults. The hardware support is simple: null point- ers, divide-by-zero, and many other exceptions are caught by the hardware and routed to the Membrane recovery subsystem. More expensive hardware machinery, such as
address-space-based isolation, is not used. The software techniques leverage the many checks that already exist in file system code. For example, file sys- tems contain assertions as well as calls to panic() and similar functions. We take advantage of such internal in- tegrity checking and transform calls that would crash the system into calls into our recovery engine. An approach such as that developed by SafeDrive [40] could be used to automatically place out-of-bounds pointer and other checks in the file system code. Membrane provides further software-based protection by adding extensive parameter checking on any call from the file system into the kernel proper. These lightweight boundary wrappers protect the calls between the file sys- tem and the kernel and help ensure such routines are called with proper arguments, thus preventing file system from corrupting kernel objects through bad arguments. Sophisticated tools (e.g., Ballista[18]) could be used to generate many of these wrappers automatically.
3.5 Fault Anticipation
As with any system that improves reliability, there is a per- formance and space cost to enabling recovery when a fault occurs. We refer to this component as fault anticipation. Anticipation is pure overhead, paid even when the system is behaving well; it should be minimized to the greatest extent possible while retaining the ability to recover. In Membrane, there are two components of fault antic- ipation. First, the checkpointing subsystem partitions file system operations into different epochs (or transactions ) and ensures that the checkpointed image on disk repre- sents a consistent state. Second, updates to data structures and other state are tracked with a set of in-memory logs and parallel stacks. The recovery subsystem (described below) utilizes these pieces in tandem to restart the file system after failure. File system operations use many core kernel services (e.g., locks, memory allocation), are heavily intertwined with major kernel subsystems (e.g., the page cache), and have application-visible state (e.g., file descriptors). Care- ful state-tracking and checkpointing are thus required to enable clean recovery after a fault or crash.
3.5.1 Checkpointing Checkpointing is critical because a checkpoint represents a point in time to which Membrane can safely roll back and initiate recovery. We define a checkpoint as a consis- tent boundary between epochs where no operation spans multiple epochs. By this definition, file-system state at a checkpoint is consistent as no file system operations are in flight. We require such checkpoints for the following reason: file-system state is constantly modified by operations such as writes and deletes and file systems lazily write back the modified state to improve performance. As a result, at
any point in time, file system state is comprised of (i) dirty pages (in memory), (ii) in-memory copies of its meta-data objects (that have not been copied to its on-disk pages), and (iii) data on the disk. Thus, the file system is in an in- consistent state until all dirty pages and meta-data objects are quiesced to the disk. For correct operation, one needs to ensure that the file system is in a consistent state at the beginning of the mount process (or the recovery process in the case of Membrane). Modern file systems take a number of different ap- proaches to the consistency management problem: some group updates into transactions (as in journaling file sys- tems [12, 27, 30, 35]); others define clear consistency in- tervals and create snapshots (as in shadow-paging file sys- tems [1, 15, 28]). All such mechanisms periodically create checkpoints of the file system in anticipation of a power failure or OS crash. Older file systems do not impose any ordering on updates at all (as in Linux ext2 [34] and many simpler file systems). In all cases, Membrane must oper- ate correctly and efficiently. The main challenge with checkpointing is to accom- plish it in a lightweight and non-intrusive manner. For modern file systems, Membrane can leverage the in-built journaling (or snapshotting) mechanism to periodically checkpoint file system state; as these mechanisms atomi- cally write back data modified within a checkpoint to the disk. To track file-system level checkpoints, Membrane only requires that these file systems explicitly notify the beginning and end of the file-system transaction (or snap- shot) to it so that it can throw away the log records before the checkpoint. Upon a file system crash, Membrane uses the file system’s recovery mechanism to go back to the last known checkpoint and initiate the recovery process. Note that the recovery process uses on-disk data and does not depend on the in-memory state of the file system. For file systems that do not support any consistent- management scheme (e.g., ext2), Membrane provides a generic checkpointing mechanism at the VFS layer. Membrane’s checkpointing mechanism groups several file-system operations into a single transaction and com- mits it atomically to the disk. A transaction is created by temporarily preventing new operations from entering into the file system for a small duration in which dirty meta-data objects are copied back to their on-disk pages and all dirty pages are marked copy-on-write. Through copy-on-write support for file-system pages, Membrane improves performance by allowing file system operations to run concurrently with the checkpoint of the previous epoch. Membrane associates each page with a check- point (or epoch) number to prevent pages dirtied in the current epoch from reaching the disk. It is important to note that the checkpointing mechanism in Membrane is implemented at the VFS layer; as a result, it can be lever- aged by all file system with little or no modifications.
brane. Much of the functionality of Membrane is encap- sulated within two components: the checkpoint manager (CPM) and the recovery manager (RM). Each of these subsystems is implemented as a background thread and is needed during anticipation (CPM) and recovery (RM). Beyond these threads, Membrane also makes heavy use of interposition to track the state of various in-memory ob- jects and to provide the rest of its functionality. We ran Membrane with ext2, VFAT, and ext3 file systems. In implementing the functionality described above, Membrane employs three key techniques to reduce over- heads and make lightweight restart of a stateful file sys- tems feasible. The techniques are (i) page stealing : for low-cost operation logging, (ii) COW-based checkpoint- ing : for fast in-memory partitioning of pages across epochs using copy-on-write techniques for file systems that do not support transactions, and (iii) control-flow capture and skip/trust unwind protocol : to halt in-flight threads and properly unwind in-flight execution.
4.1 Linux Background
Before delving into the details of Membrane’s implemen- tation, we first provide some background on the operating system in which Membrane was built. Membrane is cur- rently implemented inside Linux 2.6.15. Linux provides support for multiple file systems via the VFS interface [16], much like many other operating sys- tems. Thus, the VFS layer presents an ideal point of inter- position for a file system framework such as Membrane. Like many systems [6], Linux file systems cache user data in a unified page cache. The page cache is thus tightly integrated with file systems and there are frequent cross- ings between the generic page cache and file system code. Writes to disk are handled in the background (except when forced to disk by applications). A background I/O daemon, known as pdflush, wakes up, finds old and dirty pages, and flushes them to disk.
4.2 Fault Detection
There are numerous fault detectors within Membrane, each of which, when triggered, immediately begins the recovery protocol. We describe the detectors Membrane currently uses; because they are lightweight, we imagine more will be added over time, particularly as file-system developers learn to trust the restart infrastructure.
4.2.1 Hardware-based Detectors The hardware provides the first line of fault detection. In our implementation inside Linux on x86 (64-bit) archi- tecture, we track the following runtime exceptions: null- pointer exception, invalid operation, general protection fault, alignment fault, divide error (divide by zero), seg- ment not present, and stack segment fault. These excep- tion conditions are detected by the processor; software fault handlers, when run, inspect system state to determine
File System assert() BUG() panic() xfs 2119 18 43 ubifs 369 36 2 ocfs2 261 531 8 gfs2 156 60 0 jbd 120 0 0 jbd2 119 0 0 afs 106 38 0 jfs 91 15 6 ext4 42 182 12 ext3 16 0 11 reiserfs 1 109 93 jffs2 1 86 0 ext2 1 10 6 ntfs 0 288 2 fat 0 10 16
Table 2: Software-based Fault Detectors. The table depicts how many calls each file system makes to assert(), BUG(), and panic() routines. The data was gathered simply by searching for various strings in the source code. A range of file systems and the ext3 journaling devices (jbd and jbd2) are included in the micro-study. The study was performed on the latest stable Linux release (2.6.26.7).
whether the fault was caused by code executing in the file system module (i.e., by examining the faulting instruction pointer). Note that the kernel already tracks these runtime exceptions which are considered kernel errors and trig- gers panic as it doesn’t know how to handle them. We only check if these exceptions were generated in the con- text of the restartable file system to initiate recovery, thus preventing kernel panic.
4.2.2 Software-based Detectors A large number of explicit error checks are extant within the file system code base; we interpose on these macros and procedures to detect a broader class of semantically- meaningful faults. Specifically, we redefine macros such as BUG(), BUG ON(), panic(), and assert() so that the file system calls our version of said routines. These routines are commonly used by kernel program- mers when some unexpected event occurs and the code cannot properly handle the exception. For example, Linux ext2 code that searches through directories often calls BUG() if directory contents are not as expected; see ext2 add link() where a failed scan through the di- rectory leads to such a call. Other file systems, such as reiserfs, routinely call panic() when an unanticipated I/O subsystem failure occurs [25]. Table 2 presents a sum- mary of calls present in existing Linux file systems. In addition to those checks within file systems, we have added a set of checks across the file-system/kernel boundary to help prevent fault propagation into the kernel proper. Overall, we have added roughly 100 checks across various key points in the generic file system and memory management modules as well as in twenty or so header files. As these checks are low-cost and relatively easy to
op-log (naive) write(A) to blk 0 A write(B) to blk 1 B write(C) to blk 0 C
op-log (with page stealing) write(A) to blk 0 write(B) to blk 1 write(C) to blk 0
Page Cache
C
B
(not needed)
Figure 2: Page Stealing. The figure depicts the op-log both with and without page stealing. Without page stealing (left side of the figure), user data quickly fills the log, thus exacting harsh penalties in both time and space overheads. With page stealing (right), only a reference to the in-memory page cache is recorded with each write; further, only the latest such entry is needed to replay the op-log successfully.
add, we will continue to “harden” the file-system/kernel interface as our work continues.
4.3 Fault Anticipation
We now describe the fault anticipation support within the current Membrane implementation. We begin by present- ing our approach to reducing the cost of operation logging via a technique we refer to as page stealing.
4.3.1 Low-Cost Op-Logging via Page Stealing Membrane interposes at the VFS layer in order to record the necessary information to the op-log about file-system operations during an epoch. Thus, for any restartable file system that is mounted, the VFS layer records an entry for each operation that updates the file system state in some way. One key challenge of logging is to minimize the amount of data logged in order to keep interpositioning costs low. A naive implementation (including our first attempt) might log all state-updating operations and their parame- ters; unfortunately, this approach has a high cost due to the overhead of logging write operations. For each write to the file system, Membrane has to not only record that a write took place but also log the data to the op-log, an expensive operation both in time and space. Membrane avoids the need to log this data through a novel page stealing mechanism. Because dirty pages are held in memory before checkpointing, Membrane is as- sured that the most recent copy of the data is already in memory (in the page cache). Thus, when Membrane needs to replay the write, it steals the page from the cache (before it is removed from the cache by recovery) and writes the stolen page to disk. In this way, Membrane avoids the costly logging of user data. Figure 2 shows how page stealing helps in reducing the size of op-log. When two writes to the same block have taken place, note that only the last write needs to be replayed. Earlier
writes simply update the file position correctly. This strat- egy works because reads are not replayed (indeed, they have already completed); hence, only the current state of the file system, as represented by the last checkpoint and current op-log and s-log, must be reconstructed.
4.3.2 Other Logging and State Tracking Membrane also interposes at the VFS layer to track all necessary session state in the s-log. There is little infor- mation to track here: simply which files are open (with their pathnames) and the current file position of each file. Membrane also needs to track memory allocations per- formed by a restartable file system. We added a new allo- cation flag, GFP RESTARTABLE, in Membrane. We also provide a new header file to include in file-system code to append GFP RESTARTABLE to all memory allocation call. This enables the memory allocation module in the kernel to record the necessary per-file-system information into the m-table and thus prepare for recovery. Tracking lock acquisitions is also straightforward. As we mentioned earlier, locks that are private to the file sys- tem will be ignored during recovery, and hence need not be tracked; only global locks need to be monitored. Thus, when a thread is running in the file system, the instru- mented lock function saves the lock information in the thread’s private l-stack for the following locks: the global kernel lock, super-block lock, and the inode lock. Finally, Membrane must also track register state across certain code boundaries to unwind threads properly. To do so, Membrane wraps all calls from the kernel into the file system; these wrappers push and pop register state, return addresses, and return values onto and off of the u-stack.
4.3.3 COW-based Checkpointing Our goal of checkpointing was to find a solution that is lightweight and works correctly despite the lack of trans- actional machinery in file systems such as Linux ext2, many UFS implementations, and various FAT file sys- tems; these file systems do not include journaling or shadow paging to naturally partition file system updates into transactions. One could implement a checkpoint using the following strawman protocol. First, during an epoch, prevent dirty pages from being flushed to disk. Second, at the end of an epoch, checkpoint file-system state by first halting file system activity and then forcing all dirty pages to disk. At this point, the on-disk state would be consistent. If a file-system failure occurred during the next epoch, Mem- brane could rollback the file system to the beginning of the epoch, replay logged operations, and thus recover the file system. The obvious problem with the strawman is perfor- mance: forcing pages to disk during checkpointing makes checkpointing slow, which slows applications. Further,
could potentially be shared among different kernel mod- ules. Hence, it is straightforward to transparently identify code pages of file systems.
4.4.2 Intertwined Execution and The Skip/Trust Unwind Protocol
Unfortunately, unwinding a thread is challenging, as the file system interacts with the kernel in a tightly-coupled fashion. Thus, it is not uncommon for the file system to call into the kernel, which in turn calls into the file system, and so forth. We call such execution paths intertwined. Intertwined code puts Membrane into a difficult posi- tion. Ideally, Membrane would like to unwind the execu- tion of the thread to the beginning of the first kernel-to- file-system call as described above. However, the fact that (non-file-system) kernel code has run complicates the un- winding; kernel state will not be cleaned up during recov- ery, and thus any state modifications made by the kernel must be undone before restart. For example, assume that the file system code is exe- cuting (e.g., in function f1()) and calls into the kernel (function k1()); the kernel then updates kernel-state in some way (e.g., allocates memory or grabs locks) and then calls back into the file system (function f2()); finally, f2() returns to k1() which returns to f1() which com- pletes. The tricky case arises when f2() crashes; if we simply unwound execution naively, the state modifica- tions made while in the kernel would be left intact, and the kernel could quickly become unusable. To overcome this challenge, Membrane employs a care- ful skip/trust unwind protocol. The protocol skips over file system code but trusts the kernel code to behave reason- able in response to a failure and thus manage kernel state correctly. Membrane coerces such behavior by carefully arranging the return value on the stack, mimicking an er- ror return from the failed file-system routine to the kernel; the kernel code is then allowed to run and clean up as it sees fit. We found that the Linux kernel did a good job of checking return values from the file-system function and in handling error conditions. In places where it did not (12 such instances), we explicitly added code to do the required check. In the example above, when the fault is detected in f2(), Membrane places an error code in the appropri- ate location on the stack and returns control immediately to k1(). This trusted kernel code is then allowed to ex- ecute, hopefully freeing any resources that it no longer needs (e.g., memory, locks) before returning control to f1(). When the return to f1() is attempted, the control- flow capture machinery again kicks into place and enables Membrane to unwind the remainder of the stack. A real example from Linux is shown in Figure 4. Throughout this process, the u-stack is used to capture the necessary state to enable Membrane to unwind prop-
s y s _ o p e n ( )
d o _ s y s _ o p e n ( )
f i l p _ o p e n ( )
o p e n _ n a m e i^ ( )
v f^ s _ c r e a t e ( )
e x t 2 _ c r e a t e ( )
e x t 2 _ a d^ d^ l^ i^ n k ( )
e x t 2 _ p r e p a r e _ w r i^ t e ( )
b l o c k _ p r e p a r e _ w r i t e ( )
e x t 2 _ g e t _ b^ l^ o c k ( )
d o _ s y s _ o p e n ( ) c l e a n u p
r e^ l^ e^ a^ s^ e^ f^ d^
o p e n _ n a m e i ( ) c l e a n u p
r e^ l^ e^ a^ s^ e^ n^ a^ m^ e^ i^ d^ a^ t^ a
b l o c k _ p r e p a r e _ w r i t e ( ) c l e a n u p
c l e a r b u f f e r
z e^ r o^ p^ a^ g^ e
m a r k n o t d i r t y
f a u l t m e m b r a^ n^ e
f a u l t m e m b r a^ n^ e
s k i p
s k i p
Figure 4: The Skip/Trust Unwind Protocol. The fig- ure depicts the call path from the open() system call through the ext2 file system. The first sequence of calls (through vfs create()) are in the generic (trusted) kernel; then the (untrusted) ext2 routines are called; then ext2 calls back into the kernel to prepare to write a page, which in turn may call back into ext2 to get a block to write to. Assume a fault occurs at this last level in the stack; Membrane catches the fault, and skips back to the last trusted kernel routine, mimicking a failed call to ext2 get block(); this routine then runs its normal fail- ure recovery (marked by the circled “3” in the diagram), and then tries to return again. Membrane’s control-flow capture ma- chinery catches this and then skips back all the way to the last trusted kernel code (vfs create), thus mimicking a failed call to ext2 create(). The rest of the code unwinds with Mem- brane’s interference, executing various cleanup code along the way (as indicated by the circled 2 and 1). erly. Thus, both when the file system is first entered as well as any time the kernel calls into the file system, wrap- per functions push register state onto the u-stack; the val- ues are subsequently popped off on return, or used to skip back through the stack during unwind.
4.4.3 Other Recovery Functions There are many other aspects of recovery which we do not discuss in detail here for sake of space. For example, the RM must orchestrate the entire recovery protocol, ensur- ing that once threads are unwound (as described above), the rest of the recovery protocol to unmount the file sys- tem, free various objects, remount it, restore sessions, and replay file system operations recorded in the logs, is car- ried out. Finally, after recovery, RM allows the file system to begin servicing new requests.
4.4.4 Correctness of Recovery We now discuss the correctness of our recovery mecha- nism. Membrane throws away the corrupted in-memory state of the file system immediately after the crash. Since faults are fail-stop in Membrane, on-disk data is never cor- rupted. We also prevent any new operation from being is- sued to the file system while recovery is being performed. The file-system state is then reverted to the last known
checkpoint (which is guaranteed to be consistent). Next, successfully completed op-logs are replayed to restore the file-system state to the crash time. Finally, the unwound processes are allowed to execute again. Non-determinism could arise while replaying the com- pleted operations. The order recorded in op-logs need not be the same as the order executed by the scheduler. This new execution order could potentially pose a problem while replaying completed write operations as applica- tions could have observed the modified state (via read ) be- fore the crash. On the other hand, operations that modify the file-system state (such as create, unlink, etc.) would not be a problem as conflicting operations are resolved by the file system through locking. Membrane avoids non-deterministic replay of com- pleted write operations through page stealing. While re- playing completed operations, Membrane reads the final version of the page from the page cache and re-executes the write operation by copying the data from it. As a re- sult, write operations while being replayed will end up with the same final version no matter what order they are executed. Lastly, as the in-flight operations have not returned back to the application, Membrane allows the scheduler to execute them in arbitrary order.
5 Evaluation
We now evaluate Membrane in the following three cate- gories: transparency, performance, and generality. All ex- periments were performed on a machine with a 2.2 GHz Opteron processor, two 80GB WDC disks, and 2GB of memory running Linux 2.6.15. We evaluated Membrane using ext2, VFAT, and ext3. The ext3 file system was mounted in data journaling mode in all the experiments.
5.1 Transparency
We employ fault injection to analyze the transparency of- fered by Membrane in hiding file system crashes from ap- plications. The goal of these experiments is to show the inability of current systems in hiding faults from applica- tion and how using Membrane can avoid them. Our injection study is quite targeted; we identify places in the file system code where faults may cause trouble, and inject faults there, and observe the result. These faults represent transient errors from three different com - ponents: virtual memory (e.g., kmap, d alloc anon), disks (e.g., write full page, sb bread), and kernel-proper (e.g., clear inode, iget). In all, we injected 47 faults in differ- ent code paths in three file systems. We believe that many more faults could be injected to highlight the same issue. Table 3 presents the results of our study. The caption explains how to interpret the data in the table. In all ex- periments, the operating system was always usable after fault injection (not shown in the table). We now discuss our major observations and conclusions.
ext2 ext2+ ext2+ boundary Membrane
ext2 Function Fault How Detected?Application?FS:Consistent?FS:Usable? How Detected?Application?FS:Consistent?FS:Usable? How Detected?Application?FS:Consistent?FS:Usable? create null-pointer o × × × o × × × d √ √ √ create mark inode dirty o × × × o × × × d √ √ √ writepage write full page o × √ √a^ d s × √a^ d √ √ √ writepages write full page o × × √a^ d s × √a^ d √ √ √ free inode mark buffer dirty o × × × ob^ × × √a^ d √ √ √ mkdir d instantiate o × × × d s √ √^ d √ √ √ get block map bh o × × √a^ ob^ × × × d √ √ √ readdir page address G × × × G × × × d √ √ √ get page kmap o × √ × ob^ × √ × d √ √ √ get page wait page locked o × √ × ob^ × √ × d √ √ √ get page read cache page o × √ × o × √ × d √ √ √ lookup iget o × √ × ob^ × √ × d √ √ √ add nondir d instantiate o × × × d e √ √^ d √ √ √ find entry page address G × √ × Gb^ × √ × d √ √ √ symlink null-pointer o × × × o × √ × d √ √ √ rmdir null-pointer o × √ × o × √ × d √ √ √ empty dir page address G × √ × G × √ × d √ √ √ make empty grab cache page o × √ × ob^ × × × d √ √ √ commit chunk unlock page o × √ × d e × × d √ √ √ readpage mpage readpage o × √ √^ i × √ √^ d √ √ √ vfat vfat+ vfat+ vfat Function Fault boundary Membrane create null-pointer o × × × o × × × d √ √ √ create d instantiate o × × × o × × × d √ √ √ writepage blk write fullpage o × × √a^ d s × √a^ d √ √ √ mkdir d instantiate o × √ × d s √ √^ d √ √ √ rmdir null-pointer o × √ × o × √ √a^ d √ √ √ lookup d find alias o × √ × d e √ √^ d √ √ √ get entry sb bread o × √ × o × √ × d √ √ √ get block map bh o × × √a^ o × × √a^ d √ √ √ remove entries mark buffer dirty o × × √a^ d s × √^ d √ √ √ write inode mark buffer dirty o × × √a^ d s √ √^ d √ √ √ clear inode is bad inode o × × √a^ d s √ √^ d √ √ √ get dentry d alloc anon o × × √a^ ob^ × × × d √ √ √ readpage mpage readpage o × √ √a^ o × √ √a^ d √ √ √ ext3 ext3+ ext3+ ext3 Function Fault boundary Membrane create null-pointer o × × × o × √ × d √ √ √ get blk handle bh result o × × × d s × √a^ d √ √ √ follow link nd set link o × × √a^ d e √ √^ d √ √ √ mkdir d instantiate o × × × d s √ √^ d √ √ √ symlink null-pointer o × × × d × √ × d √ √ √ readpage mpage readpage o × × √a^ d × √ √a^ d √ √ √ add nondir d instantiate o × √ × o × √ × d √ √ √ prepare write blk prepare write o × √ × i e √ √^ d √ √ √ read blk bmap sb bread o × √ × o × √ × d √ √ √ new block dquot alloc blk o × √ × o × √ × d √ √ √ readdir null-pointer o × × × o × √ √a^ d √ √ √ file write file aio write G × √ √^ i e √ √^ d √ √ √ free inode clear inode o × × × o × √ × d √ √ √ new inode null-pointer o × √ × i × × √a^ d √ √ √ Table 3: Fault Study. The table shows the results of fault injections on the behavior of Linux ext2, VFAT and ext3. Each row presents the results of a single experiment, and the columns show (in left-to-right order): which routine the fault was injected into, the nature of the fault, how/if it was detected, how it af- fected the application, whether the file system was consistent af- ter the fault, and whether the file system was usable. Various symbols are used to condense the presentation. For detection, “o”: kernel oops; “G”: general protection fault; “i”: invalid opcode; “d”: fault detected, say by an assertion. For applica- tion behavior, “ × ”: application killed by the OS; “
√ ”: appli- cation continued operation correctly; “s”: operation failed but application ran successfully (silent failure); “e”: application ran and returned an error. Footnotes: a - file system usable, but un-unmountable; b^ - late oops or fault, e.g., after an error code was returned.
Elapsed time (s)
Read Latency(ms)
15 25 35 45 55
0
4
8
12 Crash
15 25 35 45 55
Indirect blocks
0
20
40
60
Average Response Time Response Time Indirect Blocks
Figure 5: Recovery Overhead. The figure shows the over- head of restarting ext2 while running random-read microbench- mark. The x axis represents the overall elapsed time of the mi- crobenchmark in seconds. The primary y axis contains the ex- ecution time per read operation as observed by the application in milliseconds. A file-system crash was triggered at 34s, as a result the total elapsed time increased from 66.5s to 67.1s. The secondary y axis contains the number of indirect blocks read by the ext2 file system from the disk per second.
In summary, both micro and macrobenchmarks show that the fault anticipation in Membrane almost comes for free. Even in the event of a file system crash, Membrane restarts the file system within a few milliseconds.
5.3 Generality
We chose ext2, VFAT, and ext3 to evaluate the generality of our approach. ext2 and VFAT were chosen for their lack of crash consistency machinery and for their com- pletely different on-disk layout. ext3 was selected for its journaling machinery that provides better crash con- sistency guarantees than ext2. Table 7 shows the code changes required in each file system.
File System Added Modified ext2 4 0 VFAT 5 0 ext3 1 0 JBD 4 0 Individual File-system Changes Components No Checkpoint With Checkpoint Added Modified Added Modified FS 1929 30 2979 64 MM 779 5 867 15 Arch 0 0 733 4 Headers 522 6 552 6 Module 238 0 238 0 Total 3468 41 5369 89 Kernel Changes
Table 7: Implementation Complexity. The table presents the code changes required to transform a ext2, VFAT, ext3, and vanilla Linux 2.6.15 x86 64 kernel into their restartable counter- parts. Most of the modified lines indicate places where vanilla kernel did not check/handle errors propagated by the file system. As our changes were non-intrusive in nature, none of existing code was removed from the kernel.
From the table, we can see that the file system spe- cific changes required to work with Membrane are min- imal. For ext3, we also added 4 lines of code to JBD
to notify the beginning and the end of transactions to the checkpoint manager, which could then discard the opera- tion logs of the committed transactions. All of the addi- tions were straightforward, including adding a new header file to propagate the GFP RESTARTABLE flag and code to write back the free block/inode/cluster count when the write super method of the file system was called. No modification (or deletions) of existing code were required in any of the file systems. In summary, Membrane represents a generic approach to achieve file system restartability; existing file systems can work with Membrane with minimal changes of adding a few lines of code.
6 Conclusions File systems fail. With Membrane, failure is transformed from a show-stopping event into a small performance is- sue. The benefits are many: Membrane enables file- system developers to ship file systems sooner, as small bugs will not cause massive user headaches. Membrane similarly enables customers to install new file systems, knowing that it won’t bring down their entire operation. Membrane further encourages developers to harden their code and catch bugs as soon as possible. This fringe benefit will likely lead to more bugs being triggered in the field (and handled by Membrane, hopefully); if so, diag- nostic information could be captured and shipped back to the developer, further improving file system robustness. We live in an age of imperfection, and software imper- fection seems a fact of life rather than a temporary state of affairs. With Membrane, we can learn to embrace that imperfection, instead of fearing it. Bugs will still arise, but those that are rare and hard to reproduce will remain where they belong, automatically “fixed” by a system that can tolerate them.
7 Acknowledgments We thank the anonymous reviewers and Dushyanth Narayanan (our shepherd) for their feedback and comments, which have substantially improved the content and presentation of this pa- per. We also thank Haryadi Gunawi for his insightful comments. This material is based upon work supported by the National Science Foundation under the following grants: CCF-0621487, CNS-0509474, CNS-0834392, CCF-0811697, CCF-0811697, CCF-0937959, as well as by generous donations from NetApp, Sun Microsystems, and Google. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of NSF or other institutions.
References [1] Jeff Bonwick and Bill Moore. ZFS: The Last Word in File Sys- tems. http://opensolaris.org/os/community/zfs/docs/zfs last.pdf,
[2] George Candea and Armando Fox. Crash-Only Software. In The Ninth Workshop on Hot Topics in Operating Systems (HotOS IX) , Lihue, Hawaii, May 2003.
[3] George Candea, Shinichi Kawamoto, Yuichi Fujiki, Greg Fried- man, and Armando Fox. Microreboot – A Technique for Cheap Recovery. In Proceedings of the 6th Symposium on Operating Sys- tems Design and Implementation (OSDI ’04) , pages 31–44, San Francisco, California, December 2004. [4] John Chapin, Mendel Rosenblum, Scott Devine, Tirthankar Lahiri, Dan Teodosiu, and Anoop Gupta. Hive: Fault Containment for Shared-Memory Multiprocessors. In Proceedings of the 15th ACM Symposium on Operating Systems Principles (SOSP ’95) , Copper Mountain Resort, Colorado, December 1995. [5] Andy Chou, Junfeng Yang, Benjamin Chelf, Seth Hallem, and Dawson Engler. An Empirical Study of Operating System Errors. In Proceedings of the 18th ACM Symposium on Operating Sys- tems Principles (SOSP ’01) , pages 73–88, Banff, Canada, October
[6] Charles D. Cranor and Gurudatta M. Parulkar. The UVM Virtual Memory System. In Proceedings of the USENIX Annual Technical Conference (USENIX ’99) , Monterey, California, June 1999. [7] Francis M. David, Ellick M. Chan, Jeffrey C. Carlyle, and Roy H. Campbell. CuriOS: Improving Reliability through Operating Sys- tem Structure. In Proceedings of the 8th Symposium on Operating Systems Design and Implementation (OSDI ’08) , San Diego, Cali- fornia, December 2008. [8] Dawson Engler, David Yu Chen, Seth Hallem, Andy Chou, and Benjamin Chelf. Bugs as Deviant Behavior: A General Approach to Inferring Errors in Systems Code. In Proceedings of the 18th ACM Symposium on Operating Systems Principles (SOSP ’01) , pages 57–72, Banff, Canada, October 2001. [9] Ulfar Erlingsson, Martin Abadi, Michael Vrable, Mihai Budiu, and George C. Necula. XFI: Software Guards for System Address Spaces. In Proceedings of the 7th USENIX OSDI , pages 6–6, 2006. [10] K. Fraser, S. Hand, R. Neugebauer, I. Pratt, A. Warfield, and M. Williamson. Safe Hardware Access with the Xen Virtual Ma- chine Monitor. In Workshop on Operating System and Architec- tural Support for the On-Demand IT Infrastructure , 2004. [11] Haryadi S. Gunawi, Cindy Rubio-Gonzalez, Andrea C. Arpaci- Dusseau, Remzi H. Arpaci-Dusseau, and Ben Liblit. EIO: Er- ror Handling is Occasionally Correct. In Proceedings of the 6th USENIX Symposium on File and Storage Technologies (FAST ’08) , pages 207–222, San Jose, California, February 2008. [12] Robert Hagmann. Reimplementing the Cedar File System Using Logging and Group Commit. In Proceedings of the 11th ACM Symposium on Operating Systems Principles (SOSP ’87) , Austin, Texas, November 1987. [13] Jorrit N. Herder, Herbert Bos, Ben Gras, Philip Homburg, and An- drew S. Tanenbaum. Construction of a Highly Dependable Op- erating System. In Proceedings of the 6th European Dependable Computing Conference , October 2006. [14] Jorrit N. Herder, Herbert Bos, Ben Gras, Philip Homburg, and An- drew S. Tanenbaum. Failure Resilience for Device Drivers. In Proceedings of the 2007 IEEE International Conference on De- pendable Systems and Networks , pages 41–50, June 2007. [15] Dave Hitz, James Lau, and Michael Malcolm. File System Design for an NFS File Server Appliance. In Proceedings of the USENIX Winter Technical Conference (USENIX Winter ’94) , San Francisco, California, January 1994. [16] Steve R. Kleiman. Vnodes: An Architecture for Multiple File Sys- tem Types in Sun UNIX. In Proceedings of the USENIX Summer Technical Conference (USENIX Summer ’86) , pages 238–247, At- lanta, Georgia, June 1986. [17] E. Koldinger, J. Chase, and S. Eggers. Architectural Support for Single Address Space Operating Systems. In Proceedings of the 5th International Conference on Architectural Support for Programming Languages and Operating Systems (ASPLOS V) , Boston, Massachusetts, October 1992. [18] Nathan P. Kropp, Philip J. Koopman, and Daniel P. Siewiorek. Automated Robustness Testing of Off-the-Shelf Software Com- ponents. In Proceedings of the 28th International Symposium on Fault-Tolerant Computing (FTCS-28) , Munich, Germany, June
[19] James Larus. The Singularity Operating System. Seminar given at the University of Wisconsin, Madison, 2005. [20] J. LeVasseur, V. Uhlig, J. Stoess, and S. Gotz. Unmodified De- vice Driver Reuse and Improved System Dependability via Virtual Machines. In Proceedings of the 6th USENIX OSDI , 2004.
[21] Shan Lu, Soyeon Park, Eunsoo Seo, and Yuanyuan Zhou. Learning from Mistakes — A Comprehensive Study on Real World Con- currency Bug Characteristics. In Proceedings of the 13th Inter- national Conference on Architectural Support for Programming Languages and Operating Systems (ASPLOS XIII) , Seattle, Wash- ington, March 2008. [22] Dejan Milojicic, Alan Messer, James Shau, Guangrui Fu, and Al- berto Munoz. Increasing Relevance of Memory Hardware Er- rors: A Case for Recoverable Programming Models. In 9th ACM SIGOPS European Workshop ’Beyond the PC: New Challenges for the Operating System’ , Kolding, Denmark, September 2000. [23] Jeffrey C. Mogul. A Better Update Policy. In Proceedings of the USENIX Summer Technical Conference (USENIX Summer ’94) , Boston, Massachusetts, June 1994. [24] Zachary Peterson and Randal Burns. Ext3cow: a time-shifting file system for regulatory compliance. Trans. Storage , 1(2):190–212,
[25] Vijayan Prabhakaran, Lakshmi N. Bairavasundaram, Nitin Agrawal, Haryadi S. Gunawi, Andrea C. Arpaci-Dusseau, and Remzi H. Arpaci-Dusseau. IRON File Systems. In Proceedings of the 20th ACM Symposium on Operating Systems Principles (SOSP ’05) , pages 206–220, Brighton, United Kingdom, October 2005. [26] Feng Qin, Joseph Tucek, Jagadeesan Sundaresan, and Yuanyuan Zhou. Rx: Treating Bugs As Allergies. In Proceedings of the 20th ACM Symposium on Operating Systems Principles (SOSP ’05) , Brighton, United Kingdom, October 2005. [27] Hans Reiser. ReiserFS. www.namesys.com, 2004. [28] Mendel Rosenblum and John Ousterhout. The Design and Imple- mentation of a Log-Structured File System. ACM Transactions on Computer Systems , 10(1):26–52, February 1992. [29] J. S. Shapiro and N. Hardy. EROS: A Principle-Driven Oper- ating System from the Ground Up. IEEE Software , 19(1), Jan- uary/February 2002. [30] Adan Sweeney, Doug Doucette, Wei Hu, Curtis Anderson, Mike Nishimoto, and Geoff Peck. Scalability in the XFS File Sys- tem. In Proceedings of the USENIX Annual Technical Conference (USENIX ’96) , San Diego, California, January 1996. [31] Michael M. Swift, Brian N. Bershad, and Henry M. Levy. Improv- ing the Reliability of Commodity Operating Systems. In Proceed- ings of the 19th ACM Symposium on Operating Systems Principles (SOSP ’03) , Bolton Landing, New York, October 2003. [32] Michael M. Swift, Brian N. Bershad, and Henry M. Levy. Re- covering device drivers. In Proceedings of the 6th Symposium on Operating Systems Design and Implementation (OSDI ’04) , pages 1–16, San Francisco, California, December 2004. [33] Nisha Talagala and David Patterson. An Analysis of Error Be- haviour in a Large Storage System. In The IEEE Workshop on Fault Tolerance in Parallel and Distributed Systems , San Juan, Puerto Rico, April 1999. [34] Theodore Ts’o. http://e2fsprogs.sourceforge.net, June 2001. [35] Theodore Ts’o and Stephen Tweedie. Future Directions for the Ext2/3 Filesystem. In Proceedings of the USENIX Annual Tech- nical Conference (FREENIX Track) , Monterey, California, June
[36] W. Weimer and George C. Necula. Finding and Preventing Run- time Error-Handling Mistakes. In The 19th ACM SIGPLAN Con- ference on Object-Oriented Programming, Systems, Languages, and Applications (OOPSLA ’04) , Vancouver, Canada, October
[37] Dan Williams, Patrick Reynolds, Kevin Walsh, Emin G¨un Sirer, and Fred B. Schneider. Device Driver Safety Through a Reference Validation Mechanism. In Proceedings of the 8th USENIX OSDI ,
[38] Junfeng Yang, Can Sar, and Dawson Engler. EXPLODE: A Lightweight, General System for Finding Serious Storage System Errors. In Proceedings of the 7th Symposium on Operating Sys- tems Design and Implementation (OSDI ’06) , Seattle, Washington, November 2006. [39] Junfeng Yang, Paul Twohey, Dawson Engler, and Madanlal Musu- vathi. Using Model Checking to Find Serious File System Errors. In Proceedings of the 6th Symposium on Operating Systems De- sign and Implementation (OSDI ’04) , San Francisco, California, December 2004. [40] Feng Zhou, Jeremy Condit, Zachary Anderson, Ilya Bagrak, Rob Ennals, Matthew Harren, George Necula, and Eric Brewer. SafeDrive: Safe and Recoverable Extensions Using Language- Based Techniques. In Proceedings of the 7th USENIX OSDI , Seat- tle, Washington, November 2006.
