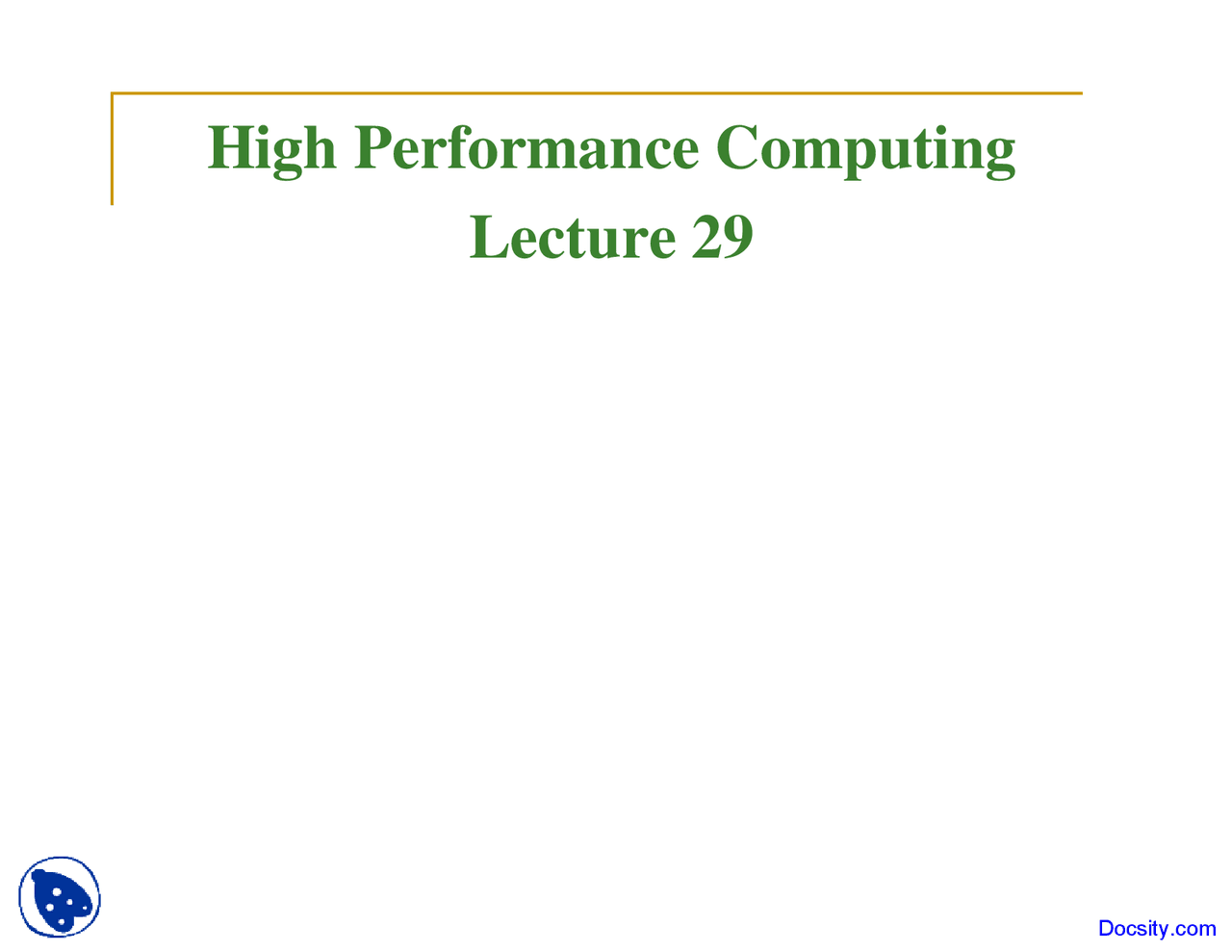

High Performance Computing

Lecture 29

2

Memory Hierarchy Progression

Cache

Main (Primary) Memory

Secondary

Memory

Level 2 Cache

Level 1 Cache

L3, L4… Cache

4

Example 1: Vector Sum Reduction

double A[2048], sum=0.0;

for (i=0; i<2048, i++) sum = sum +A[i];

• To do analysis, must view program close to

machine code form (to see loads/stores)

• Recall from static instruction scheduling examples

how loop index i was implemented in a register

and not load/stored inside loop

• Will assume that both loop index i and variable

sum are implemented in registers

• Will consider only accesses to array elements

5

Example 1: Reference Sequence

 load A[0] load A[1] load A[2] … load A[2047]

 Assume base address of A (i.e., address of

A[0]) is 0xA000, 1010 0000 0000 0000

 Cache index bits: 100000000 (value = 256)

 Size of an array element (double) = 8B

 So, 4 consecutive array elements fit into each

cache block (block size is 32B)

 A[0] – A[3] have index of 256

 A[4] – A[7] have index of 257 and so on

7 Example 1: Cache Misses and Hits A[2047] 0xDFF8 255 Hit A[2046] 0xDFF0 255 Hit A[2045] 0xDFE8 255 Hit A[2044] 0xDFE0 255 Miss Cold start

A[7] 0xA038 257 Hit A[6] 0xA030 257 Hit A[5] 0xA028 257 Hit A[4] 0xA020 257 Miss Cold start A[3] 0xA018 256 Hit A[2] 0xA010 256 Hit A[1] 0xA008 256 Hit A[0] 0xA000 256 Miss Cold start Cold start miss: we assume that the cache is initially empty. Also called a Compulsory Miss Hit ratio of our loop is 75% -- there are 1536 hits out of 2048 memory accesses This is entirely due to spatial locality of reference. If the loop was preceded by a loop that accessed all array elements, the hit ratio of our loop would be 100%, 25% due to temporal locality and 75% due to spatial locality Cold start miss: we assume that the cache is initially empty. Also called a Compulsory Miss Cold start miss: we assume that the cache is initially empty. Also called a Compulsory Miss

8

Example 1 with double A[4096]

Why should it make a difference?

 Consider the case where the loop is preceded by

another loop that accesses all array elements in

order

 The entire array no longer fits into the cache –

cache size: 16KB, array size: 32KB

 After execution of the previous loop, the second half

of the array will be in cache

 Analysis: our loop sees misses as we just saw

 Called Capacity Misses as they would not be misses

if the cache had been big enough

10

Example 2: Vector Dot Product

.. .. 511 Miss Conflict

B[3] 0xE018 256 Miss Conflict A[3] 0xA018 256 Miss Conflict B[2] 0xE010 256 Miss Conflict A[2] 0xA010 256 Miss Conflict B[1] 0xE008 256 Miss Conflict A[1] 0xA008 256 Miss Conflict B[0] 0xE000 256 Miss Cold start A[0] 0xA000 256 Miss Cold start Tag : 18b Index: 9b Offset: 5b

11 Example 2: Cache Hits and Misses B[1023] 0xFFF8 511 Miss Conflict

B[3] 0xE018 256 Miss Conflict A[3] 0xA018 256 Miss Conflict B[2] 0xE010 256 Miss Conflict A[2] 0xA010 256 Miss Conflict B[1] 0xE008 256 Miss Conflict A[1] 0xA008 256 Miss Conflict B[0] 0xE000 256 Miss Cold start A[0] 0xA000 256 Miss Cold start Conflict miss: a miss due to conflicts in cache block requirements from memory accesses of the same program Hit ratio for our program: 0% Source of the problem: the elements of arrays A and B accessed in order have the same cache index Hit ratio would be better if the base address of B is such that these cache indices differ
