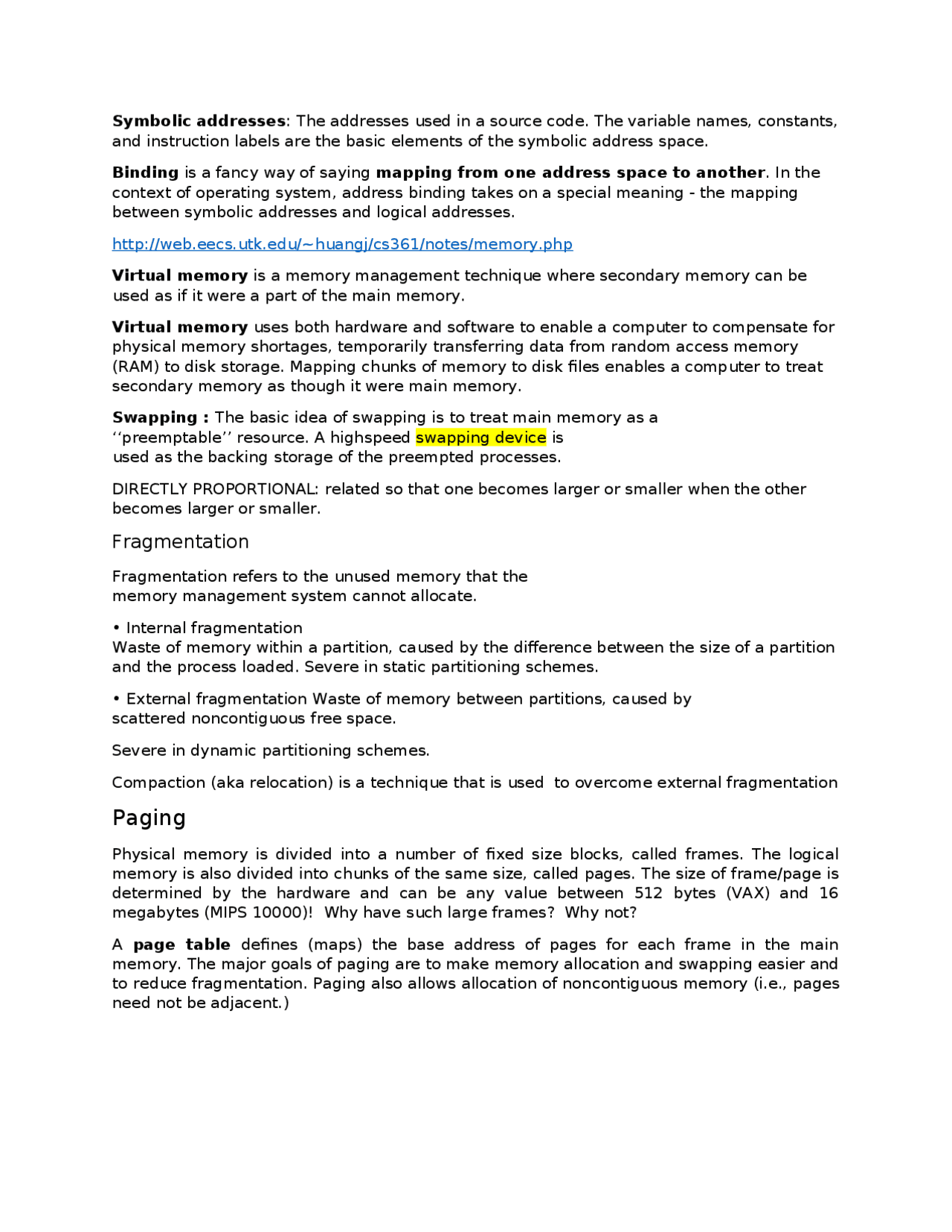

Symbolic addresses: The addresses used in a source code. The variable names, constants,
and instruction labels are the basic elements of the symbolic address space.
Binding is a fancy way of saying mapping from one address space to another. In the
context of operating system, address binding takes on a special meaning - the mapping
between symbolic addresses and logical addresses.
http://web.eecs.utk.edu/~huangj/cs361/notes/memory.php
Virtual memory is a memory management technique where secondary memory can be
used as if it were a part of the main memory.
Virtual memory uses both hardware and software to enable a computer to compensate for
physical memory shortages, temporarily transferring data from random access memory
(RAM) to disk storage. Mapping chunks of memory to disk files enables a computer to treat
secondary memory as though it were main memory.
Swapping : The,basic,idea,of,swapping,is,to,treat,main,memory,as,a,
‘‘preemptable’’,resource.,A,highspeed,swapping,device,is
used,as,the,backing,storage,of,the,preempted,processes.,
DIRECTLY PROPORTIONAL: related so that one becomes larger or smaller when the other
becomes larger or smaller.
Fragmentation
Fragmentation,refers,to,the,unused,memory,that,the
memory,management,system,cannot,allocate.,
• Internal,fragmentation
Waste,of,memory,within,a,partition,,caused,by,the,difference,between,the,size,of,a,partition,
and,the process,loaded.,Severe,in,static,partitioning,schemes.
• External,fragmentation Waste,of,memory,between,partitions,,caused,by,
scattered,noncontiguous,free,space.
Severe,in,dynamic partitioning,schemes.
Compaction,(aka,relocation),is,a,technique,that,is,used, to,overcome,external,fragmentation
Paging
Physical memory is divided into a number of fixed size blocks, called frames. The logical
memory is also divided into chunks of the same size, called pages. The size of frame/page is
determined by the hardware and can be any value between 512 bytes (VAX) and 16
megabytes (MIPS 10000)! Why have such large frames? Why not?
A page table defines (maps) the base address of pages for each frame in the main
memory. The major goals of paging are to make memory allocation and swapping easier and
to reduce fragmentation. Paging also allows allocation of noncontiguous memory (i.e., pages
need not be adjacent.)

Partial preview of the text

Download Memory management notes and more Study notes Operating Systems in PDF only on Docsity!

Symbolic addresses : The addresses used in a source code. The variable names, constants, and instruction labels are the basic elements of the symbolic address space. Binding is a fancy way of saying mapping from one address space to another. In the context of operating system, address binding takes on a special meaning - the mapping between symbolic addresses and logical addresses. http://web.eecs.utk.edu/~huangj/cs361/notes/memory.php Virtual memory is a memory management technique where secondary memory can be used as if it were a part of the main memory. Virtual memory uses both hardware and software to enable a computer to compensate for physical memory shortages, temporarily transferring data from random access memory (RAM) to disk storage. Mapping chunks of memory to disk files enables a computer to treat secondary memory as though it were main memory. Swapping : The basic idea of swapping is to treat main memory as a ‘‘preemptable’’ resource. A highspeed swapping device is used as the backing storage of the preempted processes. DIRECTLY PROPORTIONAL: related so that one becomes larger or smaller when the other becomes larger or smaller.

Fragmentation

Fragmentation refers to the unused memory that the memory management system cannot allocate.

  • Internal fragmentation Waste of memory within a partition, caused by the difference between the size of a partition and the process loaded. Severe in static partitioning schemes.
  • External fragmentation Waste of memory between partitions, caused by scattered noncontiguous free space. Severe in dynamic partitioning schemes. Compaction (aka relocation) is a technique that is used to overcome external fragmentation

Paging

Physical memory is divided into a number of fixed size blocks, called frames. The logical memory is also divided into chunks of the same size, called pages. The size of frame/page is determined by the hardware and can be any value between 512 bytes (VAX) and 16 megabytes (MIPS 10000)! Why have such large frames? Why not? A page table defines (maps) the base address of pages for each frame in the main memory. The major goals of paging are to make memory allocation and swapping easier and to reduce fragmentation. Paging also allows allocation of noncontiguous memory (i.e., pages need not be adjacent.)
