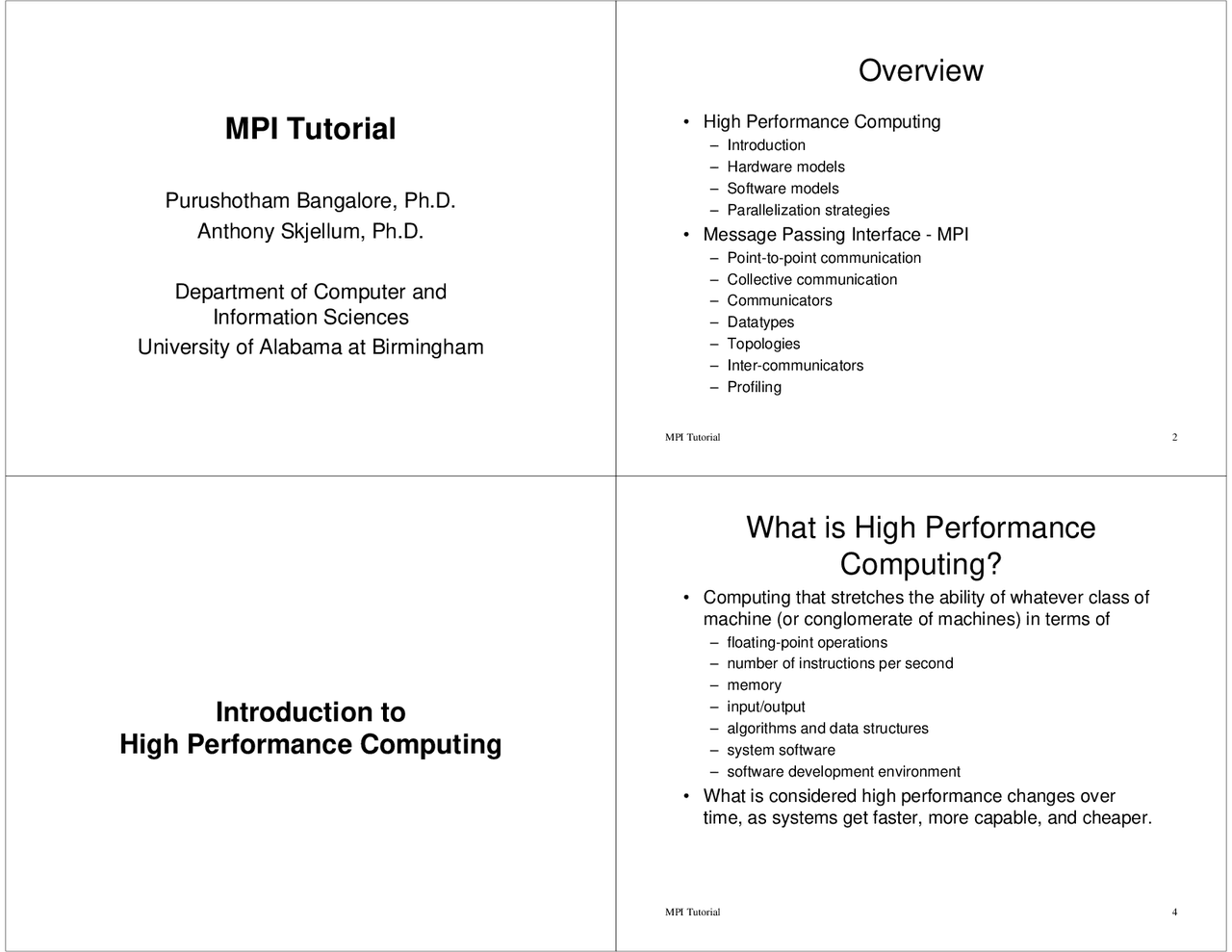

MPI Tutorial
Purushotham Bangalore, Ph.D.
Anthony Skjellum, Ph.D.
Department of Computer and
Information Sciences
University of Alabama at Birmingham
MPI Tutorial
Overview
•^
High Performance Computing– Introduction– Hardware models– Software models– Parallelization strategies
-^
Message Passing Interface - MPI– Point-to-point communication– Collective communication– Communicators– Datatypes– Topologies– Inter-communicators– Profiling
Introduction to
High Performance Computing
MPI Tutorial
What is High Performance
Computing?
•^
Computing that stretches the ability of whatever class ofmachine (or conglomerate of machines) in terms of– floating-point operations– number of instructions per second– memory– input/output– algorithms and data structures– system software– software development environment
-^
What is considered high performance changes overtime, as systems get faster, more capable, and cheaper.
5
Why High Performance
Computing?
•^
Need to solve a problem faster
-^
Need to solve a previously intractable problem,
-^
Need to solve a “larger” problem– More refined– Higher dimensionality– More complex geometry or physics– Larger problem domain
-^
Growing complexity of industrial systems
-^
Growing demand for high utilization of resources and lowpollution
-^
Greater demand for high economic agility and cost-effectiveness
MPI Tutorial
Why Not High Performance
Computing?
•^
HPC software more expensive to develop, maintain anduse
-^
HPC software for your problem is not available or notvalidated
-^
Legacy solutions still valuable even if old, to solve, albeitslowly
-^
A “solution” in a field, whether slow or fast or possiblyeven correct, produces the “accepted answer”
-^
The coordination of resources is easy to manage
-^
The demanding aspect of the application is the human-intensive part, not the computational part, once theproblem is set up
7
How to Get High Performance
•^
Wait for faster CPU, memory, storage, network– Limit: physics, economics
•^
Use multiple CPUs on single problem– Limit: Amdahl’s law
•^
Choose appropriate algorithms and datastructures
•^
Choose appropriate programming model
•^
Tune software to maximize efficiency– sequentially– parallel
MPI Tutorial
Amdahl’s Law
•^
A metric that states that sequential bottlenecks posefundamental limitations on speedup, stated as
-^
What actually limits speed up below the upper limitgoverned by sequential fraction– sequential fraction may be a function of P– communication in the system has finite, often significant cost– load imbalance
If S is the fraction of an algorithm that is serial and 1-S thefraction that can be parallelized, then the speedup that canbe achieved using P processors is: 1/( S + (1-S)/P) whichhas a limiting value of 1/S for an infinite number ofprocessors.
MPI Tutorial
13
Terminology, IV.
•^
Sustained Performance– the actual performance in flops that an application/benchmark
achieves
•^
Turn-around time (Time-to-Solution)– a measure of the latency of an entire application once started– a summation of the CPU, System, and I/O time of an
application
•^
Capability– A mode of operation in which a single hard problem is solved
-^
Capacity, Throughput– A mode of operation in which the number of problems solved
per time is optimized
MPI Tutorial
Terminology, V.
•^
Process– Independent image: instruction stream, stack, data– Communication between processes is explicit (e.g.,
sockets, IPC, shmem)
•^
Thread– “Lightweight process” (LWP)– Multiple instruction streams, independent stack– Shared data– Communication can be implicit (e.g., shared
variables)
Hardware Models
MPI Tutorial
Multicomputer
•^
A networked set of computers (1 or moreCPU), each with its own memory
•^
A Massively Parallel Processor (MPP)
•^
Typically does not support a single systemimage
•^
Also known as a loosely coupled system
•^
E.g., Intel Paragon, IBM SP, etc.,
17
Multiprocessor
•^
A machine with processors connected tomemories through a fabric or other network
•^
Typically, supports a single system image
•^
A logical component of a modern multicomputer
•^
Also known as a tightly coupled system
•^
E.g., SGI Power Challenge, Sun HPC 10000
MPI Tutorial
Cluster/Network of Workstations
•^
A collection of capable multiprocessors oruniprocessors (nodes)– homogeneous environment - collection of similar
nodes
- heterogeneous environment - collection of different
nodes (differences in computer hardware, network,operating system)
•^
A capable network connecting these nodes
•^
System software infrastructure to provideemulation of a multicomputer
•^
Provides affordable high performance computingusing available resources
19
Hardware Taxonomy
-^
Flynn's taxonomy of parallel hardware–
SISD - Single Instruction Single Data– SIMD - Single Instruction Multiple Data– MISD - Multiple Instruction Single Data– MIMD - Multiple Instruction Multiple Data
-^
Shared memory (MIMD)–
e.g., SGI Power Challenge, Sun HPC 10000
-^
Distributed memory (MIMD)–
e.g., Intel Paragon, IBM SP, Network of Workstations
-^
Distributed shared memory (MIMD)–
e.g., HP/Convex Exemplar, SGI Origin 2000– memory is physically distributed but logically shared
-^
Vector SMP (SIMD/MIMD)–
e.g., Cray C90, Nec SX4, NEC Earth Simulator
MPI Tutorial
Five Levels of Hardware
Parallelism
•^
Job Level
•^
Task Level
•^
Stream Level (Concurrent threads hidinglatency)
•^
Pipeline (Instruction Concurrency andReordering)
•^
Instruction level (multi-issue, VLIW,multiply/add/load/store)
25
Shared Memory
Also known as Uniform Memory Access machines (UMAs) ortightly coupled systems
Processor
Processor
Processor
Processor
Processor
….
Shared Bus Memory
MPI Tutorial
Shared Memory Issues
•^
Synchronization is Explicit
•^
Data Transfer is Implicit
•^
To reduce access time and memory bandwidthdemand multilevel caches are used
•^
But introduces cache-coherence problem, thatrequires special cache-coherence protocols
•^
Not scalable
•^
Bus contention and bandwidth limitation
27
Distributed Memory Also known as Message Passing Systems
Network
Processor Memory
Processor Memory
Processor Memory
Processor Memory
MPI Tutorial
Distributed Memory Issues
•^
Synchronization is Implicit
•^
Data Transfer is Explicit
•^
Scalable
•^
Provides a cost-effective model to increasememory bandwidth and reduce memory latencysince most of the memory access is local
•^
Introduces an additional overhead because ofinter-processor communication
•^
Low latency and high bandwidth for inter-processor communication is the key to higherperformance
29
Distributed Shared Memory
•^
Hybrid of shared and distributed memory models
•^
Memory is physically separated but addressspace is logically shared, meaning– any processor can access any memory location– same physical address on two processors refers to
the same memory location
•^
Access time to a memory location is not uniform,hence they are also known as Non-UniformMemory Access machines (NUMAs)
•^
Hardware support is required to maintain cachecoherency (ccNUMA)
Networks
31
Interconnects / Fabrics
•^
Topologies– Bus– Switch– Ring– Hierarchical Star
•^
Fabric– Ethernet (10Mbit/s, 100Mbit/s, 1Gbit/s)– Fiber Distributed Data Interface (FDDI)– Asynchronous Transfer Mode (ATM)– Gigabit (Myrinet, Giganet, etc.)
MPI Tutorial
Classes of Networks, I.
•^
WAN:
Wide Area Networks
•^
MAN:
Metropolitan Area Networks
•^
LAN:
Local Area Networks
•^
SWAN: Small Wide-Area Networks (connectedSANs)
•^
SAN:
System Area Networks (SANs)
37
Developing HPC Applications
SequentialProgram
ParallelCompiler
Serial Compiler
Preprocessor
Add function
calls
Explicit
message-passing
MPI Tutorial
Choice of Language and Notation
•^
C/C++/Fortran with threads and runtime support– compiler switches and directives (OpenMP)– good for local SMP programming
-^
High Performance Fortran (HPF)– good for data parallel models with regular data relationships– your tests show efficacy of HPF on algorithms– specific array syntax is closely relevant to algorithms
-^
C/C++/Fortran plus MPI– for irregular or dynamic data relationships– each node programmed sequentially– no parallel compiler looks over whole code (separate
compilation)
39
Choices Facing HPC
Programmer
•^
Choose programming model– hardware– application– performance requirements– portability requirements
•^
Shared memory– thread libraries– OpenMP or other compiler directives
•^
Distributed memory– MPI libraries– MPI
MPI Tutorial
Scalability
•^
The ability of a hardware system to be increasedin concurrency and/or memory capacity, withinthe same architecture
•^
The ability of an application or algorithm to adaptto different problem sizes and/or concurrency
•^
The ability of a set of related algorithms to solvea problem over a range of concurrencies andproblem sizes
•^
Distributed memory is more scalable thanshared memory
41
Poly-algorithm
•^
A collection of related algorithms that solve the sameproblem
-^
Each member of the collection is fastest for a subset of theproblem domain
-^
The problem domain is described by– concurrency– problem size– memory requirements– emphasis on space or speed
-^
Relative speed changes when the poly-algorithm is ported
-^
Discovering which to use in a given situation a priori is thecurrent research challenge
MPI Tutorial
Load Balancing
•^
MIMD machines with data-dependent workloads leadin many situations to unbalanced loads, even for“regular algorithms”
-^
Static load balancing– choice of data distributions
-^
Dynamic load balancing– reorganization of data distributions– retasking of processing units when they finish early
-^
Task Migration– moving both code and data when appropriate across a system– seek to use unused cycles– seek to escape from busy machines
43
Overlapping Communication and
Computation
•^
Communication is a dead loss associated withparallelism
•^
Hiding communication “behind” computation isimportant
•^
If sufficient processor memory bandwidth exists,this can be done, provided the communicationnetwork allows asynchronous transfers whileother computation is on-going
•^
The maximum improvement of performance is afactor of 2, when the original I/O andcomputation times were exactly equal.
MPI Tutorial
Performance Metrics, I.
•^
Speedup– A measure of the time to solution on two systems: A
sequential system time divided by a parallel systemtime.
•^
Efficiency– A measure of the fraction of speedup achieved,
compared to the ideal (Speedup / number ofprocessors)
•^
Scaled speedup– A metric in which the problem size increases as the
concurrency increases, in order to skirt Amdahl’s law,and measures constant problem size per processor,or else constant memory use
49
Partitioning
•^
Both computations and the data on whichcomputations are performed can be partitioned
•^
Domain decomposition– data is partitioned into smaller pieces– computations are performed on the smaller datasets
•^
Functional decomposition– computation is partitioned instead of data– for a good functional decomposition dataset should
be disjoint
MPI Tutorial
Domain decomposition
•^
Most common approach to obtain parallelism
•^
Each process works on a local subset of theglobal data
•^
Several types of decompositions are possibledepending on the application
•^
Decomposition can be done manually or usingtools depending on the complexity of the dataset
•^
Good load balancing key to high performance– idle time must be minimized in each process– each process must communicate equal amounts of
data
51
Decomposition for Structured
Grids
1-D
2-D
3-D
blocked
block-scattered
MPI Tutorial
Decomposition for Unstructured
Grids
•^
Lack a straightforward, algebraic way to partition
53
•^
Decomposition for UnstructuredResort to geometric or graph-theoreticalmethods, e.g.– Recursive coordinate bisection (RCB)– RCB works poorly for highly stretched grids, so...
Grids
PE 0
PE 1
PE 0
PE 1 PE 2
PE 3
MPI Tutorial
Decomposition for Unstructured
Grids
- Recursive graph bisection (RGB)
- A mesh can be viewed as an undirected graph• Instead of Euclidean distance, metric is graph distance• Do recursive bisection on the graph, not the coordinates
55
Decomposition for Unstructured
Grids
•^
Recursive spectral bisection (RSB)– solve an eigenproblem for metric– very high quality partitions, but expen$ive
•^
Multilevel variants of the above– very efficient, gives excellent partitions
•^
See Metis, Chaco– http://www-users.cs.umn.edu/~karypis/metis– http://www.cs.sandia.gov/CRF/chac_p2.html
MPI Tutorial
Establishing Communication
•^
After partitioning the next step is to setupcommunication between the different partitions
•^
Based on the application communication can be– structured / unstructured– synchronous / asynchronous– static / dynamic– nearest neighbor / collective
•^
Key to high performance– avoid excessive communication– reduce communication with replicated computation– overlap computation and communication– send few large messages instead of many small
messages
MPI
MPI Tutorial
Message Passing Interface (MPI)
•^
A message-passing library specification– Message-passing model– Not a compiler specification– Not a specific product
-^
For parallel computers, clusters, and heterogeneousnetworks
-^
Designed to aid the development of portable parallelsoftware libraries
-^
Designed to provide access to advanced parallelhardware for– End users– Library writers– Tool developers
MPI Tutorial
63
Message Passing Interface - MPI
•^
MPI-1 standard widely accepted by vendors andprogrammers– MPI implementations available on most modern
platforms
- Huge number of MPI applications deployed– Several tools exist to trace and tune MPI applications
•^
MPI provides rich set of functionality to supportlibrary writers, tools developers and applicationprogrammers
MPI Tutorial
MPI Salient Features
•^
Point-to-point communication
•^
Collective communication on process groups
•^
Communicators and groups for safecommunication
•^
User defined datatypes
•^
Virtual topologies
•^
Support for profiling
65
A First MPI Program
#include
<stdio.h>
#include
<mpi.h>
main(
int
argc,
char
****argv**
)
{
MPI_Init ( &argc, &argv );printf ( “Hello World!\n” );MPI_Finalize ( ); } program
main
include
’mpif.h’
integer
ierr
call
MPI_INIT(
ierr
)
print
*,
’Hello
world!’
call
MPI_FINALIZE(
ierr
)
end
MPI Tutorial
Starting the MPI Environment
MPI_INIT ( )^ Initializes MPI environment. This function must becalled and must be the first MPI function called in aprogram (exception:
MPI_INITIALIZED
Syntax
int MPI_Init (
**int *argc, char *argv )
MPI_INIT ( IERROR )INTEGER IERROR
67
Exiting the MPI Environment
MPI_FINALIZE (
Cleans up all MPI state. Once this routine has beencalled, no MPI routine ( even
MPI_INIT
) may be
called^ Syntax
int MPI_Finalize ( );MPI_FINALIZE
( IERROR )
INTEGER IERROR
MPI Tutorial
C and Fortran Language
Considerations, I.
•^
MPI_INIT: The C version accepts the argc and argvvariables that are provided as arguments to main ( )
-^
Error codes: Almost all MPI Fortran subroutines have aninteger return code as their last argument. Almost all Cfunctions return an integer error code
-^
Types: Opaque objects are given type names in C.Opaque objects are usually of type INTEGER in Fortran(exception: binary-valued variables are of typeLOGICAL)
-^
Inter-language interoperability is not guaranteed
73
Communicator
•^
Communication in
MPI
takes place with respect to
communicators
MPI_COMM_WORLD
is one such predefined
communicator (something of type
“MPI_COMM”
)^
and
contains group and context information
MPI_COMM_RANK
and
MPI_COMM_SIZE
return
information based on the communicator passed in asthe first argument
-^
Processes may belong to many differentcommunicators
Environment Setup
75
Using the CIS Cluster
•^
Login– ssh everest00.cis.uab.edu (you must be logged into a CIS
machine, otherwise you have to login to moat.cis.uab.edu first)
•^
Compile– mpicc –o program program.c
-^
Submit– qsub myscript.sge
-^
Monitor– qstat –u
-^
See User Guide for more details– http://www.cis.uab.edu/cs541/homework/instructions.pdf
Point-to-Point
Communications
77
Sending and Receiving
Messages
•^
Basic message passing process
-^
Questions– To whom is data sent?– Where is the data?– What type of data is sent?– How much of data is sent?– How does the receiver identify it?
A:
Send
Receive
B: Process 1
Process 0
MPI Tutorial
Message Organization in MPI
•^
Message is divided into data and envelope
•^
data– buffer– count– datatype
•^
envelope– process identifier (source/destination rank)– message tag– communicator
79
Generalizing the Buffer
Description
•^
Specified in MPI by starting address, count, anddatatype, where datatype is as follows:– Elementary (all C and Fortran datatypes)– Contiguous array of datatypes– Strided blocks of datatypes– Indexed array of blocks of datatypes– General structure
-^
Datatypes are constructed recursively
-^
Specifying application-oriented layout of data allowsmaximal use of special hardware
-^
Elimination of length in favor of count is clearer– Traditional: send 20 bytes– MPI: send 5 integers
MPI Tutorial
MPI C Datatypes MPI datatype
C datatype
MPI_CHAR
signed
char
MPI_SHORT
signed
short
int
MPI_INT
signed
int
MPI_LONG
signed
long
int
MPI_UNSIGNED_CHAR
unsigned
char
MPI_UNSIGNED_SHORT
unsigned
short
int
MPI_UNSIGNED_LONG
unsigned
long_int
MPI_UNSIGNED
unsigned
int
MPI_FLOAT
float
MPI_DOUBLE
double
MPI_LONG_DOUBLE
long
double
MPI_BYTE MPI_PACKED
