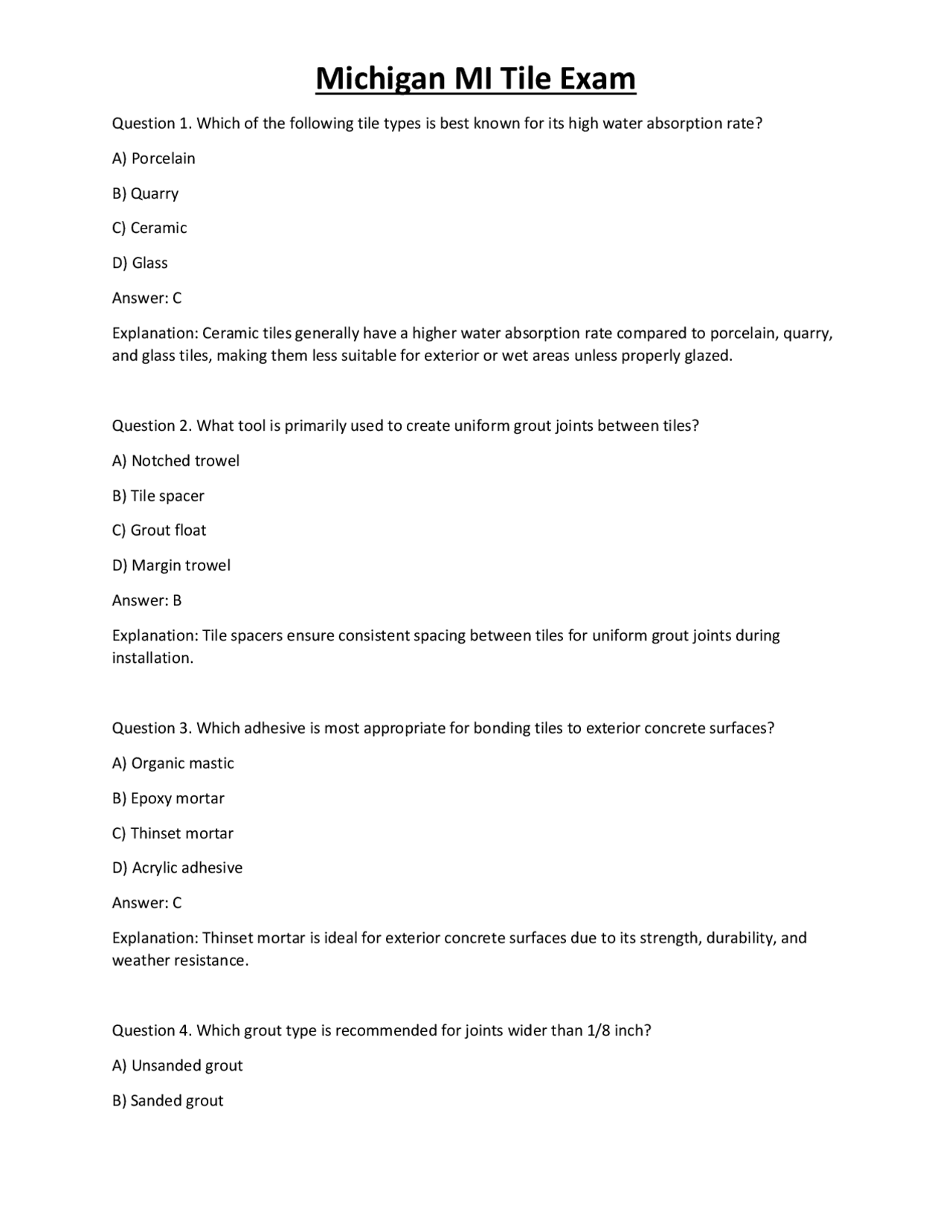

Question 1. Which of the following tile types is best known for its high water absorption rate? A) Porcelain B) Quarry C) Ceramic D) Glass Answer: C Explanation: Ceramic tiles generally have a higher water absorption rate compared to porcelain, quarry, and glass tiles, making them less suitable for exterior or wet areas unless properly glazed. Question 2. What tool is primarily used to create uniform grout joints between tiles? A) Notched trowel B) Tile spacer C) Grout float D) Margin trowel Answer: B Explanation: Tile spacers ensure consistent spacing between tiles for uniform grout joints during installation. Question 3. Which adhesive is most appropriate for bonding tiles to exterior concrete surfaces? A) Organic mastic B) Epoxy mortar C) Thinset mortar D) Acrylic adhesive Answer: C Explanation: Thinset mortar is ideal for exterior concrete surfaces due to its strength, durability, and weather resistance. Question 4. Which grout type is recommended for joints wider than 1/8 inch? A) Unsanded grout B) Sanded grout
C) Epoxy grout D) Latex-modified grout Answer: B Explanation: Sanded grout is used for wider joints as the sand component provides additional strength and prevents cracking. Question 5. What is the main reason for sealing natural stone tiles? A) Enhance color B) Prevent surface scratches C) Reduce porosity and prevent staining D) Improve adhesion Answer: C Explanation: Sealing natural stone reduces its porosity, preventing staining and water penetration. Question 6. Which substrate is most suitable for installing tile in a wet area such as a shower? A) Plywood B) Cement backer board C) Drywall D) Particle board Answer: B Explanation: Cement backer board is moisture-resistant and provides a stable substrate for tile in wet areas. Question 7. When reading construction plans, what symbol typically designates areas to be tiled? A) Solid black fill B) Diagonal hatch lines C) Dotted outline D) Shaded gray fill Answer: B
A) Cement backer board B) Uncoupling membrane C) Mud bed (sand and mortar) D) Peel-and-stick underlayment Answer: C Explanation: Mud bed installations allow for custom thickness and slope, ideal for floors needing height adjustment. Question 12. What tool is used to apply mortar onto the substrate during tile installation? A) Grout float B) Notched trowel C) Margin trowel D) Spatula Answer: B Explanation: Notched trowels are designed to spread mortar evenly and create ridges for tile adhesion. Question 13. Which type of tile is most appropriate for high-traffic commercial areas due to its durability? A) Porcelain B) Glass C) Vinyl composite D) Marble Answer: A Explanation: Porcelain tiles are dense, durable, and highly resistant to wear, making them ideal for commercial spaces. Question 14. What must be verified when evaluating subflooring before tile installation? A) Color of the wood B) Spacing and fastening of subfloor sheets C) The presence of wallpaper
D) Ceiling height Answer: B Explanation: Proper spacing and secure fastening of subfloor sheets are essential for a stable tile installation. Question 15. Why is it important to coordinate tile installation with other trades? A) To ensure color matching B) To prevent scheduling conflicts and ensure proper sequencing C) To share tools D) To reduce labor costs Answer: B Explanation: Coordination avoids damage to tile work and ensures installation aligns with plumbing, electrical, and other trades. Question 16. Which of the following requires waterproofing before tile installation? A) Living room floor B) Exterior patio C) Kitchen backsplash D) Shower walls Answer: D Explanation: Shower walls require waterproofing to protect underlying structures from water damage. Question 17. What is the recommended minimum slope for a tiled shower floor toward the drain? A) 1/16 inch per foot B) 1/8 inch per foot C) 1/4 inch per foot D) 1/2 inch per foot Answer: C Explanation: A 1/4-inch-per-foot slope ensures proper drainage and prevents standing water.
B) Porcelain C) Marble D) Glass Answer: C Explanation: Marble is a calcium-based stone that reacts with acids, causing etching. Question 22. What is the correct method for mixing thinset mortar? A) By hand with a spoon B) Using a drill with paddle mixer, following manufacturer's instructions C) By shaking the bag D) Mixing with hot water only Answer: B Explanation: A drill and paddle ensure a consistent, lump-free mix as per manufacturer’s guidelines. Question 23. What is the primary reason for using an uncoupling membrane under tile? A) Increase tile thickness B) Prevent telegraphing of cracks from substrate C) Make tile installation faster D) Provide color variation Answer: B Explanation: Uncoupling membranes isolate tile from substrate movement, reducing the risk of cracks. Question 24. Which of the following substrates is NOT suitable for direct tile installation? A) Cement board B) Exterior-grade plywood C) Oriented strand board (OSB) D) Drywall in a shower Answer: D Explanation: Drywall in wet areas is unsuitable because it absorbs moisture and deteriorates.
Question 25. What is the minimum recommended overlap when staggering rectangular (plank) tiles? A) 25% B) 33% C) 50% D) 75% Answer: B Explanation: A 33% overlap minimizes lippage due to bowing of long tiles. Question 26. Which tool is best for creating holes in tiles for plumbing fixtures? A) Wet saw B) Tile nipper C) Diamond hole saw D) Notched trowel Answer: C Explanation: Diamond hole saws drill clean, precise holes through tile for pipes and fixtures. Question 27. Which component is essential for a waterproof shower pan? A) Thinset mortar only B) Unsealed plywood C) Waterproof membrane/liner D) Grout Answer: C Explanation: A waterproof membrane or liner is crucial to prevent leaks under the shower floor. Question 28. What is the primary function of a notched trowel? A) Cleaning grout B) Shaping tile edges C) Evenly spreading adhesive with uniform ridges
Question 32. Which of the following is the best cleaning method for removing haze after grouting? A) Dry cloth B) Damp sponge C) Ammonia solution D) Wire brush Answer: B Explanation: A damp sponge gently removes grout haze without damaging the tiles. Question 33. What is the ideal substrate flatness for large-format tiles (over 15 inches)? A) 1/8 inch in 10 feet B) 1/16 inch in 3 feet C) 1/4 inch in 10 feet D) 1/2 inch in 10 feet Answer: B Explanation: Large-format tiles require very flat surfaces—no more than 1/16 inch variation in 3 feet. Question 34. What is the most common cause of tile lippage? A) Incorrect tile spacing B) Uneven substrate C) Overuse of adhesive D) Using too much grout Answer: B Explanation: An uneven substrate causes tiles to be set at different heights, resulting in lippage. Question 35. Which of these is NOT a type of tile underlayment? A) Cement board B) Plywood C) Felt paper D) Vinyl sheet
Answer: D Explanation: Vinyl sheet is a finished floor material, not an underlayment for tile installations. Question 36. What is the recommended minimum width for grout joints on natural stone tiles? A) 1/32 inch B) 1/16 inch C) 1/8 inch D) 1/4 inch Answer: B Explanation: A 1/16 inch grout joint is common for natural stone to accommodate slight size variations. Question 37. What is the primary risk of not sealing grout in a shower installation? A) Color fading B) Water infiltration and mold growth C) Uneven tile alignment D) Increased slipperiness Answer: B Explanation: Unsealed grout is porous, allowing water to penetrate and cause mold or mildew. Question 38. Which tool is best for smoothing the transition between two different flooring materials at a doorway? A) Grout float B) Transition strip C) Notched trowel D) Sponge Answer: B Explanation: Transition strips provide a smooth and safe transition between different floor types. Question 39. Which of the following is a correct method for cutting curves in ceramic tile?
Answer: B Explanation: Glass mosaics are impervious to water and chemicals, making them ideal for pools. Question 43. What is the first step in preparing a floor for tile installation? A) Apply grout B) Clean and inspect the substrate C) Lay out tiles D) Seal the surface Answer: B Explanation: Cleaning and inspecting ensures the substrate is free of debris and suitable for tiling. Question 44. What can happen if tile is installed over a dirty or dusty substrate? A) Stronger bond B) Weak adhesion, leading to tile failure C) Faster installation D) More flexible floor Answer: B Explanation: Dust and debris interfere with adhesive bonding, causing tiles to loosen or fail. Question 45. Which joint type is recommended at changes of plane (e.g., wall to floor)? A) Rigid grout joint B) Flexible caulk joint C) Mortar bed joint D) Epoxy grout joint Answer: B Explanation: Flexible caulk (silicone or urethane) accommodates movement at changes of plane. Question 46. What is the function of a tile leveling system? A) Speed up installation
B) Ensure even height and minimize lippage C) Increase grout joint width D) Reduce material cost Answer: B Explanation: Tile leveling systems keep tiles at the same height, reducing lippage on large-format tiles. Question 47. Which of these is a plastic tile material commonly used for walls? A) Polyvinyl chloride (PVC) B) Marble C) Slate D) Porcelain Answer: A Explanation: PVC tiles are lightweight and commonly used in wall cladding applications. Question 48. What is the recommended minimum thickness for a cement backer board under floor tile? A) 1/4 inch B) 3/8 inch C) 1/2 inch D) 5/8 inch Answer: A Explanation: 1/4 inch is the minimum thickness for floor applications; thicker boards may be used for walls. Question 49. What is the main purpose of a waterproofing membrane under tile in a shower? A) Increase tile adhesion B) Prevent water from reaching the substrate or framing C) Change tile color D) Reduce labor Answer: B
C) Use small notched trowel D) Apply mortar to tile only Answer: B Explanation: Medium-bed mortars prevent sagging and provide better support for large tiles. Question 54. What is the main risk of not allowing proper curing time for mortar before grouting? A) Faster job completion B) Grout discoloration C) Weak tile bond and potential tile movement D) Stronger grout Answer: C Explanation: Insufficient curing weakens the mortar bond and may cause tile shifting or failure. Question 55. What does “back buttering” mean in tile installation? A) Applying grout to the tile edges B) Applying a thin layer of adhesive to the back of the tile C) Cleaning the back of the tile D) Polishing the tile surface Answer: B Explanation: Back buttering helps achieve better coverage and adhesion, especially for large tiles. Question 56. Which tile type is best suited for exterior freeze-thaw environments? A) Ceramic B) Porcelain C) Vinyl composite D) Limestone Answer: B Explanation: Porcelain is dense, impervious, and highly resistant to freeze-thaw cycles.
Question 57. What is the function of a transition strip? A) Increase tile thickness B) Provide a smooth transition between different flooring materials C) Hide grout lines D) Level tiles Answer: B Explanation: Transition strips bridge gaps and height differences at flooring material transitions. Question 58. Which of the following is considered an “uncoupling system”? A) Cement board B) Plywood underlayment C) Plastic membrane (e.g., Schluter-DITRA) D) Thinset mortar Answer: C Explanation: Uncoupling membranes like Schluter-DITRA isolate tile from substrate movement. Question 59. Which is the best cutting tool for glass mosaic tiles? A) Wet saw with glass blade B) Manual snap cutter C) Tile nippers D) Grout float Answer: A Explanation: A wet saw with a glass-specific blade makes clean, chip-free cuts in glass mosaics. Question 60. What is the primary function of a vapor barrier in a shower wall assembly? A) Prevent water vapor from entering wall cavities B) Increase tile adhesion C) Strengthen the wall D) Reduce tile lippage
B) Sanded grout contains sand for strength; unsanded is for narrower joints C) Unsanded grout is for exterior use only D) Sanded grout is used only for marble Answer: B Explanation: Sanded grout is for wider joints; unsanded is for smaller joints and delicate tiles. Question 65. Which of the following is NOT a property of quarry tiles? A) High porosity B) Made from natural clay C) Suitable for high-traffic areas D) Glossy glazed surface Answer: D Explanation: Quarry tiles are unglazed, making them slip-resistant but not glossy. Question 66. Which type of tile installation is most forgiving of substrate imperfections? A) Large-format tile B) Mosaic tile C) Natural stone slab D) Glass tile Answer: B Explanation: Mosaic tiles are small and flexible, conforming to minor variations in the substrate. Question 67. Which of the following is important when performing incidental carpentry for tile installation? A) Matching paint color B) Ensuring framing and sheathing are plumb, level, and properly spaced C) Using the cheapest materials D) Skipping fasteners Answer: B
Explanation: Proper framing and sheathing ensure a stable, long-lasting tile installation. Question 68. Which is the best method to cut natural stone tile for a clean edge? A) Manual snap cutter B) Wet saw with diamond blade C) Tile nippers D) Hacksaw Answer: B Explanation: Wet saws with diamond blades produce clean cuts in tough natural stone. Question 69. What is the main advantage of using a premixed grout? A) Lower cost B) Consistent color and faster installation C) Greater strength D) More flexible Answer: B Explanation: Premixed grouts eliminate color inconsistencies and save time, especially for small jobs. Question 70. Which type of caulk is most appropriate for wet areas such as showers? A) Acrylic latex B) Silicone C) Butyl rubber D) Oil-based Answer: B Explanation: Silicone caulk remains flexible and is highly resistant to moisture, making it ideal for showers. Question 71. What is the recommended method for setting tiles in a running bond (brick) pattern? A) 100% overlap
