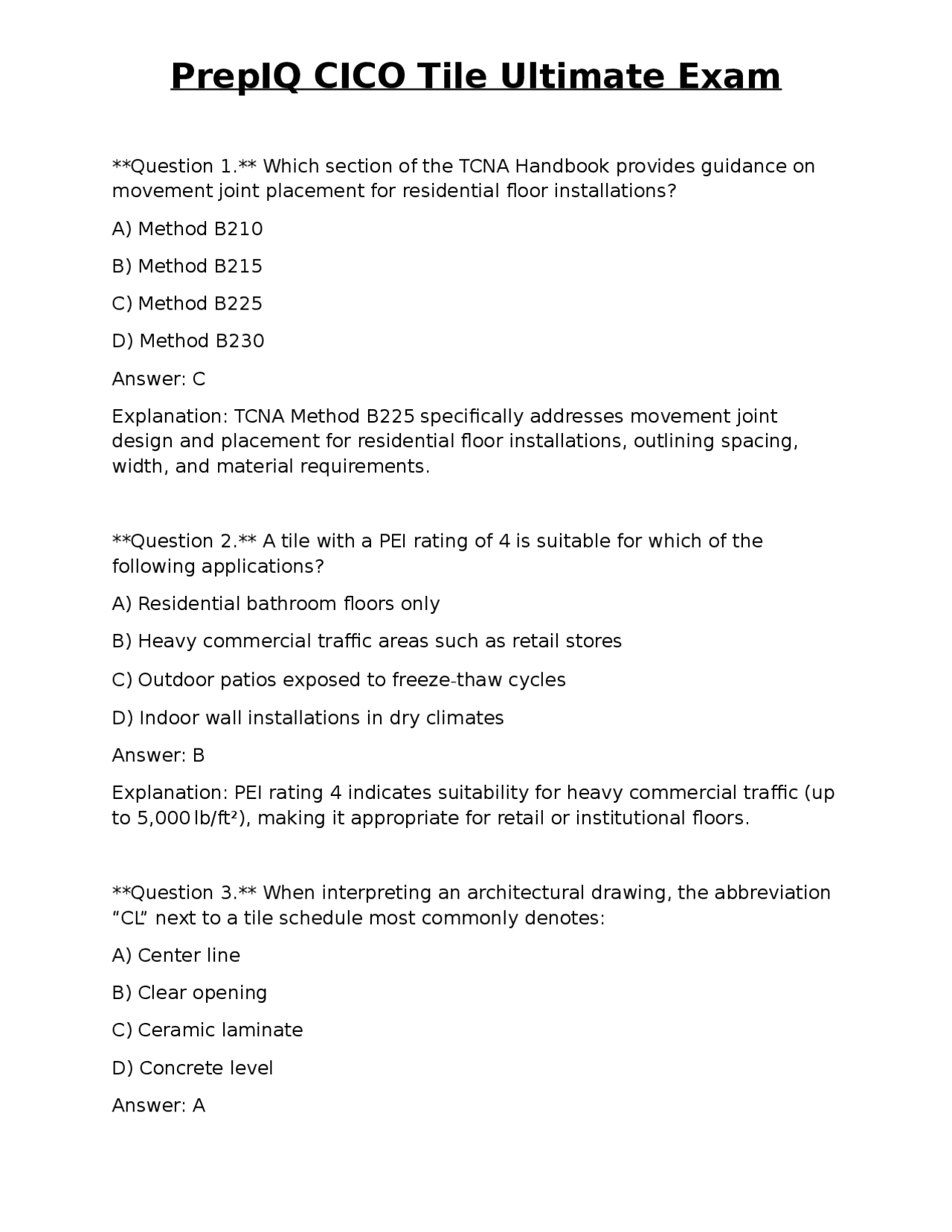

Question 1. Which section of the TCNA Handbook provides guidance on movement joint placement for residential floor installations? A) Method B B) Method B C) Method B D) Method B Answer: C Explanation: TCNA Method B225 specifically addresses movement joint design and placement for residential floor installations, outlining spacing, width, and material requirements. Question 2. A tile with a PEI rating of 4 is suitable for which of the following applications? A) Residential bathroom floors only B) Heavy commercial traffic areas such as retail stores C) Outdoor patios exposed to freeze-thaw cycles D) Indoor wall installations in dry climates Answer: B Explanation: PEI rating 4 indicates suitability for heavy commercial traffic (up to 5,000 lb/ft²), making it appropriate for retail or institutional floors. Question 3. When interpreting an architectural drawing, the abbreviation “CL” next to a tile schedule most commonly denotes: A) Center line B) Clear opening C) Ceramic laminate D) Concrete level Answer: A
Explanation: “CL” on a tile schedule typically stands for “center line,” indicating the reference line for layout alignment. Question 4. According to ANSI A108.01, the minimum mortar coverage for wall tile in a wet area must be: A) 50 % B) 70 % C) 80 % D) 95 % Answer: D Explanation: ANSI A108.01 requires a minimum of 95 % mortar coverage for wall tile in wet areas to prevent water penetration behind the tile. Question 5. Which type of grout is most appropriate for a floor that will be exposed to frequent chemical cleaning agents? A) Sanded cementitious grout B) Unsanded cementitious grout C) Epoxy grout D) Urethane grout Answer: C Explanation: Epoxy grout is highly resistant to chemicals, stains, and moisture, making it ideal for areas subjected to aggressive cleaning. Question 6. The absorption rate of a porcelain tile is typically less than: A) 0.5 % B) 1 % C) 3 % D) 5 %
D) Existing ceramic tile floor Answer: B Explanation: Plywood subfloors must meet a 1/8 in. deflection limit over 6 ft to ensure a stable base for tile; OSB typically does not meet this requirement without reinforcement. Question 10. In a shower pan installation using TCNA Method B421, the primary function of the “pre-slope” is to: A) Provide a decorative finish B) Direct water toward the drain C) Increase the thickness of the waterproofing membrane D) Reduce the amount of thin-set required Answer: B Explanation: The pre-slope creates a positive gradient that directs water to the drain, preventing pooling in the shower pan. Question 11. Which tool is most suitable for cutting a 2-in. thick natural stone slab with minimal chipping? A) Standard carbide-tipped snap cutter B) Wet tile saw with a diamond blade C) Handheld rotary tool with a masonry bit D) Scoring knife and hammer Answer: B Explanation: A wet tile saw equipped with a continuous rim diamond blade provides the cooling and precision needed to cut thick stone cleanly. Question 12. For a floor that will be heated by an electric radiant system, the recommended minimum thickness of the thin-set mortar layer is: A) 1 mm
B) 3 mm C) 5 mm D) 8 mm Answer: B Explanation: A 3 mm (¼ in.) thin-set layer ensures adequate coverage and flexibility while allowing efficient heat transfer from the radiant system. Question 13. Which of the following sealers is best suited for a highly porous natural stone countertop that will see frequent food contact? A) Penetrating silane-based sealer B) Film-forming acrylic sealer C) Epoxy coating D) Urethane topcoat Answer: A Explanation: Penetrating silane sealers fill pores without altering the stone’s appearance, providing protection while remaining safe for food contact. Question 14. When installing large-format tile (LFT) measuring 24 × 48 in., the recommended maximum allowable lippage is: A) 0.5 mm (1/64 in.) B) 1 mm (1/32 in.) C) 2 mm (1/16 in.) D) 3 mm (1/8 in.) Answer: B Explanation: To meet industry standards and avoid tripping hazards, LFT installations should limit lippage to 1 mm (1/32 in.). Question 15. The term “back-buttering” refers to:
Question 18. When selecting a setting material for a wood substrate with a moisture content of 12 %, the installer should use: A) Unmodified thin-set mortar B) Modified thin-set mortar with latex additive C) Epoxy mortar D) Portland cement-based thin-set without polymer Answer: B Explanation: Modified thin-set with latex improves adhesion and flexibility on wood substrates, especially when moisture levels are above 8 %. Question 19. The primary difference between a vapor retarder and a waterproofing membrane is: A) Vapor retarders stop liquid water, waterproofing membranes stop vapor B) Vapor retarders allow moisture vapor to pass, waterproofing membranes block liquid water intrusion C) Vapor retarders are always liquid-applied, waterproofing membranes are sheet-based D) Vapor retarders are used only on walls, waterproofing membranes only on floors Answer: B Explanation: Vapor retarders limit vapor diffusion but do not prevent liquid water, whereas waterproofing membranes create a barrier against liquid water penetration. Question 20. In a grout line that will be exposed to constant moisture, the recommended grout type is: A) Unsanded cementitious grout B) Sanded cementitious grout C) Epoxy grout
D) Urethane grout Answer: C Explanation: Epoxy grout is highly resistant to water absorption, stains, and mold, making it ideal for continuously wet grout lines. Question 21. For a floor with a 2 % slope toward a point drain, the minimum slope per foot required by most building codes is: A) 0.2 % B) 0.5 % C) 1 % D) 2 % Answer: C Explanation: Building codes generally require a minimum of 1 % slope (1/8 in. per foot) to ensure proper drainage toward point drains. Question 22. When installing a mosaic tile sheet on a wall, the recommended maximum substrate temperature before thin-set application is: A) 40 °F (4 °C) B) 55 °F (13 °C) C) 70 °F (21 °C) D) 80 °F (27 °C) Answer: C Explanation: Thin-set mortar performs optimally at temperatures of 70 °F (21 °C) or higher; lower temperatures can delay curing and reduce bond strength. Question 23. Which of the following is a characteristic of an “unmodified” thin-set mortar?
Question 26. Which of the following is NOT a recommended practice when mixing thin-set mortar on a job site? A) Adding water incrementally until the proper slump is achieved B) Using a high-speed electric drill with a paddle mixer C) Mixing for at least 5 minutes to achieve a uniform consistency D) Adding a second batch of water after the mortar has begun to set Answer: D Explanation: Adding water after the mortar has started to set can weaken the bond and compromise performance; it should not be done. Question 27. In a residential bathroom, the minimum grout joint width for 12 × 12 in. wall tile is generally: A) 1/32 in. (0.8 mm) B) 1/16 in. (1.5 mm) C) 3/32 in. (2.4 mm) D) 1/8 in. (3 mm) Answer: B Explanation: A 1/16 in. joint provides adequate space for grout while maintaining a tight appearance for standard 12 × 12 in. wall tile. Question 28. Which type of backer board is most suitable for a wet-room floor installation where the substrate is a concrete slab? A) Standard cement board (e.g., 1/4 in.) B) Fiberglass reinforced cement board (e.g., 1/2 in.) C) Gypsum-based backer board D) Plywood sheathing Answer: B
Explanation: Fiberglass reinforced cement board offers superior moisture resistance and dimensional stability for wet-room floors. Question 29. The correct procedure for installing a linear drain in a shower floor is to: A) Place the drain at the highest point of the floor B) Install the drain after the tile is set and grouted C) Embed the drain in a pre-sloped mortar bed with the proper slope toward the drain D) Use a flat mortar bed and rely on the drain’s built-in slope Answer: C Explanation: Linear drains require a pre-sloped mortar bed that directs water toward the drain opening, ensuring proper drainage. Question 30. When estimating the amount of grout needed for a floor with 1/8 in. joints, the typical coverage rate for sanded cementitious grout is: A) 10 lb per 100 ft² B) 20 lb per 100 ft² C) 30 lb per 100 ft² D) 40 lb per 100 ft² Answer: B Explanation: Sanded cement grout typically covers about 20 lb per 100 ft² with 1/8 in. joints, though actual usage may vary with tile size and layout. Question 31. Which of the following is a primary advantage of using epoxy grout in a commercial kitchen floor? A) Lower cost compared to cementitious grout B) Faster curing time C) Superior chemical resistance and stain-proofing
A) 0 mm (direct contact) B) 2 mm (1/16 in.) C) 5 mm (3/16 in.) D) 10 mm (3/8 in.) Answer: B Explanation: A 2 mm clearance allows for thermal expansion and prevents overheating of the adhesive while maintaining efficient heat transfer. Question 35. Which of the following is the most appropriate method for removing a cracked grout line without damaging surrounding tiles? A) Hammer and chisel B) Grout removal blade attached to a rotary tool C) High-pressure water jet D) Heat gun Answer: B Explanation: A grout removal blade on a rotary tool provides controlled removal with minimal risk to adjacent tiles. Question 36. The term “frost resistance” for a tile is primarily related to its: A) Slip resistance coefficient B) Water absorption rate C) PEI rating D) Color stability under UV light Answer: B Explanation: Frost resistance depends on low water absorption; tiles that absorb less water are less likely to suffer freeze-thaw damage.
Question 37. In a tiled shower niche, the recommended minimum depth of the waterproofing membrane from the interior surface to the exterior edge is: A) 2 mm (1/16 in.) B) 4 mm (1/8 in.) C) 6 mm (¼ in.) D) 10 mm (3/8 in.) Answer: C Explanation: A ¼ in. (6 mm) minimum overlap ensures a continuous waterproof barrier around the niche perimeter. Question 38. Which of the following adhesives is specifically formulated for bonding glass tile to a gypsum wallboard substrate? A) Modified thin-set with latex B) Epoxy mortar C) Mastic (premixed) adhesive D) Unmodified thin-set mortar Answer: C Explanation: Premixed mastic adhesives are often recommended for glass tile on gypsum because they provide adequate bond without the need for polymer-modified thin-set. Question 39. When installing a 3-in. thick quartz countertop, the installer should use which type of substrate preparation? A) Directly bond to wood with thin-set B) Apply a self-leveling underlayment to achieve a flat surface within 1/8 in. over 10 ft C) Install a cement backer board over the cabinets D) Use a silicone-based adhesive only
A) 50 %
B) 70 %
C) 85 %
D) 95 %
Answer: C Explanation: A ¼-in. notch typically yields about 85 % coverage for medium-size floor tile, meeting most code requirements. Question 43. The correct sequence for installing a wall-mounted grab bar into a tiled wall is: A) Drill through tile and substrate, then install the bar with anchors B) Remove tile where the bar will be placed, install anchors, then re-tile around the bar C) Install the bar first, then tile around it using a wet saw D) Use adhesive only, no mechanical fasteners required Answer: A Explanation: Drilling through the tile and substrate and securing the bar with appropriate anchors ensures a solid, code-compliant attachment. Question 44. Which of the following statements about “backer board” is true? A) It can be installed directly over a wooden subfloor without screws B) It provides a moisture barrier equivalent to a waterproofing membrane C) It must be sealed at seams with thin-set and fiberglass tape before tile installation D) It is only required for wall installations, not floors Answer: C Explanation: Proper seam treatment with thin-set and fiberglass mesh tape is essential to prevent movement and moisture infiltration.
Question 45. In a commercial kitchen, the recommended slip resistance value (COF) for floor tile is at least: A) 0. B) 0. C) 0. D) 0. Answer: C Explanation: A coefficient of friction (COF) of 0.60 or higher is generally required for commercial kitchen floors to reduce slip hazards. Question 46. When installing a tile over a radiant hydronic heating system, the installer must ensure that the thin-set mortar’s: A) Compressive strength exceeds 5,000 psi B) Flexural strength is at least 500 psi C) Curing temperature does not exceed 120 °F (49 °C) D) Water-to-cement ratio is less than 0. Answer: C Explanation: Excessive heat can cause rapid curing and weaken the bond; keeping the temperature below 120 °F protects the thin-set’s performance. Question 47. The purpose of a “control joint” in a tiled floor is to: A) Provide a decorative pattern in the grout line B) Allow for expansion and contraction of the substrate without stressing the tile C) Increase the surface area for grout adhesion D) Secure the tile to the substrate mechanically Answer: B
D) Install a plywood subfloor over the concrete Answer: B Explanation: TCNA tolerances for floor flatness are typically ≤1/32 in. over 10 ft; a self-leveling underlayment corrects the deviation. Question 51. Which type of sealant is recommended for sealing the perimeter of a tiled shower floor where the wall meets the floor? A) Acrylic caulk B) Polyurethane sealant C) Silicone sealant D) Epoxy sealant Answer: C Explanation: Silicone sealant remains flexible, adheres well to tile and shower pan materials, and resists water and mildew. Question 52. The most common cause of “lippage” in tile installations is: A) Using a trowel with too large a notch B. Insufficient mortar coverage on the back of the tile C) Over-wetting the thin-set mortar D) Installing tiles on a non-level substrate Answer: B Explanation: Inadequate coverage on the tile back leaves gaps that cause adjacent tiles to sit higher, creating lippage. Question 53. When working with glass tile, the installer should avoid which of the following practices? A) Using a diamond-coated blade on a wet saw B) Applying a thin-set with a high polymer content
C) Using a grout with a high sand content D) Pressing the tile with a rubber mallet Answer: C Explanation: High-sand grout can scratch glass tile surfaces; a fine-grit or unsanded grout is preferred. Question 54. For a floor that will be exposed to freeze-thaw cycles, the tile’s water absorption must be: A) ≤3 % B) ≤5 % C) ≤0.5 % D) ≤1 % Answer: D Explanation: A low absorption rate (≤1 %) ensures the tile does not retain water that could freeze and cause damage. Question 55. Which of the following is the correct method for preparing a wood substrate before installing cement backer board? A) Apply a thin layer of construction adhesive directly to the wood B) Fasten the backer board with stainless steel screws and use a vapor barrier over the wood C) Install a ¼-in. plywood overlay before the backer board D) No preparation is needed if the wood is dry Answer: B Explanation: Cement backer board must be securely fastened to wood with corrosion-resistant screws, and a vapor barrier protects the wood from moisture. Question 56. The term “ISO-rated” in reference to tile typically indicates:
