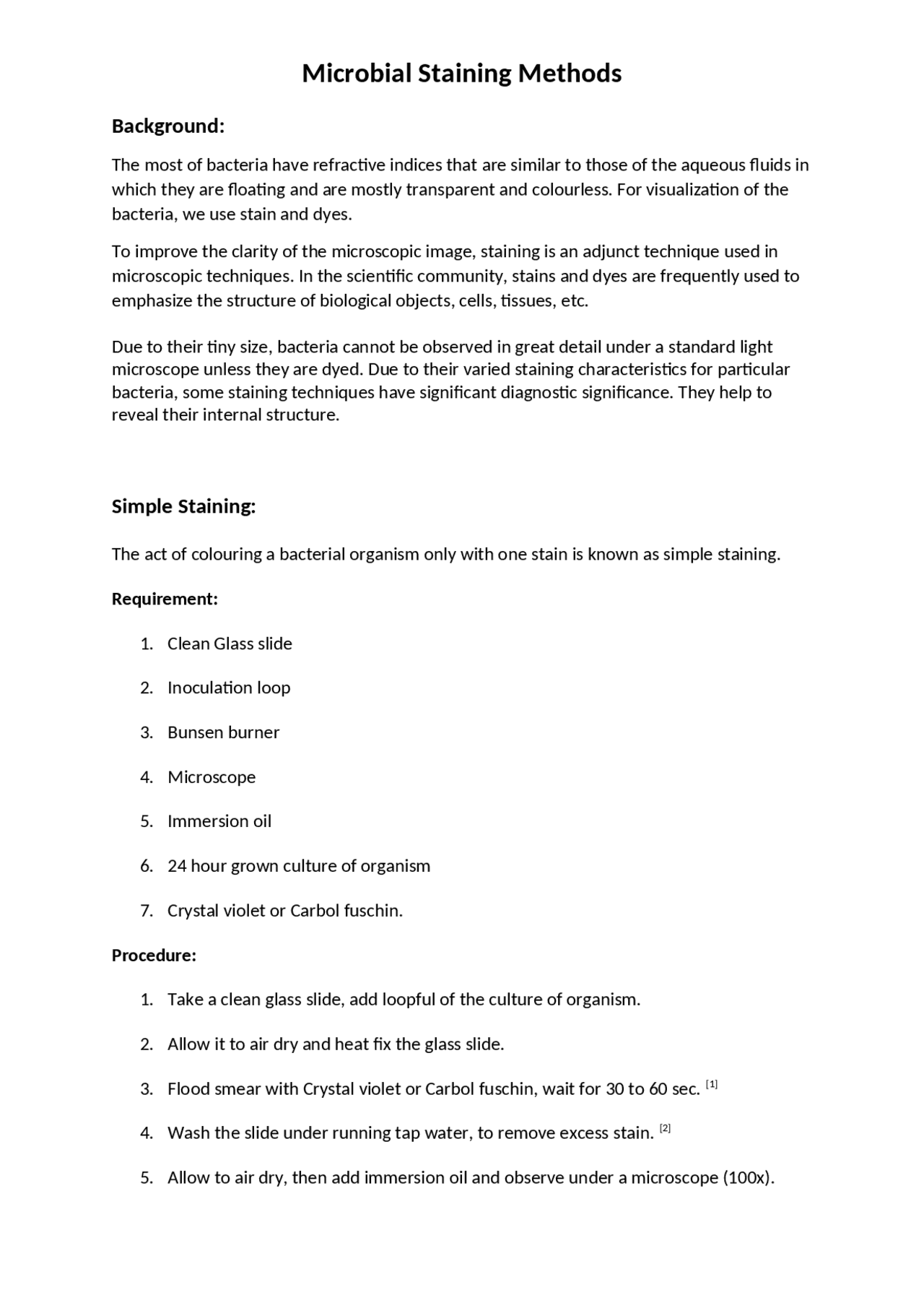

Microbial Staining Methods
Background:
The most of bacteria have refractive indices that are similar to those of the aqueous fluids in
which they are floating and are mostly transparent and colourless. For visualization of the
bacteria, we use stain and dyes.
To improve the clarity of the microscopic image, staining is an adjunct technique used in
microscopic techniques. In the scientific community, stains and dyes are frequently used to
emphasize the structure of biological objects, cells, tissues, etc.
Due to their tiny size, bacteria cannot be observed in great detail under a standard light
microscope unless they are dyed. Due to their varied staining characteristics for particular
bacteria, some staining techniques have significant diagnostic significance. They help to
reveal their internal structure.
Simple Staining:
The act of colouring a bacterial organism only with one stain is known as simple staining.
Requirement:
1. Clean Glass slide
2. Inoculation loop
3. Bunsen burner
4. Microscope
5. Immersion oil
6. 24 hour grown culture of organism
7. Crystal violet or Carbol fuschin.
Procedure:
1. Take a clean glass slide, add loopful of the culture of organism.
2. Allow it to air dry and heat fix the glass slide.
3. Flood smear with Crystal violet or Carbol fuschin, wait for 30 to 60 sec. [1]
4. Wash the slide under running tap water, to remove excess stain. [2]
5. Allow to air dry, then add immersion oil and observe under a microscope (100x).
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Microbial staining methods and more Schemes and Mind Maps Microbiology in PDF only on Docsity!

Background:

The most of bacteria have refractive indices that are similar to those of the aqueous fluids in which they are floating and are mostly transparent and colourless. For visualization of the bacteria, we use stain and dyes. To improve the clarity of the microscopic image, staining is an adjunct technique used in microscopic techniques. In the scientific community, stains and dyes are frequently used to emphasize the structure of biological objects, cells, tissues, etc. Due to their tiny size, bacteria cannot be observed in great detail under a standard light microscope unless they are dyed. Due to their varied staining characteristics for particular bacteria, some staining techniques have significant diagnostic significance. They help to reveal their internal structure.

Simple Staining:

The act of colouring a bacterial organism only with one stain is known as simple staining. Requirement:

  1. Clean Glass slide
  2. Inoculation loop
  3. Bunsen burner
  4. Microscope
  5. Immersion oil
  6. 24 hour grown culture of organism
  7. Crystal violet or Carbol fuschin. Procedure:
  8. Take a clean glass slide, add loopful of the culture of organism.
  9. Allow it to air dry and heat fix the glass slide.
  10. Flood smear with Crystal violet or Carbol fuschin, wait for 30 to 60 sec. [1]
  11. Wash the slide under running tap water, to remove excess stain. [2]
  12. Allow to air dry, then add immersion oil and observe under a microscope (100x).

Conclusion: The culture organism observes in purple colour under the microscope.

Negative staining:

Negative staining is also known as background staining. The stains in this method are not penetrate the microorganism, in its place, they remove the background, making the organism clear and visible in a dark light field. Requirement:

  1. Clean Glass slide
  2. Inoculation loop
  3. Bunsen burner
  4. Microscope
  5. Immersion oil
  6. 24 hour grown culture of organism
  7. Nigrosine or India ink. Procedure:
  8. A clean glass slide should have a small drop of nigrosine at the end of it.
  9. Take a loopful of culture sample and mix it with the drop of stain. [2]
  10. Utilizing the edge of another slide, spread the drop out over the slide. [1]
  11. Allow to air dry.
  12. Add drop of immersion oil and observe under microscope (100x). Conclusion: The culture organism observes without any colour, with dark background.
  1. Microscope
  2. Immersion oil
  3. 24 hour grown culture of organism
  4. Crystal violet
  5. Gram’s iodine
  6. Ethyl alcohol
  7. Safranin Procedure:
  8. Take a clean glass slide, add a loopful of culture sample.
  9. Allow smear to air dry, then heat fix the slide.
  10. Flood the slide with primary stain i.e., crystal violet for 1 min. [3]
  11. Rinse the slide under the running tap water.
  12. Flood the slide with mordant i.e., gram’s iodine for 1 min. [2]
  13. Rinse under the running tap water.
  14. Flood the slide with ethyl alcohol i.e., decolourizer for 10 to 15 sec. [2]
  15. Rinse under the running tap water.
  16. Flood the slide with secondary stain i.e., safranin for 30 sec. [3]
  17. Rinse under the running tap water.
  18. Allow it to air dry, then observe under the oil immersion lens of microscope. Conclusion: In the culture sample purple stain organism appear as gram positive and pink stain organism appear as gram negative.

Acid fast staining:

Acid fast staining also known as Ziel-Nehlson method. Requirement:

  1. Clean Glass slide
  2. Inoculation loop
  3. Bunsen burner
  4. Microscope
  5. Immersion oil
  6. 24 hour grown culture of organism
  7. Carbol fuschin
  8. Methylene blue
  9. Ethyl alcohol
  10. Water bath Procedure:
  11. Take a clean glass slide, add loopful of culture sample.
  12. Allow it to air dry, and heat fix the smear.
  13. Flood the slide with carbol fuschin and heat it carefully on water bath until steam rises, keep it for 3-5 min. [2]
  14. Rinse under the running tap water.
  15. Flood slide with alcohol for 10-15 sec. [1]
  16. Rinse under the running tap water.
  17. Flood slide with the methylene blue for 1 min. [2]
  18. Rinse under the running tap water.
  19. Allow to air dry, observe under the oil immersion lens (100x). Conclusion:
  1. Rinse under running tap water.
  2. Flood slide with counter stain i.e., safranin for 30 sec. [1]
  3. Rinse under tap water.
  4. Allow to air dry, observe under oil immersion lens(100x). Conclusion: The vegetative cells appear in pink and spores appear in green colour.

Capsule Staining:

The presence of the capsule can be easily seen using a differential stain called a capsule stain, which uses acidic and basic dyes to stain the bacterial cells and background, respectively. The bacteria are encased in the capsule, which is produced in the cytoplasm and secreted outside the cell. Requirement:

  1. Clean Glass slide
  2. Inoculation loop
  3. Bunsen burner
  4. Microscope
  5. Immersion oil
  6. 24 hour grown culture of organism
  7. India ink
  8. Crystal violet Procedure:
  9. Take a clean glass slide, add a drop of India ink at the end of the slide.[1]
  10. Take loopful of culture and mix with the stain.
  11. Spread the drop out over the slide by using the edge of another slide.[1]
  12. Allow it to air dry, and heat fix the slide.
  1. Flood the slide with the crystal violet for 1 min.[4]
  2. Rinse under the tap water.
  3. Air dry slide, observe under oil immersion lens. Conclusion: The purple cells surrounded by a clear halo dark background. The halo is the capsule.

Flagella Staining:

Flagella staining is used to determine if a bacterium is motile or not. Based on the structure, arrangement, size, and location of the bacterial flagella, this particular staining method aids in the distinction of the genus and species. Requirements:

  1. Clean Glass slide
  2. Inoculation loop
  3. Bunsen burner
  4. Microscope
  5. Immersion oil
  6. 24 hour grown culture of organism
  7. Cover slip
  8. Distilled water
  9. Ryu stain Procedure:
  10. Take loopful of culture, add it to the distilled water keep it for 10-20 min.
  11. Add a drop of water containing culture.
  12. Place a cover slip over the drop of the sample.[1]
  13. Observe the slide under the 40x lens, if the motile cells are seen.

The blue colour-stained fungal structure against the pale blue background.

References:

  1. Microbes in practice, Bisen Prakash S., IK International, New Delhi, 2014, 139-155.
  2. staining_techniques_in_microbiology..pdf
  3. https://vlab.amrita.edu/index.php?sub=3&brch=73&sim=208&cnt=
  4. Types of Staining Techniques Used in Microbiology – Microbe Online
  5. Lactophenol Cotton Blue Staining Principle, Procedure, Result. (microbiologynote.com)

FAQ:

Q1 Why should the slide be flooded with stain at the time of heating? Ans. For uniform distribution of heat, otherwise slide may break. Q2 Is there any alternative for heat fixation of smear? Ans. Yes, there is use of chemicals for smear fixation like aldehydes, osmium tetroxide, Acetic acid.
