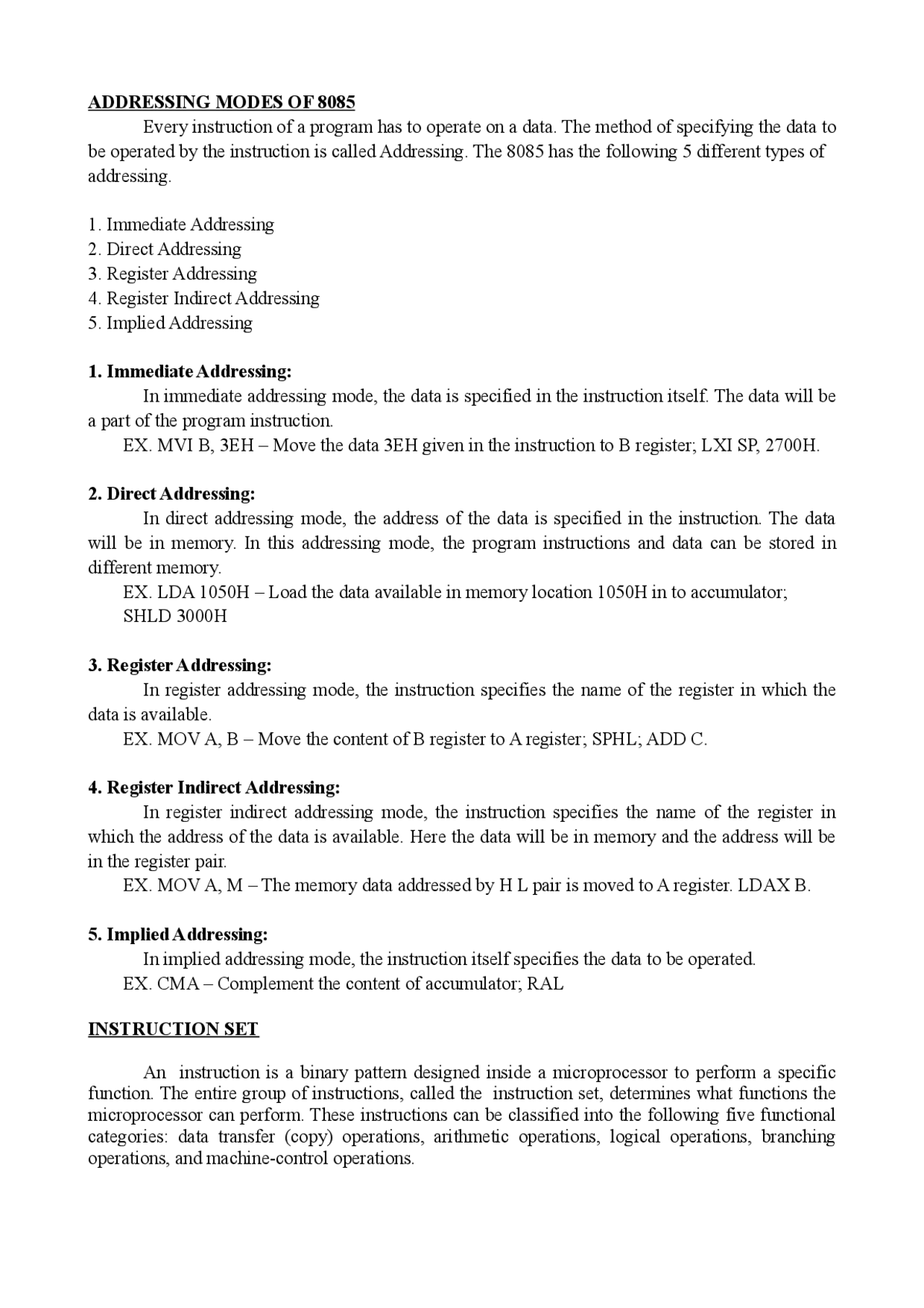

ADDRESSING MODES OF 8085
Every instruction of a program has to operate on a data. The method of specifying the data to be operated by the instruction is called Addressing. The 8085 has the following 5 different types of
addressing.
- Immediate Addressing
- Direct Addressing
- Register Addressing
- Register Indirect Addressing
- Implied Addressing 1. Immediate Addressing:
In immediate addressing mode, the data is specified in the instruction itself. The data will be
a part of the program instruction. EX. MVI B, 3EH – Move the data 3EH given in the instruction to B register; LXI SP, 2700H.
2. Direct Addressing:
In direct addressing mode, the address of the data is specified in the instruction. The data will be in memory. In this addressing mode, the program instructions and data can be stored in
different memory.
EX. LDA 1050H – Load the data available in memory location 1050H in to accumulator; SHLD 3000H
3. Register Addressing:
In register addressing mode, the instruction specifies the name of the register in which the
data is available. EX. MOV A, B – Move the content of B register to A register; SPHL; ADD C.
4. Register Indirect Addressing:
In register indirect addressing mode, the instruction specifies the name of the register in which the address of the data is available. Here the data will be in memory and the address will be
in the register pair.
EX. MOV A, M – The memory data addressed by H L pair is moved to A register. LDAX B.
5. Implied Addressing:
In implied addressing mode, the instruction itself specifies the data to be operated. EX. CMA – Complement the content of accumulator; RAL
INSTRUCTION SET
An instruction is a binary pattern designed inside a microprocessor to perform a specific function. The entire group of instructions, called the instruction set, determines what functions the microprocessor can perform. These instructions can be classified into the following five functional categories: data transfer (copy) operations, arithmetic operations, logical operations, branching operations, and machine-control operations.
Data Transfer (Copy) Operations
This group of instructions copy data from a location called a source to another location called a destination, without modifying the contents of the source. In technical manuals, the term data transfer is used for this copying function. However, the term transfer is misleading; it creates the impression that the contents of the source are destroyed when, in fact, the contents are retained without any modification. The various types of data transfer (copy) are listed below together with examples of each type:
Types Examples
- Between Registers. 1. Copy the contents of the register B into register D.
- Specific data byte to a register or a memory location.
- Load register B with the data byte 32H.
- Between a memory location and a register.
- From a memory location 2000H to register B.
- Between an I/O device and the accumulator.
4.From an input keyboard to the accumulator.
Arithmetic Operations
These instructions perform arithmetic operations such as addition, subtraction, increment, and decrement.
Addition - Any 8-bit number, or the contents of a register or the contents of a memory location can be added to the contents of the accumulator and the sum is stored in the accumulator. No two other 8-bit registers can be added directly (e.g., the contents of register B cannot be added directly to the contents of the register C). The instruction DAD is an exception; it adds 16-bit data directly in register pairs.
Subtraction - Any 8-bit number, or the contents of a register, or the contents of a memory location can be subtracted from the contents of the accumulator and the results stored in the accumulator. The subtraction is performed in 2's compliment, and the results if negative, are expressed in 2's complement. No two other registers can be subtracted directly.
Increment/Decrement - The 8-bit contents of a register or a memory location can be incremented or decrement by 1. Similarly, the 16-bit contents of a register pair (such as BC) can be incremented or decrement by 1. These increment and decrement operations differ from addition and subtraction in an important way; i.e., they can be performed in any one of the registers or in a memory location.
1. In data transfer, the contents of the source are not destroyed; only the contents of the destination are changed. The data copy instructions do not affect the flags. 2. Arithmetic and Logical operations are performed with the contents of the accumulator, and the results are stored in the accumulator (with some expectations). The flags are affected according to the results. 3. Any register including the memory can be used for increment and decrement. 4. A program sequence can be changed either conditionally or by testing for a given data condition.
8. Instruction Format
An instruction is a command to the microprocessor to perform a given task on a specified data. Each instruction has two parts: one is task to be performed, called the operation code (opcode), and the second is the data to be operated on, called the operand. The operand (or data) can be specified in various ways. It may include 8-bit (or 16-bit ) data, an internal register, a memory location, or 8-bit (or 16-bit) address. In some instructions, the operand is implicit.
Instruction word size
The 8085 instruction set is classified into the following three groups according to word size:
1. One-word or 1-byte instructions 2. Two-word or 2-byte instructions 3. Three-word or 3-byte instructions
In the 8085, "byte" and "word" are synonymous because it is an 8-bit microprocessor. However, instructions are commonly referred to in terms of bytes rather than words.
One-Byte Instructions
A 1-byte instruction includes the opcode and operand in the same byte. Operand(s) are internal register and are coded into the instruction. For example:
Task Op code
Operand (^) Binary Code
Hex Code Copy the contents of the accumulator in the register C.
MOV C,A 0100 1111 4FH
Add the contents of register B to the contents of the accumulator.
ADD B 1000 0000 80H
Invert (compliment) each bit in the accumulator.
CMA 0010 1111 2FH
These instructions are 1-byte instructions performing three different tasks. In the first instruction, both operand registers are specified. In the second instruction, the operand
B is specified and the accumulator is assumed. Similarly, in the third instruction, the accumulator is assumed to be the implicit operand. These instructions are stored in 8- bit binary format in memory; each requires one memory location.
MOV rd, rs rd <-- rs copies contents of rs into rd. Coded as 01 ddd sss where ddd is a code for one of the 7 general registers which is the destination of the data, sss is the code of the source register.
Example: MOV A,B Coded as 01111000 = 78H = 170 octal (octal was used extensively in instruction design of such processors).
ADD r A <-- A + r
Two-Byte Instructions
In a two-byte instruction, the first byte specifies the operation code and the second byte specifies the operand. Source operand is a data byte immediately following the opcode. For example:
Task Opcode Operand Binary Code
Hex Code
Load an 8-bit data byte in the accumulator.
MVI A, Data 3E
Data
First Byte
Second Byte
Assume that the data byte is 32H. The assembly language instruction is written as
Mnemonics Hex code
MVI A, 32H 3E 32H
The instruction would require two memory locations to store in memory.
MVI r,data r <-- data Example: MVI A,30H coded as 3EH 30H as two contiguous bytes. This is an example of immediate addressing.
ADI data A <-- A + data
OUT port
0011 1110
DATA
8085 INSTRUCTION SET
INSTRUCTION DETAILS
DATA TRANSFER INSTRUCTIONS
Opcode Operand Description
Copy from source to destination MOV Rd, Rs This instruction copies the contents of the source M, Rs register into the destination register; the contents of Rd, M the source register are not altered. If one of the operands is a memory location, its location is specified by the contents of the HL registers. Example: MOV B, C or MOV B, M
Move immediate 8-bit MVI Rd, data The 8-bit data is stored in the destination register or M, data memory. If the operand is a memory location, its location is specified by the contents of the HL registers. Example: MVI B, 57H or MVI M, 57H
Load accumulator LDA 16-bit address The contents of a memory location, specified by a 16-bit address in the operand, are copied to the accumulator. The contents of the source are not altered. Example: LDA 2034H
Load accumulator indirect LDAX B/D Reg. pair The contents of the designated register pair point to a memory location. This instruction copies the contents of that memory location into the accumulator. The contents of either the register pair or the memory location are not altered. Example: LDAX B
Load register pair immediate LXI Reg. pair, 16-bit data The instruction loads 16-bit data in the register pair designated in the operand. Example: LXI H, 2034H or LXI H, XYZ
Load H and L registers direct LHLD 16-bit address The instruction copies the contents of the memory location pointed out by the 16-bit address into register L and copies the contents of the next memory location into register H. The contents of source memory locations are not altered. Example: LHLD 2040H
Store accumulator direct STA 16-bit address The contents of the accumulator are copied into the memory location specified by the operand. This is a 3-byte instruction, the second byte specifies the low-order address and the third byte specifies the high-order address. Example: STA 4350H
Store accumulator indirect STAX Reg. pair The contents of the accumulator are copied into the memory location specified by the contents of the operand (register pair). The contents of the accumulator are not altered. Example: STAX B
Store H and L registers direct SHLD 16-bit address The contents of register L are stored into the memory location specified by the 16-bit address in the operand and the contents of H register are stored into the next memory location by incrementing the operand. The contents of registers HL are not altered. This is a 3-byte instruction, the second byte specifies the low-order address and the third byte specifies the high-order address. Example: SHLD 2470H
Exchange H and L with D and E XCHG none The contents of register H are exchanged with the contents of register D, and the contents of register L are exchanged with the contents of register E. Example: XCHG
Copy H and L registers to the stack pointer SPHL none The instruction loads the contents of the H and L registers into the stack pointer register, the contents of the H register provide the high-order address and the contents of the L register provide the low-order address. The contents of the H and L registers are not altered. Example: SPHL
Exchange H and L with top of stack XTHL none The contents of the L register are exchanged with the stack location pointed out by the contents of the stack pointer register. The contents of the H register are exchanged with the next stack location (SP+1); however, the contents of the stack pointer register are not altered. Example: XTHL
ARITHMETIC INSTRUCTIONS
Opcode Operand Description
Add register or memory to accumulator ADD R The contents of the operand (register or memory) are M added to the contents of the accumulator and the result is stored in the accumulator. If the operand is a memory location, its location is specified by the contents of the HL registers. All flags are modified to reflect the result of the addition. Example: ADD B or ADD M
Add register to accumulator with carry ADC R The contents of the operand (register or memory) and M the Carry flag are added to the contents of the accumulator and the result is stored in the accumulator. If the operand is a memory location, its location is specified by the contents of the HL registers. All flags are modified to reflect the result of the addition. Example: ADC B or ADC M
Add immediate to accumulator ADI 8-bit data The 8-bit data (operand) is added to the contents of the accumulator and the result is stored in the accumulator. All flags are modified to reflect the result of the addition. Example: ADI 45H
Add immediate to accumulator with carry ACI 8-bit data The 8-bit data (operand) and the Carry flag are added to the contents of the accumulator and the result is stored in the accumulator. All flags are modified to reflect the result of the addition. Example: ACI 45H
Add register pair to H and L registers DAD Reg. pair The 16-bit contents of the specified register pair are added to the contents of the HL register and the sum is stored in the HL register. The contents of the source register pair are not altered. If the result is larger than 16 bits, the CY flag is set. No other flags are affected. Example: DAD H
Subtract register or memory from accumulator SUB R The contents of the operand (register or memory ) are M subtracted from the contents of the accumulator, and the result is stored in the accumulator. If the operand is a memory location, its location is specified by the contents of the HL registers. All flags are modified to reflect the result of the subtraction. Example: SUB B or SUB M
Subtract source and borrow from accumulator SBB R The contents of the operand (register or memory ) and M the Borrow flag are subtracted from the contents of the accumulator and the result is placed in the accumulator. If the operand is a memory location, its location is specified by the contents of the HL registers. All flags are modified to reflect the result of the subtraction. Example: SBB B or SBB M
Subtract immediate from accumulator SUI 8-bit data The 8-bit data (operand) is subtracted from the contents of the accumulator and the result is stored in the accumulator. All flags are modified to reflect the result of the subtraction. Example: SUI 45H
Subtract immediate from accumulator with borrow SBI 8-bit data The 8-bit data (operand) and the Borrow flag are subtracted from the contents of the accumulator and the result is stored in the accumulator. All flags are modified to reflect the result of the subtracion. Example: SBI 45H
Increment register or memory by 1 INR R The contents of the designated register or memory) are M incremented by 1 and the result is stored in the same place. If the operand is a memory location, its location is specified by the contents of the HL registers. Example: INR B or INR M
Increment register pair by 1 INX R The contents of the designated register pair are incremented by 1 and the result is stored in the same place. Example: INX H
BRANCHING INSTRUCTIONS
Opcode Operand Description
Jump unconditionally JMP 16-bit address The program sequence is transferred to the memory location specified by the 16-bit address given in the operand. Example: JMP 2034H or JMP XYZ
Jump conditionally
Operand: 16-bit address
The program sequence is transferred to the memory location specified by the 16-bit address given in the operand based on the specified flag of the PSW as described below. Example: JZ 2034H or JZ XYZ
Opcode Description Flag Status JC Jump on Carry CY = 1 JNC Jump on no Carry CY = 0 JP Jump on positive S = 0 JM Jump on minus S = 1 JZ Jump on zero Z = 1 JNZ Jump on no zero Z = 0 JPE Jump on parity even P = 1 JPO Jump on parity odd P = 0
Unconditional subroutine call CALL 16-bit address The program sequence is transferred to the memory location specified by the 16-bit address given in the operand. Before the transfer, the address of the next instruction after CALL (the contents of the program counter) is pushed onto the stack. Example: CALL 2034H or CALL XYZ
Call conditionally
Operand: 16-bit address
The program sequence is transferred to the memory location specified by the 16-bit address given in the operand based on the specified flag of the PSW as described below. Before the transfer, the address of the next instruction after the call (the contents of the program counter) is pushed onto the stack. Example: CZ 2034H or CZ XYZ
Opcode Description Flag Status CC Call on Carry CY = 1 CNC Call on no Carry CY = 0 CP Call on positive S = 0 CM Call on minus S = 1 CZ Call on zero Z = 1 CNZ Call on no zero Z = 0 CPE Call on parity even P = 1 CPO Call on parity odd P = 0
Load program counter with HL contents PCHL none The contents of registers H and L are copied into the program counter. The contents of H are placed as the high-order byte and the contents of L as the low-order byte. Example: PCHL
Restart RST 0-7 The RST instruction is equivalent to a 1-byte call instruction to one of eight memory locations depending upon the number. The instructions are generally used in conjunction with interrupts and inserted using external hardware. However these can be used as software instructions in a program to transfer program execution to one of the eight locations. The addresses are:
Instruction Restart Address RST 0 0000H RST 1 0008H RST 2 0010H RST 3 0018H RST 4 0020H RST 5 0028H RST 6 0030H RST 7 0038H
The 8085 has four additional interrupts and these interrupts generate RST instructions internally and thus do not require any external hardware. These instructions and their Restart addresses are:
Interrupt Restart Address TRAP 0024H RST 5.5 002CH RST 6.5 0034H RST 7.5 003CH
LOGICAL INSTRUCTIONS
Opcode Operand Description
Compare register or memory with accumulator CMP R The contents of the operand (register or memory) are M compared with the contents of the accumulator. Both contents are preserved. The result of the comparison is shown by setting the flags of the PSW as follows: if (A) < (reg/mem): carry flag is set if (A) = (reg/mem): zero flag is set if (A) > (reg/mem): carry and zero flags are reset Example: CMP B or CMP M
Compare immediate with accumulator CPI 8-bit data The second byte (8-bit data) is compared with the contents of the accumulator. The values being compared remain unchanged. The result of the comparison is shown by setting the flags of the PSW as follows: if (A) < data: carry flag is set if (A) = data: zero flag is set if (A) > data: carry and zero flags are reset Example: CPI 89H
Logical AND register or memory with accumulator ANA R The contents of the accumulator are logically ANDed with M the contents of the operand (register or memory), and the result is placed in the accumulator. If the operand is a memory location, its address is specified by the contents of HL registers. S, Z, P are modified to reflect the result of the operation. CY is reset. AC is set. Example: ANA B or ANA M
Logical AND immediate with accumulator ANI 8-bit data The contents of the accumulator are logically ANDed with the 8-bit data (operand) and the result is placed in the accumulator. S, Z, P are modified to reflect the result of the operation. CY is reset. AC is set. Example: ANI 86H
Rotate accumulator left through carry RAL none Each binary bit of the accumulator is rotated left by one position through the Carry flag. Bit D 7 is placed in the Carry flag, and the Carry flag is placed in the least significant position D 0. CY is modified according to bit D 7. S, Z, P, AC are not affected. Example: RAL
Rotate accumulator right through carry RAR none Each binary bit of the accumulator is rotated right by one position through the Carry flag. Bit D 0 is placed in the Carry flag, and the Carry flag is placed in the most significant position D 7. CY is modified according to bit D 0. S, Z, P, AC are not affected. Example: RAR
Complement accumulator CMA none The contents of the accumulator are complemented. No flags are affected. Example: CMA
Complement carry CMC none The Carry flag is complemented. No other flags are affected. Example: CMC
Set Carry STC none The Carry flag is set to 1. No other flags are affected. Example: STC
CONTROL INSTRUCTIONS
Opcode Operand Description
No operation NOP none No operation is performed. The instruction is fetched and decoded. However no operation is executed. Example: NOP
Halt and enter wait state HLT none The CPU finishes executing the current instruction and halts any further execution. An interrupt or reset is necessary to exit from the halt state. Example: HLT
Disable interrupts DI none The interrupt enable flip-flop is reset and all the interrupts except the TRAP are disabled. No flags are affected. Example: DI
Enable interrupts EI none The interrupt enable flip-flop is set and all interrupts are enabled. No flags are affected. After a system reset or the acknowledgement of an interrupt, the interrupt enable flip- flop is reset, thus disabling the interrupts. This instruction is necessary to reenable the interrupts (except TRAP). Example: EI
