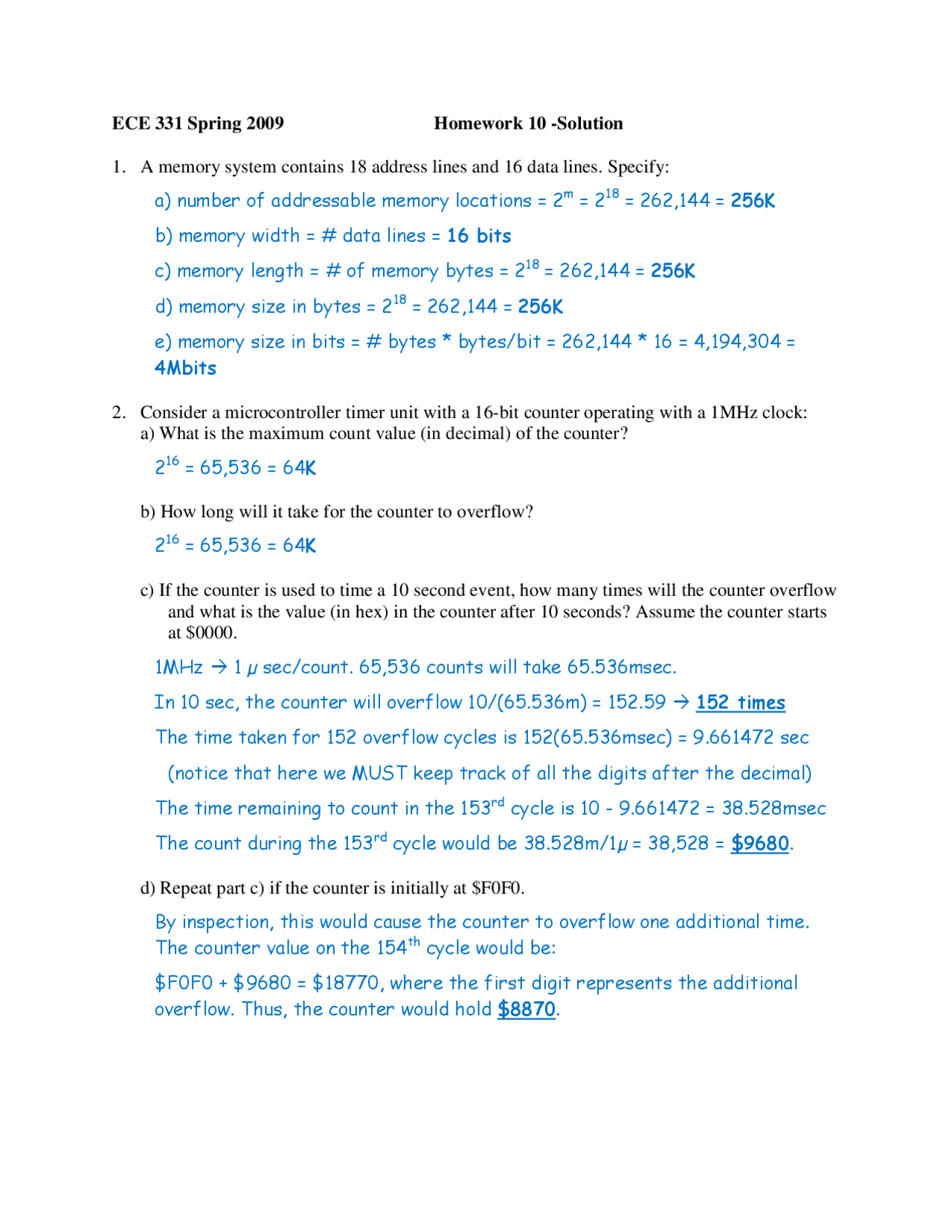

ECE 331 Spring 2009 Homework 10 -Solution
1. A memory system contains 18 address lines and 16 data lines. Specify:
a) number of addressable memory locations = 2m = 218 = 262,144 = 256K
b) memory width = # data lines = 16 bits
c) memory length = # of memory bytes = 218 = 262,144 = 256K
d) memory size in bytes = 218 = 262,144 = 256K
e) memory size in bits = # bytes * bytes/bit = 262,144 * 16 = 4,194,304 =
4Mbits
2. Consider a microcontroller timer unit with a 16-bit counter operating with a 1MHz clock:
a) What is the maximum count value (in decimal) of the counter?
216 = 65,536 = 64K
b) How long will it take for the counter to overflow?
216 = 65,536 = 64K
c) If the counter is used to time a 10 second event, how many times will the counter overflow
and what is the value (in hex) in the counter after 10 seconds? Assume the counter starts
at $0000.
1MHz 1 µ sec/count. 65,536 counts will take 65.536msec.
In 10 sec, the counter will overflow 10/(65.536m) = 152.59 152 times
The time taken for 152 overflow cycles is 152(65.536msec) = 9.661472 sec
(notice that here we MUST keep track of all the digits after the decimal)
The time remaining to count in the 153rd cycle is 10 - 9.661472 = 38.528msec
The count during the 153rd cycle would be 38.528m/1µ = 38,528 = $9680.
d) Repeat part c) if the counter is initially at $F0F0.
By inspection, this would cause the counter to overflow one additional time.
The counter value on the 154th cycle would be:
$F0F0 + $9680 = $18770, where the first digit represents the additional
overflow. Thus, the counter would hold $8870.
pf2

Partial preview of the text

Download ECE 331 Spring 2009 Homework 10 Solution: Memory Systems and Microcontroller Timers - Prof and more Assignments Electrical and Electronics Engineering in PDF only on Docsity!

ECE 331 Spring 2009 Homework 10 -Solution

1. A memory system contains 18 address lines and 16 data lines. Specify:

a) number of addressable memory locations = 2

m

18

= 262,144 = 256K

b) memory width = # data lines = 16 bits

c) memory length = # of memory bytes = 2

18

= 262,144 = 256K

d) memory size in bytes = 2

18

= 262,144 = 256K

e) memory size in bits = # bytes * bytes/bit = 262,144 * 16 = 4,194,304 =

4Mbits

2. Consider a microcontroller timer unit with a 16-bit counter operating with a 1MHz clock:

a) What is the maximum count value (in decimal) of the counter?

16

= 65,536 = 64 K

b) How long will it take for the counter to overflow?

16

= 65,536 = 64 K

c) If the counter is used to time a 10 second event, how many times will the counter overflow

and what is the value (in hex) in the counter after 10 seconds? Assume the counter starts

at $0000.

1MHz  1 μ sec/count. 65,536 counts will take 65.536msec.

In 10 sec, the counter will overflow 10/(65.536m) = 152.59  152 times

The time taken for 152 overflow cycles is 152(65.536msec) = 9.661472 sec

(notice that here we MUST keep track of all the digits after the decimal)

The time remaining to count in the 153

rd

cycle is 10 - 9.661472 = 38.528msec

The count during the 153

rd

cycle would be 38.528m/1μ = 38,528 = $.

d) Repeat part c) if the counter is initially at $F0F0.

By inspection, this would cause the counter to overflow one additional time.

The counter value on the 154

th

cycle would be:

$F0F0 + $9680 = $18770, where the first digit represents the additional

overflow. Thus, the counter would hold $.

3. Following examples from lecture, construct and diagram a memory interface using the

HCS12 MCU and external 1k-byte x 8-bit RAM chips (like the figure below). Show how an

external 4k X 16 RAM could be generated. Show all the necessary address, data, and control

signals.

The color-coded schematic below shows one method to realize this memory

interface using an active-low decoder to generate the chip enable for each 16-

bit block of memory. Alternatively, logic gates could be used to decode the

upper 2 bits of the 12-bit memory address.

D(7:0)

R/W CE

1kX SRAM

A (9:0)

D(7:0)

R/W CE

1kX SRAM

A (9:0)

D(7:0)

R/W CE

1kX SRAM

A (9:0)

D(7:0)

R/W CE

1kX SRAM

A (9:0)

D(7:0)

R/W CE

1kX SRAM

A (9:0)

D(7:0)

R/W CE

1kX SRAM

A (9:0)

D(7:0)

R/W CE

1kX SRAM

A (9:0)

D(7:0)

R/W CE

1kX SRAM

A (9:0)

Decoder

9:

11:0 9:

15:

10 11

9:

9:

9:

9:

9:

9:

9:

7:

7:

7:

7:

13:

13:

13:

13:

16-bit block 0 $000 - $3FF

$400 - $7FF

$800 - $BFF

$C00 - $FFF

16-bit block 1

16-bit block 2

16-bit block 3

MCU

R/W’

Data

Address
