Microprocessors and Digital Systems - Quiz | ECE 331, Quizzes of Electrical and Electronics Engineering

Michigan State University (MSU)Electrical and Electronics Engineering
Prof. Andrew Mason

Material Type: Quiz; Professor: Mason; Class: Microprocessors & Digital Sys; Subject: Electrical & Computer Egr; University: Michigan State University; Term: Spring 2009;

Typology: Quizzes

Pre 2010

Uploaded on 07/28/2009

koofers-user-2la
koofers-user-2la 🇺🇸

10 documents

1 / 1

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

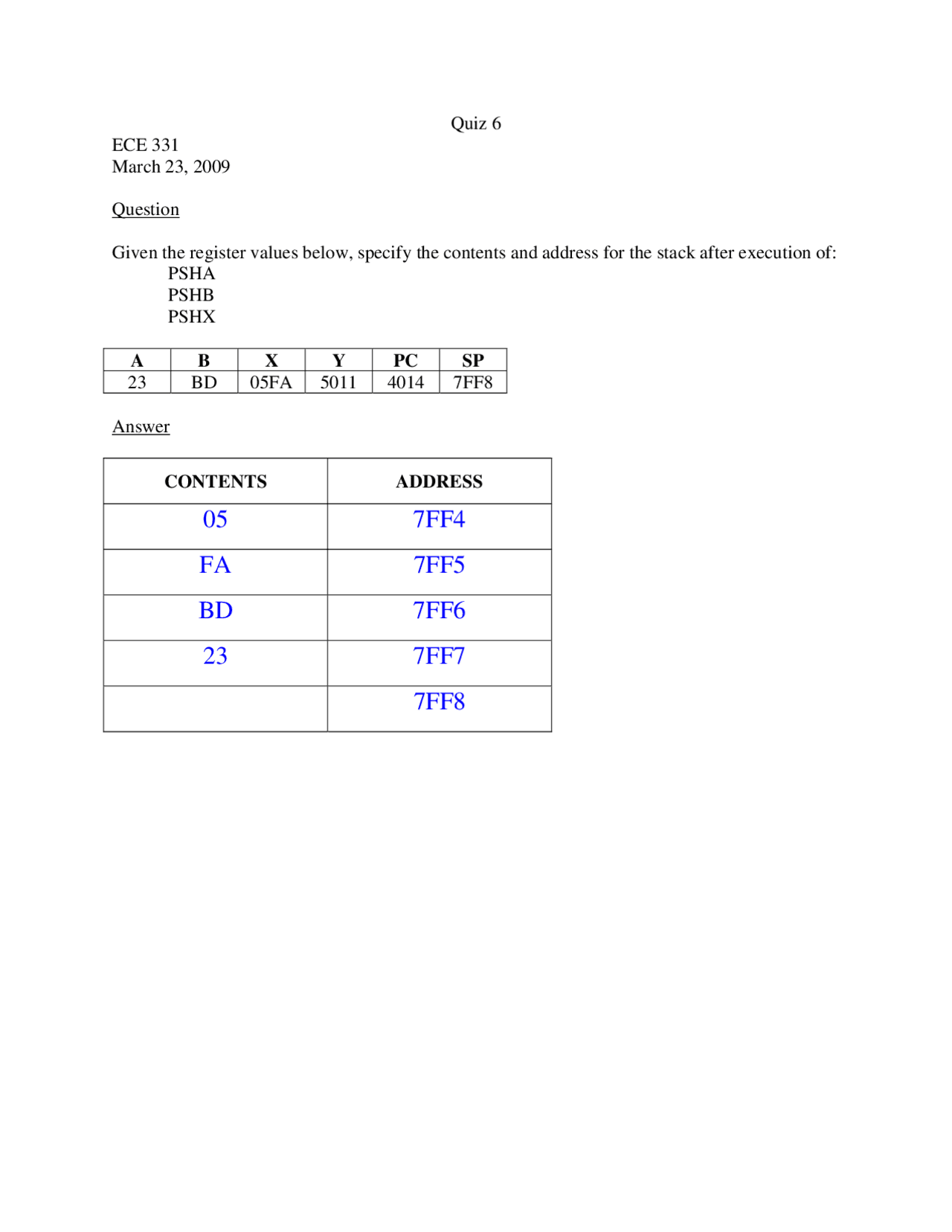

Quiz 6
ECE 331
March 23, 2009
Question
Given the register values below, specify the contents and address for the stack after execution of:
PSHA
PSHB
PSHX
A B X Y PC SP
23 BD 05FA 5011 4014 7FF8
Answer
CONTENTS ADDRESS
05 7FF4
FA 7FF5
BD 7FF6
23 7FF7
7FF8

Partial preview of the text

Download Microprocessors and Digital Systems - Quiz | ECE 331 and more Quizzes Electrical and Electronics Engineering in PDF only on Docsity!

Quiz 6 ECE 331 March 23, 2009 Question Given the register values below, specify the contents and address for the stack after execution of: PSHA PSHB PSHX A B X Y PC SP 23 BD 05FA 5011 4014 7FF Answer CONTENTS ADDRESS

05 7FF

FA 7FF

BD 7FF

23 7FF

7FF
