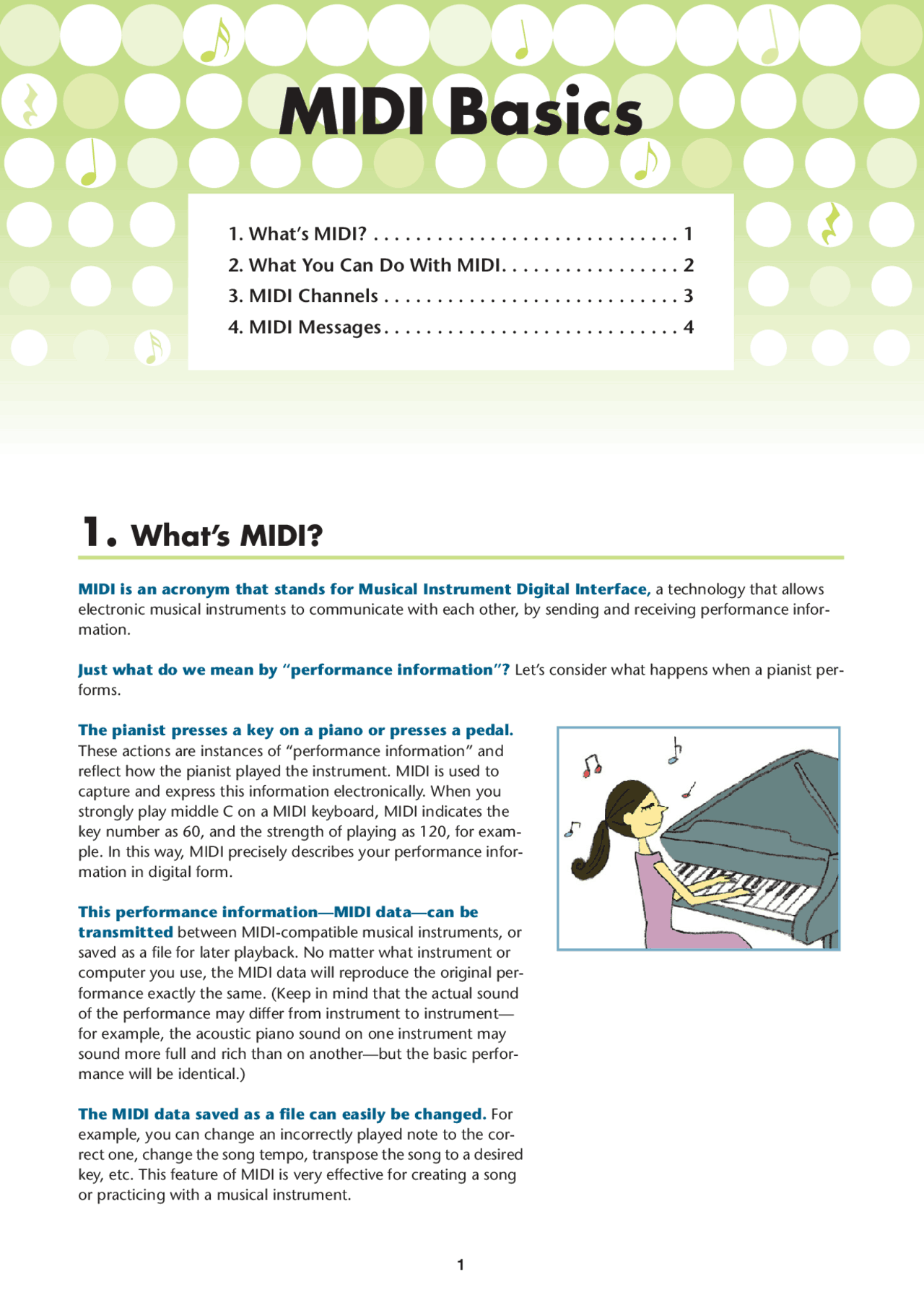

MIDI Basics
1. What’s MIDI?............................. 1
2. What You Can Do With MIDI................. 2
3. MIDI Channels............................ 3
4. MIDI Messages............................ 4
1. What’s MIDI?
MIDI is an acronym that stands for Musical Instrument Digital Interface, a technology that allows electronic musical instruments to communicate with each other, by sending and receiving performance infor- mation.
Just what do we mean by “performance information”? Let’s consider what happens when a pianist per- forms.
The pianist presses a key on a piano or presses a pedal. These actions are instances of “performance information” and reflect how the pianist played the instrument. MIDI is used to capture and express this information electronically. When you strongly play middle C on a MIDI keyboard, MIDI indicates the key number as 60, and the strength of playing as 120, for exam- ple. In this way, MIDI precisely describes your performance infor- mation in digital form.
This performance information—MIDI data—can be transmitted between MIDI-compatible musical instruments, or saved as a file for later playback. No matter what instrument or computer you use, the MIDI data will reproduce the original per- formance exactly the same. (Keep in mind that the actual sound of the performance may differ from instrument to instrument— for example, the acoustic piano sound on one instrument may sound more full and rich than on another—but the basic perfor- mance will be identical.)
The MIDI data saved as a file can easily be changed. For example, you can change an incorrectly played note to the cor- rect one, change the song tempo, transpose the song to a desired key, etc. This feature of MIDI is very effective for creating a song or practicing with a musical instrument.
2. What You Can Do With MIDI
By connecting multiple MIDI devices (musical instruments and/or computer) with a cable, the MIDI data can be transmitted and received. For example, if you record your keyboard performance as a MIDI data, the recorded data can be transmitted to another instrument (or computer) and played back on it. You can even edit that data on the computer. You can also buy MIDI data (computer files) of your favorite songs from Internet websites (such as yamahamusicsoft.com) and listen to the data by playing it back on your instrument or com- puter. Generally, MIDI cable is used for connecting an instrument to another instrument, and USB cable is used for connecting instruments to a computer. For details, refer to the owner’s manual of your instrument.
MIDI data has the following advantages over audio data:
- The data size is much smaller than audio data such as mp3, wav, etc.
- The data can be effectively and easily edited.
(Example 1) Using one keyboard to control a second, connected keyboard
(Example 2) Recording your keyboard performance to computer and editing the data Edited data can be played back on the keyboard again.
Proper sequencer software must be installed to the computer in order to edit MIDI data.
(Example 3) Playing back MIDI data which you have bought from an Internet website on your instrument The MIDI data can be loaded to your instrument via USB flash memory.
In order to connect USB flash memory, your instrument must have a USB TO DEVICE terminal.
NOTE
MIDI instrument (^) MIDI transmit
MIDI OUT MIDI IN
MIDI instrument USB cable
USB TO HOST USB
Computer
NOTE
USB flash memory
Internet website USB^ USB TO DEVICE
MIDI instrument
NOTE
4. MIDI Messages
MIDI data (messages) can be divided into two groups: Channel messages and System messages. The following explanation shows an example of MIDI messages. For more details about MIDI messages—for example, when you want to edit the recorded MIDI data—please refer to any of the fine MIDI guidebooks that are commercially available.
■ Channel Messages When you perform on a MIDI instrument, the following messages are generated.
Channel Message Examples
■ System Messages This is data that is used in common by the entire MIDI system. These include System Exclusive Messages for transferring data unique to each instrument manufacturer and Realtime Messages for controlling the MIDI devices.
The messages transmitted/received by your instrument are shown in the MIDI Data Format and MIDI Implementa- tion Chart included in your instrument.
Instrument Operation Messages
Playing the keyboard Note On/Off (When the key was played/released) Note Number (Which key was played) Velocity (How strong the key was played)
Selecting a Voice Program Change
Changing the volume, pressing Sustain Pedal, etc. Control Change
Moving the Pitch Bend Wheel Pitch Bend
Pressing the key down after the note is played After Touch
NOTE
