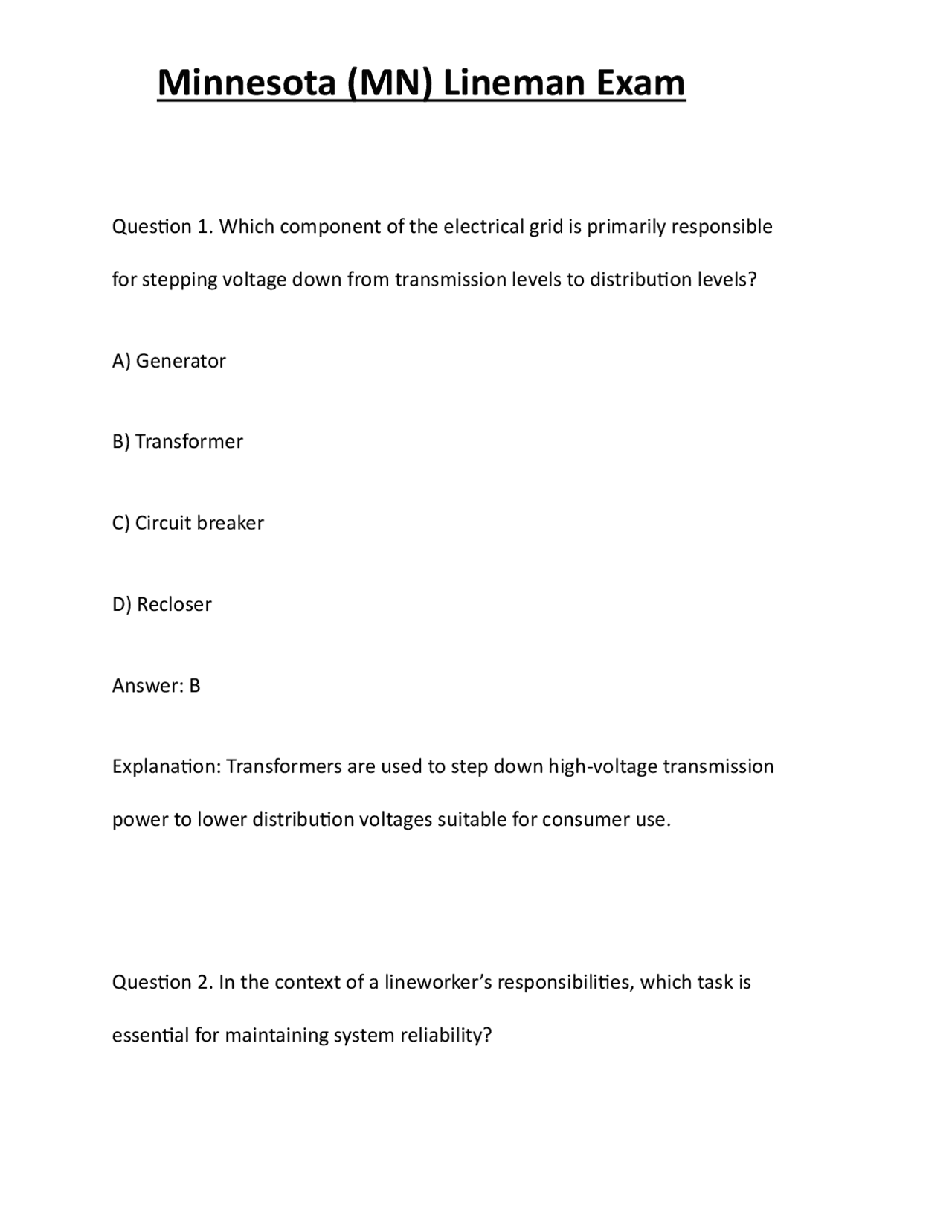

Question 1. Which component of the electrical grid is primarily responsible for stepping voltage down from transmission levels to distribution levels? A) Generator B) Transformer C) Circuit breaker D) Recloser Answer: B Explanation: Transformers are used to step down high-voltage transmission power to lower distribution voltages suitable for consumer use. Question 2. In the context of a lineworker’s responsibilities, which task is essential for maintaining system reliability?
A) Operating household appliances B) Performing routine inspections and preventive maintenance C) Designing new electrical circuits D) Manufacturing electrical components Answer: B Explanation: Routine inspections and preventive maintenance help identify potential issues early, ensuring system reliability and safety. Question 3. Which career path most directly involves installing, maintaining, and repairing overhead distribution lines? A) Power plant operator B) Lineman or lineworker C) Electrical engineer
Question 5. Ohm's Law states that the current flowing through a conductor is directly proportional to which of the following, assuming constant resistance? A) Resistance B) Power C) Voltage D) Capacitance Answer: C Explanation: Ohm's Law (I = V/R) indicates that current (I) varies directly with voltage (V) for a fixed resistance (R). Question 6. Which type of current is most commonly used in household power supplies in the United States?
A) DC (Direct Current) B) AC (Alternating Current) C) Static Current D) Pulsed Current Answer: B Explanation: Household power in the U.S. is supplied as AC because it is efficient for transmission over long distances. Question 7. In a parallel circuit, the total resistance decreases as you add more resistors because: A) Resistance increases with more resistors B) The total resistance is the sum of individual resistances C) The inverse of the total resistance is the sum of the inverses of individual resistances
Question 9. Inductance in an AC circuit causes which of the following effects? A) Resistance to changes in current B) Instantaneous current changes C) No phase shift between voltage and current D) Zero impedance Answer: A Explanation: Inductance opposes changes in current, causing a phase shift where voltage leads current in AC circuits. Question 10. Which type of three-phase connection is characterized by a neutral point and is commonly used for distribution? A) Wye (Y)
B) Delta (Δ) C) Open delta D) Single-phase Answer: A Explanation: The wye (Y) connection has a common neutral point, suitable for distribution systems requiring a neutral. Question 11. Power factor correction is primarily implemented to: A) Increase current flow B) Reduce reactive power and improve voltage stability C) Increase system impedance D) Decrease real power consumption Answer: B
Question 13. The unit kVA (kilovolt-ampere) represents which of the following? A) Real power B) Apparent power C) Reactive power D) Power factor Answer: B Explanation: kVA measures apparent power, combining real and reactive power in AC circuits. Question 14. Which symbol in a schematic diagram indicates a ground connection? A) A triangle with a line B) A circle
C) A zigzag line D) An arrow pointing downward Answer: A Explanation: A ground symbol is typically a triangle with a line at the bottom, indicating a connection to earth ground. Question 15. OSHA regulations require that electrical work at heights above what distance be performed with fall protection equipment? A) 2 feet B) 4 feet C) 6 feet D) 10 feet Answer: C
A) Electrocution B) Thermal burns and intense light C) Falling from a height D) Chemical exposure Answer: B Explanation: Arc flash releases intense heat and light, causing burns and eye injuries. Question 18. Lockout/Tagout procedures are used to: A) Initiate power flow B) De-energize and secure equipment during maintenance C) Connect new circuits D) Energize circuits quickly
Answer: B Explanation: LOTO procedures ensure equipment is safely de-energized and cannot be accidentally re-energized during maintenance. Question 19. When working in a confined space, which safety practice is essential? A) Using only uninsulated tools B) Ensuring proper ventilation and atmospheric testing C) Working alone D) Ignoring lockout procedures Answer: B Explanation: Proper ventilation and atmospheric testing are critical to prevent exposure to hazardous gases or low oxygen levels.
C) Pour water on the victim D) Move the victim to a different location Answer: B Explanation: The priority is to de-energize the source if possible and seek emergency medical assistance. Question 22. An AED is used to: A) Detect underground faults B) Deliver an electric shock to restore normal heart rhythm during cardiac arrest C) Test insulation resistance D) Measure voltage levels Answer: B
Explanation: An Automated External Defibrillator (AED) delivers shocks to help restore a normal heart rhythm during cardiac arrest. Question 23. When working in adverse weather conditions such as thunderstorms, a lineman should: A) Continue work with extra caution B) Cease work immediately and seek shelter C) Use insulated tools to stay safe D) Work faster to complete tasks before the storm arrives Answer: B Explanation: Thunderstorms pose a risk of lightning strikes, so work should cease immediately for safety.
C) 8-12 feet D) 15-20 feet Answer: C Explanation: Utility poles are generally set with a depth of about 8-12 feet to ensure stability and support. Question 26. Which type of conductor is most commonly used for overhead distribution lines due to its high strength-to-weight ratio? A) Copper B) Aluminum C) ACSR (Aluminum Conductor Steel Reinforced) D) Silver Answer: C
Explanation: ACSR combines aluminum’s conductivity with steel reinforcement for strength, making it suitable for overhead lines. Question 27. The primary function of insulators on distribution lines is to: A) Conduct electricity B) Support the conductor and prevent current flow to the pole C) Protect against lightning strikes D) Reduce conductor weight Answer: B Explanation: Insulators support conductors on poles and prevent current from flowing to the pole structure. Question 28. A step-up transformer is used to:
