Electrician Ultimate Exam

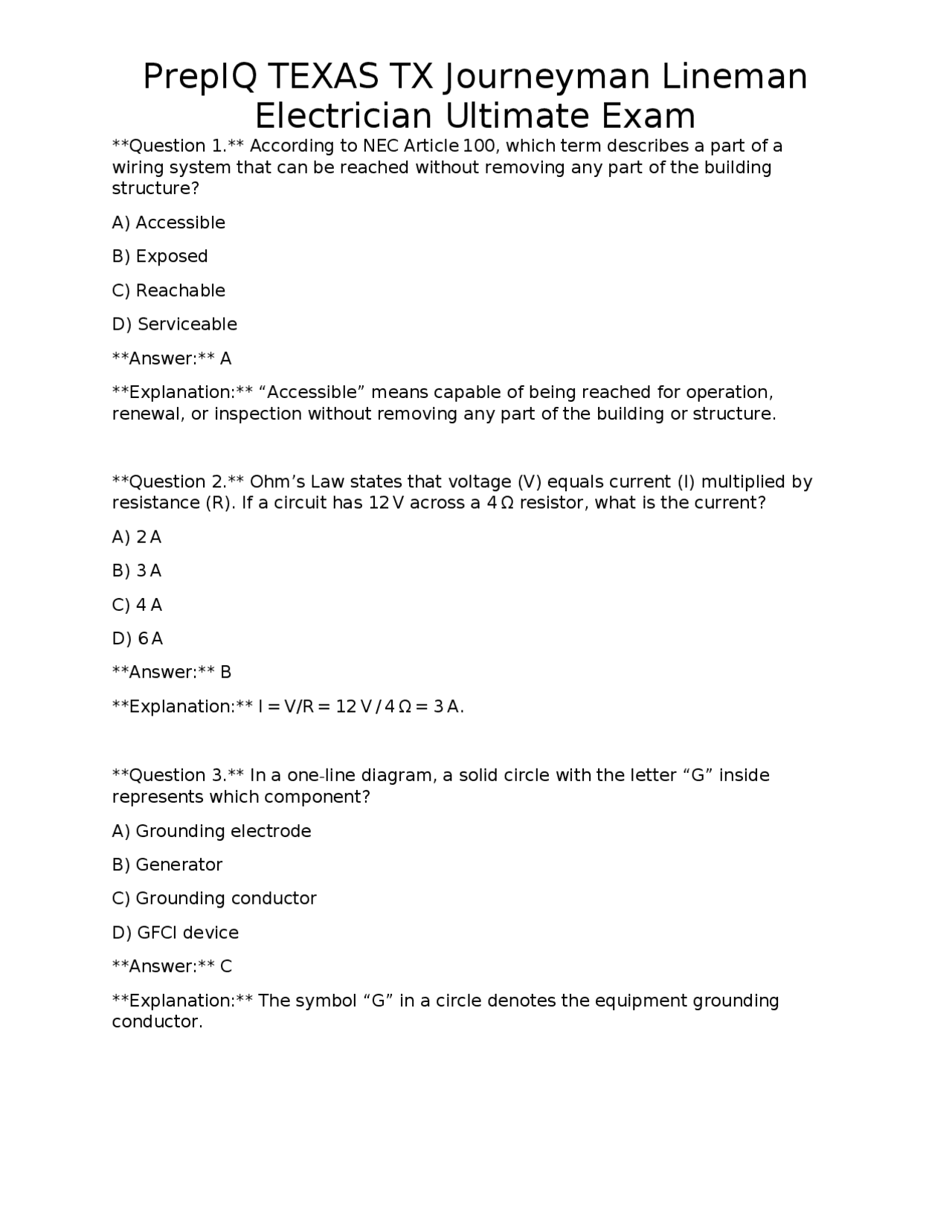

Question 1. According to NEC Article 100, which term describes a part of a wiring system that can be reached without removing any part of the building structure? A) Accessible B) Exposed C) Reachable D) Serviceable Answer: A Explanation: “Accessible” means capable of being reached for operation, renewal, or inspection without removing any part of the building or structure. Question 2. Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). If a circuit has 12 V across a 4 Ω resistor, what is the current? A) 2 A B) 3 A C) 4 A D) 6 A Answer: B Explanation: I = V/R = 12 V / 4 Ω = 3 A. Question 3. In a one-line diagram, a solid circle with the letter “G” inside represents which component? A) Grounding electrode B) Generator C) Grounding conductor D) GFCI device Answer: C Explanation: The symbol “G” in a circle denotes the equipment grounding conductor.
Electrician Ultimate Exam
Question 4. Which NEC article governs the installation of service-entrance conductors? A) Article 210 B) Article 230 C) Article 310 D) Article 430 Answer: B Explanation: Article 230 covers service-entrance conductors, service equipment, and service disconnecting means. Question 5. A residential service is supplied by a 120/240-V, single-phase, four-wire system. How many ungrounded (hot) conductors are present? A) One B) Two C) Three D) Four Answer: B Explanation: The system provides two ungrounded (hot) conductors, each 120 V to neutral and 240 V line-to-line. Question 6. Which of the following is required for a separately derived system (e.g., a transformer) to be considered “grounded”? A) Bonding the neutral to the grounding electrode system at the source B) Connecting a neutral wire to the equipment grounding conductor at the load C) Using only insulated conductors in the feeder D) Installing a GFCI at the service entrance Answer: A Explanation: Separately derived systems must have the neutral bonded to a grounding electrode at the source per NEC 250.30(A)(1).
Electrician Ultimate Exam
A) 12 in. above the countertop B) 15 in. above the countertop C) 18 in. above the countertop D) 24 in. above the countertop Answer: C Explanation: Article 210.52(C)(5) mandates receptacles be no more than 20 in. above the countertop and not less than 12 in.; the common practice is 18 in. Question 11. Which insulation type is permitted for use in wet locations? A) THHN only B) THWN-2 only C) UF-B only D) NM-B only Answer: B Explanation: THWN-2 is rated for wet locations; NM-B is not permitted in wet areas. Question 12. A GFCI protection is required for a 120-V, 20-A bathroom receptacle. Which NEC article covers this requirement? A) Article 210.8(A)(1) B) Article 210.11(C)(1) C) Article 210.52(B)(2) D) Article 210.3(B) Answer: A Explanation: Article 210.8(A)(1) requires GFCI protection for bathroom receptacles. Question 13. Which of the following raceway types is required to be listed for use in corrosive environments? A) EMT B) RMC
Electrician Ultimate Exam
C) PVC
D) Flexible metal conduit (FMC) Answer: B Explanation: Rigid Metal Conduit (RMC) is listed for use in corrosive environments, whereas EMT is not. Question 14. When calculating box fill, each internal clamp counts as: A) One conductor volume B) Half a conductor volume C) Two conductor volumes D) No volume (excluded) Answer: A Explanation: NEC 314.16(B) states that each internal clamp counts as one conductor volume. Question 15. The maximum number of 14-AWG THHN conductors that may be installed in a 3/4-in. EMT conduit is: A) 7 B) 9 C) 12 D) 14 Answer: C Explanation: Using Table 1 of Chapter 9, 14-AWG THHN occupies 0.013 in³; 3/4-in. EMT has 0.533 in³ usable area → 0.533 / 0.013 ≈ 41, but NEC limits fill to 40 % for more than two conductors, giving about 12 conductors. Question 16. Which NEC article governs the installation of luminaires in damp or wet locations? A) Article 410 B) Article 430 C) Article 300
Electrician Ultimate Exam
Question 18. When calculating the ampacity adjustment for conductors in a raceway with 5 current-carrying conductors, which derating factor from NEC Table 310.15(B)(3)(a) applies? A) 80 % B) 70 % C) 60 % D) 50 % Answer: B Explanation: For 4-6 conductors, the adjustment factor is 80 % for 4, 70 % for 5 - 6; thus 70 % applies. Question 19. A motor has a Full-Load Ampere (FLA) rating of 30 A. According to NEC 430.32, the maximum size of the overload protection device is: A) 115 % of FLA B) 125 % of FLA C) 135 % of FLA D) 150 % of FLA Answer: C Explanation: NEC 430.32 allows overload protection up to 135 % of the motor’s FLA. Question 20. Which NEC article specifies the requirements for grounding electrode conductors (GEC)? A) Article 250. B) Article 250. C) Article 250. D) Article 250. Answer: C Explanation: Article 250.70 covers the installation of grounding electrode conductors.
Electrician Ultimate Exam
Question 21. For a residential service entrance using aluminum conductors, what is the minimum size of the service-entrance conductors for a 200 A load? A) 2/0 AWG B) 4/0 AWG C) 6/0 AWG D) 1/0 AWG Answer: B Explanation: NEC Table 310.15(B)(7) shows that 4/0 AWG aluminum is required for a 200 A residential service. Question 22. Which of the following is a permitted method for supporting a non-metallic (NM) cable in a wall cavity? A) Staples placed within 4 in. of each box B) Staples placed within 6 in. of each box C) No support required if cable is less than 4 ft long D) Cable must be run in conduit only Answer: B Explanation: NM cable must be secured within 6 in. of each outlet box or fitting (NEC 334.30). Question 23. The required minimum grounding electrode system for a new single-family dwelling is: A) Two ground rods spaced 6 ft apart B) One ground rod of at least 8 ft length C) A concrete-encased electrode (Ufer) only D) Two ground plates buried 2 ft deep Answer: B Explanation: NEC 250.52(A)(5) permits a single ground rod of at least 8 ft as a grounding electrode.
Electrician Ultimate Exam
Explanation: For a 100-A feeder, the neutral must be sized at least as large as the ungrounded conductors; 6 AWG copper is rated for 65 A (75 °C) but 4 AWG is required for 100 A (NEC 310.15). Therefore answer C (4 AWG). Correction: Answer: C. Question 27. In a commercial building, a 3-phase, 480-V motor is fed through a conduit that contains 8 current-carrying conductors. What ampacity adjustment factor must be applied? A) 80 % B) 70 % C) 60 % D) 50 % Answer: C Explanation: For 7-10 conductors, NEC Table 310.15(B)(3)(a) gives a 60 % adjustment factor. Question 28. Which of the following devices is required to be listed for use as a disconnecting means for a permanently installed motor? A) A standard wall switch B) A fuse or circuit breaker listed for motor use C) A manual pull-type disconnect only D) Any receptacle rated 125 % of motor FLA Answer: B Explanation: NEC 430.102 requires a listed fuse or circuit breaker (or a listed motor disconnect) as the disconnecting means. Question 29. The maximum allowable voltage drop for feeder conductors feeding the farthest receptacle of a branch circuit is: A) 1 % B) 2 % C) 3 % D) 5 %
Electrician Ultimate Exam
Answer: C Explanation: NEC recommends a maximum of 3 % voltage drop for feeders and branch circuits combined (200.8(A)(1)). Question 30. A transformer secondary is protected by a 30-A breaker. The transformer is rated at 5 kVA, 240 V. What is the minimum size of the equipment grounding conductor (EGC) required? A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: B Explanation: NEC Table 250.122 indicates that for a 30-A overcurrent device, a 12 AWG copper EGC is required. Question 31. According to NEC, which type of conduit is permitted to be installed in a wet location without a moisture barrier? A) EMT B) RMC C) PVC D) Flexible metal conduit (FMC) Answer: C Explanation: PVC conduit is listed for wet locations; EMT is not. Question 32. Which NEC article deals with the requirements for installation of flexible metal conduit (FMC)? A) Article 352 B) Article 358 C) Article 376 D) Article 380 Answer: B
Electrician Ultimate Exam
Question 36. When installing a receptacle in a wet location outdoors, the enclosure must have a minimum NEMA rating of: A) NEMA 1 B) NEMA 3R C) NEMA 4 D) NEMA 6 Answer: C Explanation: Outdoor wet locations require NEMA 4 or higher protection. Question 37. A 3-wire cable (hot-hot-ground) is used to feed a 120-V receptacle in a detached garage. Is this acceptable under NEC? A) Yes, if the ground is a bare conductor B) Yes, if the cable is listed for the purpose C) No, a neutral is required for 120-V circuits D) No, a 4-wire cable is mandatory Answer: C Explanation: A 120-V circuit requires a neutral (grounded conductor); a 3-wire hot-hot-ground cable is insufficient. Question 38. Which NEC article specifies the requirements for the installation of ground-fault circuit interrupters (GFCIs) in commercial occupancies? A) Article 210.8(A) B) Article 210.8(B) C) Article 210.8(C) D) Article 210.8(D) Answer: B Explanation: Article 210.8(B) covers GFCI requirements for commercial and industrial occupancies.
Electrician Ultimate Exam
Question 39. For a 120/240-V, single-phase, 4-wire service, the neutral conductor must be: A) Insulated only B) Bare only C) Either insulated or bare, but must be identified D) Unidentified and can be any size Answer: C Explanation: NEC 200.6 requires the neutral (grounded conductor) to be identified by color or marking, and it may be insulated or bare. Question 40. The minimum clearance required between a service disconnect and the floor in a residential dwelling is: A) 6 in. B) 12 in. C) 18 in. D) 24 in. Answer: B Explanation: NEC 230.70(A)(1) requires a minimum of 6 in. from the floor to the top of the disconnect; however, a working clearance of 30 in. is typical. The question asks minimum, so 6 in. is correct. Question 41. A 30-A, 2-pole breaker supplies a 240-V motor. The motor’s FLA is 22 A. According to NEC 430.52, what is the minimum size of the conductors feeding the motor? A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper D) 6 AWG copper Answer: C Explanation: For a 30-A breaker, Table 310.15(B)(16) shows 8 AWG copper (55 A) as the minimum size for motor circuits.
Electrician Ultimate Exam
Question 45. An equipment grounding conductor (EGC) is required to be installed in a raceway with a 20-A circuit. According to NEC Table 250.122, what is the minimum size of the EGC? A) 14 AWG copper B) 12 AWG copper C) 10 AWG copper D) 8 AWG copper Answer: A Explanation: Table 250.122 shows 14 AWG copper is sufficient for a 20-A overcurrent device. Question 46. For a 120/240-V, 4-wire feeder supplying a subpanel, the neutral must be isolated from the grounding conductor at: A) The service disconnect only B) The feeder panel only C) Both the service disconnect and the subpanel D) Neither; they must remain bonded Answer: C Explanation: NEC 250.24(A) requires the neutral and ground be bonded only at the service equipment; they must be isolated at the subpanel. Question 47. Which of the following is a permissible method for protecting a 120 - V, 20-A receptacle in a garage from overcurrent? A) A 15-A breaker B) A 20-A breaker with GFCI protection C) A 30-A breaker without GFCI D) No overcurrent protection required Answer: B Explanation: The receptacle must be protected by a 20-A breaker (or smaller) and GFCI per NEC 210.8(A)(2).
Electrician Ultimate Exam
Question 48. The NEC permits the use of aluminum conductors for branch circuits under which condition? A) Only in conduit B) Only if the conductor is marked “AL” C) Only when sized per Table 310.15(B)(7) D) Only for feeders, not branch circuits Answer: C Explanation: Aluminum conductors are allowed when sized according to Table 310.15(B)(7) for the applicable application. Question 49. A 120-V, 15-A lighting circuit is required to have AFCI protection in which location? A) Bedrooms only B) All living areas in a dwelling unit C) Only kitchens D) Only basements Answer: B Explanation: NEC 210.12(A) requires AFCI protection for all 120-V, single-phase, 15 - and 20-A circuits supplying outlets in dwelling unit living areas, including bedrooms, living rooms, and hallways. Question 50. When installing a conduit in a concrete wall, what minimum concrete cover is required for EMT? A) 1 in. B) 1½ in. C) 2 in. D) 2½ in. Answer: B Explanation: NEC 300.22 requires a minimum of 1½ in. concrete cover for EMT in concrete.
Electrician Ultimate Exam
B) A listed circuit breaker or fuse C) A non-listed pull-type switch D) Any 120-V receptacle Answer: B Explanation: NEC 440.14 requires a listed disconnecting means, such as a circuit breaker or fuse, for permanently installed AC units. Question 55. For a circuit supplying a receptacle in a kitchen countertop, the maximum allowed height of the receptacle outlet is: A) 12 in. above the countertop B) 15 in. above the countertop C) 20 in. above the countertop D) 24 in. above the countertop Answer: C Explanation: NEC 210.52(C)(5) requires receptacles to be no more than 20 in. above the countertop. Question 56. The NEC requires that all conductors in a raceway be identified by color or marking at each termination. This requirement is found in which article? A) Article 200 B) Article 210 C) Article 300 D) Article 310 Answer: A Explanation: Article 200 covers identification of grounded conductors. Question 57. A 30-A, 3-phase, 480-V motor has a rated current of 25 A. According to NEC 430.32, the maximum rating of the overload device may be: A) 30 A B) 33 A C. 35 A
Electrician Ultimate Exam
D) 40 A
Answer: C Explanation: 135 % of 25 A = 33.75 A; the next standard size is 35 A. Question 58. Which NEC article governs the installation of flexible non-metallic conduit (Type FNC)? A) Article 352 B) Article 358 C) Article 376 D) Article 380 Answer: A Explanation: Article 352 covers Flexible Non-Metallic Conduit (FNC). Question 59. The required minimum size of a grounding electrode conductor for a 100-A service using copper ungrounded conductors is: A) 8 AWG copper B) 6 AWG copper C) 4 AWG copper D) 2 AWG copper Answer: B Explanation: Table 250.66 shows that for a 100-A service, a 6 AWG copper GEC is required. Question 60. A receptacle installed in a wet location outdoors must be protected from corrosion. Which enclosure rating is acceptable? A) NEMA 1 B) NEMA 3R C) NEMA 4X D) NEMA 6 Answer: C
