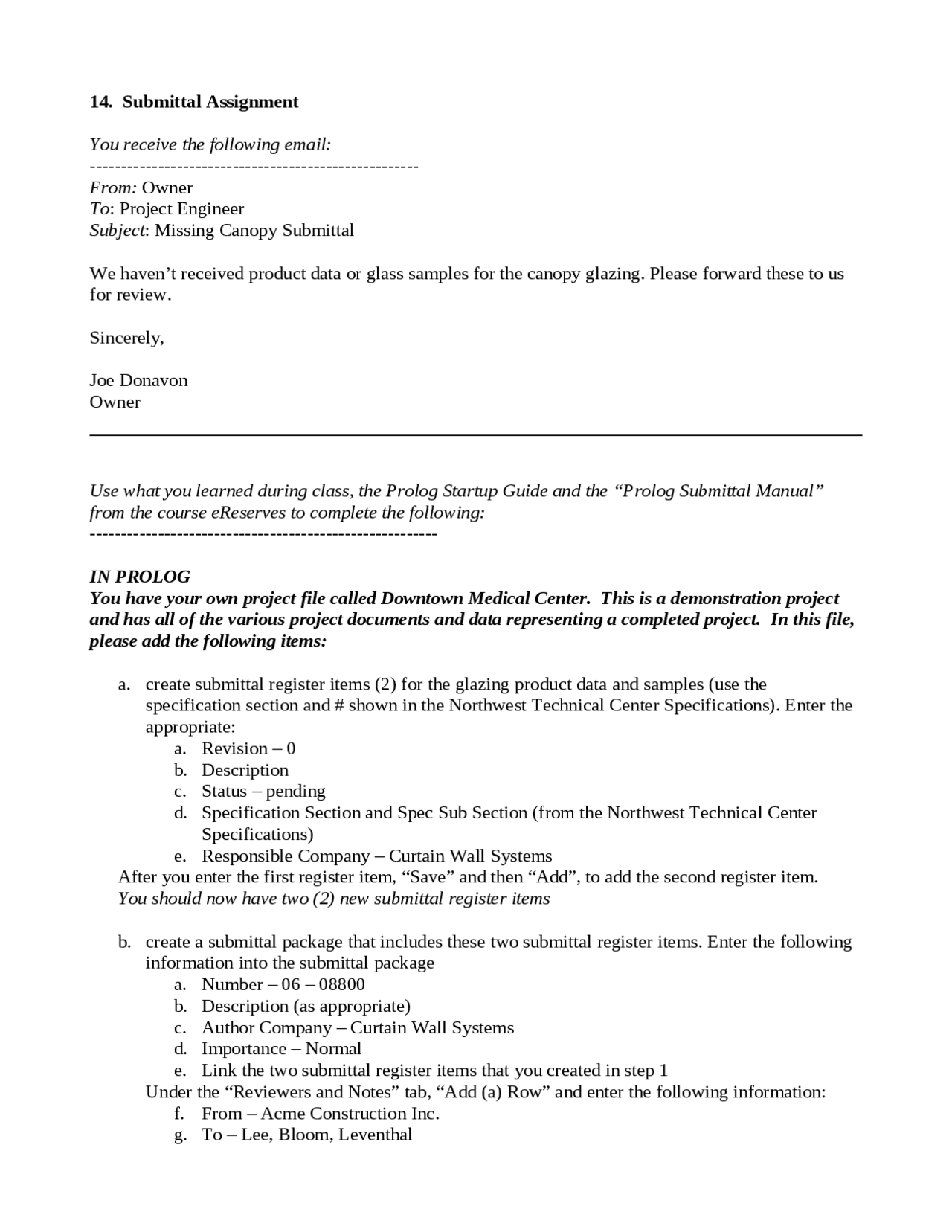

14. Submittal Assignment
You receive the following email:
-----------------------------------------------------
From: Owner
To: Project Engineer
Subject: Missing Canopy Submittal
We haven’t received product data or glass samples for the canopy glazing. Please forward these to us
for review.
Sincerely,
Joe Donavon
Owner
Use what you learned during class, the Prolog Startup Guide and the “Prolog Submittal Manual”
from the course eReserves to complete the following:
--------------------------------------------------------
IN PROLOG
You have your own project file called Downtown Medical Center. This is a demonstration project
and has all of the various project documents and data representing a completed project. In this file,
please add the following items:
a. create submittal register items (2) for the glazing product data and samples (use the
specification section and # shown in the Northwest Technical Center Specifications). Enter the
appropriate:
a. Revision – 0
b. Description
c. Status – pending
d. Specification Section and Spec Sub Section (from the Northwest Technical Center
Specifications)
e. Responsible Company – Curtain Wall Systems
After you enter the first register item, “Save” and then “Add”, to add the second register item.
You should now have two (2) new submittal register items
b. create a submittal package that includes these two submittal register items. Enter the following
information into the submittal package
a. Number – 06 – 08800
b. Description (as appropriate)
c. Author Company – Curtain Wall Systems
d. Importance – Normal
e. Link the two submittal register items that you created in step 1
Under the “Reviewers and Notes” tab, “Add (a) Row” and enter the following information:
f. From – Acme Construction Inc.
g. To – Lee, Bloom, Leventhal
