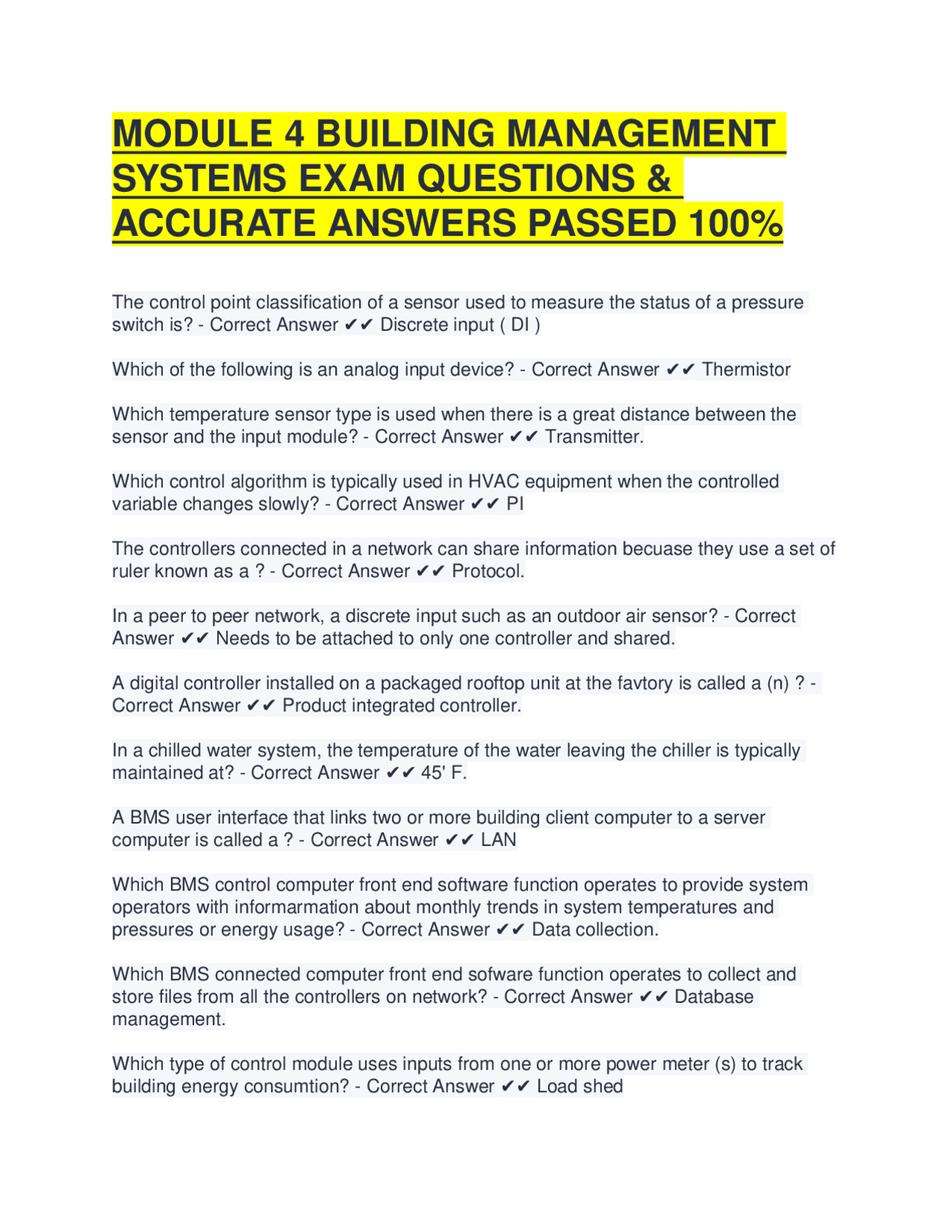

MODULE 4 BUILDING MANAGEMENT
SYSTEMS EXAM QUESTIONS &
ACCURATE ANSWERS PASSED 100%
The control point classification of a sensor used to measure the status of a pressure
switch is? - Correct Answer โโ Discrete input ( DI )
Which of the following is an analog input device? - Correct Answer โโ Thermistor
Which temperature sensor type is used when there is a great distance between the
sensor and the input module? - Correct Answer โโ Transmitter.
Which control algorithm is typically used in HVAC equipment when the controlled
variable changes slowly? - Correct Answer โโ PI
The controllers connected in a network can share information becuase they use a set of
ruler known as a ? - Correct Answer โโ Protocol.
In a peer to peer network, a discrete input such as an outdoor air sensor? - Correct
Answer โโ Needs to be attached to only one controller and shared.
A digital controller installed on a packaged rooftop unit at the favtory is called a (n) ? -
Correct Answer โโ Product integrated controller.
In a chilled water system, the temperature of the water leaving the chiller is typically
maintained at? - Correct Answer โโ 45' F.
A BMS user interface that links two or more building client computer to a server
computer is called a ? - Correct Answer โโ LAN
Which BMS control computer front end software function operates to provide system
operators with informarmation about monthly trends in system temperatures and
pressures or energy usage? - Correct Answer โโ Data collection.
Which BMS connected computer front end sofware function operates to collect and
store files from all the controllers on network? - Correct Answer โโ Database
management.
Which type of control module uses inputs from one or more power meter (s) to track
building energy consumtion? - Correct Answer โโ Load shed
