Exam

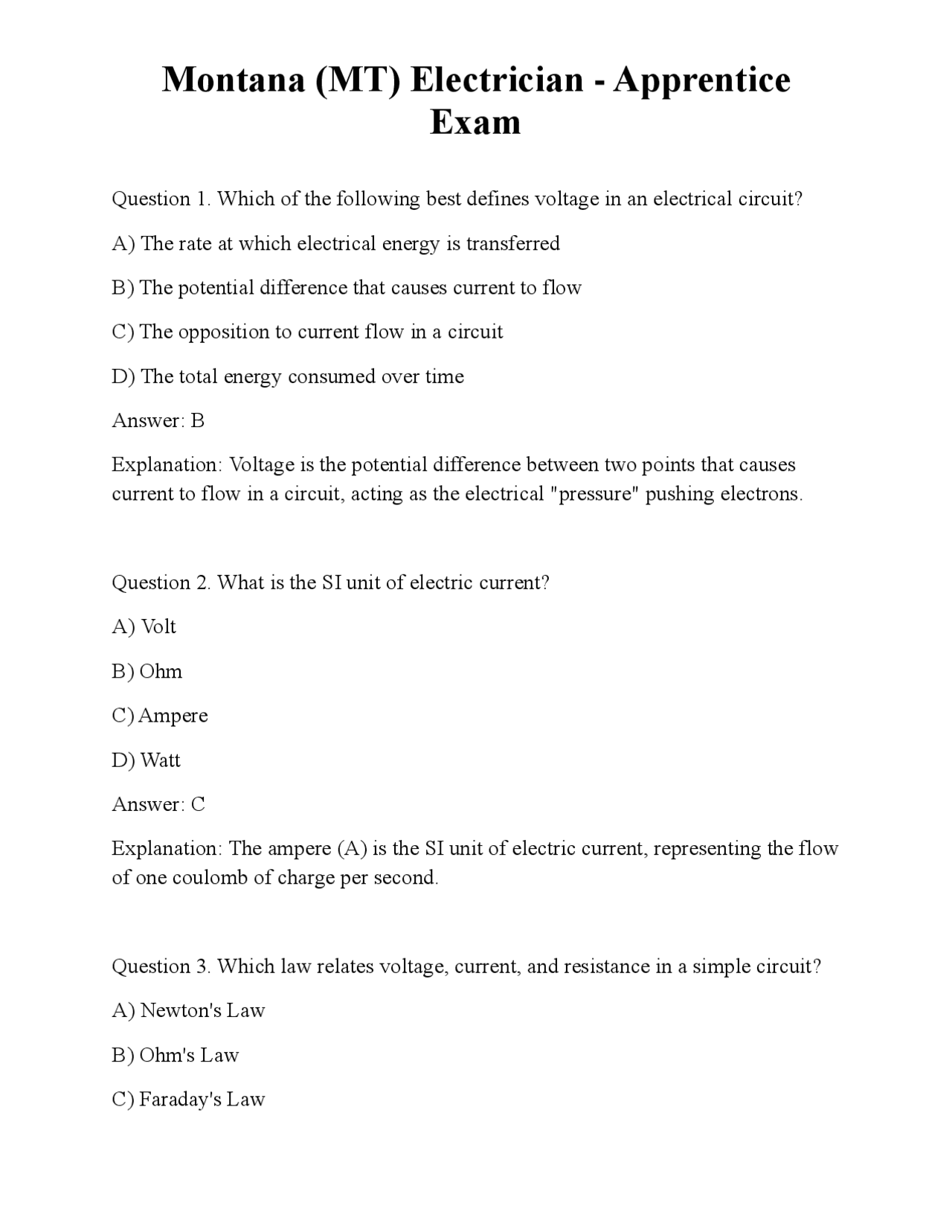

Question 1. Which of the following best defines voltage in an electrical circuit? A) The rate at which electrical energy is transferred B) The potential difference that causes current to flow C) The opposition to current flow in a circuit D) The total energy consumed over time Answer: B Explanation: Voltage is the potential difference between two points that causes current to flow in a circuit, acting as the electrical "pressure" pushing electrons. Question 2. What is the SI unit of electric current? A) Volt B) Ohm C) Ampere D) Watt Answer: C Explanation: The ampere (A) is the SI unit of electric current, representing the flow of one coulomb of charge per second. Question 3. Which law relates voltage, current, and resistance in a simple circuit? A) Newton's Law B) Ohm's Law C) Faraday's Law
Exam
D) Kirchhoff's Voltage Law Answer: B Explanation: Ohm's Law states that V = I × R, relating voltage (V), current (I), and resistance (R) in an electrical circuit. Question 4. In a DC circuit, the current flows: A) Alternates direction periodically B) Only in one direction C) Randomly back and forth D) None of the above Answer: B Explanation: Direct Current (DC) flows in a single direction, unlike Alternating Current (AC), which periodically reverses direction. Question 5. The frequency of an AC power supply in the United States is typically: A) 50 Hz B) 60 Hz C) 100 Hz D) 120 Hz Answer: B Explanation: In the United States, standard residential AC power operates at 60 Hz, meaning the current cycles 60 times per second.
Exam
B) Kirchhoff's Current Law C) Ohm's Law D) Faraday's Law Answer: A Explanation: Kirchhoff's Voltage Law (KVL) states that the algebraic sum of all voltages in a closed loop equals zero, ensuring energy conservation. Question 9. In a parallel circuit, the voltage across each branch: A) Adds up to the total voltage B) Is the same in all branches C) Varies depending on branch resistance D) Is zero Answer: B Explanation: In a parallel circuit, each branch experiences the same voltage as across the power source. Question 10. The total resistance of a parallel circuit with two resistors R1 and R is given by: A) R1 + R B) (R1 × R2) / (R1 + R2) C) 1 / (1/R1 + 1/R2) D) R1 × R
Exam
Answer: C Explanation: The total resistance (R_total) in a parallel circuit with two resistors is calculated as 1 / (1/R1 + 1/R2). Question 11. Which of the following is a fundamental principle of electromagnetism? A) Magnetic poles always exist in pairs B) Electricity and magnetism are unrelated C) Moving electric charges produce magnetic fields D) Magnetic fields do not interact with electric currents Answer: C Explanation: Moving electric charges (currents) produce magnetic fields, illustrating the fundamental relationship between electricity and magnetism. Question 12. Faraday's Law describes: A) The relationship between voltage and current B) How changing magnetic flux induces an electromotive force C) The resistance of a coil D) The energy stored in a magnetic field Answer: B Explanation: Faraday's Law states that a change in magnetic flux through a coil induces an electromotive force (voltage) in the coil.
Exam
C) Ohm D) Watt Answer: A Explanation: The farad (F) is the SI unit of capacitance, representing the ability of a capacitor to store charge. Question 16. Capacitive reactance increases with: A) Increasing frequency B) Decreasing frequency C) Increasing capacitance D) Decreasing voltage Answer: B Explanation: Capacitive reactance (X_C) = 1 / (2πfC), so it increases as frequency decreases. Question 17. An inductor opposes changes in: A) Voltage B) Current C) Resistance D) Frequency Answer: B
Exam
Explanation: Inductors oppose changes in current through them, causing a phase shift between voltage and current. Question 18. The unit of inductance is: A) Farad B) Henry C) Ohm D) Coulomb Answer: B Explanation: The henry (H) is the SI unit of inductance, measuring an inductor's ability to oppose changes in current. Question 19. In an RLC circuit, resonance occurs when: A) Inductive reactance equals capacitive reactance B) Resistance is zero C) Voltage is at maximum D) Power is minimized Answer: A Explanation: Resonance in an RLC circuit occurs when the inductive reactance equals the capacitive reactance, resulting in minimal impedance.
Exam
C) Identify equipment labels D) Improve circuit efficiency Answer: B Explanation: Lockout/tagout procedures ensure that electrical equipment is de- energized and cannot be turned on accidentally during maintenance. Question 23. The purpose of a GFCI device is to: A) Protect against overcurrent B) Detect ground faults and shut off power C) Isolate circuits during faults D) Provide surge suppression Answer: B Explanation: GFCIs detect ground faults by comparing current in the hot and neutral conductors and trip if imbalance occurs, preventing shock. Question 24. The NEC is primarily intended to: A) Provide safety standards for electrical installations B) Define wiring colors C) Regulate power generation D) Set standards for utility companies Answer: A
Exam
Explanation: The National Electrical Code (NEC) establishes safety standards for electrical installations to protect people and property. Question 25. Which article of the NEC covers general requirements for electrical equipment approval? A) Article 110 B) Article 250 C) Article 310 D) Article 430 Answer: A Explanation: Article 110 addresses general requirements for the approval, identification, and use of electrical equipment. Question 26. Working clearances around electrical equipment are primarily specified in: A) NEC Article 250 B) NEC Article 110 C) NEC Article 314 D) NEC Article 430 Answer: B Explanation: NEC Article 110 specifies working clearances to ensure safety when working with electrical equipment.
Exam
B) Indoor residential wiring C) Exterior exposed wiring D) High-voltage transmission Answer: B Explanation: Romex is designed primarily for indoor residential wiring where it is protected from physical damage. Question 30. The purpose of grounding in electrical systems is to: A) Provide a safety path for fault current B) Increase voltage C) Reduce resistance D) Regulate current flow Answer: A Explanation: Grounding provides a safe path for fault current, helping to prevent electric shock and equipment damage. Question 31. The main purpose of bonding in electrical systems is to: A) Equalize potential and prevent touch voltage B) Increase system voltage C) Reduce wiring costs D) Isolate circuits Answer: A
Exam
Explanation: Bonding creates a low-resistance path to equalize potential between conductive parts, reducing shock hazards. Question 32. GFCI devices are required in which of the following locations? A) Outdoor receptacles B) Bathrooms C) Kitchen countertop outlets D) All of the above Answer: D Explanation: GFCIs are required in outdoor locations, bathrooms, kitchens, and other wet or damp areas to prevent shock. Question 33. The purpose of a circuit breaker trip curve is to: A) Show the relationship between current and trip time B) Indicate maximum voltage C) Show the physical size of the breaker D) Measure the breaker’s resistance Answer: A Explanation: Trip curves illustrate how quickly a circuit breaker responds to different levels of overcurrent, helping select proper protection.
Exam
C) Manual motor starter D) Variable Frequency Drive Answer: C Explanation: Manual motor starters are used to manually control the starting and stopping of motors. Question 37. When troubleshooting a motor that is not starting, which test would best determine if the motor windings are open? A) Voltage measurement B) Megohmmeter (insulation resistance test) C) Current measurement D) Visual inspection Answer: B Explanation: A megohmmeter tests the insulation resistance of motor windings, revealing open or shorted coils. Question 38. The NEC requires that motor disconnects be located: A) Within sight of the motor B) At the motor’s terminal box C) At the main service panel only D) In a separate building Answer: A
Exam
Explanation: NEC mandates that motor disconnecting means be located within sight of the motor to facilitate safe maintenance. Question 39. Which wiring method is most suitable for damp or corrosive environments in agricultural buildings? A) Rigid metal conduit (RMC) B) Nonmetallic-sheathed cable (Romex) C) Liquidtight flexible conduit (LFMC) D) Open wiring Answer: C Explanation: Liquidtight flexible conduit (LFMC) provides protection against moisture and corrosion, suitable for harsh environments. Question 40. In a residential service, what is the typical minimum size for service- entrance conductors? A) 60 A B) 100 A C) 200 A D) 400 A Answer: B Explanation: Typical minimum service-entrance conductors for residential systems are 100 amperes, sufficient for standard loads.
Exam
C) Increase motor speed D) Measure motor efficiency Answer: B Explanation: Motor starters control the starting, stopping, and reversing of motors, and provide overload protection. Question 44. Which control device is typically used to reverse the direction of a motor? A) Contactor B) Reversing contactor assembly C) Overload relay D) Timer Answer: B Explanation: Reversing contactor assemblies are used to change the motor wiring to reverse its direction. Question 45. Variable Frequency Drives (VFDs) are used to: A) Control motor speed and torque B) Protect against overloads C) Convert AC to DC D) Increase voltage Answer: A
Exam
Explanation: VFDs modulate the frequency and voltage supplied to a motor, allowing precise speed and torque control. Question 46. Which of the following is a common symptom of a bad capacitor in a motor circuit? A) Excessive vibration B) No start or slow start C) Overheating D) All of the above Answer: D Explanation: Bad capacitors can cause starting issues, vibrations, and overheating in motors, indicating failure. Question 47. Which hazardous location classification involves areas where flammable gases or vapors are present in the air continuously or intermittently? A) Class I, Division 1 B) Class I, Division 2 C) Class II, Division 1 D) Class III Answer: A Explanation: Class I, Division 1 locations involve areas with hazardous gases or vapors present during normal operation.
