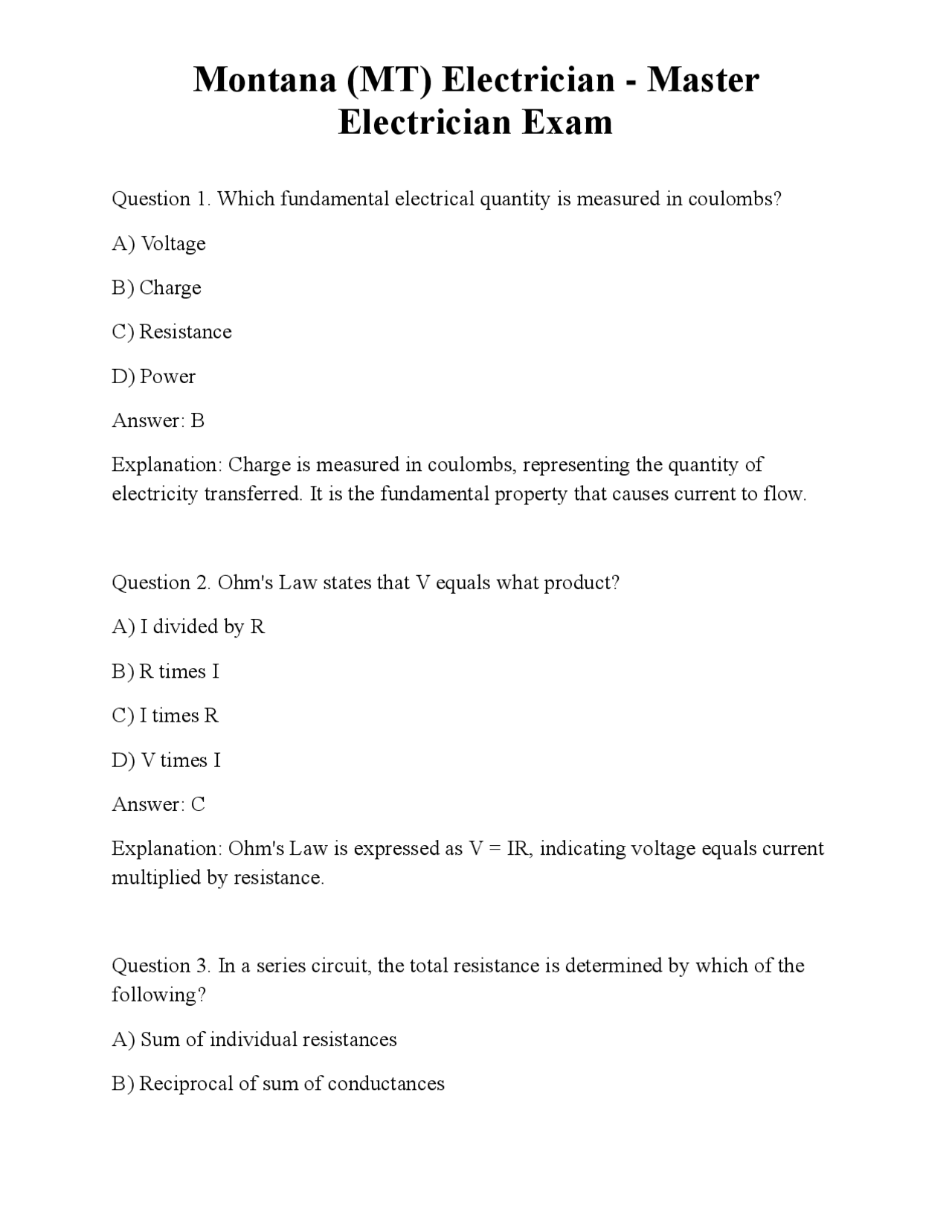

Electrician Exam
Question 1. Which fundamental electrical quantity is measured in coulombs? A) Voltage B) Charge C) Resistance D) Power Answer: B Explanation: Charge is measured in coulombs, representing the quantity of electricity transferred. It is the fundamental property that causes current to flow. Question 2. Ohm's Law states that V equals what product? A) I divided by R B) R times I C) I times R D) V times I Answer: C Explanation: Ohm's Law is expressed as V = IR, indicating voltage equals current multiplied by resistance. Question 3. In a series circuit, the total resistance is determined by which of the following? A) Sum of individual resistances B) Reciprocal of sum of conductances
Electrician Exam
C) Product of resistances divided by sum D) Average of resistances Answer: A Explanation: In a series circuit, total resistance is the sum of all individual resistances. Question 4. Which characteristic distinguishes an AC circuit from a DC circuit? A) Unidirectional current flow B) Constant voltage waveform C) Sinusoidal voltage and current waveforms D) Resistance remains unchanged Answer: C Explanation: AC circuits have sinusoidal voltage and current waveforms, alternating direction periodically, unlike the constant unidirectional flow in DC circuits. Question 5. Magnetism is primarily utilized in which electrical device? A) Resistor B) Transformer C) Diode D) Capacitor Answer: B
Electrician Exam
Question 8. The demand factor is used in feeder sizing to account for: A) Peak load at all times B) Continuous load only C) Reduced load due to diversity of usage D) Power factor correction Answer: C Explanation: Demand factors account for the fact that not all loads operate at maximum simultaneously, allowing for smaller conductor sizes. Question 9. Which conductor material typically has a higher ampacity for the same size? A) Copper B) Aluminum C) Steel D) Bronze Answer: A Explanation: Copper conductors generally have higher ampacity than aluminum for the same cross-sectional area. Question 10. Voltage drop in a circuit affects which aspect most directly? A) Power factor B) Conductor lifespan
Electrician Exam
C) Voltage available at the load D) Resistance of the load Answer: C Explanation: Excessive voltage drop reduces the voltage at the load, potentially causing equipment malfunction. Question 11. The purpose of an overcurrent protection device (OCPD) is to: A) Increase current flow during overload B) Protect conductors and equipment from excessive current C) Reduce voltage in the circuit D) Isolate the load from the source temporarily Answer: B Explanation: OCPDs, such as fuses and circuit breakers, protect conductors and equipment from damage caused by overcurrent conditions. Question 12. Which of the following is a primary function of grounding in electrical systems? A) To reduce resistance B) To provide a reference point and prevent electric shock C) To increase current capacity D) To facilitate voltage regulation Answer: B
Electrician Exam
Question 15. The NEC Article 90 primarily addresses which aspect of electrical work? A) Wiring methods B) Electrical safety and administration C) Equipment grounding D) Special occupancies Answer: B Explanation: Article 90 covers the purpose, scope, and enforcement of the NEC, including safety regulations and administrative provisions. Question 16. Which term best defines a device that is tested and evaluated for compliance with safety standards and bears a label indicating its approval? A) Listed B) Approved C) Labeled D) Rated Answer: C Explanation: "Labeled" indicates a device has been tested, evaluated, and bears a label confirming compliance with safety standards. Question 17. Grounded conductors in a branch circuit are identified by which color or marking? A) Black or unmarked
Electrician Exam
B) Green or bare copper C) White or gray D) Red or blue Answer: C Explanation: In the NEC, grounded conductors (neutral) are identified by white or gray insulation. Question 18. AFCI protection is required in which type of circuit? A) All outdoor circuits B) Circuits supplying bedroom outlets in dwellings C) Circuits for industrial equipment D) Power supply circuits for large motors Answer: B Explanation: AFCI breakers are mandated in bedroom circuits to prevent arc faults that could cause fires. Question 19. The purpose of a feeder conductor is to: A) Connect a branch circuit to a receptacle B) Supply power from the service or distribution point to branch circuits or other feeders C) Connect lighting fixtures to switches D) Connect appliances to outlets
Electrician Exam
Question 22. The purpose of a grounding electrode conductor is to connect: A) The electrical system to the building structure B) The grounding electrode to the main grounding bus or electrode C) The neutral conductor to the grounding system D) The circuit breaker to the load Answer: B Explanation: The grounding electrode conductor connects the grounding system (e.g., ground rod) to the main grounding bus, establishing a grounded system. Question 23. Surge-protective devices (SPDs) are primarily used to: A) Limit overcurrent conditions B) Protect equipment from voltage surges and transients C) Isolate circuits during faults D) Reduce power consumption Answer: B Explanation: SPDs protect electrical equipment by diverting voltage surges caused by lightning or switching transients. Question 24. Emergency systems as per NEC Article 700 must be capable of supplying power to: A) Non-essential loads only
Electrician Exam
B) Certain essential loads necessary for safety and health during outages C) All building loads D) Only outdoor lighting systems Answer: B Explanation: Emergency systems are designed to supply power to essential loads, such as life safety and critical equipment, during power outages. Question 25. Which of the following is true regarding a legally required standby system? A) It is intended for backup power for critical loads only, and must be operational upon failure of normal power. B) It is optional and only used for convenience. C) It supplies power to all loads in a building without any regulation. D) It is always a generator that runs continuously. Answer: A Explanation: Legally required standby systems must automatically or manually provide backup power to critical, life-safety, or essential systems upon normal power failure. Question 26. The installation of solar PV systems in accordance with NEC Article 690 includes requirements for: A) Only the physical mounting of panels B) Wiring, overcurrent protection, grounding, and disconnects
Electrician Exam
Answer: B Explanation: Conductor fill capacity is specified in NEC Chapter 3 and Annex C, ensuring conductors are not overcrowded. Question 29. An armored cable (AC) is identified by which of the following characteristics? A) Conductors insulated with thermoplastic B) Conductors enclosed in a metallic armor for physical protection C) Conductors enclosed in nonmetallic sheath only D) Conductors used exclusively outdoors Answer: B Explanation: AC contains conductors enclosed in a metallic armor, providing mechanical protection. Question 30. Which type of wiring method is most suitable for underground feeder circuits? A) Nonmetallic-Sheathed Cable (NMC) B) Underground Feeder Cable (UF) C) Rigid Metal Conduit (RMC) D) Flexible Nonmetallic Tubing (FNT) Answer: B Explanation: UF cable is specifically designed and rated for direct burial underground circuits.
Electrician Exam
Question 31. Liquidtight Flexible Metal Conduit (LFMC) is primarily used for: A) Indoor wiring in dry locations B) Outdoor or wet locations where flexibility is required C) High voltage overhead lines D) Permanent underground installations only Answer: B Explanation: LFMC is suitable for outdoor or wet environments where flexible conduit protection is needed. Question 32. Rigid Metal Conduit (RMC) is characterized by: A) Its nonmetallic construction and flexibility B) Its rigid, metallic construction with threaded fittings for durability C) Its use only in residential wiring D) Its inability to be grounded Answer: B Explanation: RMC is a rigid, durable metal conduit that uses threaded fittings and is often used in industrial or outdoor applications. Question 33. The purpose of conduit fill calculations is to: A) Determine the number of conductors that can occupy a conduit without exceeding capacity
Electrician Exam
Answer: B Explanation: NEC requires receptacles in dwelling units to be spaced so that no point along the wall is more than 6 feet from a receptacle. Question 36. A lamp holder is also known as a: A) Receptacle B) Luminaire C) Lampholder D) Switch Answer: C Explanation: A lampholder is a device that holds a light bulb and provides electrical contact. Question 37. Which article covers the wiring and disconnecting requirements for appliances? A) Article 422 B) Article 430 C) Article 440 D) Article 480 Answer: A Explanation: Article 422 provides requirements for appliance branch circuits, disconnecting means, and wiring.
Electrician Exam
Question 38. The primary function of a motor controller is to: A) Start and stop motors with control features B) Protect against overcurrent only C) Convert AC to DC D) Regulate voltage supply Answer: A Explanation: Motor controllers facilitate starting, stopping, and controlling motor operation, often incorporating overload protection. Question 39. The disconnecting means for air-conditioning equipment must be located: A) Inside the motor housing B) Within sight of the equipment or readily accessible C) At the main service panel only D) In a separate building Answer: B Explanation: NEC requires disconnects for AC equipment to be within sight or readily accessible for safety and maintenance. Question 40. Article 445 of the NEC addresses requirements for which type of equipment?
Electrician Exam
C) Prevent static buildup and provide a path for fault currents D) Reduce voltage Answer: C Explanation: Grounding in hazardous locations prevents static charge buildup and provides a safe path for fault currents, reducing explosion risk. Question 43. Which classification describes a location where ignitable vapors or gases are present continuously or intermittently? A) Division 1 B) Division 2 C) Zone 0 D) Zone 2 Answer: A Explanation: Division 1 locations have ignitable vapors or gases present during normal operation, requiring special wiring methods. Question 44. The NEC requirement for a GFCI is to protect against: A) Overcurrent B) Ground-faults that could cause electric shock C) Voltage surges D) Overvoltage conditions Answer: B
Electrician Exam
Explanation: GFCIs detect ground faults and quickly disconnect power, preventing electric shocks. Question 45. In Montana, a Master Electrician license requires to have completed: A) Only a high school diploma B) An apprenticeship, experience, and passing a state exam C) No experience, only an educational course D) Only a 2-week training program Answer: B Explanation: Montana regulations require apprenticeships, relevant experience, and passing an exam for Master Electrician licensure. Question 46. The scope of work permitted under a Master Electrician license generally includes: A) Only installing residential outlets B) Designing, installing, and inspecting electrical systems C) Manufacturing electrical equipment D) Only supervising apprentices without performing installations Answer: B Explanation: Master Electricians are authorized to design, install, inspect, and approve electrical systems.
