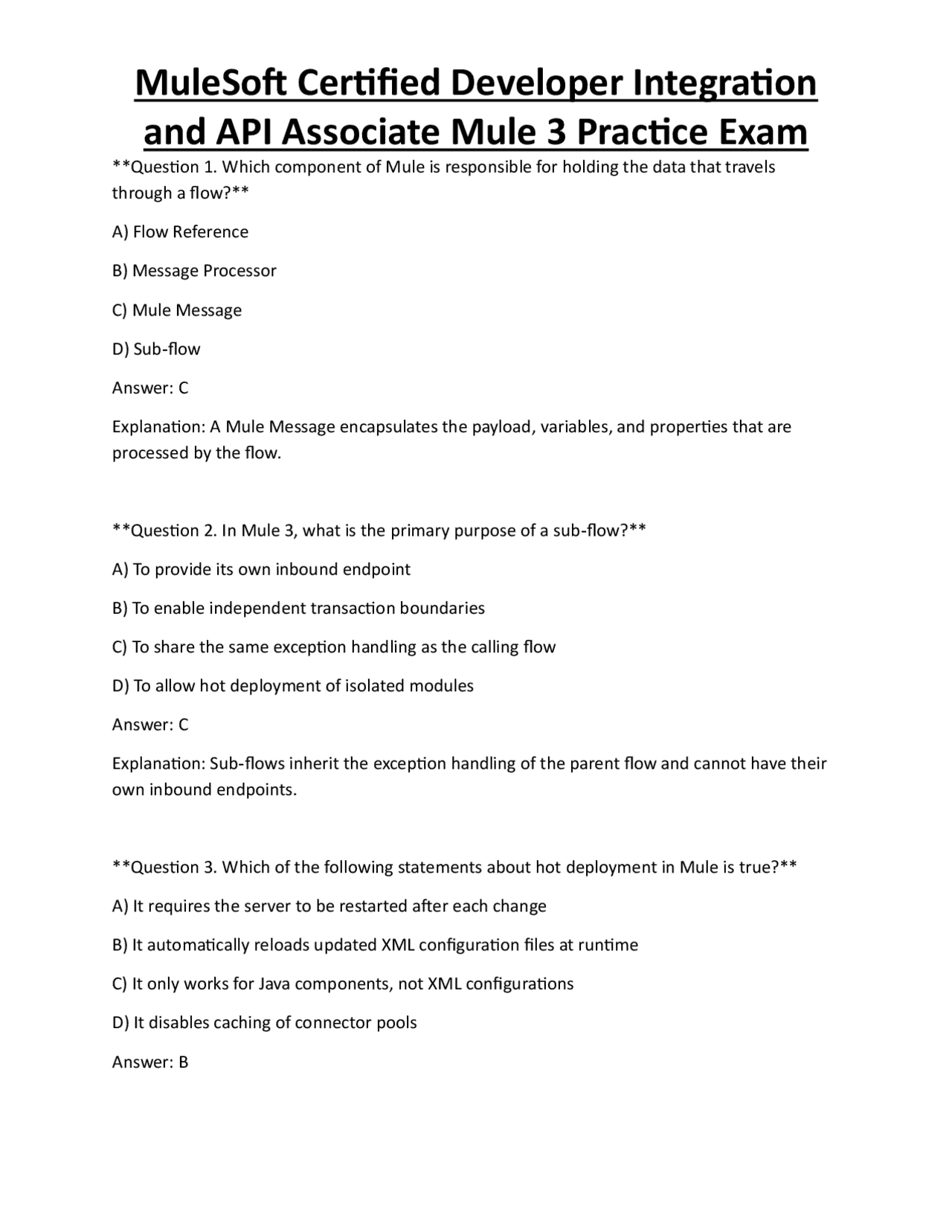

and API Associate Mule 3 Practice Exam
Question 1. Which component of Mule is responsible for holding the data that travels through a flow? A) Flow Reference B) Message Processor C) Mule Message D) Sub‑flow Answer: C Explanation: A Mule Message encapsulates the payload, variables, and properties that are processed by the flow. Question 2. In Mule 3, what is the primary purpose of a sub‑flow? A) To provide its own inbound endpoint B) To enable independent transaction boundaries C) To share the same exception handling as the calling flow D) To allow hot deployment of isolated modules Answer: C Explanation: Sub‑flows inherit the exception handling of the parent flow and cannot have their own inbound endpoints. Question 3. Which of the following statements about hot deployment in Mule is true? A) It requires the server to be restarted after each change B) It automatically reloads updated XML configuration files at runtime C) It only works for Java components, not XML configurations D) It disables caching of connector pools Answer: B
and API Associate Mule 3 Practice Exam
Explanation: Hot deployment monitors the apps directory and reloads any modified Mule configuration files without restarting the runtime. Question 4. What distinguishes an inbound property from an outbound property in a Mule Message? A) Inbound properties are mutable, outbound are immutable B) Inbound properties are set by the inbound endpoint, outbound by the flow C) Inbound properties are stored in the payload, outbound in the variable map D) There is no difference; they are synonyms Answer: B Explanation: Inbound properties are populated by the inbound endpoint (e.g., HTTP headers) and are read‑only; outbound properties are set by the flow for downstream processing. Question 5. Which Mule component is used to enrich a message without altering the original payload? A) Scatter‑Gather B) Message Enricher C) Choice Router D) Async Scope Answer: B Explanation: The Message Enricher executes a child flow or processor and merges the result into the original message, preserving the original payload unless explicitly changed. Question 6. When a flow contains both a synchronous and an asynchronous processor, what is the effect on the processing thread? A) The entire flow becomes asynchronous B) Only the asynchronous processor runs on a separate thread pool
and API Associate Mule 3 Practice Exam
A) .xml B) .json C) .properties D) .yaml Answer: C Explanation: .properties files allow key‑value pairs to be externalized and referenced using the ${…} placeholder syntax. Question 10. How does Mule ensure that sensitive data (e.g., passwords) stored in a properties file is protected? A) By encrypting the entire XML configuration file B) By using the Secure Property Placeholder module to decrypt values at runtime C) By converting passwords to base64 strings D) By storing them in a separate Java class Answer: B Explanation: The Secure Property Placeholder (or Secure Configuration Properties) enables encrypted values in property files that are decrypted when accessed. Question 11. Which Mule component is used to convert a Java object payload to JSON? A) Object to XML transformer B) JSON to Object transformer C) Object to JSON transformer D) DataWeave script with output “json” Answer: C Explanation: The Object to JSON transformer serializes a Java object into a JSON string.
and API Associate Mule 3 Practice Exam
Question 12. In DataWeave, which operator is used to map elements from an input array to a new array? A) ++ B) map C) filter D) reduce Answer: B Explanation: The map function iterates over each element of an array, applying a transformation and producing a new array. Question 13. Which Mule Expression Language (MEL) expression retrieves the value of an outbound property named “http.status”? A) #[message.outboundProperties['http.status']] B) #[message.payload.http.status] C) #[flowVars['http.status']] D) #[sessionVars.http.status] Answer: A Explanation: message.outboundProperties provides access to outbound properties; the property name is used as the map key. Question 14. What is the primary function of the Scatter‑Gather router? A) To route a message to the first successful processor only B) To send a copy of the message to multiple routes in parallel and aggregate the results C) To split a complex payload into individual messages D) To filter messages based on a condition Answer: B
and API Associate Mule 3 Practice Exam
C) File Connector D) Database Connector Answer: C Explanation: The File connector provides inbound and outbound endpoints for interacting with the local file system. Question 18. When configuring the HTTP Listener component, which attribute defines the URL path that the listener will respond to? A) host B) port C) path D) method Answer: C Explanation: The path attribute specifies the relative URL (e.g., “/orders”) that the listener matches. Question 19. What is the default transaction type used by the JTA Transactional scope when none is specified? A) Never B) Always_Begin C) Always_Join D) Supports Answer: B Explanation: If no transaction type is defined, JTA defaults to Always_Begin, which creates a new transaction at the start of the scope.
and API Associate Mule 3 Practice Exam
Question 20. Which scope would you use to execute a set of processors without blocking the main flow thread? A) Choice Router B) Async Scope C) Scatter‑Gather Router D) Transactional Scope Answer: B Explanation: The Async scope runs its child processors on a separate thread pool, allowing the main flow to continue without waiting. Question 21. In Mule 3, what happens when an exception is not caught by any exception strategy in a flow? A) The message is silently dropped B) Mule logs the error and rolls back any active transaction, then propagates the exception to the caller C) The flow automatically retries the last processor D) Mule creates a new flow to handle the exception Answer: B Explanation: Unhandled exceptions trigger Mule’s default behavior: logging, transaction rollback (if any), and propagation up the call stack. Question 22. Which exception strategy allows you to execute custom logic after an exception is caught but before the flow ends? A) Catch Exception Strategy B) Choice Exception Strategy C) Rollback Exception Strategy D) None; Mule does not support post‑exception processing
and API Associate Mule 3 Practice Exam
B) HTTP Request with username and password attributes C) Web Service Consumer with WS‑Security policy D) JMS Connector with SSL context Answer: B Explanation: The HTTP Request component includes username and password attributes that automatically add the appropriate Authorization header. Question 26. In an API‑led connectivity approach, which layer is primarily responsible for exposing data to external consumers? A) System Layer B) Process Layer C) Experience Layer D) Integration Layer Answer: C Explanation: The Experience layer provides consumer‑focused APIs that combine and orchestrate data from underlying system and process APIs. Question 27. Which Mule component can be used to enforce input validation against a JSON schema? A) Validate Component (JSON Schema) B) DataWeave Transform with “type” function C) Expression Filter with regex D) HTTP Listener with query parameters only Answer: A Explanation: Mule’s Validate component can reference a JSON schema file to ensure incoming payloads conform to the defined structure.
and API Associate Mule 3 Practice Exam
Question 28. How can you version a REST API in Mule so that multiple versions can coexist? A) By creating separate Mule applications for each version B) By using the “apiVersion” attribute on the HTTP Listener and routing based on it C) By defining version numbers in the URL path and using a Choice router to direct traffic D) Mule does not support API versioning Answer: C Explanation: Including the version in the URL (e.g., /v1/orders) and routing with a Choice router lets multiple versions run side‑by‑side. Question 29. Which statement about Mule variables (flow, session, and invocation) is correct? A) Flow variables are shared across all flows in an application B) Session variables survive across multiple flows within the same Mule event chain C) Invocation variables are immutable once set D) All three variable types are deprecated in Mule 3 Answer: B Explanation: Session variables persist throughout the entire event processing chain, even when the event moves between flows. Question 30. What does the DataWeave function dw::core::Objects::merge accomplish? A) Concatenates two arrays B) Combines two objects, with the second object’s keys overriding the first’s on conflict C) Splits a string into a list of characters D) Converts an XML document to JSON Answer: B
and API Associate Mule 3 Practice Exam
C) Log Listener D) Transaction Monitor Answer: A Explanation: Setting a breakpoint on a processor halts execution when the flow reaches that point, enabling step‑through debugging. Question 34. Which log4j configuration element controls the format of log messages in Mule? A) B) C) D) Answer: C Explanation: The <layout> element defines the pattern (e.g., timestamp, level) used to format each log entry. Question 35. What is the effect of setting the “reuseInstances” attribute to true on a connector in Mule? A) The connector creates a new instance for every message B) The connector pools and reuses instances, improving performance C) The connector disables transaction support D) The connector becomes read‑only Answer: B Explanation: reuseInstances="true" enables instance pooling, reducing the overhead of repeatedly creating connector objects.
and API Associate Mule 3 Practice Exam
Question 36. Which of the following is a valid way to reference a global HTTP Listener configuration inside an HTTP Listener endpoint? A) listener-config="myHttpListener" B) config-ref="myHttpListener" C) global-ref="myHttpListener" D) http-config="myHttpListener" Answer: B Explanation: The config-ref attribute points to the name of the global element that defines the listener configuration. Question 37. When using the Database connector, which operation is performed by the “Select” query type? A) Inserts a new row into a table B) Updates existing rows C) Retrieves data from the database and returns it as a list of maps D) Deletes rows based on a condition Answer: C Explanation: A “Select” query reads data and returns the result set as a collection of Java maps representing rows. Question 38. In Mule, what does the “persistent” attribute on a JMS inbound endpoint control? A) Whether the endpoint uses a durable subscriber for topics B) Whether messages are stored on disk after processing C) Whether the connector reuses the same TCP connection D) Whether the endpoint automatically acknowledges messages
and API Associate Mule 3 Practice Exam
B) Aggregator C) Choice Router D) Async Scope Answer: B Explanation: The Aggregator collects individual messages produced by a Splitter and combines them into a single composite message. Question 42. In DataWeave, which output format is specified by the header output application/xml? A) JSON B) CSV C) XML D) Java object Answer: C Explanation: The output application/xml directive tells DataWeave to render the result as an XML document. Question 43. Which MEL expression correctly accesses a flow variable named “orderId”? A) #[flowVars.orderId] B) #[message.payload.orderId] C) #[sessionVars['orderId']] D) #[invocationVars.orderId] Answer: A Explanation: flowVars is the map that holds flow‑scoped variables; dot notation retrieves the value.
and API Associate Mule 3 Practice Exam
Question 44. What does the “Idempotent Redelivery Policy” configure for a JMS inbound endpoint? A) The maximum number of concurrent consumers B) The delay between redelivery attempts and how many times to retry before moving to a dead‑letter queue C) The size of the JMS message cache D) The encryption algorithm for message payloads Answer: B Explanation: Idempotent Redelivery defines retry intervals and the limit after which a message is considered failed and sent to a DLQ. Question 45. Which scope would you use to guarantee that a set of processors are executed within a single transaction, even if they call different connectors? A) Async Scope B) Transactional Scope (JTA) C) Scatter‑Gather Router D) Choice Router Answer: B Explanation: The JTA Transactional scope coordinates a distributed transaction across multiple resources. Question 46. When configuring an HTTP Request component to call a REST endpoint, which attribute defines the HTTP method to use? A) method B) httpMethod C) requestMethod D) verb
and API Associate Mule 3 Practice Exam
D) FTP Connector Answer: B Explanation: The Database connector supports JDBC URLs and provides SQL query execution capabilities. Question 50. What is the default behavior of the “Choice Router” when none of its conditions evaluate to true? A) It throws an exception B) It routes the message to the last defined route C) It routes the message to the “otherwise” route, if present; otherwise the message is dropped D) It retries the evaluation after a delay Answer: C Explanation: If no condition matches, the router checks for an “otherwise” branch; if absent, the message is discarded. Question 51. Which of the following is true about the “All Router”? A) It routes the message to the first successful processor only B) It sends a copy of the message to all defined routes sequentially, waiting for each to complete C) It aggregates messages from multiple inbound endpoints D) It filters messages based on a Mule expression Answer: B Explanation: The All Router replicates the message to every route, processing them one after another and waiting for each to finish. Question 52. In Mule 3, which element is used to define a reusable set of processors that can be invoked from multiple flows?
and API Associate Mule 3 Practice Exam
A) Global Element B) Sub‑flow C) Connector D) Scope Answer: B Explanation: Sub‑flows encapsulate a sequence of processors that can be called via Flow Reference from any flow. Question 53. Which attribute on the HTTP Listener connector determines whether the server uses HTTPS? A) protocol B) scheme C) tlsContext-ref D) secure Answer: C Explanation: tlsContext-ref points to a TLS context configuration that enables HTTPS for the listener. Question 54. What does the “repeat” attribute on a Scheduler component control? A) The number of times the scheduler retries a failed execution B) The interval between successive executions of the scheduled flow C) The maximum number of concurrent executions D) The total duration the scheduler remains active Answer: B Explanation: repeat defines the time (in milliseconds) between each scheduled trigger.
