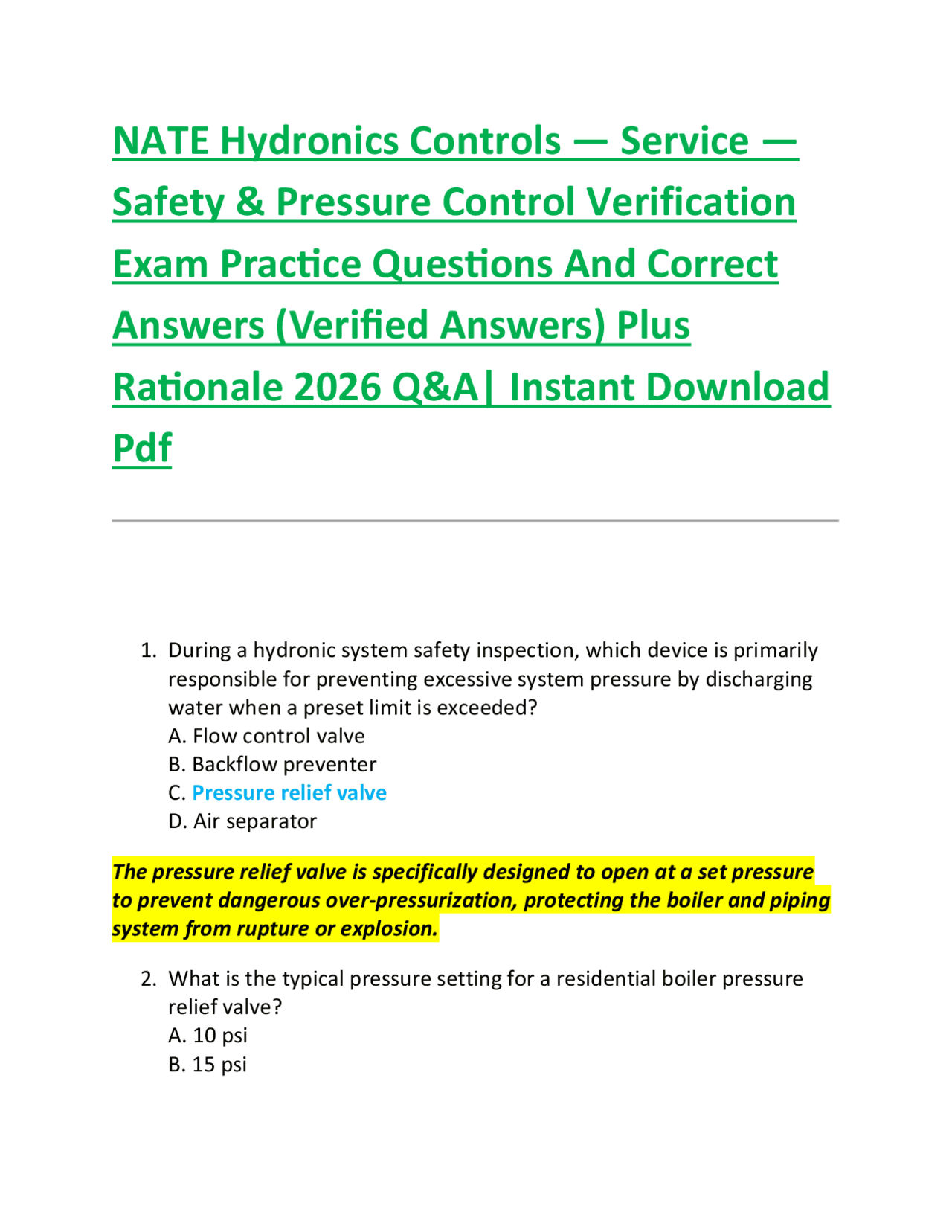

NATE Hydronics Controls — Service —
Safety & Pressure Control Verification
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
- During a hydronic system safety inspection, which device is primarily responsible for preventing excessive system pressure by discharging water when a preset limit is exceeded? A. Flow control valve B. Backflow preventer C. Pressure relief valve D. Air separator The pressure relief valve is specifically designed to open at a set pressure to prevent dangerous over-pressurization, protecting the boiler and piping system from rupture or explosion.
- What is the typical pressure setting for a residential boiler pressure relief valve? A. 10 psi B. 15 psi
C. 30 psi D. 60 psi Residential hydronic boilers are commonly equipped with a 30 psi relief valve, which aligns with system design limits and safety standards.
- A technician observes that the pressure relief valve is discharging frequently. What is the most likely cause? A. Low system temperature B. Faulty thermostat C. Expansion tank failure or undersizing D. Circulator pump over-speed Frequent discharge usually indicates excessive pressure buildup, often caused by a failed or improperly sized expansion tank that cannot accommodate thermal expansion.
- Which instrument is used to verify system pressure during operation? A. Ammeter B. Thermocouple C. Hygrometer D. Pressure gauge A pressure gauge provides real-time measurement of system pressure, essential for verifying safe operating conditions.
- What condition can result from a clogged pressure relief valve discharge pipe? A. Reduced flow rate B. Increased heat transfer C. Potential boiler explosion hazard D. Improved efficiency A blocked discharge pipe prevents pressure relief, allowing dangerous pressure buildup that could lead to catastrophic failure.
Backflow preventers ensure that contaminated system water does not re- enter the drinking water supply.
- What is the normal cold fill pressure for a residential hydronic system? A. 5 psi B. 12 – 15 psi C. 25–30 psi D. 40 psi A cold fill pressure of 12–15 psi ensures adequate system pressure to reach upper floors without over-pressurizing.
- What happens if system pressure is too low? A. Relief valve opens B. Increased efficiency C. Air may enter the system D. Expansion tank fails Low pressure can allow air infiltration, leading to circulation problems and noise.
- Which safety control shuts down the boiler if water temperature exceeds safe limits? A. Pressure switch B. Flow sensor C. High-limit aquastat D. Thermostat The high-limit aquastat prevents overheating by shutting off the burner when temperature exceeds a set point.
- A faulty pressure gauge reads zero while the system is operating. What should be done first? A. Replace pump B. Increase pressure
C. Verify with a calibrated gauge D. Shut down system permanently Confirming readings with a calibrated gauge ensures accurate diagnosis before replacing components.
- What is the function of a pressure reducing valve (PRV)? A. Increase pressure B. Remove air C. Maintain proper system fill pressure D. Control temperature The PRV automatically maintains the correct system pressure by regulating incoming water.
- A PRV is stuck open. What symptom will occur? A. Low pressure B. No circulation C. Over-pressurization of the system D. Reduced temperature A stuck-open PRV continuously feeds water, causing pressure to rise excessively.
- What is the purpose of an air separator? A. Reduce pressure B. Increase flow C. Remove entrained air from the system D. Control temperature Air separators eliminate air bubbles, improving efficiency and preventing noise or corrosion.
- Which condition indicates a failed expansion tank diaphragm? A. Constant low temperature B. No system pressure
B. Control flow C. Shut down boiler if water level is too low D. Increase temperature Low-water cutoff devices prevent damage or explosion by stopping operation when water is insufficient.
- What is a common sign of a malfunctioning relief valve? A. Silent operation B. Reduced pressure C. Continuous dripping or leaking D. Increased efficiency A leaking relief valve may be faulty or responding to excessive pressure conditions.
- What is the role of a pressure switch in a hydronic system? A. Control temperature B. Monitor and respond to pressure levels C. Increase flow D. Remove air Pressure switches activate or shut down components based on pressure thresholds.
- What happens if an expansion tank is undersized? A. Low temperature B. Reduced flow C. Frequent pressure relief valve discharge D. No air removal An undersized tank cannot absorb expansion, causing pressure spikes and relief valve activation.
- Which condition can cause cavitation in a circulator pump? A. High temperature B. High pressure
C. Low system pressure D. Proper flow Low pressure can cause vapor bubbles to form, leading to cavitation and pump damage.
- What is the purpose of a temperature and pressure (T&P) gauge? A. Control flow B. Monitor both temperature and pressure simultaneously C. Remove air D. Increase efficiency T&P gauges provide critical system data for safe operation monitoring.
- What is the primary safety concern with excessive boiler temperature? A. Reduced efficiency B. Increased flow C. Risk of pressure buildup and system failure D. Air accumulation High temperatures increase pressure, potentially exceeding system limits and causing failure.
- What is the correct action if a relief valve fails to open during testing? A. Ignore it B. Increase pressure C. Replace the valve immediately D. Clean the boiler A non-functioning relief valve is a serious hazard and must be replaced to ensure safety.
- What is the function of an automatic air vent? A. Increase pressure
C. Protect equipment and occupants D. Reduce cost Safety controls prevent hazardous conditions such as overpressure and overheating.
- What is the effect of a blocked expansion tank connection? A. Low pressure B. Reduced flow C. No pressure absorption leading to spikes D. Improved efficiency A blocked connection isolates the tank, preventing it from absorbing expansion.
- What is the function of a vacuum breaker? A. Increase pressure B. Prevent vacuum formation and backflow C. Control temperature D. Remove air Vacuum breakers prevent negative pressure conditions that could cause contamination or damage.
- What is the first step when verifying safety controls? A. Replace components B. Increase pressure C. Visual inspection of all devices D. Drain system A thorough visual inspection identifies obvious issues before testing.
- What is the risk of operating a boiler without a relief valve? A. Low efficiency B. Noise C. Explosion hazard D. Reduced flow
Without a relief valve, pressure can rise uncontrollably, leading to catastrophic failure.
- What indicates proper operation of a PRV? A. Constant high pressure B. Low temperature C. Stable system pressure at setpoint D. No flow A properly functioning PRV maintains consistent pressure within design limits.
- What is the consequence of excessive air in the system? A. Increased pressure B. Improved heating C. Reduced heat transfer efficiency D. Higher flow Air pockets reduce heat transfer and disrupt circulation.
- What is the purpose of system flushing? A. Increase pressure B. Remove debris and air C. Control temperature D. Improve wiring Flushing eliminates contaminants and trapped air, improving system performance.
- What is the effect of high system pressure on piping? A. Increased lifespan B. Reduced noise C. Risk of leaks or rupture D. Better efficiency Excess pressure stresses piping, leading to leaks or failure.
C. Pressure fluctuations D. Reduced temperature Incorrect pre-charge prevents proper expansion absorption, causing instability.
- What should be done if a backflow preventer fails? A. Increase pressure B. Ignore C. Replace immediately D. Adjust thermostat Failure risks contamination of potable water and must be corrected immediately.
- What is the purpose of routine safety control verification? A. Increase cost B. Reduce flow C. Ensure reliable and safe operation D. Change system design Regular verification ensures all safety devices function correctly.
- What is the result of excessive boiler cycling due to pressure issues? A. Increased lifespan B. Reduced noise C. Component wear and inefficiency D. Better heating Frequent cycling stresses components and reduces efficiency.
- What is the final step after verifying safety and pressure controls? A. Increase pressure B. Replace all parts
C. Document findings and restore system to operation D. Drain system Proper documentation ensures maintenance records are complete and the system is safely returned to service.
- A hydronic boiler experiences rapid pressure increases during firing cycles despite a properly sized expansion tank. What is the most likely issue? A. Faulty thermostat B. Low system flow C. Improper expansion tank pre-charge pressure D. Excessive heat loss If the pre-charge pressure is not correctly set to match system requirements, the expansion tank cannot properly absorb thermal expansion, leading to rapid pressure fluctuations.
- When verifying a pressure relief valve, which condition confirms proper reseating after testing? A. Continuous dripping B. No water discharge C. Valve closes completely without leakage D. Increased system pressure A properly functioning relief valve should open under test and then fully reseat without any leakage, ensuring system integrity.
- What is the primary function of a boiler safety relief valve discharge line? A. Increase flow B. Reduce temperature C. Direct discharged water safely away from the boiler D. Measure pressure The discharge line ensures that hot water or steam released from the relief valve is safely directed away, preventing injury or damage.
C. With the system depressurized and tank isolated D. During peak load Accurate measurement requires isolating and depressurizing the tank to eliminate system pressure influence.
- What is the primary safety hazard of a stuck closed pressure relief valve? A. Low temperature B. Reduced flow C. Uncontrolled pressure buildup D. Air accumulation A stuck closed valve prevents pressure release, creating a dangerous condition that can lead to explosion.
- Which device prevents boiler operation when insufficient water is present? A. Flow control valve B. Thermostat C. Low-water cutoff D. Air vent Low-water cutoffs protect boilers from overheating and damage by shutting down operation when water levels drop.
- What is the effect of thermal expansion in a closed hydronic system? A. Decreased pressure B. Reduced flow C. Increased system pressure D. Lower temperature As water heats, it expands, increasing pressure unless accommodated by an expansion tank.
- A system shows fluctuating pressure readings during operation. What is the most likely cause? A. Stable operation B. Proper design C. Air in the system or faulty expansion tank D. Low temperature Air pockets or expansion tank issues can cause unstable pressure readings and inconsistent system performance.
- What is the role of a boiler high-limit control? A. Maintain pressure B. Increase flow C. Prevent overheating by shutting off burner D. Remove air High-limit controls ensure safe operation by stopping the burner when temperatures exceed safe limits.
- What is the recommended action if a pressure gauge is suspected to be inaccurate? A. Adjust system pressure B. Ignore reading C. Compare with a calibrated test gauge D. Replace expansion tank Verification with a calibrated gauge ensures accurate diagnosis before taking corrective action.
- What condition indicates a properly functioning expansion tank? A. Constant relief valve discharge B. High pressure spikes C. Stable pressure during heating cycles D. Low temperature A properly functioning expansion tank maintains consistent pressure as the system heats and cools.
- What is the purpose of periodic safety control testing? A. Increase cost B. Reduce efficiency C. Ensure all safety devices function correctly D. Improve aesthetics Routine testing verifies that all safety mechanisms operate as intended to prevent hazardous conditions.
- What is the effect of excessive system pressure on boiler components? A. Improved performance B. Reduced wear C. Increased risk of failure and leaks D. Lower temperature High pressure stresses components, leading to leaks, cracks, or catastrophic failure.
- What is the primary role of an automatic fill valve? A. Control temperature B. Remove air C. Maintain system pressure automatically D. Increase flow Automatic fill valves regulate incoming water to keep system pressure within safe limits.
- What is the consequence of a failed diaphragm in an expansion tank? A. Stable pressure B. Increased efficiency C. Waterlogging and loss of expansion capacity D. Reduced temperature A ruptured diaphragm allows water to fill the air chamber, eliminating the tank’s ability to absorb expansion.
- What is the purpose of a system pressure test during maintenance? A. Increase flow B. Reduce temperature C. Verify integrity and detect leaks D. Improve wiring Pressure testing ensures the system is leak-free and structurally sound.
- What is the effect of a malfunctioning pressure reducing valve? A. Stable pressure B. Reduced flow C. Improper system pressure regulation D. Increased temperature A faulty PRV can cause either over-pressurization or insufficient pressure.
- What is the role of a boiler safety control circuit? A. Increase efficiency B. Control flow C. Ensure safe operation by monitoring key parameters D. Reduce pressure Safety circuits integrate multiple controls to prevent unsafe operating conditions.
- What is the main cause of relief valve chatter? A. Low temperature B. Proper operation C. Excessive or fluctuating pressure near setpoint D. Low flow Pressure fluctuations near the valve’s setpoint can cause it to open and close rapidly.
- What is the correct action if a safety control fails during testing? A. Ignore
