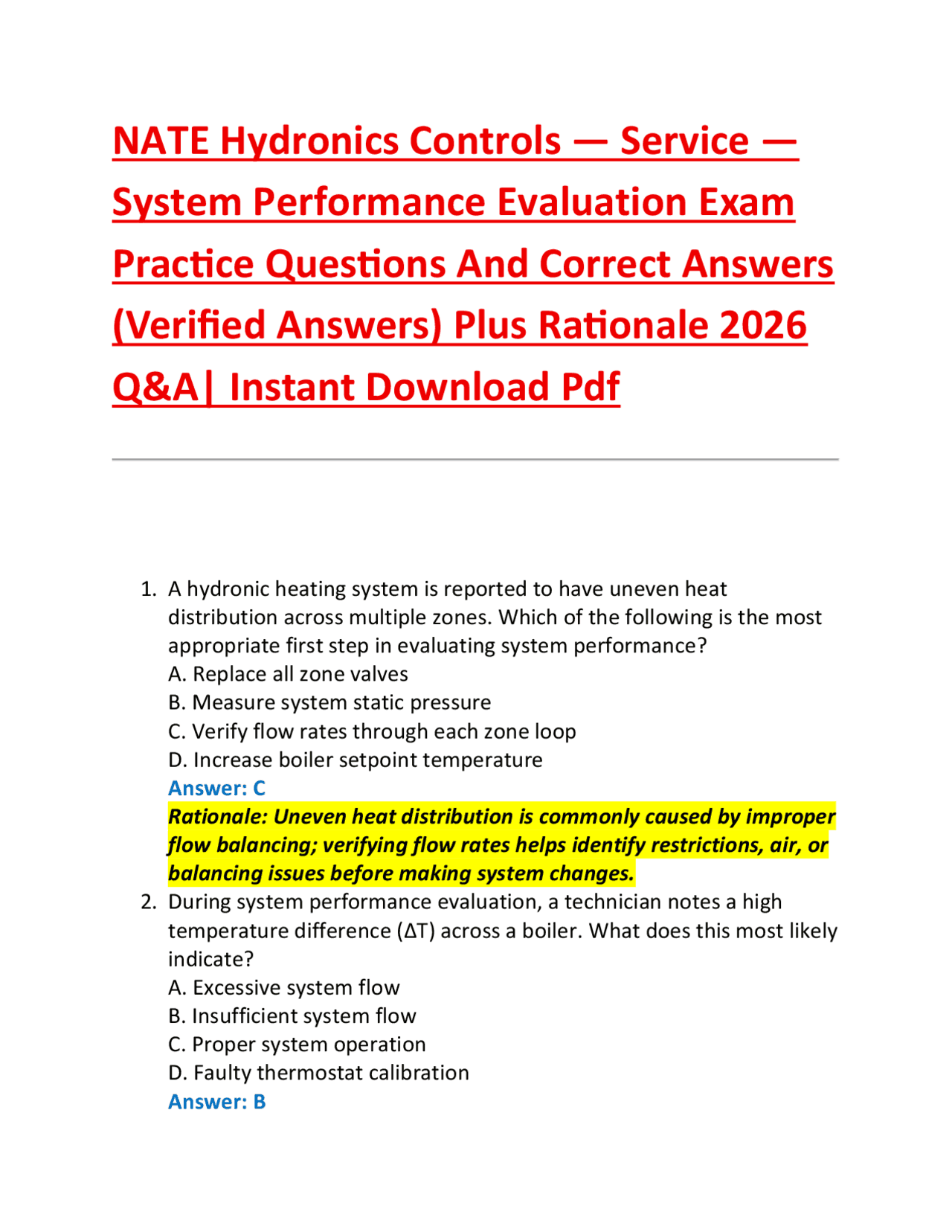

NATE Hydronics Controls — Service —
System Performance Evaluation Exam
Practice Questions And Correct Answers
(Verified Answers) Plus Rationale 2026
Q&A| Instant Download Pdf
1. A hydronic heating system is reported to have uneven heat
distribution across multiple zones. Which of the following is the most
appropriate first step in evaluating system performance?
A. Replace all zone valves
B. Measure system static pressure
C. Verify flow rates through each zone loop
D. Increase boiler setpoint temperature
Answer: C
Rationale: Uneven heat distribution is commonly caused by improper
flow balancing; verifying flow rates helps identify restrictions, air, or
balancing issues before making system changes.
2. During system performance evaluation, a technician notes a high
temperature difference (ΔT) across a boiler. What does this most likely
indicate?
A. Excessive system flow
B. Insufficient system flow
C. Proper system operation
D. Faulty thermostat calibration
Answer: B
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17

Partial preview of the text

Download NATE Hydronics Controls — Service — System Performance Evaluation Exam Practice Question and more Exams Refrigeration and Air Conditioning in PDF only on Docsity!

NATE Hydronics Controls — Service —

System Performance Evaluation Exam

Practice Questions And Correct Answers

(Verified Answers) Plus Rationale 2026

Q&A| Instant Download Pdf

  1. A hydronic heating system is reported to have uneven heat distribution across multiple zones. Which of the following is the most appropriate first step in evaluating system performance? A. Replace all zone valves B. Measure system static pressure C. Verify flow rates through each zone loop D. Increase boiler setpoint temperature Answer: C Rationale: Uneven heat distribution is commonly caused by improper flow balancing; verifying flow rates helps identify restrictions, air, or balancing issues before making system changes.
  2. During system performance evaluation, a technician notes a high temperature difference (ΔT) across a boiler. What does this most likely indicate? A. Excessive system flow B. Insufficient system flow C. Proper system operation D. Faulty thermostat calibration Answer: B

Rationale: A high ΔT typically indicates low flow, meaning water is spending too much time in the heat exchanger and absorbing excessive heat.

  1. A circulator pump is operating but flow is low. Which measurement best confirms this condition? A. Voltage at pump terminals B. Return water temperature C. Differential pressure across the pump D. Boiler firing rate Answer: C Rationale: Differential pressure across the pump correlates with flow rate; low differential pressure suggests inadequate flow.
  2. What is the primary purpose of measuring ΔT across a hydronic loop? A. Determine electrical efficiency B. Evaluate heat transfer performance C. Measure pump speed D. Assess expansion tank sizing Answer: B Rationale: Temperature difference indicates how effectively heat is being transferred from the fluid to the load.
  3. A system shows normal supply temperature but low return temperature. What does this indicate? A. Excessive heat loss in piping B. Insufficient heat emission C. Excessive flow rate D. Proper heat transfer Answer: D Rationale: A lower return temperature generally indicates good heat transfer from the system to the load.
  4. Which instrument is most appropriate for measuring flow rate in a hydronic system? A. Clamp meter B. Flow meter C. Psychrometer D. Manometer

Rationale: Low pressure allows air to enter the system, causing circulation and heat transfer problems.

  1. What is the main function of a balancing valve during performance evaluation? A. Control electrical current B. Regulate water flow distribution C. Increase boiler output D. Reduce pipe diameter Answer: B Rationale: Balancing valves ensure proper distribution of flow among different zones.
  2. A hydronic system has excessive noise in piping. What is a likely cause? A. Low flow velocity B. Air in the system C. Low temperature D. Proper balancing Answer: B Rationale: Air bubbles can cause noise as they move through piping and components.
  3. What does a low ΔT combined with high flow indicate? A. Efficient heat transfer B. Insufficient heat transfer C. Air blockage D. Pump failure Answer: B Rationale: High flow reduces the time water spends in emitters, resulting in less heat transfer and a low ΔT.
  4. Which condition suggests a failing circulator pump? A. Normal ΔT B. Stable pressure C. Reduced flow with proper voltage D. High return temperature Answer: C

Rationale: If voltage is correct but flow is low, the pump may be worn or malfunctioning.

  1. What is the purpose of an expansion tank in performance evaluation? A. Increase system flow B. Maintain system pressure stability C. Control temperature D. Filter debris Answer: B Rationale: Expansion tanks absorb thermal expansion, preventing pressure fluctuations.
  2. A system experiences overheating in one zone. What is the most likely cause? A. Low flow B. Stuck open zone valve C. Air in system D. Low boiler temperature Answer: B Rationale: A stuck open valve allows continuous flow, causing overheating.
  3. What does high head pressure in a pump indicate? A. Low resistance B. High system resistance C. Proper operation D. Low flow only Answer: B Rationale: High head pressure means the pump is working against significant resistance.
  4. What is the impact of undersized piping on system performance? A. Increased efficiency B. Reduced flow and higher resistance C. Lower pressure drop D. Improved heat transfer
  1. A clogged strainer will result in: A. Increased flow B. Reduced flow C. Higher temperature D. Lower pressure drop Answer: B Rationale: Blockages restrict flow and reduce system performance.
  2. What is a common symptom of cavitation in pumps? A. Smooth operation B. Loud noise and vibration C. Increased flow D. Stable pressure Answer: B Rationale: Cavitation causes noise and damage due to vapor bubble collapse.
  3. What indicates proper system balancing? A. Equal temperatures in all zones B. Maximum flow in one zone C. Low pressure D. High boiler temperature Answer: A Rationale: Balanced systems distribute heat evenly across zones.
  4. What is the role of a differential pressure sensor? A. Measure voltage B. Monitor flow indirectly C. Control temperature D. Increase pressure Answer: B Rationale: Differential pressure helps estimate flow rates.
  5. What happens if system flow is too high? A. Increased heat transfer B. Reduced heat transfer efficiency C. No effect D. Increased pressure stability

Answer: B Rationale: Excessive flow reduces heat exchange time.

  1. A system has cold spots despite proper flow. What is a possible cause? A. Air trapped in emitters B. High pressure C. Low voltage D. High flow Answer: A Rationale: Air prevents proper heat transfer in emitters.
  2. What is the main purpose of a check valve? A. Increase flow B. Prevent backflow C. Control temperature D. Reduce pressure Answer: B Rationale: Check valves ensure one-directional flow.
  3. What does high return temperature indicate? A. Poor heat transfer B. Efficient system C. Low flow D. Air in system Answer: A Rationale: High return temperature means heat is not being effectively emitted.
  4. What is the effect of improper pump sizing? A. Stable operation B. Flow imbalance C. Improved efficiency D. Reduced noise Answer: B Rationale: Incorrect pump size leads to improper flow rates.
  5. Which component removes debris from the system? A. Expansion tank B. Strainer

C. Increase flow D. Reduce pressure Answer: B Rationale: Sensors provide data for evaluating performance.

  1. What does a high pressure drop indicate? A. Low resistance B. High resistance C. Proper flow D. Low temperature Answer: B Rationale: High pressure drop means flow resistance is high.
  2. What is the effect of scaling in pipes? A. Increased flow B. Reduced heat transfer C. Lower pressure drop D. Increased efficiency Answer: B Rationale: Scale insulates heat and restricts flow.
  3. What does proper pump alignment ensure? A. Reduced flow B. Efficient operation C. Increased pressure D. Lower temperature Answer: B Rationale: Alignment reduces wear and improves efficiency.
  4. What is the purpose of system flushing? A. Increase temperature B. Remove debris and contaminants C. Increase pressure D. Reduce flow Answer: B Rationale: Flushing clears blockages and improves performance.
  5. What indicates proper boiler operation? A. Constant cycling B. Stable temperature output

C. High noise D. Low pressure Answer: B Rationale: Stable output reflects proper combustion and control.

  1. What is the effect of air vents malfunctioning? A. Improved flow B. Air accumulation C. Increased pressure D. Lower temperature Answer: B Rationale: Faulty vents allow air buildup.
  2. What is the main cause of thermal shock? A. Gradual temperature change B. Sudden temperature change C. Low flow D. High pressure Answer: B Rationale: Rapid temperature changes stress materials.
  3. What is the benefit of variable speed pumps? A. Fixed flow B. Improved efficiency and control C. Increased noise D. Reduced pressure Answer: B Rationale: They adjust flow to match demand.
  4. What does a stable ΔT indicate? A. Poor operation B. Consistent heat transfer C. Low flow D. High pressure Answer: B Rationale: Stable ΔT reflects balanced system performance.
  5. What is the effect of improper venting? A. Increased efficiency B. Air lock formation

Rationale: Inconsistent zone temperatures are most commonly caused by improper flow distribution or malfunctioning zone valves, making flow balance verification essential.

  1. During performance testing, a technician records a ΔT of 5°F across a heating loop. What does this indicate? A. Insufficient flow B. Excessive flow C. Proper operation D. Air blockage Answer: B Rationale: A low ΔT indicates that water is moving too quickly, not allowing sufficient time for heat transfer.
  2. What is the most likely effect of a partially closed balancing valve? A. Increased flow B. Reduced flow in that branch C. Increased boiler output D. Lower pressure drop Answer: B Rationale: A partially closed valve restricts flow, reducing water delivery to that section.
  3. A technician notes a significant pressure drop across a heat exchanger. What does this suggest? A. Low resistance B. Possible blockage or fouling C. Proper operation D. Low flow rate only Answer: B Rationale: High pressure drop across a component often indicates internal blockage or scaling.
  4. Which condition indicates proper circulator pump performance? A. High noise levels B. Stable differential pressure and flow C. Low voltage supply D. Frequent cycling

Answer: B Rationale: Stable pressure and flow indicate the pump is operating efficiently within design parameters.

  1. What is the primary impact of air binding in a hydronic loop? A. Increased pressure B. Reduced circulation C. Increased temperature D. Improved efficiency Answer: B Rationale: Air pockets block water movement, reducing circulation and system performance.
  2. A system shows excessive ΔT across terminal units. What is the likely cause? A. High flow rate B. Low flow rate C. High pressure D. Air elimination Answer: B Rationale: Low flow allows water to release more heat, increasing temperature difference.
  3. What is the purpose of measuring head pressure in system evaluation? A. Determine electrical load B. Evaluate pump performance and system resistance C. Measure temperature D. Control boiler firing Answer: B Rationale: Head pressure reflects the resistance the pump must overcome and helps assess system conditions.
  4. A system has high energy consumption with normal heating output. What is a likely issue? A. Oversized pump or excessive flow B. Low pressure C. Air in system D. Faulty thermostat
  1. What is the purpose of a system bypass valve? A. Increase pressure B. Maintain minimum flow through the boiler C. Reduce temperature D. Control voltage Answer: B Rationale: Bypass valves ensure adequate flow to protect the boiler.
  2. What does a noisy circulator pump often indicate? A. Proper operation B. Cavitation or air in system C. Low voltage D. Balanced flow Answer: B Rationale: Noise is commonly caused by cavitation or entrained air.
  3. What is the effect of undersized expansion tank? A. Stable pressure B. Pressure fluctuations and relief valve discharge C. Increased flow D. Reduced temperature Answer: B Rationale: An undersized tank cannot handle expansion, causing pressure spikes.
  4. What is a key sign of system over-pumping? A. High ΔT B. Low ΔT C. Low pressure D. Air accumulation Answer: B Rationale: Over-pumping results in excessive flow, reducing ΔT.
  5. A technician measures normal pressure but low heat output. What should be checked next? A. Pipe color B. Flow rate and heat emitters C. Voltage only D. Expansion tank

Answer: B Rationale: Heat output depends on proper flow and functioning emitters.

  1. What is the main role of a pressure relief valve? A. Increase pressure B. Protect system from overpressure C. Control flow D. Measure temperature Answer: B Rationale: Relief valves prevent damage by releasing excess pressure.
  2. What does a blocked heat exchanger cause? A. Increased flow B. Reduced heat transfer and high pressure drop C. Lower pressure D. Improved efficiency Answer: B Rationale: Blockages reduce efficiency and increase resistance.
  3. What is the impact of incorrect thermostat placement? A. Proper system control B. Inaccurate temperature readings and poor performance C. Increased pressure D. Reduced flow Answer: B Rationale: Poor placement leads to incorrect system responses.
  4. What indicates proper system commissioning? A. Frequent cycling B. Balanced temperatures and stable operation C. High noise D. Low pressure Answer: B Rationale: Commissioning ensures consistent and efficient performance.
  5. What is the effect of air separator failure? A. Improved efficiency

Rationale: Temperature fluctuations are often due to changing flow or demand.

  1. What is the main cause of pump cavitation? A. High inlet pressure B. Low inlet pressure C. High temperature only D. Balanced flow Answer: B Rationale: Low inlet pressure causes vapor bubbles that collapse inside the pump.
  2. What is the benefit of proper system balancing? A. Increased noise B. Even heat distribution C. Higher pressure D. Lower efficiency Answer: B Rationale: Balancing ensures equal heat delivery.
  3. What is the purpose of system diagnostics? A. Increase flow B. Identify and resolve performance issues C. Reduce temperature D. Increase voltage Answer: B Rationale: Diagnostics help maintain optimal operation.
  4. What is the effect of excessive flow velocity? A. Reduced noise B. Increased noise and pipe erosion C. Improved efficiency D. Lower pressure drop Answer: B Rationale: High velocity causes noise and wear.
  5. What does low system efficiency indicate? A. Proper operation B. Energy losses or improper operation C. High flow

D. Stable temperature Answer: B Rationale: Inefficiency points to system issues or losses.

  1. What is the role of a mixing valve? A. Increase pressure B. Control supply water temperature C. Measure flow D. Remove air Answer: B Rationale: Mixing valves regulate temperature by blending hot and return water.
  2. What is the impact of scaling in heat exchangers? A. Increased efficiency B. Reduced heat transfer C. Lower pressure drop D. Increased flow Answer: B Rationale: Scale insulates surfaces and reduces heat transfer.
  3. What does a stable system pressure indicate? A. Faulty expansion tank B. Proper system operation C. High flow D. Air presence Answer: B Rationale: Stable pressure reflects proper expansion control.
  4. What is the effect of clogged air vents? A. Improved performance B. Air accumulation C. Increased flow D. Lower pressure Answer: B Rationale: Blocked vents prevent air removal.
  5. What is the purpose of system flushing during evaluation? A. Increase temperature B. Remove contaminants
