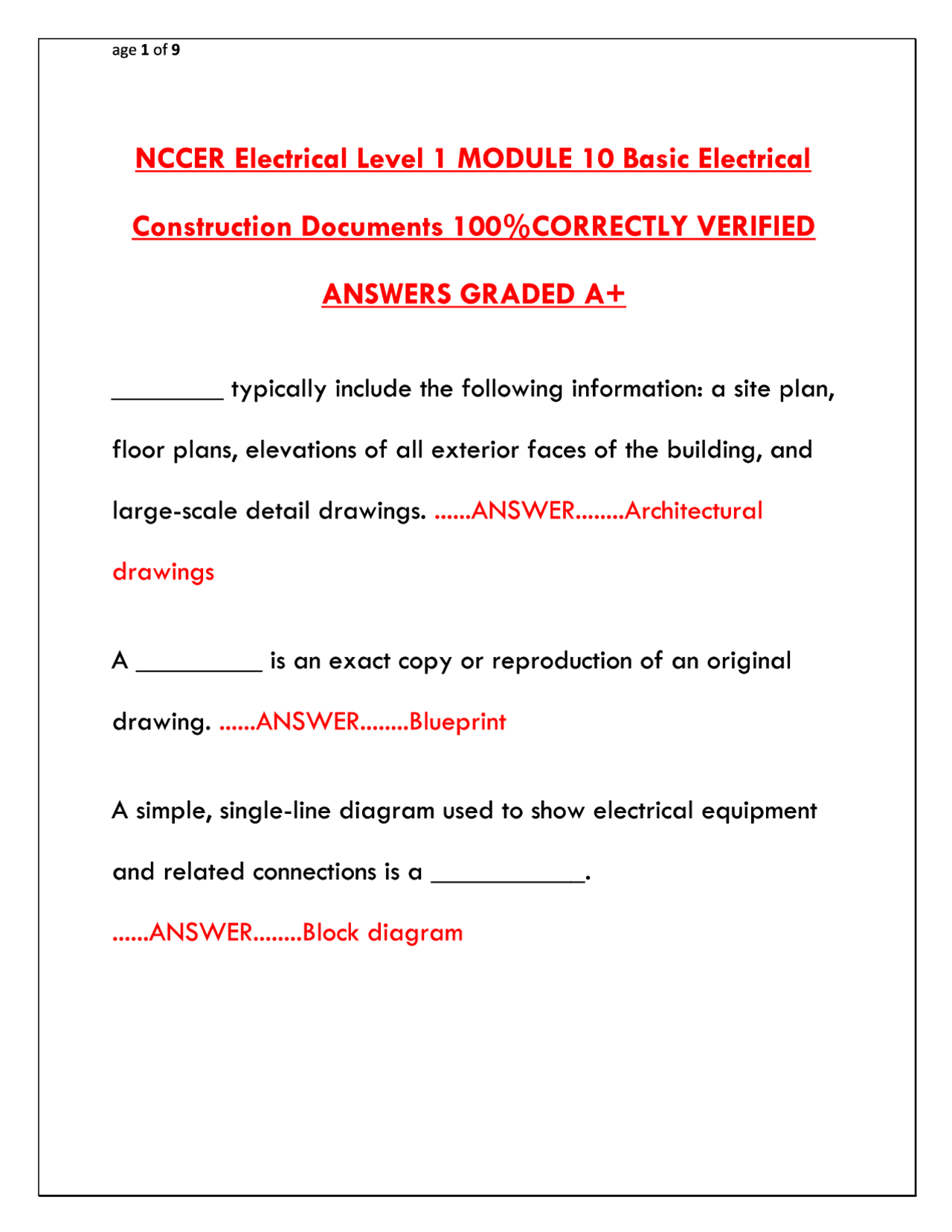

age 1 of 9 NCCER Electrical Level 1 MODULE 10 Basic Electrical Construction Documents 100%CORRECTLY VERIFIED ANSWERS GRADED A+ typically include the following information: a site plan, floor plans, elevations of all exterior faces of the building, and large-scale detail drawings. ......ANSWER...... Architectural drawings A is an exact copy or reproduction of an original drawing. ......ANSWER........ Blueprint A simple, single-line diagram used to show electrical equipment and related connections is a cesses ANSWER........Block diagram age 2 of 9 A shows the path of an electrical circuit or system of circuits, along with the circuit components. ......ANSWER........ One line diagram To convey a substantial amount of detailed information to installation electricians, an engineer will use an seseee ANSWER........Electrical drawing Shown in a separate view, a view is an enlarged, detailed view taken from an area of a drawing. cesses ANSWER........Detail drawing A cutaway drawing that shows the inside of an object or building is a + seo ANSWER...0000 Sectional view The sizes or measurements that are printed on a drawing are called + soeeee ANSWER........ Dimensions age 4 of 9 Owners, architects, and engineers use to specify material and workmanship requirements. seeees ANSWER........Written specifications A is a systematic way of presenting equipment lists on a drawing in tabular form. .....ANSWER........ Schedule Complicated circuits, such as control circuits, are shown in a + see ANSWER... Schematic diagram Usually developed by a manufactures, fabricators, or contractors, a shows specific dimensions and other information about a piece of equipment and its installation methods. ......ANSWER......+ Shop drawing A special ruler with increments in inches is the seseee ANSWER........Architectural scale age 5 of 9 A special ruler with increments in decimal units is the cesses ANSWER........Engineers scale To resolve a conflict between a drawing and specifications you would use a 2 ANSWER... Request for information are finial drawings that include all work including all changes. ......ANSWER........ As-built drawings show the slope of land on a site plan. seseee ANSWER........Counter lines A formal modification of the construction documents, scope of work or contract price will be given in a sees ANSWER........Change order age 7 of 9 Which of the following shows the face of a building? cesses ANSWER........Elevation view Revision Block ......ANSWER........ Located in the upper right hand corner of a print used for recording changes/revisions. Revision Block= change Floor plans show ( *( ) seeeee ANSWER........Length*Width Title blocks usually contain: ......ANSWER........ *Company Logo *Sheet title *Dates *Draftsperson identification *Drawing number age 8 of 9 *Scale *Revision blocks The scale would be listed on the soseee ANSWER........Title block A description of the symbols and abbreviations used in a set of drawings? ......ANSWER........ The Legend A metric drawing scale of 1:1,000 typically depicts units in + sesaee ANSWER.......« Meters What is the minimum height for receptacles ...... ANSWER........18" Division ___ of the current CSI specifications covers electronic safety and security. ......ANSWER........ 28
