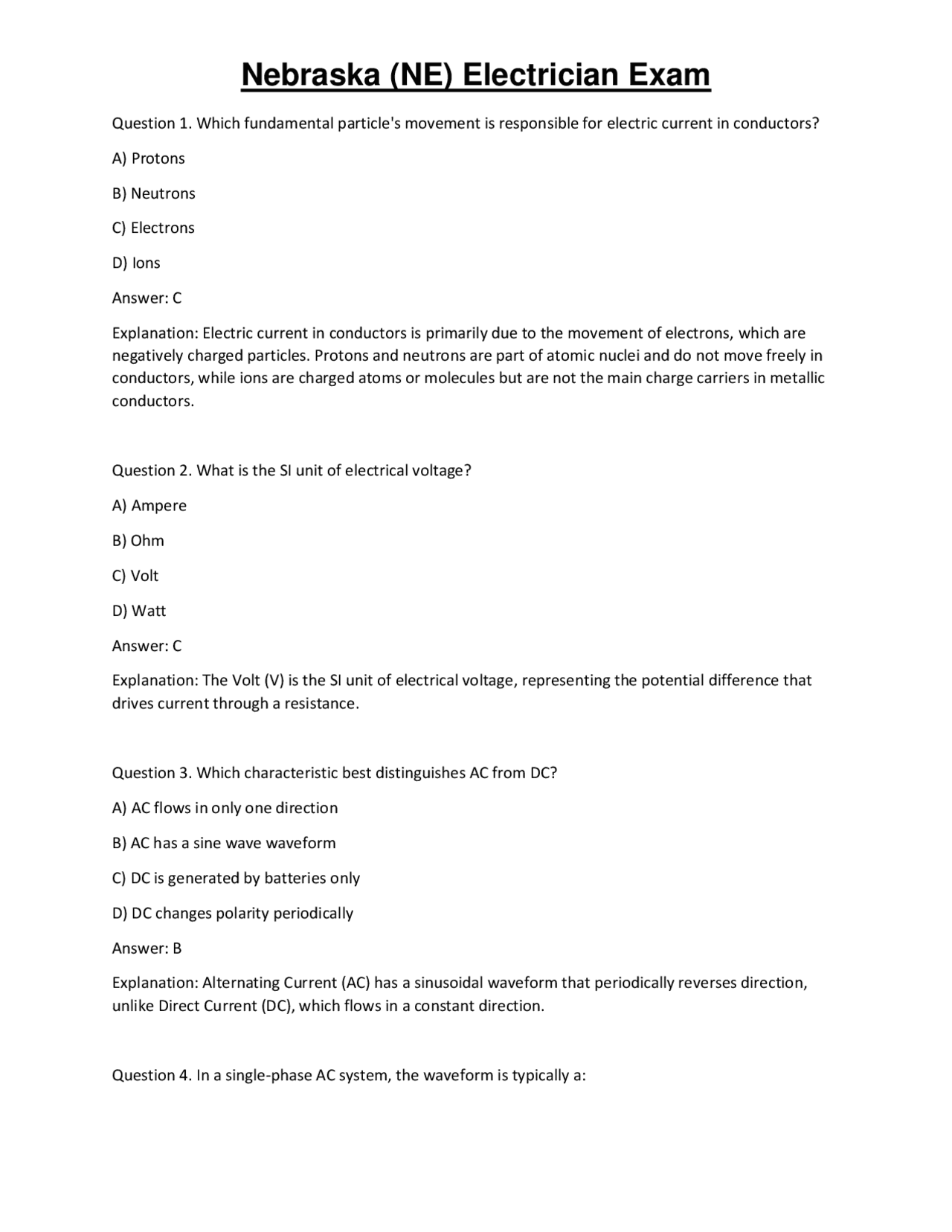

Question 1. Which fundamental particle's movement is responsible for electric current in conductors? A) Protons B) Neutrons C) Electrons D) Ions Answer: C Explanation: Electric current in conductors is primarily due to the movement of electrons, which are negatively charged particles. Protons and neutrons are part of atomic nuclei and do not move freely in conductors, while ions are charged atoms or molecules but are not the main charge carriers in metallic conductors. Question 2. What is the SI unit of electrical voltage? A) Ampere B) Ohm C) Volt D) Watt Answer: C Explanation: The Volt (V) is the SI unit of electrical voltage, representing the potential difference that drives current through a resistance. Question 3. Which characteristic best distinguishes AC from DC? A) AC flows in only one direction B) AC has a sine wave waveform C) DC is generated by batteries only D) DC changes polarity periodically Answer: B Explanation: Alternating Current (AC) has a sinusoidal waveform that periodically reverses direction, unlike Direct Current (DC), which flows in a constant direction. Question 4. In a single-phase AC system, the waveform is typically a:
A) Square wave B) Sine wave C) Triangular wave D) Sawtooth wave Answer: B Explanation: Single-phase AC systems use a sine wave waveform, characterized by smooth periodic oscillations that alternate polarity. Question 5. Which of the following describes a three-phase power system? A) It has three separate single-phase supplies with independent loads B) It uses three conductors, each offset in phase by 120 degrees C) It supplies only industrial equipment D) It is the same as a single-phase system but with higher voltage Answer: B Explanation: A three-phase system uses three conductors, each carrying AC voltages that are phase- shifted by 120 degrees, providing a more efficient and balanced power supply. Question 6. According to Ohm's Law, if voltage increases and resistance remains constant, what happens to current? A) It decreases B) It remains the same C) It increases D) It becomes zero Answer: C Explanation: Ohm’s Law states I = V/R. If voltage (V) increases while resistance (R) remains constant, current (I) increases proportionally. Question 7. Power in an electrical circuit is calculated by which formula? A) P = V × I B) P = R × I²
Answer: B Explanation: Faraday's Law states that a changing magnetic flux through a coil induces an electromotive force (emf) in the coil. Question 11. Which of the following devices uses electromagnetic induction to step down or step up voltage levels? A) Resistor B) Transformer C) Circuit breaker D) Capacitor Answer: B Explanation: Transformers operate on electromagnetic induction to change voltage levels between circuits, either stepping up or stepping down voltage. Question 12. The property of an inductor that opposes changes in current is called: A) Capacitance B) Resistance C) Inductive reactance D) Inductance Answer: D Explanation: Inductance is the property of an inductor that opposes changes in current by inducing a counter emf. Question 13. Which component primarily stores energy in an electric field? A) Inductor B) Resistor C) Capacitor D) Transformer Answer: C
Explanation: Capacitors store energy in an electric field between their plates, while inductors store energy in a magnetic field. Question 14. In an RLC circuit, the phase difference between voltage and current is affected by: A) Resistance only B) Capacitance only C) Inductance only D) All of the above Answer: D Explanation: The phase difference depends on the combined effects of resistance, inductance, and capacitance, which influence impedance and power factor. Question 15. Which instrument is best suited for measuring the resistance of an electrical component? A) Clamp-on ammeter B) Multimeter (ohmmeter setting) C) Volt meter D) Power analyzer Answer: B Explanation: A multimeter set to the ohmmeter function is used to measure resistance directly. Question 16. When measuring the current in a circuit without breaking the conductor, which device should be used? A) Multimeter in series B) Clamp-on ammeter C) Megohmmeter D) Voltage tester Answer: B Explanation: A clamp-on ammeter measures current by clamping around a conductor without opening the circuit.
C) Steel conductors D) Copper-clad steel conductors Answer: B Explanation: Type NM cable generally uses copper conductors, which are flexible and have good conductivity for residential wiring. Question 21. The purpose of an overcurrent protection device is to: A) Increase current flow B) Protect conductors from overheating C) Reduce voltage D) Isolate the circuit from ground Answer: B Explanation: Overcurrent protection devices, such as fuses and circuit breakers, prevent excessive current that could cause overheating and fires. Question 22. In grounding systems, the main purpose is to: A) Enhance circuit efficiency B) Provide a low-resistance path to earth for fault currents C) Increase system voltage D) Reduce power consumption Answer: B Explanation: Grounding provides a low-resistance path for fault currents, ensuring safety and preventing electric shock. Question 23. Which type of conduit is flexible and often used in applications requiring movement or vibration absorption? A) Rigid metal conduit (RMC) B) Electrical metallic tubing (EMT) C) Flexible metallic conduit (FMC) D) Liquidtight flexible nonmetallic conduit (LFNC)
Answer: C Explanation: FMC is flexible, making it suitable for applications requiring movement or vibration absorption. Question 24. Conductors rated for 90°C are typically sized based on their: A) Ampacity at 75°C B) Ampacity at 90°C C) Voltage rating D) Resistance only Answer: B Explanation: Conductors are rated for ampacity based on their temperature rating; those rated for 90°C are sized according to 90°C ampacity tables. Question 25. Which article of the NEC covers the installation requirements for transformers? A) Article 430 B) Article 450 C) Article 460 D) Article 680 Answer: B Explanation: Article 450 provides the requirements for installing and protecting transformers. Question 26. When calculating load for a dwelling, which of the following is typically included? A) General lighting B) Small appliance circuits C) Laundry circuits D) All of the above Answer: D Explanation: Load calculations for dwellings include general lighting, small appliance circuits, laundry, and specific appliances as per NEC requirements.
B) Barriers or enclosures C) Warning signs D) None of the above Answer: B Explanation: OSHA mandates that exposed energized parts be protected using barriers, enclosures, or other protective devices to prevent accidental contact. Question 31. The primary purpose of lockout/tagout procedures is to: A) Prevent electric shock during maintenance B) Secure tools in place C) Ensure proper grounding D) Schedule work hours Answer: A Explanation: Lockout/tagout procedures are designed to prevent accidental energization of circuits, protecting workers from electric shock during maintenance. Question 32. The minimum personal protective equipment (PPE) for working on energized circuits includes: A) Insulated gloves and face shield B) Hard hat and safety glasses C) Steel-toed boots only D) Ear protection only Answer: A Explanation: Insulated gloves and face shields are essential PPE for working safely on energized circuits to protect against shock and arc flash. Question 33. Which of the following symbols typically indicates a ground connection in electrical schematics? A) A circle B) A triangle
C) A three-line downward arrow D) A set of three horizontal lines decreasing in length Answer: D Explanation: The ground symbol generally consists of three horizontal lines, with the bottom line being the shortest. Question 34. When reading a one-line diagram, what does the symbol of a circle with an 'X' inside typically represent? A) A switch B) A motor C) A fuse D) A load or device (such as a lamp or appliance) Answer: D Explanation: A circle with an 'X' inside usually represents a generic load or device like a lamp or appliance in a schematic. Question 35. Which test instrument is used to verify the phase rotation of three-phase motors? A) Multimeter B) Phase rotation meter C) Megohmmeter D) GFCI tester Answer: B Explanation: A phase rotation meter is used to determine the sequence of phases in a three-phase system. Question 36. The Nebraska Electrical Act primarily governs: A) The design standards for electrical equipment B) The licensing and regulation of electricians C) The manufacturing of electrical components D) The international electrical standards
Question 40. For a dwelling unit, the minimum size of a grounding electrode conductor is typically: A) No smaller than 8 AWG copper B) No smaller than 6 AWG copper C) No smaller than 4 AWG copper D) Not specified in the NEC Answer: A Explanation: The NEC generally requires a grounding electrode conductor of at least 8 AWG copper or equivalent size, depending on conditions. Question 41. The purpose of a GFCI is to protect against: A) Overcurrent B) Ground-faults C) Short circuits D) Overvoltage Answer: B Explanation: GFCIs detect ground-faults by measuring leakage current and quickly disconnect power to prevent shock. Question 42. Which article addresses wiring in health care facilities? A) Article 517 B) Article 525 C) Article 518 D) Article 530 Answer: A Explanation: Article 517 contains specific requirements for wiring and electrical systems in health care facilities, including patient care areas. Question 43. The maximum number of conductors in a conduit is influenced by: A) The conductor insulation type
B) The conduit size C) The length of the conduit run D) The number of circuits Answer: B Explanation: Conduit size determines the maximum allowable number of conductors, according to fill capacity tables. Question 44. Which component is used to protect a motor from overload conditions? A) Overcurrent device B) Motor starter with overload relay C) GFCI breaker D) Voltage regulator Answer: B Explanation: Motor starters equipped with overload relays protect motors from damage due to excessive current or overheating. Question 45. In the NEC, which article covers temporary electrical installations? A) Article 590 B) Article 700 C) Article 680 D) Article 525 Answer: A Explanation: Article 590 provides requirements for temporary installations, including wiring methods and protections. Question 46. Which type of lighting is most appropriate for hazardous locations? A) Incandescent lamps B) Explosion-proof fixtures C) Fluorescent fixtures D) LED fixtures only in dry locations
Explanation: Conductors must be protected against mechanical damage and overcurrent to ensure safety and code compliance. Question 50. Which of the following is a typical requirement for grounding in a residential system? A) Grounding conductor connected to the neutral bus B) Grounding conductor connected to a grounding electrode C) No grounding required for circuits under 50V D) Grounding conductor connected directly to the service entrance Answer: B Explanation: The grounding conductor must be connected to a grounding electrode, such as a grounding rod or metal water pipe, to establish a proper grounding system. Question 51. What is the primary function of an AFCI in electrical circuits? A) Protect against ground-faults B) Detect arcing faults that could cause fires C) Protect against overcurrent D) Limit short circuit current Answer: B Explanation: AFCIs detect arcing faults, which are a common cause of electrical fires, and disconnect power to prevent hazards. Question 52. Which NEC article covers wiring methods for outdoor signs? A) Article 600 B) Article 680 C) Article 6000 D) Article 700 Answer: A Explanation: Article 600 addresses wiring methods and requirements for outdoor signs and outline lighting.
Question 53. A device used to interrupt current during an overload condition in a motor circuit is called: A) Circuit breaker B) Overload relay C) Fuse D) Contactor Answer: B Explanation: An overload relay detects excessive current and trips to protect the motor from damage. Question 54. In the context of electrical safety, what does OSHA stand for? A) Occupational Safety and Hazard Administration B) Occupational Safety and Health Administration C) Occupational Standards and Hazard Agency D) Occupational System for Hazard Awareness Answer: B Explanation: OSHA stands for Occupational Safety and Health Administration, which sets safety standards for workplace safety, including electrical safety. Question 55. Which of the following is a common sign of an arc flash hazard? A) Bright light and loud noise during faults B) Mild heat C) Slight buzzing D) No visible signs Answer: A Explanation: Arc flashes produce intense light, heat, and noise, indicating a dangerous electrical fault. Question 56. The main purpose of the Nebraska Electrical Act is to: A) Standardize electrical design practices B) Regulate licensing, inspection, and safety standards for electrical work C) Set manufacturing standards for electrical equipment
Explanation: Type NM cable (e.g., Romex) is most common in residential branch circuit wiring due to ease of installation. Question 60. The main function of a disconnect switch in an electrical system is to: A) Protect against overloads B) Isolate equipment for maintenance C) Step up voltage D) Reduce power consumption Answer: B Explanation: A disconnect switch provides a means to isolate electrical equipment from the supply for safety during maintenance or emergency. Question 61. Which article in the NEC addresses wiring in hazardous (classified) locations? A) Articles 500- 506 B) Articles 600- 606 C) Articles 400- 410 D) Articles 700- 708 Answer: A Explanation: Articles 500 through 506 cover requirements for wiring and equipment in hazardous classified locations. Question 62. In a residential load calculation, the General Lighting load is typically calculated at: A) 3 VA per square foot B) 1 VA per square foot C) 2 VA per square foot D) 5 VA per square foot Answer: A Explanation: The NEC specifies a general lighting load of 3 volt-amperes (VA) per square foot for dwelling units.
Question 63. The maximum conductor ampacity correction factor for a single conductor in a conduit with a high ambient temperature is: A) 1. B) Less than 1. C) Greater than 1. D) Not applicable Answer: B Explanation: Higher ambient temperatures reduce conductor ampacity, so correction factors less than 1.00 are applied. Question 64. Which of the following is considered a "permissive" rule in the NEC? A) "Shall" B) "Shall not" C) "May" D) "Must" Answer: C Explanation: "May" indicates permissive or optional actions, whereas "shall" is mandatory. Question 65. Which article of the NEC covers the wiring requirements for swimming pools and fountains? A) Article 680 B) Article 525 C) Article 700 D) Article 517 Answer: A Explanation: Article 680 addresses wiring, grounding, bonding, and safety requirements for swimming pools, fountains, and similar installations. Question 66. The primary purpose of a motor overload relay is to: A) Protect against short circuits
