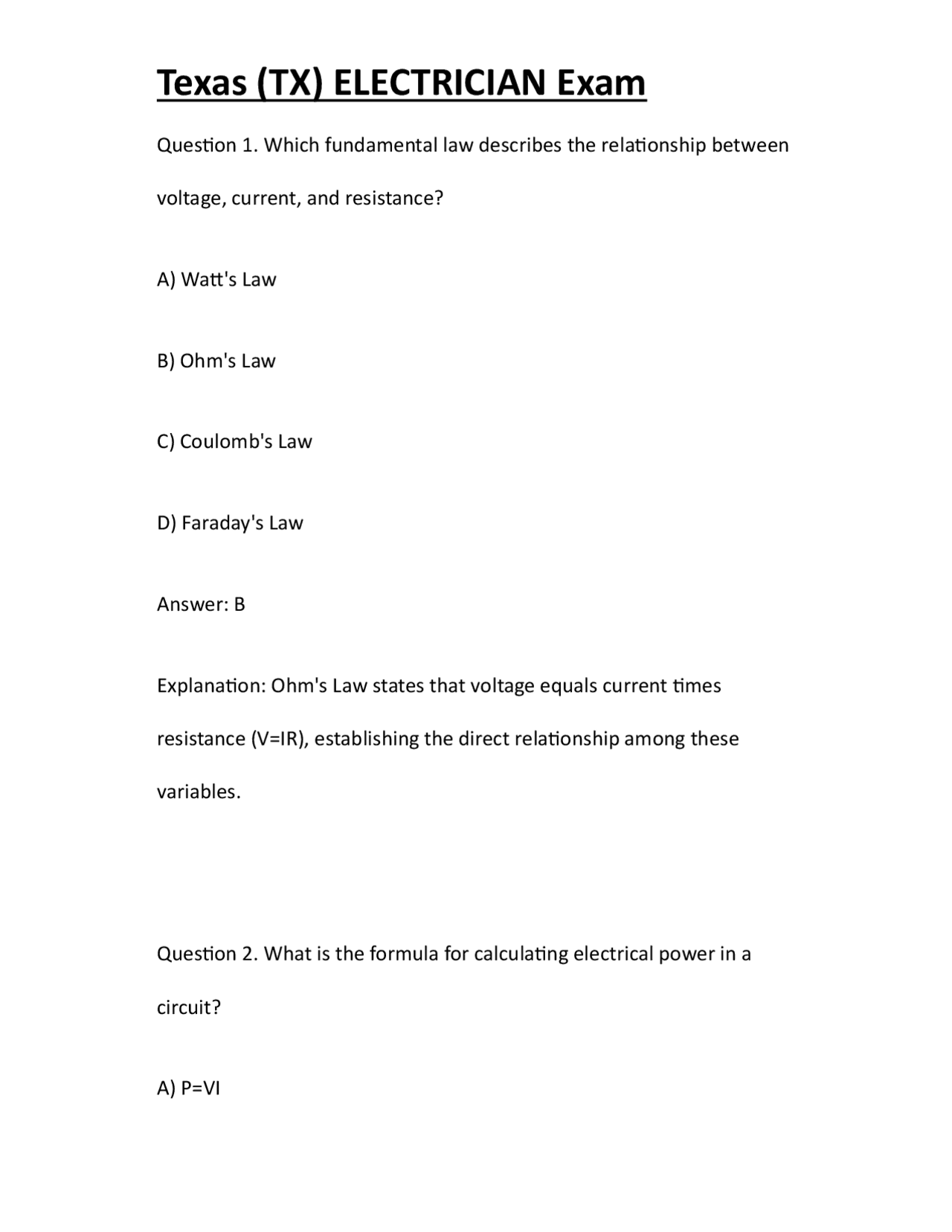

Question 1. Which fundamental law describes the relationship between voltage, current, and resistance? A) Watt's Law B) Ohm's Law C) Coulomb's Law D) Faraday's Law Answer: B Explanation: Ohm's Law states that voltage equals current times resistance (V=IR), establishing the direct relationship among these variables. Question 2. What is the formula for calculating electrical power in a circuit? A) P=VI
D) All of the above Answer: D Explanation: Power (P) can be calculated using all these formulas depending on the known quantities: P=VI, P=I^2R, and P=V^2/R. Question 3. Which circuit type has the same current flowing through all components? A) Series circuit B) Parallel circuit C) Series-parallel circuit D) None of the above
Question 5. Which principle explains how a current-carrying conductor produces a magnetic field? A) Faraday's Law B) Ampère's Law C) Coulomb's Law D) Lenz's Law Answer: B Explanation: Ampère's Law describes the magnetic field generated around a current-carrying conductor. Question 6. What is the standard unit for measuring electrical resistance? A) Volt B) Ampere
C) Ohm D) Watt Answer: C Explanation: Resistance is measured in ohms (Ω). Question 7. When calculating load for a dwelling unit, which code requirement is primarily considered? A) NEC Article 220 B) NEC Article 310 C) NEC Article 430 D) NEC Article 250 Answer: A
Question 9. In box fill calculations, what is the maximum number of conductors allowed in a 20 cubic inch box according to NEC Table 314.16(B)? A) 5 conductors B) 9 conductors C) 12 conductors D) 15 conductors Answer: B Explanation: NEC Table 314.16(B) provides maximum conductor counts per box size; for 20 in³, the maximum is typically 9 conductors. Question 10. Which conduit type offers the highest mechanical protection for underground wiring? A) EMT
Answer: B Explanation: Rigid Metal Conduit (RMC) provides the strongest mechanical protection among standard conduit types. Question 11. What is the primary purpose of a grounding conductor? A) To carry current during normal operation B) To provide a low-resistance path to earth for fault currents C) To prevent overloads D) To supply power to the load Answer: B
A) Fuse B) Circuit breaker C) Overload relay D) Surge protector Answer: C Explanation: An overload relay is specifically designed to protect motors from overcurrent conditions. Question 14. What is the typical voltage rating for residential branch circuits in the US? A) 120V only B) 240V only C) 120/240V
Answer: C Explanation: Residential branch circuits are usually 120/240V, combining both voltages for different loads. Question 15. Which NEC chapter covers wiring methods and materials? A) Chapter 2 B) Chapter 3 C) Chapter 4 D) Chapter 5 Answer: B Explanation: Chapter 3 addresses wiring methods, materials, and installation requirements.
B) Article 725 C) Article 760 D) Article 800 Answer: A Explanation: NEC Article 700 covers the installation and requirements for fire alarm systems. Question 18. Which type of equipment is classified as hazardous (classified) location equipment? A) Standard receptacles B) Explosion-proof motors C) Residential switches D) General-purpose lighting fixtures
Answer: B Explanation: Explosion-proof motors are designed for hazardous locations with flammable gases or dusts. Question 19. What is the main purpose of a surge-protective device (SPD)? A) To limit voltage during surges B) To prevent overloads C) To disconnect circuits during faults D) To regulate current flow Answer: A Explanation: SPDs protect electrical equipment from voltage surges caused by lightning or switching events.
Answer: B Explanation: The box fill capacity per NEC Table 314.16(B) allows approximately 12 conductors in a 30 in³ box, depending on conductor sizes. Question 22. Which type of motor controller is typically used for motor overload protection? A) Contactor B) Overcurrent relay C) Thermal overload relay D) Circuit breaker Answer: C
Explanation: Thermal overload relays are used to protect motors from overheating due to overload conditions. Question 23. What is the purpose of a lockout/tagout procedure? A) To prevent unauthorized access to electrical panels B) To ensure safe maintenance by de-energizing equipment C) To improve circuit efficiency D) To label circuit conductors Answer: B Explanation: Lockout/tagout procedures ensure equipment is de- energized and safe for maintenance work. Question 24. What is the primary function of the NEC's Article 250?
D) Chapter 8 Answer: A Explanation: Chapter 5 includes special occupancies like hazardous locations and marinas. Question 26. For a 120V residential circuit, what is the maximum current rating typically used for standard outlets? A) 10A B) 15A C) 20A D) 30A Answer: C Explanation: Most standard residential outlets are rated for 20A circuits in the US.
Question 27. Which type of wiring method is most suitable for concealed, interior wiring in dry locations? A) NM cable B) Rigid metal conduit C) Liquidtight flexible conduit D) Liquid-tight flexible metal conduit Answer: A Explanation: NM cable (nonmetallic-sheathed cable) is commonly used for interior, dry location wiring. Question 28. Which type of transformer is used to step down high voltage to usable low voltage? A) Power transformer
