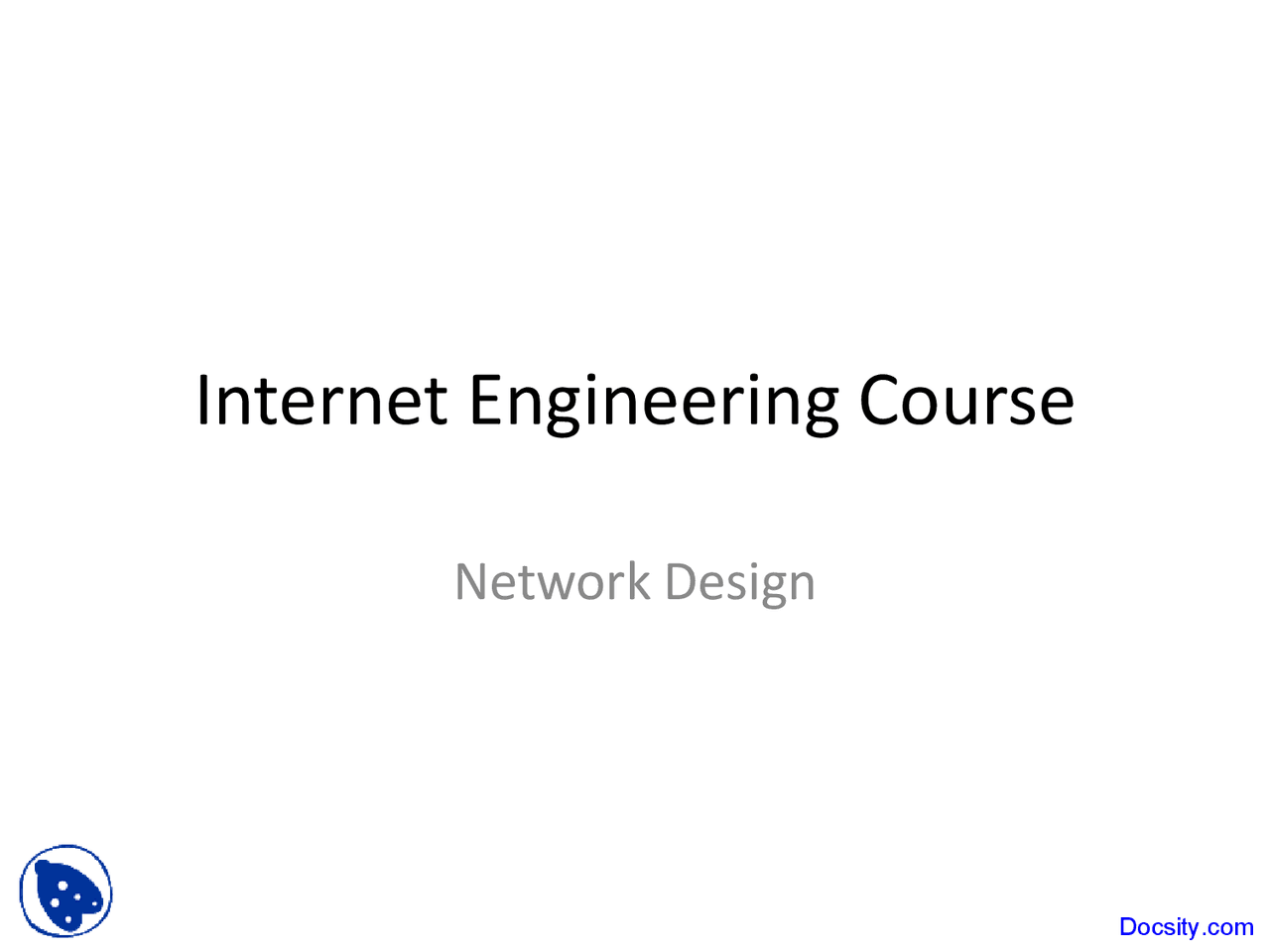

Internet Engineering Course
Network Design
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19

Partial preview of the text

Download Network Design - Internet Engineering - Lecture Slides and more Slides Internet and Information Access in PDF only on Docsity!

Internet Engineering Course

Network Design

Contents

  • Define and analyse an organization network

requirements

  • Discuss about the appropriate solutions
    • Identify important factors in network design
    • Find appropriate structure

Small sized Network (<80 users)

  • Low budget for IT expense
  • Little expertise in various technologies
  • Mostly off the shelf applications
    • Low bandwidth consumption
  • Mostly basic requirements, such as email, word

processing, printing and file sharing

  • One or two administrators
    • Responsible for every aspects of network (generalist)
    • Server management, backup tasks, connecting new devices, installation of workstations and troubleshooting PC problems

Requirements for SSN

  • Low cost equipment
  • Shared bandwidth for most users, switched for a

selective few

  • A central switch acting as a backbone
  • Flat network design
  • Little fault tolerance
  • Minimal management required
  • High growth provisioning of 20-50%

Connectivity design

  • The aim is to have a design that is both cost effective and provisioned for future expansion
  • There is a server room with all the connecting devices and servers
  • The printers are fitted with built in Ethernet ports distributed in the building
  • There are two groups of users, power users group and non power users
  • Power group need to print a lot of documentation, take large documents from server or save presentation files into the server

Connectivity design (cont.)

  • Non power users do more manual tasks such

as answering phone calls

  • They use the network mainly for reading

emails and do some simple word processing

  • They use low-end PCs

Physical diagram – expansion plan

Logical network design

Addressing and Naming

  • For this size of network a Class C address should be used.
  • A private Class C address is used: 192.168.1.0 to 192.168.1.
  • Dynamic or Static IP assignment?
    • It might be hard and maintain a DHCP server
    • Therefore for small sized network we may decide to use static IPs.
  • How about a DNS server?
    • Again setting and maintaining a DNS for this size of network may not be beneficial
    • Therefore a simple naming scheme maybe used

Connecting the network to the

Internet

  • In the design we used private IP addresses:
    • Computers can’t use Internet directly, there is a need for NAT functionality
    • There exists the advantage of security of network
  • It is decided to use a router with built-in NAT

functionality

  • It is not cost effective to host email and Web service

inside the organization

  • Therefore such servers are outsourced

A sample firm

  • Connecting 300 users to a network
  • The company has a AS/400 host and 8 Windows NT file servers
  • There are 6 departments in the company, each with its own applications: - Marketing – mainly email with external customers, calendaring, word processing, presentation applications - Customer support – mainly handling customer queries, accessing the host for in-house developed applications - MIS – development of applications on AS/ - Human Resources – Mainly word processing - Engineering – make use of CAD/CAM workstations

Connectivity design

  • Power users, such as the Engineering department, will have 100 Mbps switched connections to the desktop
  • Because Marketing users deal with graphics presentation, they will be connected to the 10 Mbps switch in a ratio of 16 users to a switch.
  • Since Customer Support and Human Resources users require fewer computing resources, they are connected to the 10 Mbps switch in a ratio of 24 to a switch.
  • Except for the server in the Engineering department, all the servers are
  • connected to the backbone switch at 100 Mbps. The engineering server is connected to the switch in the Engineering department at 100 Mbps.

Logical network design

Logical network design (cont.)

  • With a network of this size it is beneficial to

have a DHCP server

  • Also it is better to have a DNS for name

resolution:
