Neuroscience study notes broca's area, Summaries of Neuroscience

Aston UniversityNeuroscience

Neuroscience study notes broca's area

Typology: Summaries

2025/2026

Uploaded on 01/18/2026

0515-silicon
0515-silicon 🇬🇧

5 documents

1 / 10

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

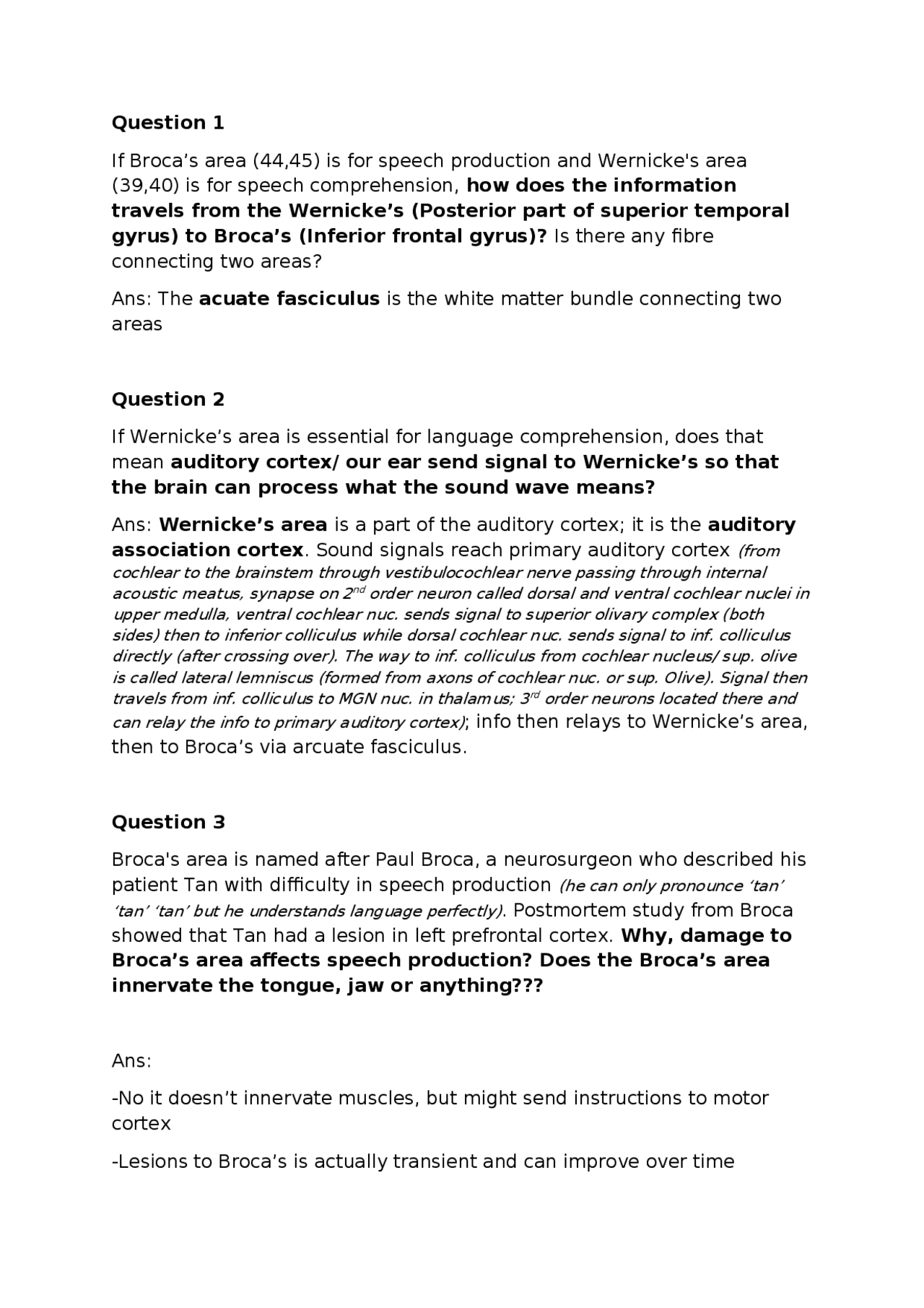

Question 1
If Broca’s area (44,45) is for speech production and Wernicke's area
(39,40) is for speech comprehension, how does the information
travels from the Wernicke’s (Posterior part of superior temporal
gyrus) to Broca’s (Inferior frontal gyrus)? Is there any fibre
connecting two areas?
Ans: The acuate fasciculus is the white matter bundle connecting two
areas
Question 2
If Wernicke’s area is essential for language comprehension, does that
mean auditory cortex/ our ear send signal to Wernicke’s so that
the brain can process what the sound wave means?
Ans: Wernicke’s area is a part of the auditory cortex; it is the auditory
association cortex. Sound signals reach primary auditory cortex
(from
cochlear to the brainstem through vestibulocochlear nerve passing through internal
acoustic meatus, synapse on 2nd order neuron called dorsal and ventral cochlear nuclei in
upper medulla, ventral cochlear nuc. sends signal to superior olivary complex (both
sides) then to inferior colliculus while dorsal cochlear nuc. sends signal to inf. colliculus
directly (after crossing over). The way to inf. colliculus from cochlear nucleus/ sup. olive
is called lateral lemniscus (formed from axons of cochlear nuc. or sup. Olive). Signal then
travels from inf. colliculus to MGN nuc. in thalamus; 3rd order neurons located there and
can relay the info to primary auditory cortex)
; info then relays to Wernicke’s area,
then to Broca’s via arcuate fasciculus.
Question 3
Broca's area is named after Paul Broca, a neurosurgeon who described his
patient Tan with difficulty in speech production
(he can only pronounce ‘tan’
‘tan’ ‘tan’ but he understands language perfectly)
. Postmortem study from Broca
showed that Tan had a lesion in left prefrontal cortex. Why, damage to
Broca’s area affects speech production? Does the Broca’s area
innervate the tongue, jaw or anything???
Ans:
-No it doesn’t innervate muscles, but might send instructions to motor
cortex
-Lesions to Broca’s is actually transient and can improve over time
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Neuroscience study notes broca's area and more Summaries Neuroscience in PDF only on Docsity!

Question 1

If Broca’s area (44,45) is for speech production and Wernicke's area

(39,40) is for speech comprehension, how does the information

travels from the Wernicke’s (Posterior part of superior temporal

gyrus) to Broca’s (Inferior frontal gyrus)? Is there any fibre

connecting two areas?

Ans: The acuate fasciculus is the white matter bundle connecting two

areas

Question 2

If Wernicke’s area is essential for language comprehension, does that

mean auditory cortex/ our ear send signal to Wernicke’s so that

the brain can process what the sound wave means?

Ans: Wernicke’s area is a part of the auditory cortex; it is the auditory

association cortex. Sound signals reach primary auditory cortex (from

cochlear to the brainstem through vestibulocochlear nerve passing through internal acoustic meatus, synapse on 2nd^ order neuron called dorsal and ventral cochlear nuclei in upper medulla, ventral cochlear nuc. sends signal to superior olivary complex (both sides) then to inferior colliculus while dorsal cochlear nuc. sends signal to inf. colliculus directly (after crossing over). The way to inf. colliculus from cochlear nucleus/ sup. olive is called lateral lemniscus (formed from axons of cochlear nuc. or sup. Olive). Signal then travels from inf. colliculus to MGN nuc. in thalamus; 3rd^ order neurons located there and

can relay the info to primary auditory cortex); info then relays to Wernicke’s area,

then to Broca’s via arcuate fasciculus.

Question 3

Broca's area is named after Paul Broca, a neurosurgeon who described his

patient Tan with difficulty in speech production (he can only pronounce ‘tan’

‘tan’ ‘tan’ but he understands language perfectly). Postmortem study from Broca

showed that Tan had a lesion in left prefrontal cortex. Why, damage to

Broca’s area affects speech production? Does the Broca’s area

innervate the tongue, jaw or anything???

Ans:

-No it doesn’t innervate muscles, but might send instructions to motor

cortex

-Lesions to Broca’s is actually transient and can improve over time

-Exact role in speech production is unknown/debated/ research ongoing

-Other structures also important, eg thalamus and striatum (Exploring the

Brain TB), insula coordinating sending blueprints about articulatory

coding? Anterior fasciculus? Subcortical structure below Broca’s? Maybe

the initial association of Broca’s with speech production is wrong/ indirect

-DBS to Broca’s doesn’t lead to activity in motor muscles, but stimulating

Broca’s can prevent the onset

-Word production is complex, has many stages,

(https://pmc.ncbi.nlm.nih.gov/articles/PMC4352780/#s2) “phonological

processing (before articulatory encoding), generating the articulatory

code (phonetic encoding), and coordinating the articulators.”

Misconceptions about my original question

- The Broca’s study only showed that there was a lesion in Broca’s

area after the patient was dead, and that the patient had speech

difficulties when he was alive. It does not mean that a damage to

Broca’s area must cause speech problems directly. (The problem

with lesion study (e.g alive in surgery removing cortex) is that

you’re studying the function of the remaining brain, not the direct

function of the structure that has lesion)

- The Tan patient also have damage to other white matter tract

surrounding Broca’s and a 2021 study (Damage to Broca’s area does not

contribute to long-term speech production outcome after stroke: https://pmc.ncbi.nlm.nih.gov/articles/PMC8041045/ ; study speech production in stroke survivor who have damaged in Broca’s area/ surrounding area)

suggested that a damage to anterior acuate fasciculus can lead to

speech performance that is worse than damaging Broca’s alone

(and cannot be explained by the disconnection of acuate fasciculus

with Broca’s). Also the damage caused by lesion in Broca’s area is

short-term (and reversible?

https://pmc.ncbi.nlm.nih.gov/articles/PMC4352780/#s2)

More background information about Broca’s

Classic view about the role of Broca’s area in speech production is like,

Broca’s sends a blueprint to premotor cortex about how the muscles

should be moved, the motor cortex then execute that motor plan. (DBS on

Broca’s area does not leads to activity in speech muscles, so maybe the

role of Broca’s is at cognitive level instead of motor level) (Electrical

stimulation of motor cortex that controls the mouth and lips

of neurons, hard to isolate and localise what structure causing those

activities (surface level superficial layer). You can only see different peaks

and assume those peaks correspond to certain mental states. Then if a

peak precedes another peak you can infer/ make predictions, but it does

not necessarily mean causation? Also, stimulation e.g DBS used, is that

you can only target certain small area certain structure of interest? But

recording/ intraoperative stuff you can see immediate effects that

postmortem study can’t, it is possible that actually Broca’s area is not the

most important structure for speech production, maybe the initial finding

was due to something else other than Broca’s. But Broca’s study was

important not just for the sake of knowing which area is the real culprit for

language, at that era the debate in neuroscience was about whether the

function of nervous system is localized in different lobes (frontal cortex for

speech production etc, or distributed). Broca’s study showed that the

function was localized, (specifically, LEFT hemisphere) inferior frontal

gyrus for language. So it paved the way for neurosurgery, if you can fix

certain structure or pathway, you can fix the brain, you don’t need to poke

a hole for evil spirit to escape the scalp -_-

Notes:

External acoustic meatus (ear canal that collects and channels sound waves from the outer ear to the eardrum) vs internal acoustic meatus (hole in skull that CN8 passes through) vestibulocochlear nerve is the axon of spiral ganglion cells (not inner hair cell!), their cell bodies are located in spiral ganglion. Spiral ganglion cells synapse with the inner hair cell to receive signal, then conveys info to the brain via their axons) Broca’s area <- left inferior prefrontal cortex (described by Paul Broca in 1865 from patient Tan) Redefining the role of Broca's area in speech (https://pubmed.ncbi.nlm.nih.gov/25730850/) : -Use ECoG, record their neuronal activity from scalp when participants are cued to pronounce certain sounds? -“Our data provide evidence that, during word production tasks such as auditory word repetition, the neural representation of a spoken word is forwarded from sensory areas to the prefrontal cortex, where Broca’s area links the representations to an articulatory code that is subsequently implemented by motor cortices responsible for coordination of the articulators.” Broca’s area Classic Notion: (Copilot)

Traditionally, Broca’s area (especially BA44 and BA45 in the inferior frontal gyrus) has been thought of as a speech motor planning region. That means:  It helps translate linguistic representations (like phonemes or syllables) into motor commands  It’s involved in sequencing and timing the movements needed for speech  It’s upstream of motor cortex — it doesn’t move muscles directly, but it prepares the plan So in classic models, Broca’s is like the architect of speech — designing the blueprint before the builders (motor cortex, brainstem nuclei, cranial nerves) execute it. Pre-articulatory phase: (Copilot)

  • The brain links the auditory or semantic representation of a word to a motor code
  • It assembles a novel sequence of articulatory gestures (especially for unfamiliar or complex words)
  • It’s before any actual movement — no tongue, lips, or vocal cords are active yet Redefining the role of Broca’s area in speech: “Broca’s area has been previously associated with a variety of processes, including phonological segmentation, syntactic processing, and unification, all of which involve segmenting and linking different types of linguistic information ( 13 , 28 , 29 ). Although repeating and reading single words do not engage semantic and syntactic processing, they do require an operation linking phonemic sequences with motor gestures. Our findings indicate that this linkage is coordinated by Broca’s area through reciprocal interactions with temporal and frontal cortices responsible for phonemic and articulatory representations, respectively, including interactions with motor cortex before the actual act of speech. Based on these unique findings, we propose that Broca’s area is not the seat of articulation per se, but rather is a key node in manipulating and forwarding neural information across large-scale cortical networks responsible for key components of speech production” Science invention history timeline Invention of Microscope -Around 1590 The first element to be chemically discovered was phosphorus -by Hennig Brandt in 1669. Demonstrating lightning is electrical Benjamin Franklin 1752 Atomic theory

Discovered the electron , leading to the "plum pudding" model where a positively charged sphere contains electrons, like plums in a pudding. E= mc^ 1905 Ernest Rutherford (1911): -gold foil experiment (most rays deflected by gold particle?) -he showed that the atom's positive charge and most of its mass are concentrated in a central, tiny nucleus, with electrons in a cloud around it. Niels Bohr (1913): Electron orbits Ultrasound

Ventriculography: -Walter Dandy in 1918 -surgically injecting air directly into the brain's lateral ventricles to allow them to be seen on X-rays.

  • dangerous and carried risks like hemorrhage and infection. Pneumoencephalography: -Dandy in 1919, -a variation of ventriculography that involved draining cerebrospinal fluid and replacing it with air introduced through a lumbar puncture. -This allowed for imaging of the brain's surface and ventricles, HOW?????? First NT Ach -1921 (The first neurotransmitter, acetylcholine, was identified in 1921 by Otto Loewi, who named it "Vagusstoff". He demonstrated that stimulating the vagus nerve of a frog's heart released a chemical that slowed the heart. Later, he and Henry Dale worked to identify that the substance was acetylcholine, and both shared the 1936 Nobel Prize for their work. ) EEG

Quantum-wave model Erwin Schrödinger (1926) Cerebral angiography -Egas Moniz in 1927 -injecting a contrast agent into the blood vessels to visualize them with X-rays, which was later used to see blood vessels around and in the brain. First commercial electron microscope

First Computer

Action potential

  • Alan Hodgkin and Andrew Huxley in the 1950s Hematopoietic stem cells,

MEG

MRI

DBS

fMRI

  1. Visual info can reach the Broca’s from the visual cortex without stopping at angular gyrus, meaning that word read does not have to be transformed into a pseudo-auditory response by angular gyrus
  2. The amount of damage to other subcortical structures e.g caudate nucleus and thalamus determines the severity of Broca’s and Wernicke’s, but these structures were not in the model (overstated the significance of a given cortical area for a particular function; Also, stroke patient who usually damaged other structures along with the areas, have worse symptoms than ppl in surgical cases with only that part of the cortex removed –other structures can be more important!)
  3. Ppl recover, both children and adults, e,g after stroke, and also it appears that other cortical areas can compensate for what is lost
  4. Most aphasia involve both comprehension and speech deficit (e.g Broca’s pt can’t understand complex tricky questions, maybe because can’t understand/ form functional words e.g on top of; (Broca’s ppt can say Bee and Oar but not be/or) Werknickes’ patient also have speech difficulties, paraphasic errors, sometimes use an incorrect word but one category similar to the correct words e.g elbow instead of knee) - In cortical processing, sharp functional distinctions between regions as implied by the model do not exist
  5. (Wernicke’s also affect ability to play music/write) Parallel Language Pathways (two dorsal streams one ventral) -Current model of language processing Dorsal 1st^ –speech production and repeating words, connecting sup temporal gyrus with premotor cortex Dorsal 2nd^ –connects sup. temporal gyrus with Broca’s, process complex syntatic structure (the analysis of words according to a grammar system) Ventral –takes the sound of speech and extract their meaning
